ELED Fresnel 50 CWArchive

Code 1236100006

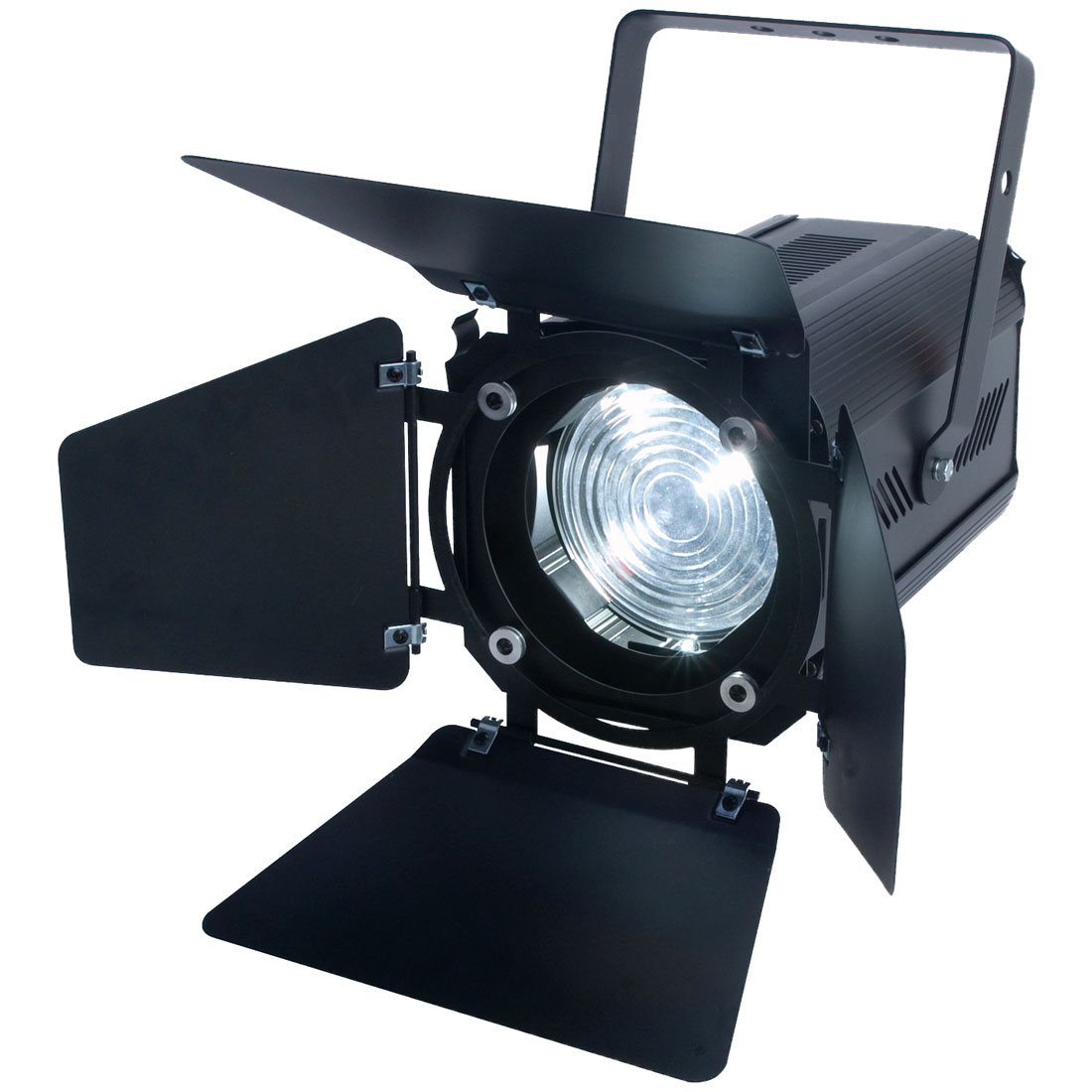

ELED Fresnel 50 CW

Technical Data

- 50W CW LED Light Source
- Replaces 300-500W Halogen Lamps
- Amazing 10° to 50° Zoom Range
- Fully DMX Controllable
- Only 75W Total Power Draw
- Ultra Silent Fan Cooling
- Barndoors Already Included

The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 50W LED light source (500W halogen equivalent) and an amazing zoomrange it offers reliable, easy and cost saving lighting in Clubs, Theatres, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine an "unbreakable" lightsource and ultralow heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmerracks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.

Specifications

- 50W, 6.000°K White LED Module
- 50Watt Cold White Theatre Fresnel
- 300-500W Halogen Equivalent

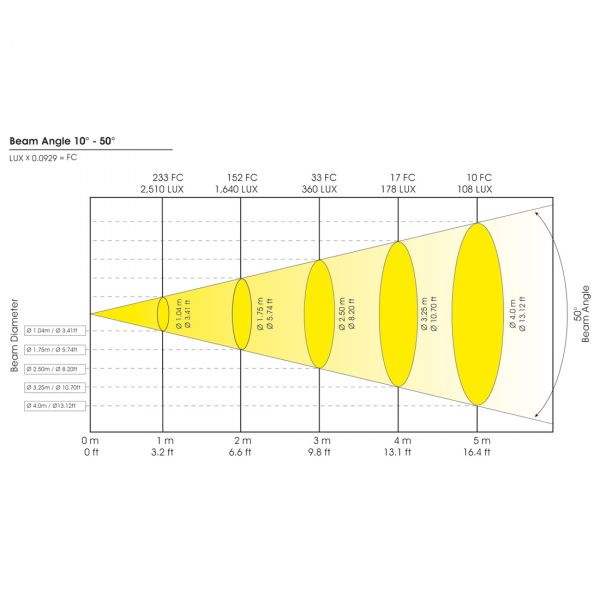

- 10° to 50° Manual Zoom
- Flicker free operation for television and film
- LED Menu Display
- USITT DMX 512
- Internal DMX Control for Dimmer
- 2 DMX Modes: 1 Ch. or 2 Ch. Mode
- Manual, Auto, & DMX control
- Holds last state when power off
- 0-100% Dimming
- Strobe Effect
- 3 & 5 pin XLR in/out
- Silent Fan Cooling
- Mounting bracket and safety I-hook installed
- 75 Watt Total Power Draw
- Barndoors included
- Filterframe included
- Electronic, multi-voltage Power Supply 90- 240V, 50/60Hz

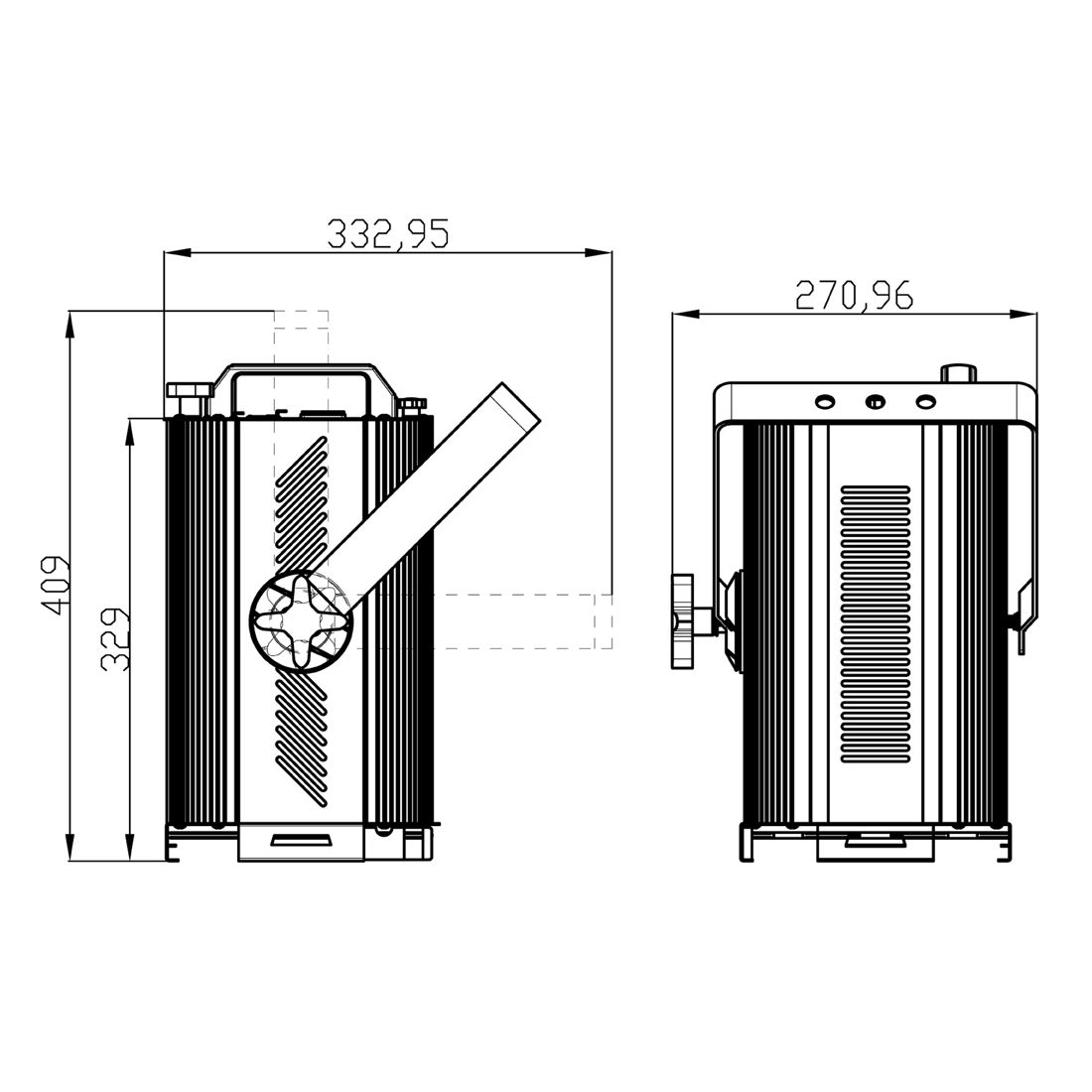

- Dimensions(LxWxH): 368mmx250mmx368mm
- Weight: 5.3 kg

Specifications and documentation subject to change without notice
