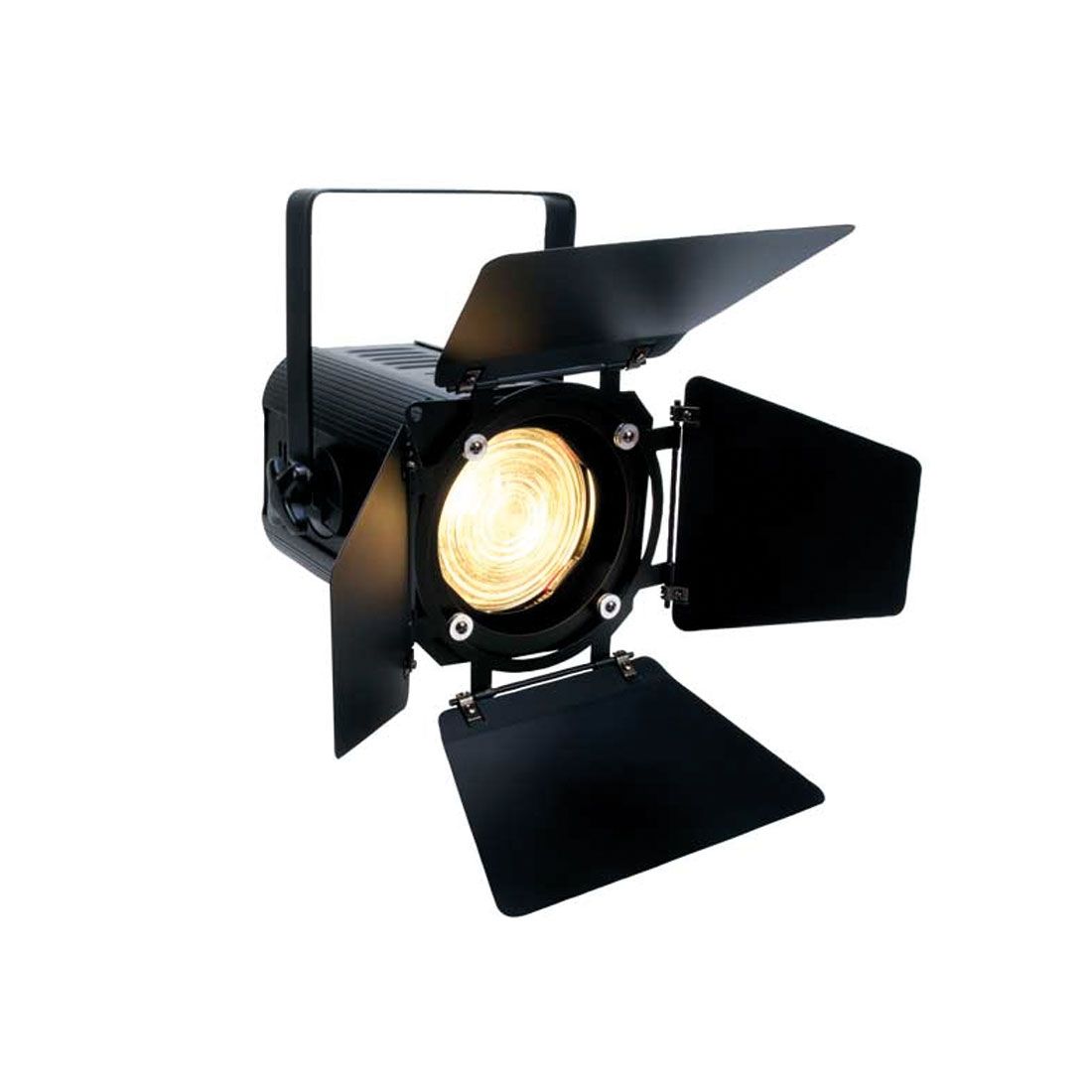

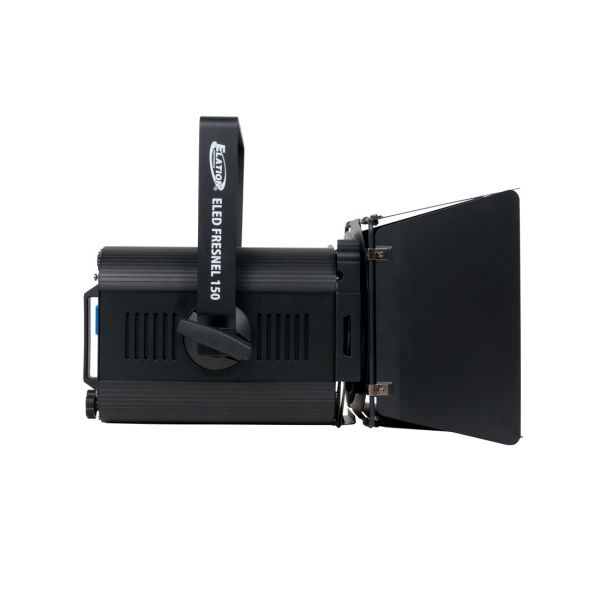

ELED Fresnel 150

The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 150W LED light source and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine an “unbreakable” light source and ultra-low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.



Technical Data

FEATURES

10° - 50° Manual Zoom
Silent Fan Cooling
Barn Doors and Filter Frame Included
Flicker FREE Operation for TV and FILM
Rotating Barn Door and Frost Filter


SOURCE

150W 4,500K Bridgelux LED Engine
50,000 Hour Average Life


PHOTOMETRIC DATA

979 LUX @ 3M 50° Full ON



EFFECTS

Variable Strobe Settings (1-18 fps)
Electronic Dimming (0% - 100%)

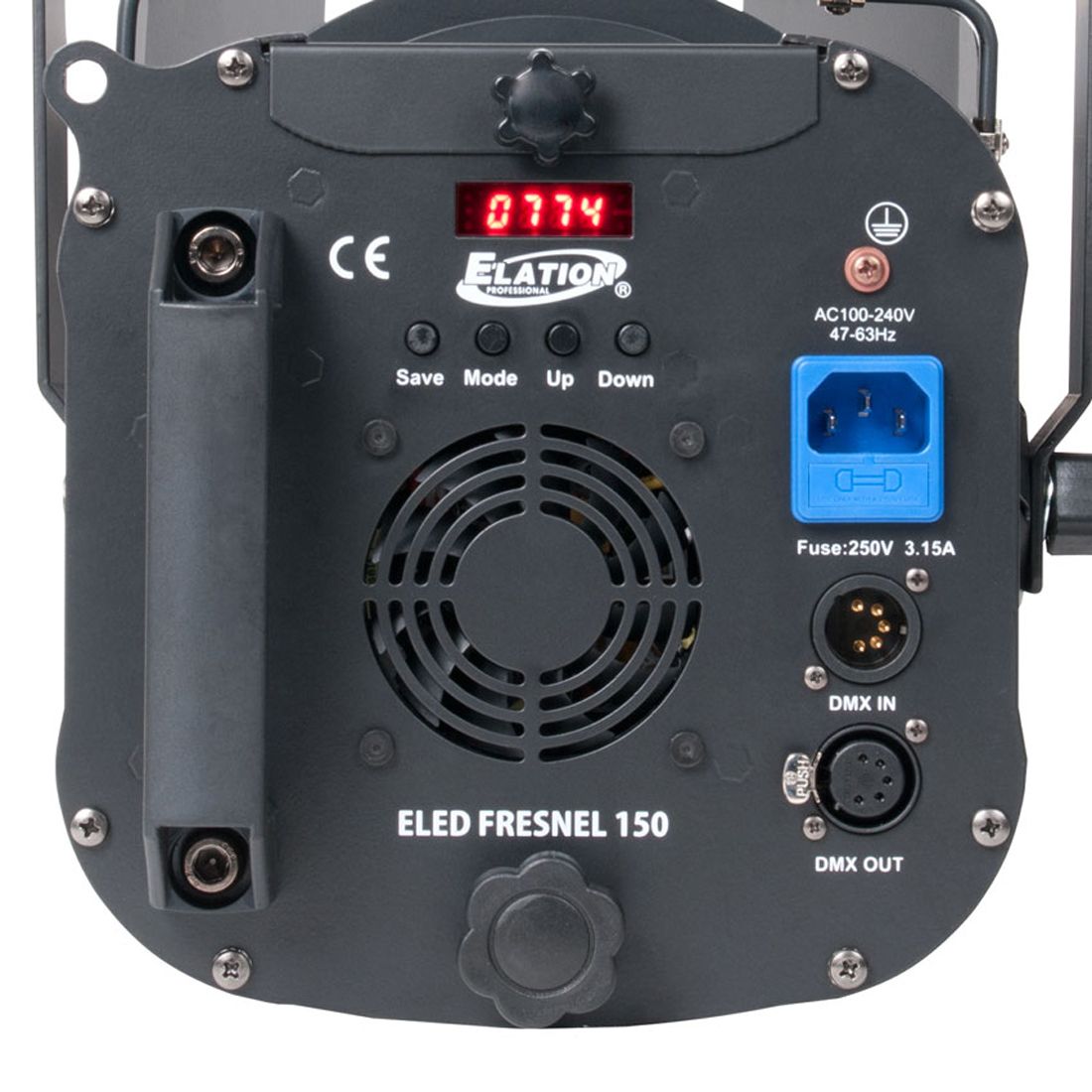

CONTROL / CONNECTIONS

(4) Button Control Panel LED Menu Display
2 DMX Channels Modes (1/2)
Locking 5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 260mm
Width: 330mm
Height: 342mm
Weight: 6,8kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
170W Max Power Consumption
-10° to 45°C

Specifications and documentation subject to change without notice
