Code 1236200013

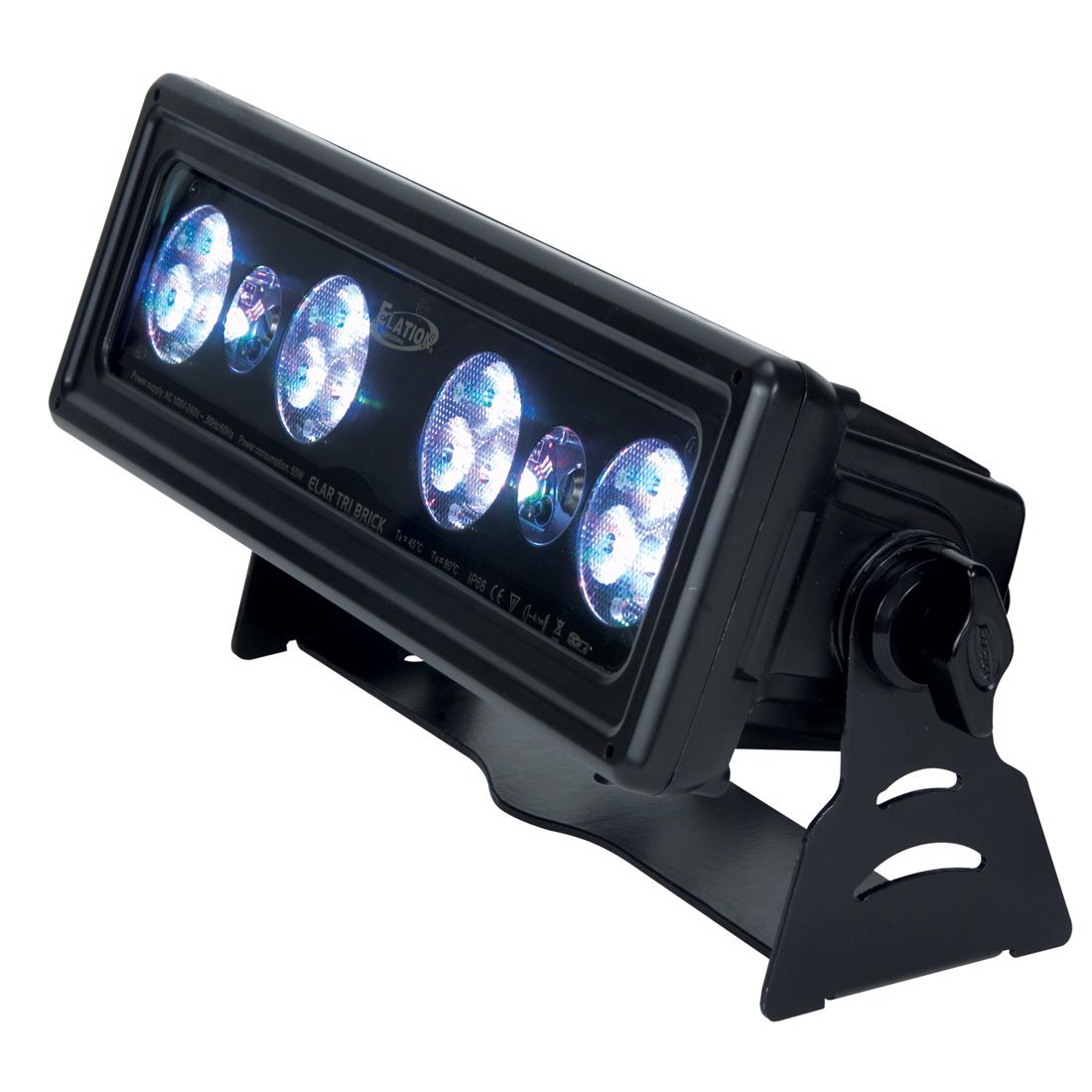

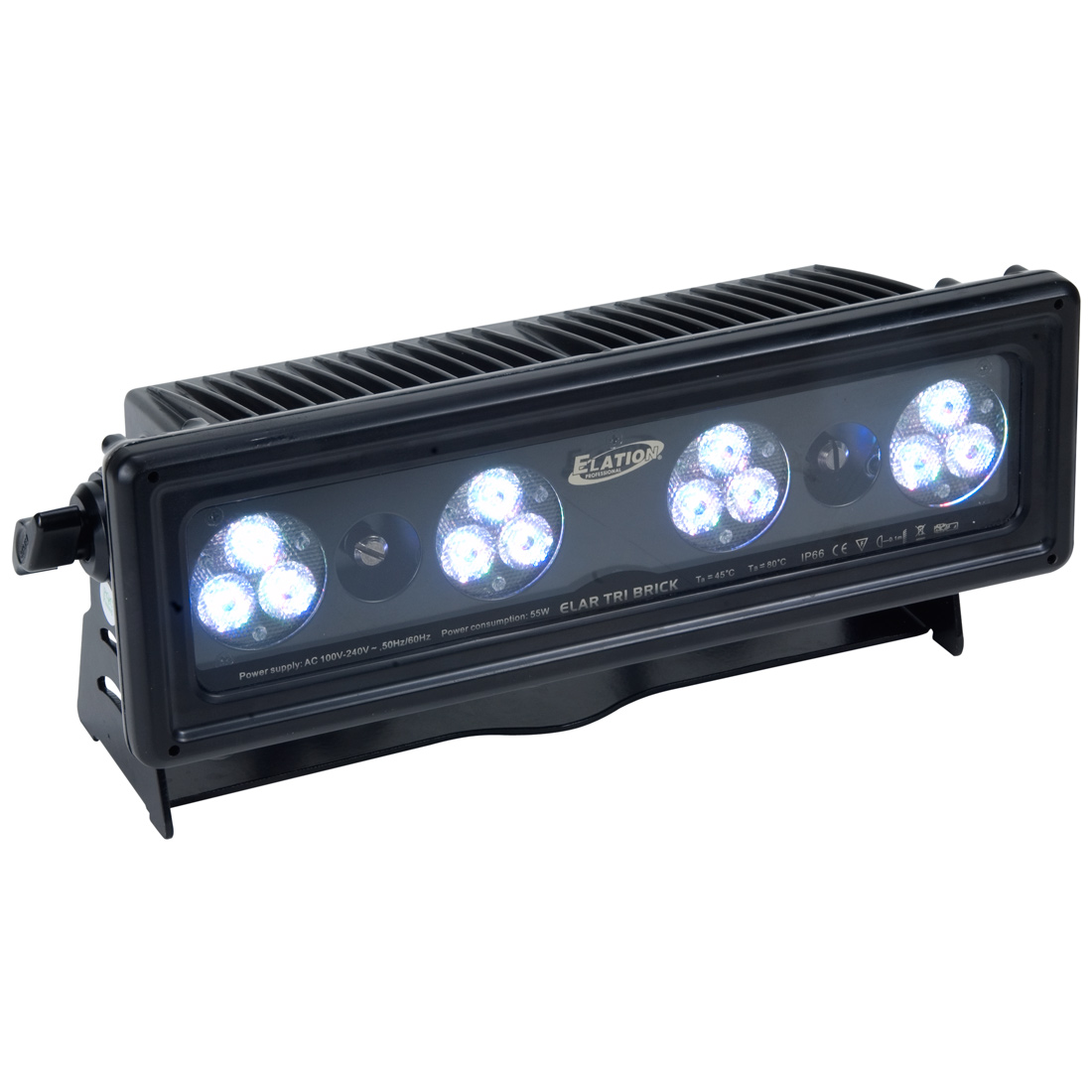

ELAR TRI BRICK

Technical Data

- 12x3W TRI LEDs (= 36W Power)
- 35° beam angle
- IP 66 outdoor rated
- Superior color mixing
- Stand-alone programs
- No-service convection cooled
- Linkable Power in/out and DMX

Specifications
- 12 x 3W Tri Color LEDs
- Smooth Color Mixing with optimized color output
- Long Life L.E.D. (rated at 50,000 Hours)
- 692 Lux @ 3m @ Full
- 25° Lens Kit Standard produces a 18° beam angle with 35° Field Angle
- 45° / 24° and 60° / 31° lens kits /beam angles optional available
- Control each pixel independently
- Rugged Design IP 66 Aluminum Case
- Flicker free operation for television and film
- 4 button LED Menu Display
- USITT DMX 512
- 3 DMX Modes - 3/6/15 Channels DMX
- Auto Programs and Manual Control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- 3-pin and 5-pin XLR adaptors included
- Passive cooling
- Mounting bracket installed
- Power in/out linkable up to 16 fixtures
- Electronic Switching Power Supply
- Power Consumption: max. 40 watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 440x180x290 mm
- Weight: 3.6 kg

Specifications and documentation subject to change without notice
