  • ELAR QUAD STRIP
Code 1236200023

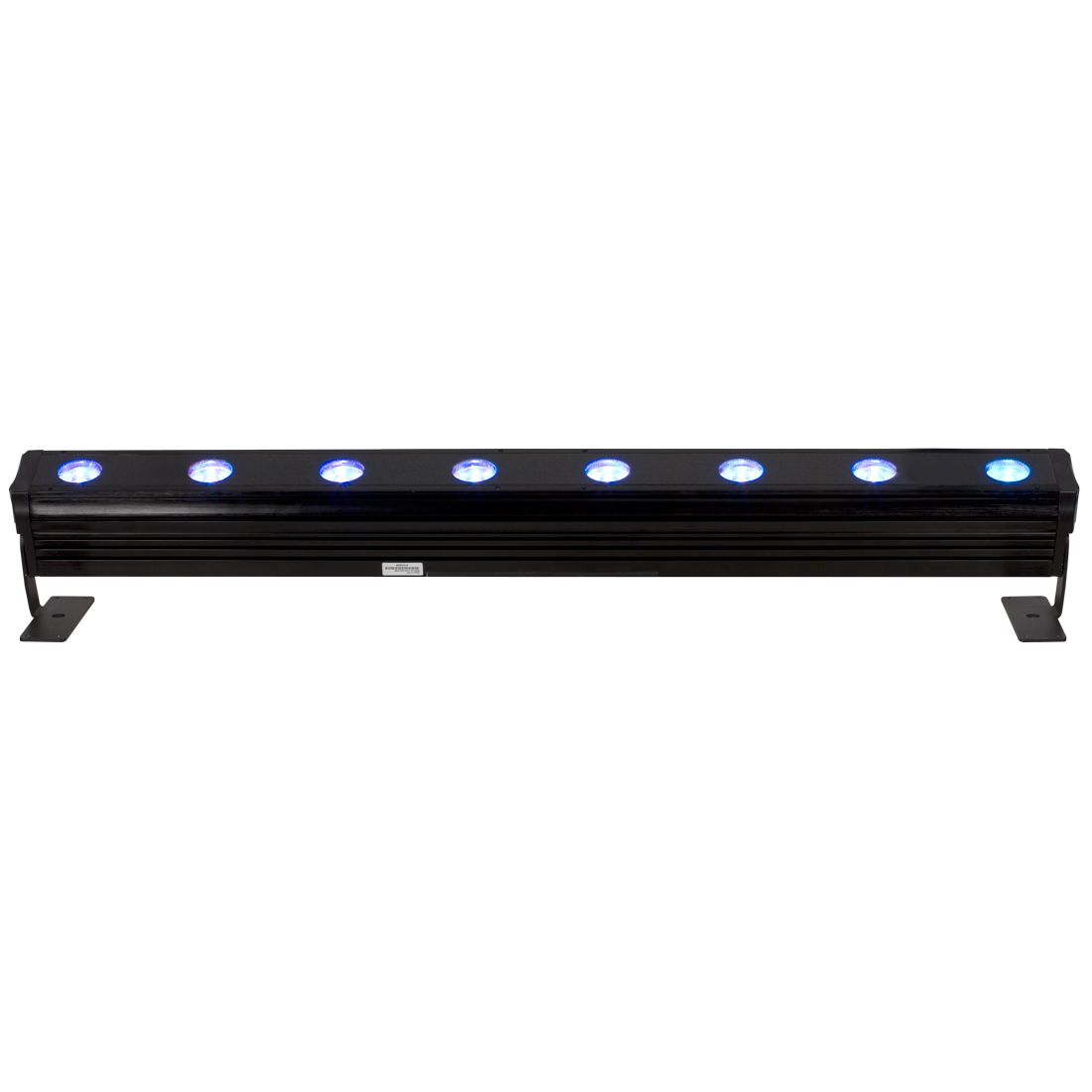

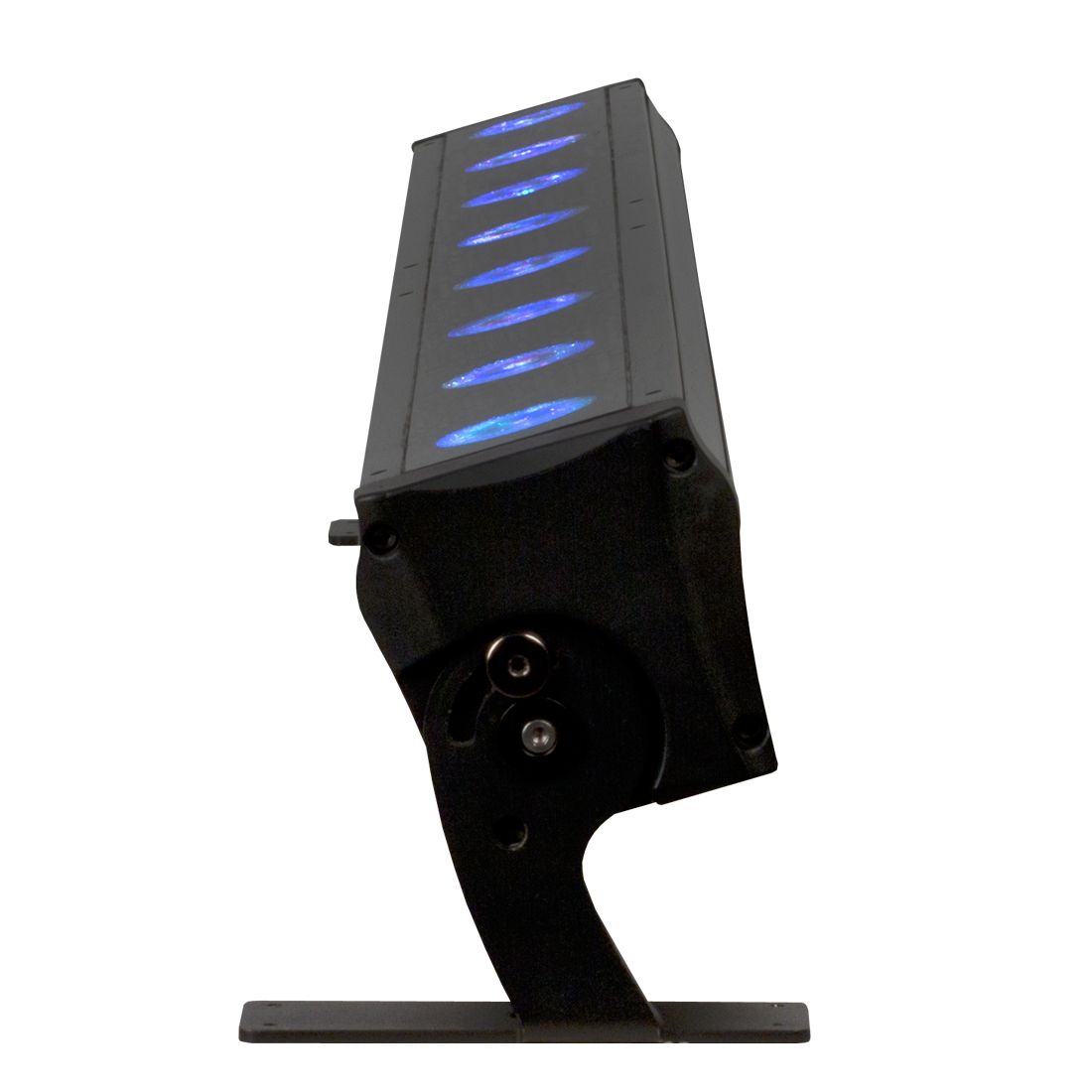

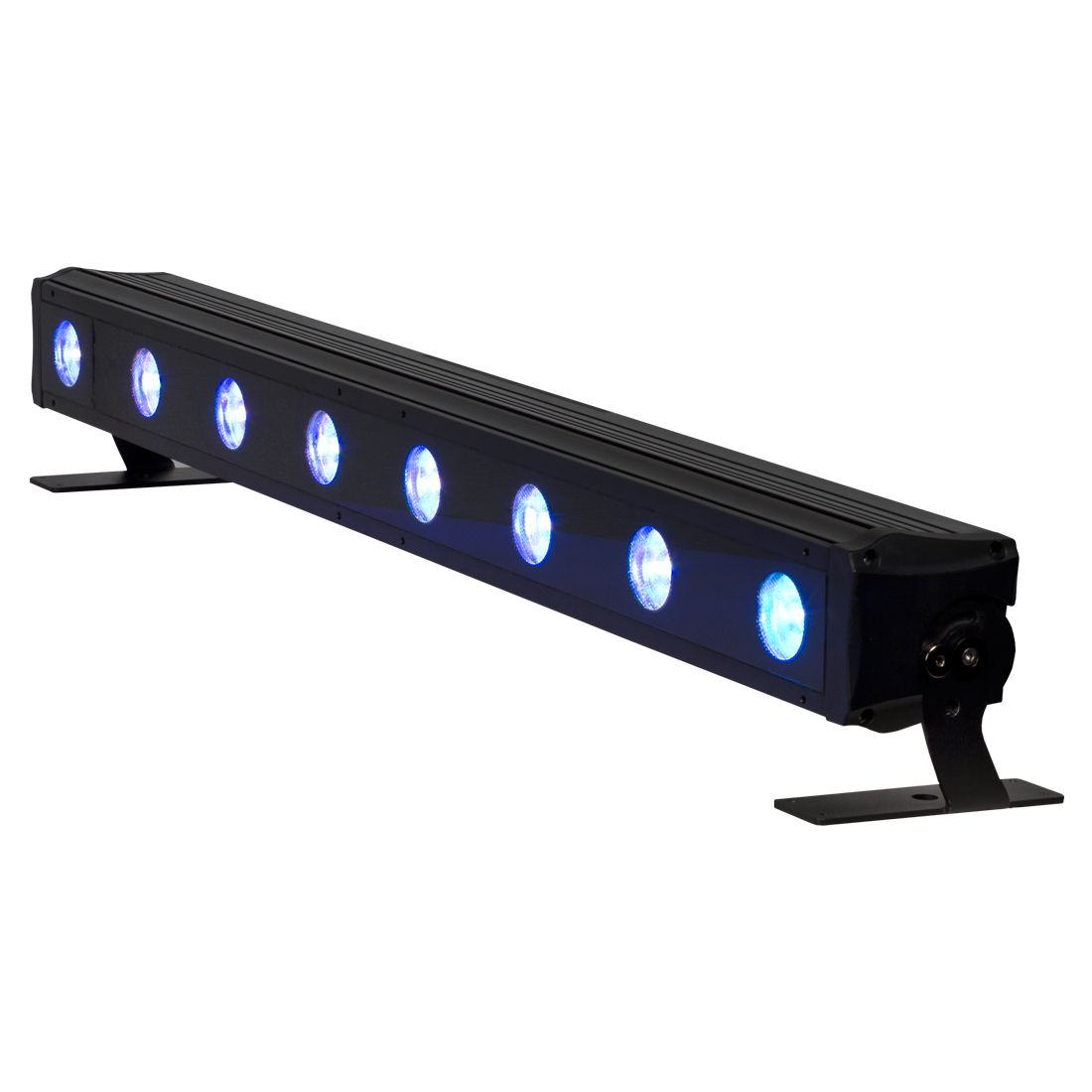

ELAR QUAD STRIP

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Elar Quad Strips from Elation Professional.

Technical Data

FEATURES

IP65 Rated
11° Beam 21° Field Angles
Single Pixel Control
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking


SOURCE

(8) 10W QUAD Color CREE RGBW LEDs
100,000 Hour Average Life


PHOTOMETRIC DATA

3,456 LUX @2,5M


EFFECTS

Electronic Strobe 1-18FPS
Color and Chase Macros
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(6) DMX Channel Modes (4/5/6/8/16/32)
(4) Button Control Panel
Color LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out


SIZE / WEIGHT

Length: 1000mm
Width: 144mm
Vertical Height: 162mm
Weight: 10kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
137W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice

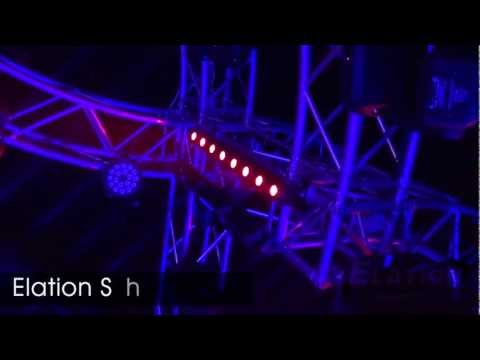

Videos

Downloads

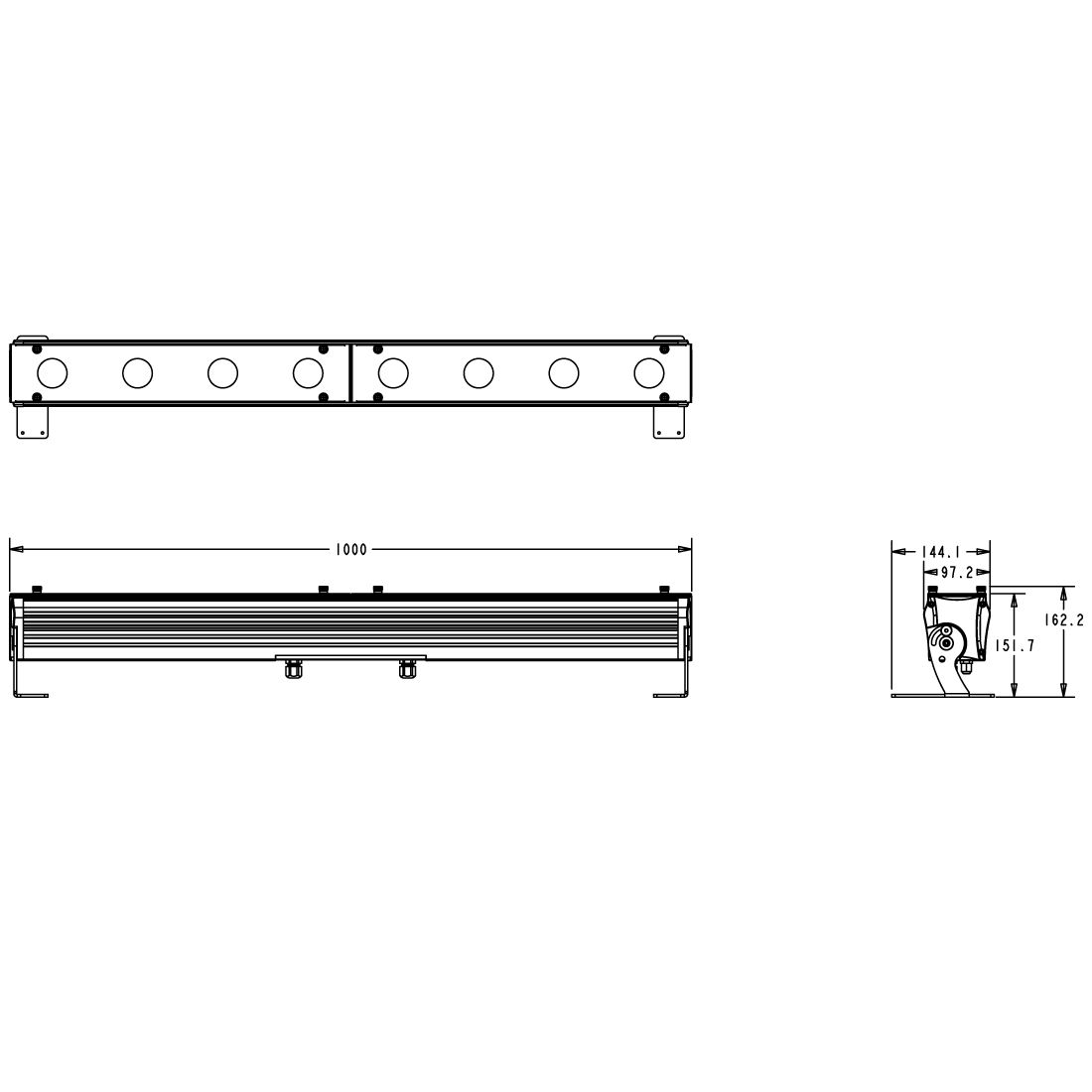

Dimensional Drawings

ELAR QUAD STRIP Dimensional Drawings

DMX Traits

ELAR QUAD STRIP DMX Traits

Additional Downloads

ELAR QUAD STRIP IES Files

Specification Sheet

Specification Sheet

User Manual

User Manual
