FEATURES

IP65-Rated Dust and Water Protection

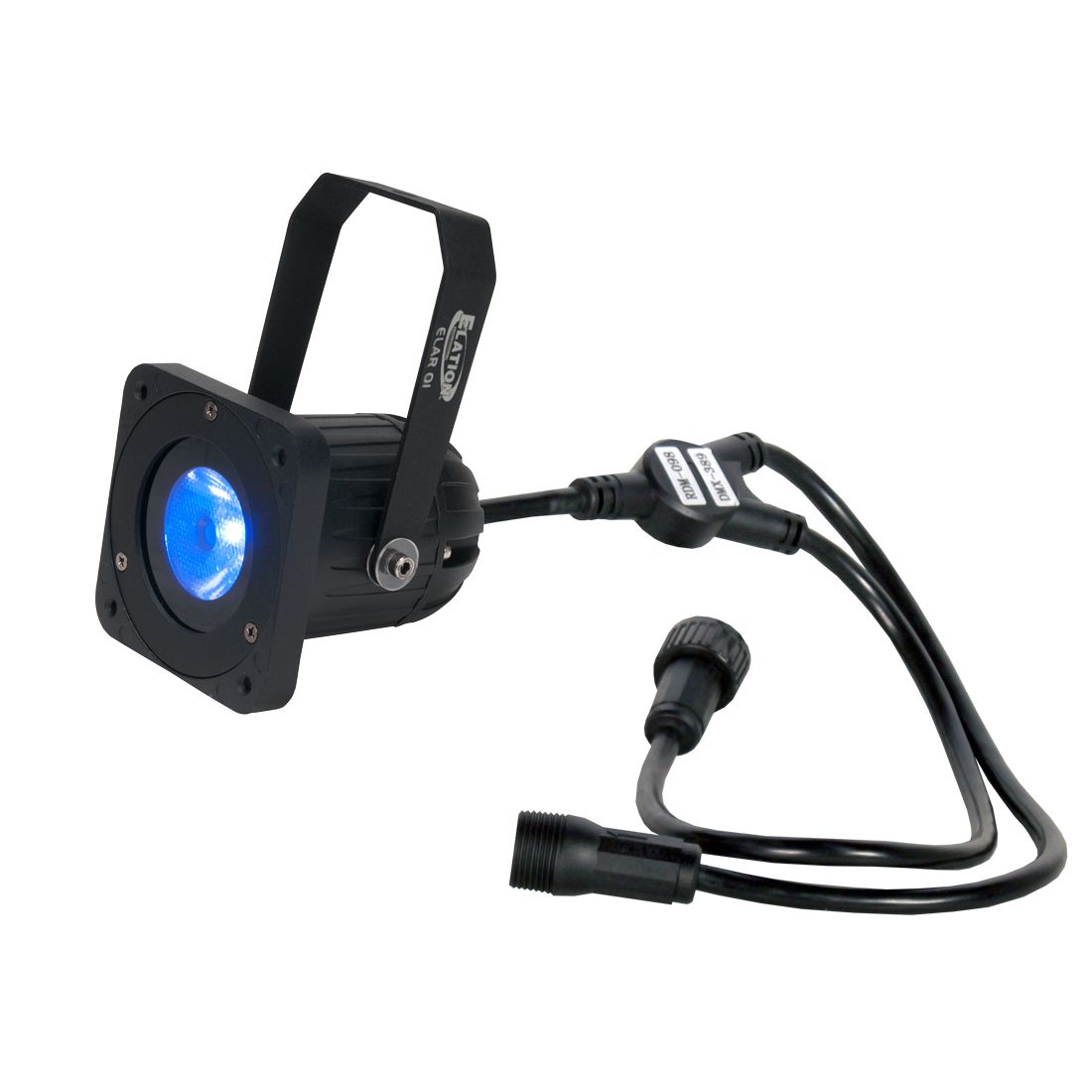

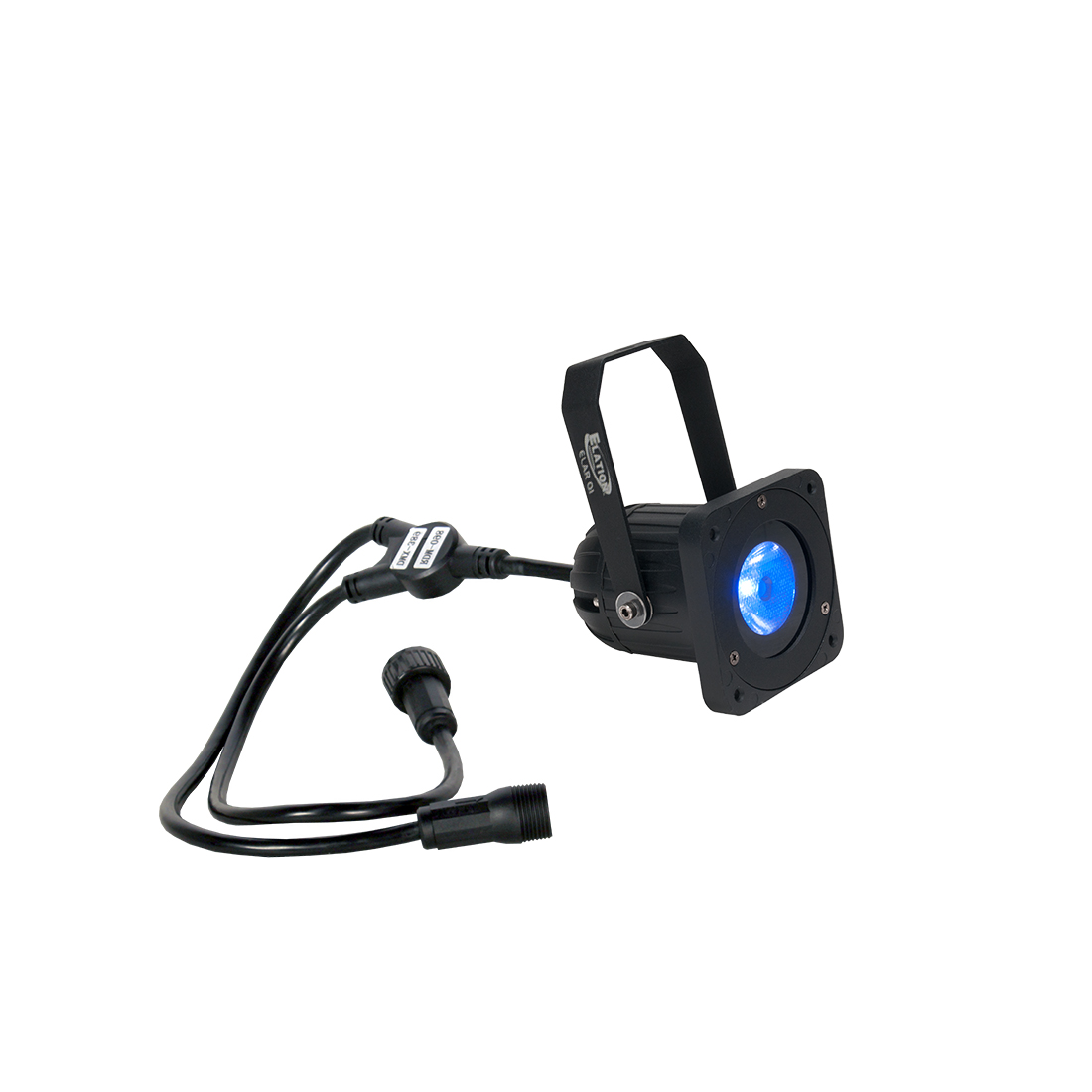

Multi-Color LED Par Luminaire
Single Source RGBW LED
Direct DMX Auto Addressing Option
7° Beam, 14° Field Angle
Single Yoke / Floor Stand or Flush Mounting Options
No Fans, Silent Operation
Flicker Free Operation for Broadcast TV and Film

SOURCE

18W RGBW Multi-Chip LED
100,000 Average Hour LED Life*

PHOTOMETRIC DATA

1,170 LUX 109 FC @ 9.8’ (3m)

COLOR

RGBW Multi-Chip LED

CONTROL / CONNECTIONS

4 DMX Channels
8pin Data/Power Combo IP Cables In/Out

SIZE / WEIGHT

Length: 3.8” (96mm)
Width: 2.9” (73mm)
Vertical Height: 2.9” (73mm)
Weight: 1.1 lbs. (0.5 kg)

ELECTRICAL / THERMAL

24VAC
18W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Multiple Unit Linkable (Max 15 units per ELAR Q1 PSU™)

OPTIONAL ACCESSORIES

Elar Q1 PSU

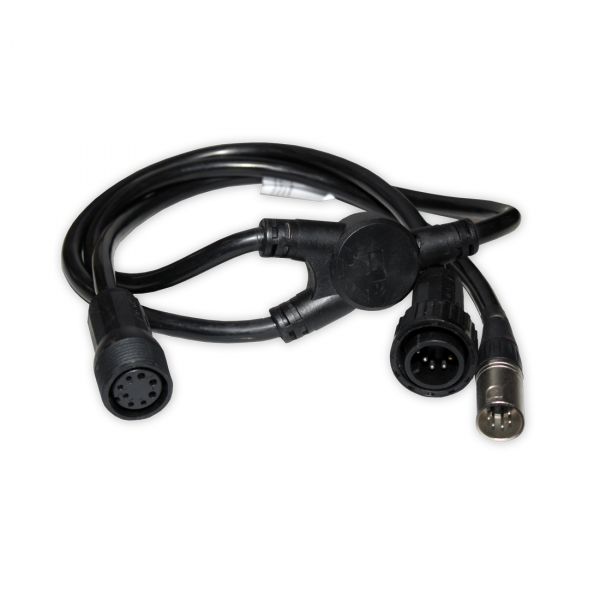

Elar Q1 Starter Y-Cable
Elar Q1 Extension Y-Cable
Elar Q1 1m First Power Cable
Elar Q1 1m Power/Data Ext. Cable
Elar Q1 3m Power/Data Ext. Cable





*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
