Code
1236200002
- 243 x 10mm high power LEDs
- 40° beam angle
- Outdoor rated
- DMX controllable
- IR remote controllable
- No-service convection cooling
- Die-cast aluminum housing
Specifications

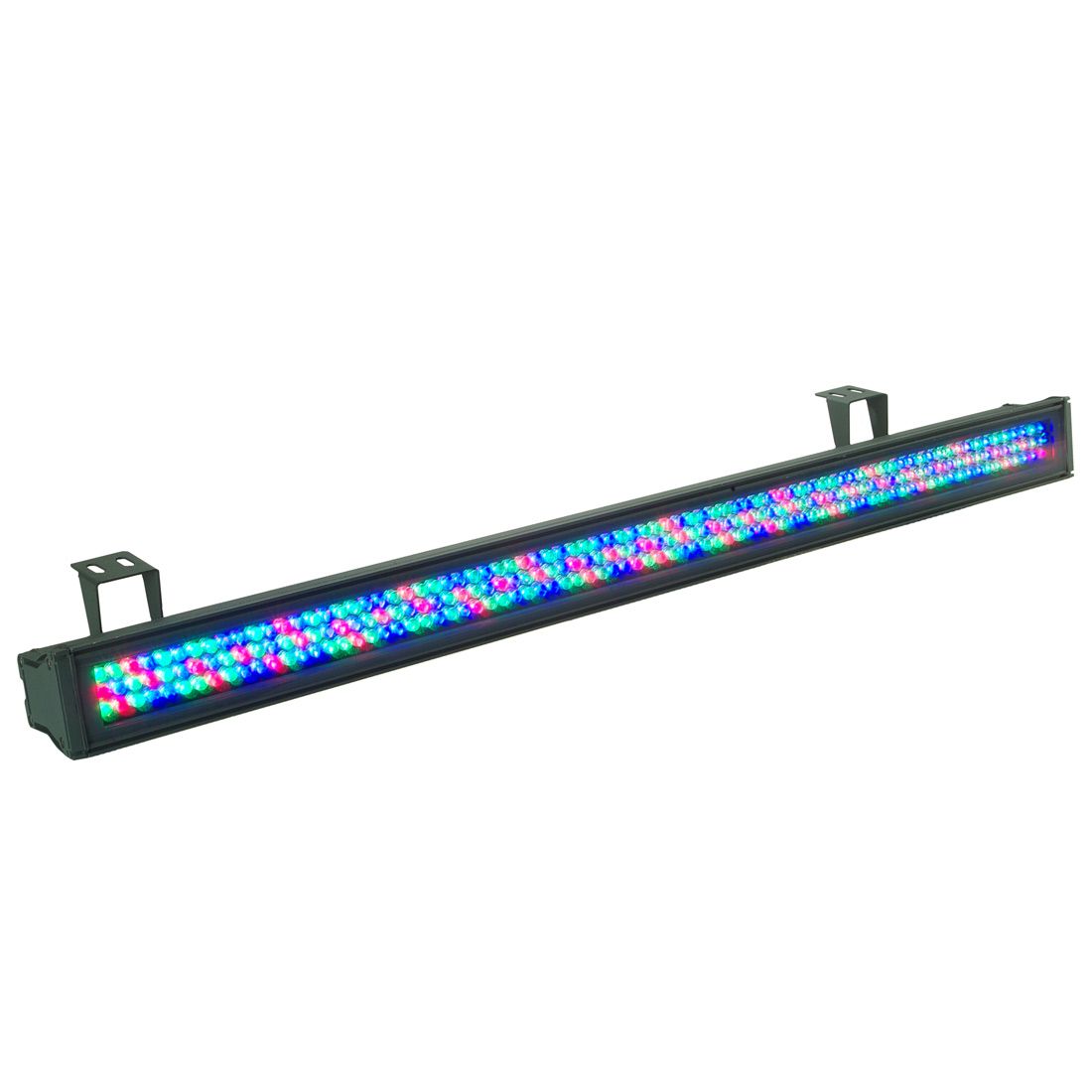

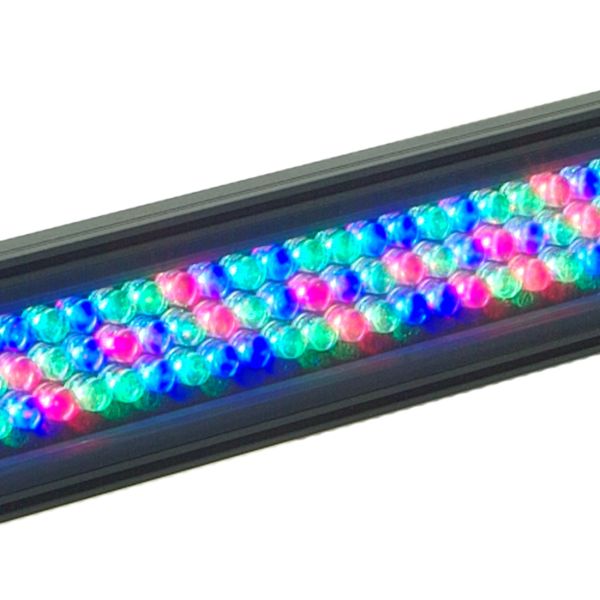

- High output LED RGB 1-meter outdoor bar- 243 x 10mm LEDs (51 Red, 102 Green, 90 Blue)
- RGB Color Mixing (infinite colors)
- Power / Data linkable
- Internal power supply
- IP 44 outdoor rated
- DMX-512 or stand alone
- 2, 3, 4, 6, 7, 9 and 11 DMX Channel mode
- 0-100% Electronic Dimming
- Strobing slow to fast
- Beam angle: 40 degree
- Die-cast aluminum housing
- UV protected front Plexiglas
- Power Consumption: 30W
- Includes two moveable mounting brackets

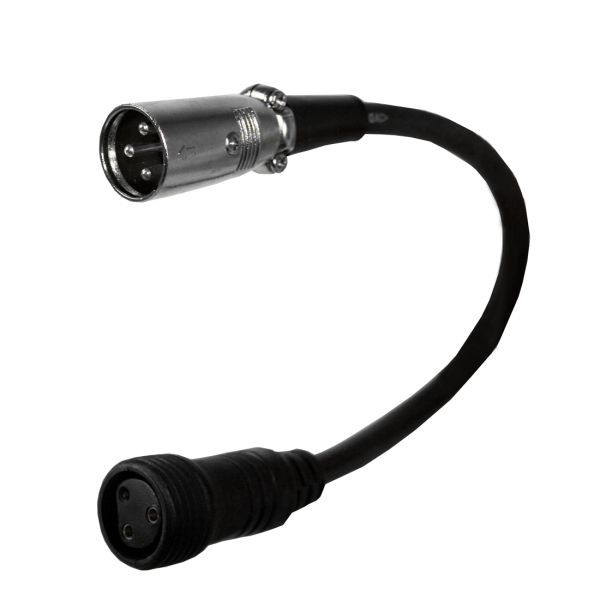

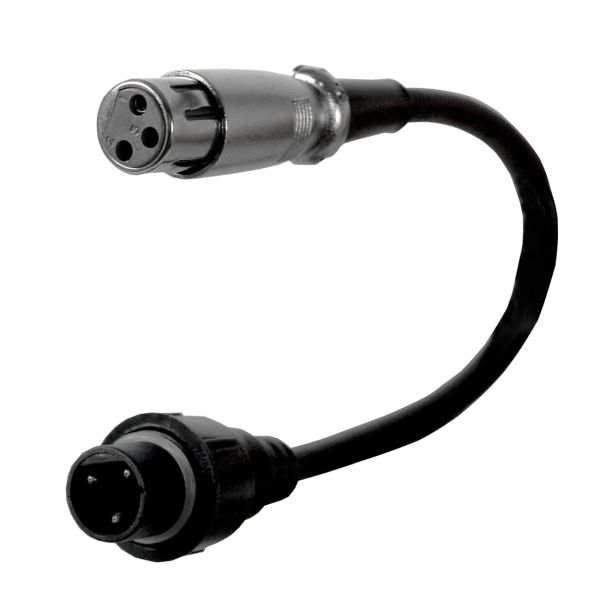

- incl. DMX adaptercable out- to indoor and indoor to outdoor (~ 20cm)
- Optional ELAR WR wireless infrared remote
- Voltage: 100V ~ 240V, multi-voltage

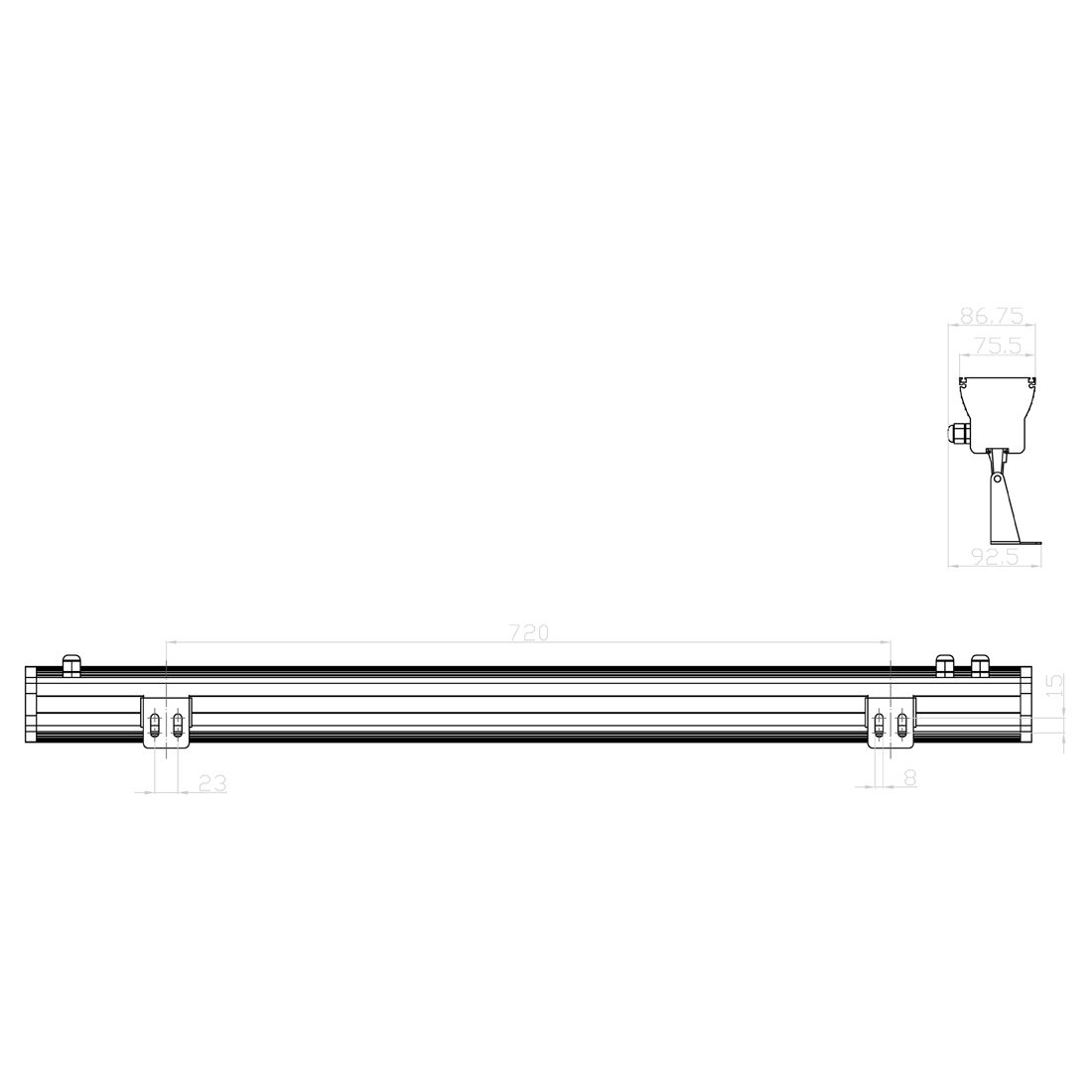

- Dimensions(LxWxH): 1000x80x80mm
- Weight: 4.5 kg
The ELAR-unit is preset to DMX Adress "1".
- Starting Adress and DMX mode can be selected via the optional remote
- To controll the ELAR-unit with DMX the optional "indoor" to "outdoor" adapter is needed
- To connect several ELAR-units with DMX, special outdoor XLR Cables are needed
Specifications and documentation subject to change without notice
