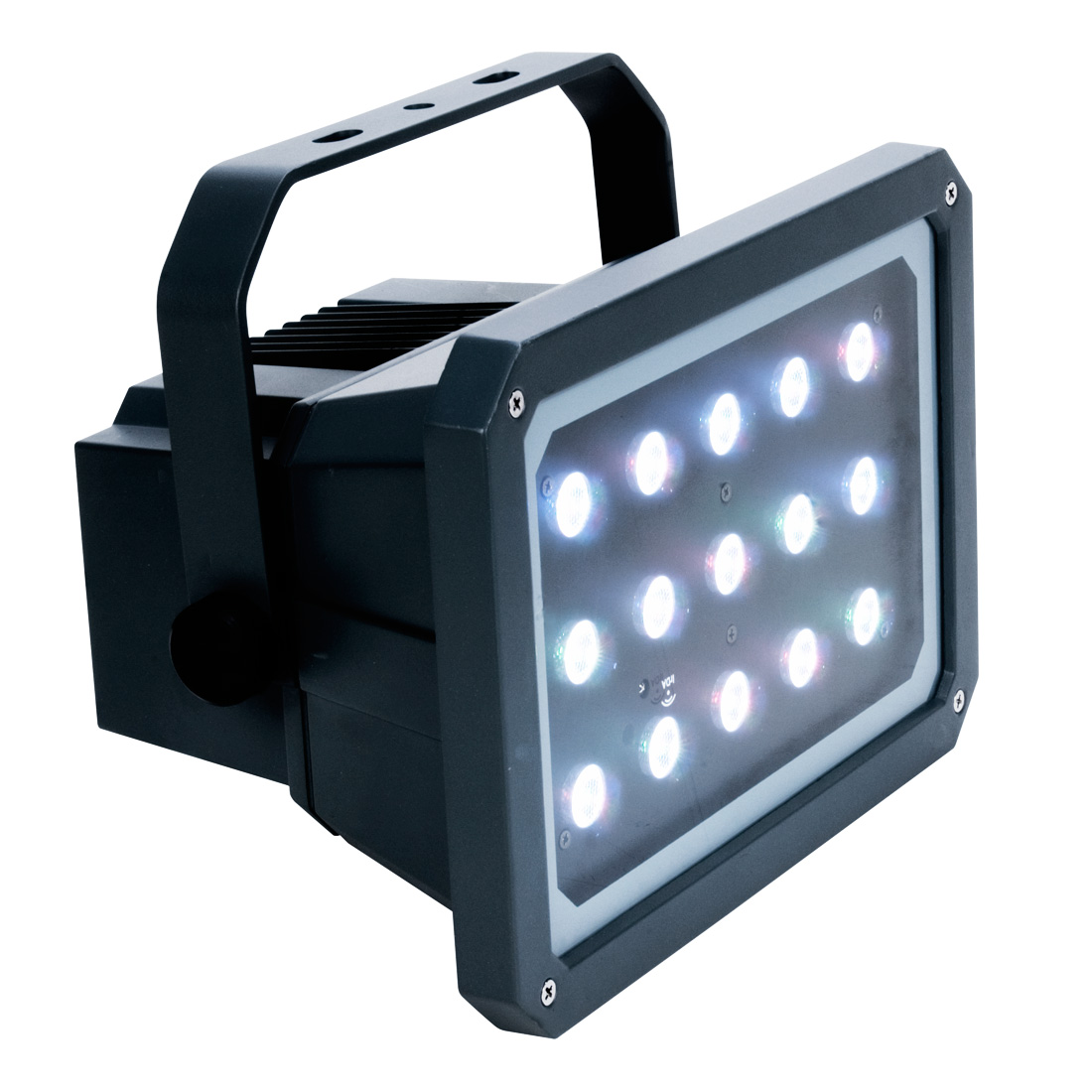

ELAR EX TRIFLOOD

The Elar EX Tri-Flood from Elation Architectural is an IP65 rated exterior LED Flood featuring tri-color RGB LED diodes. With a total power consumption of 60Watts the Elar EX Tri-Flood is an energy effi cient fi xture capable of providing a smooth wash effect. Set up and control is done via a wireless remote IR receiver which is on the face of the unit. Once set up, the unit can be operated from DMX with 4 different DMX control modes, and features built in macro programs all of which can be accessed via DMX or the optional wireless remote IR controller. The Elar EX Tri-Flood has been designed and built with a rugged aluminum die cast housing and internal thermal protection to ensure long life and operation.

Technical Data

Additional Elar WR is needed to enter DMX address or to control the unit

Product Features

- 15x 3W TRI LEDs (= 45 W Power)

- 40° beam angle

- IP 65 outdoor rated

- Stand-alone programs

- Superior color mixing

- No-service convection cooled

- No colored shadows

Specifications

- 15 x 3 Watt Tri Color LEDs RGB (3-in-1)

 - 40° Beam Angle

 - IR Wireless Remote Setup and DMX control

 - IP 65 Rugged Die Cast Aluminum Case Design

 - USITT DMX 512

 - DMX Channels: 6 DMX Channels,

 - 4 DMX Modes: 3, 4, 5 or 6

  - Internal programs, dimming mode, auto run, master slave

 - Built in Microphone

 - Holds last state when power off

 - No external controls

 - Daisy Chain Units Together in DMX Mode

 - Electronic Switching Power Supply

 - Power Consumption: 60W

 - Power Supply: 90V ~ 240V/60~50Hz

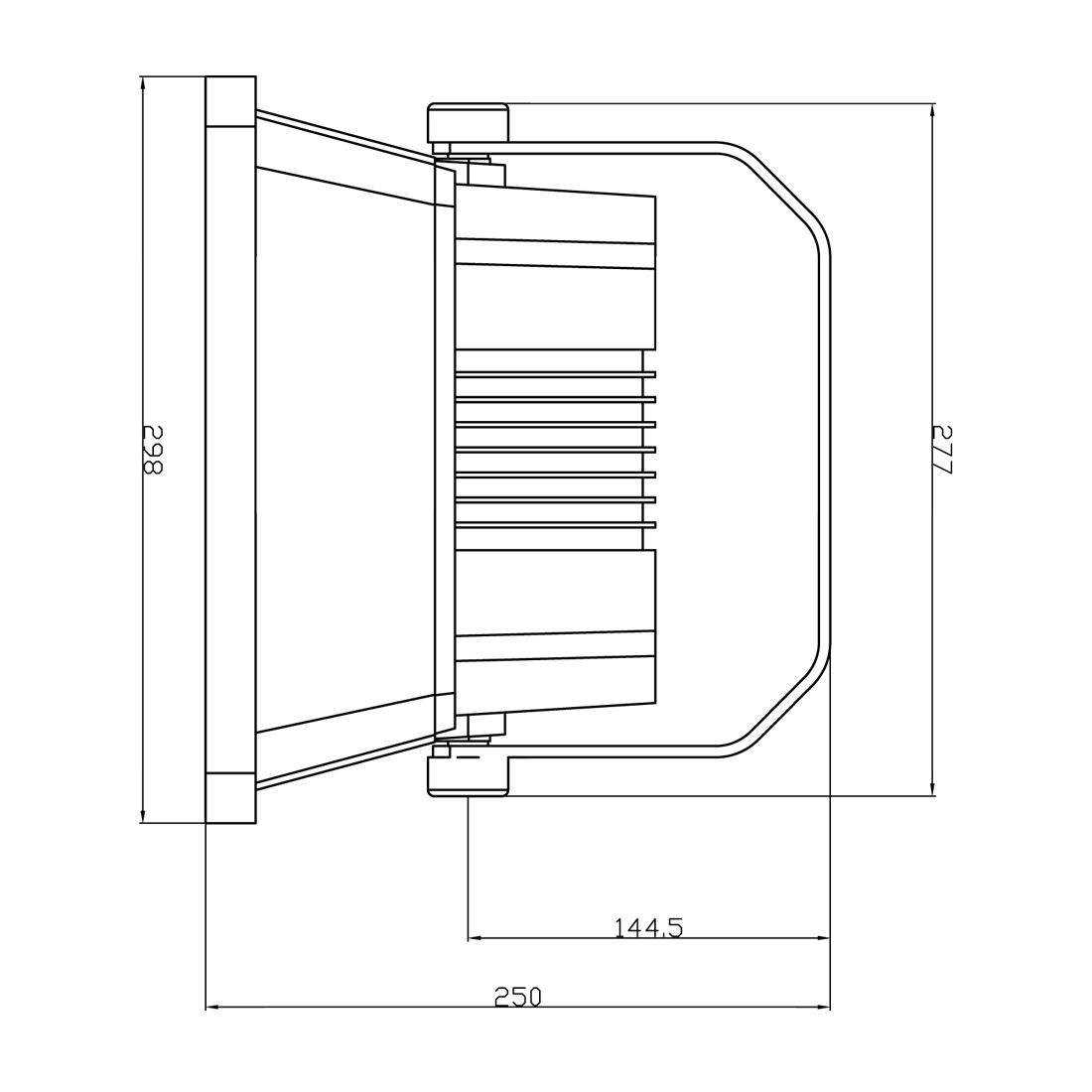

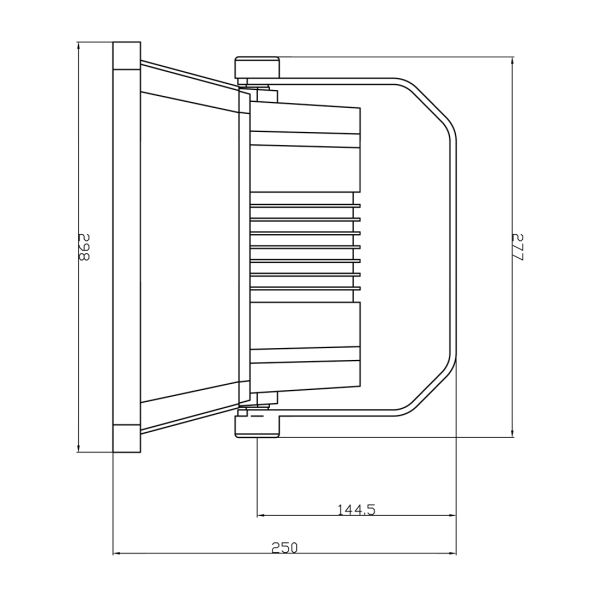

 - Dimensions: 178 x 305 x 241mm

 - Weight: 4.5 Kg

 - ELAR WR is sold separately





Specifications and documentation subject to change without notice
