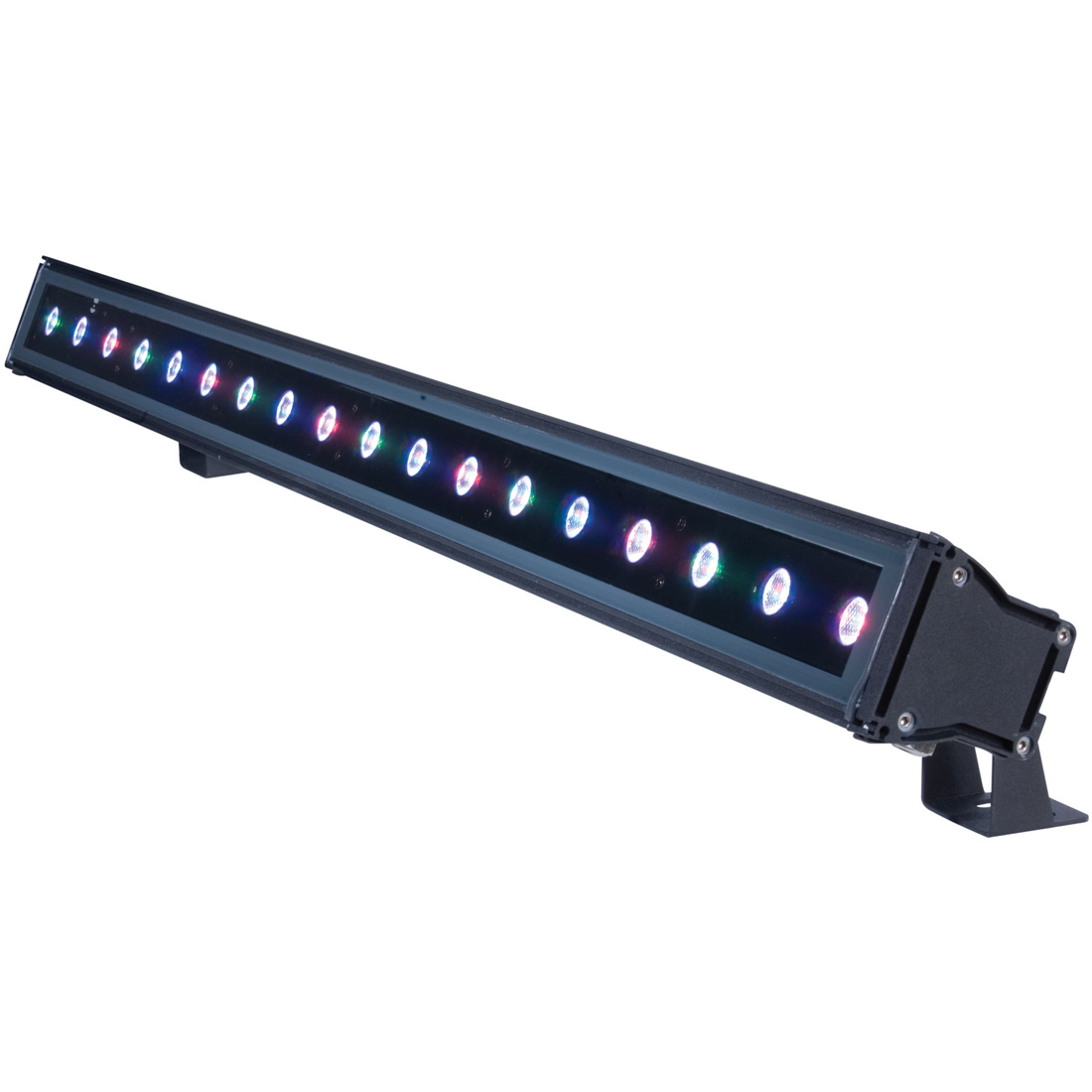

The Elar EX Tri-Bar from Elation Architectural is a one meter long IP65 rated exterior linear LED fixture featuring tri-color RGB LED diodes. With a total power consumption of 80Watts the Elar EX Tri-Bar is an energy efficient fixture capable of providing a smooth linear wall wash effect. Set up and control is done via a wireless remote IR receiver which is on the face of the unit. Once set up, the unit can be operated from DMX with 4 different DMX control modes, and features built in macro programs all of which can be accessed via DMX or the optional wireless remote IR controller. Designed and built with a rugged aluminum die cast housing and internal thermal protection to ensure long life and operation.

Technical Data

Additional Elar WR is needed to enter DMX address or to control the unit

Product Features

- Tri Color LED Exterior IP65 Tri Bar

- 18 x TRI Color LED’s

- 40° Beam Angle

- IP 65 Rugged Die Cast Aluminum Case Design

- IR Wireless Remote Setup and DMX control

- Selectable built in programs, dimming mode, auto run, DMX mode or master slave

- DMX Channels: 11 DMX Channels, 4 DMX Modes: 3, 4, 9 or 11

- Cooling: Thermal overheat protection built in

 Electrical Specifications

- Power Supply: 90-240v / 50-60hz

- Power Consumption: 80W

- Operating temperature: -20c to +40c

- LED Lamp Life Rating: 50,000 hours

- Dimensions: (LxWxH) 1000 x 80 x 75mm

- Weight: 5.1 Kg


Specifications and documentation subject to change without notice
