  • ELAR Driver 1 PRO
Code 1323000003

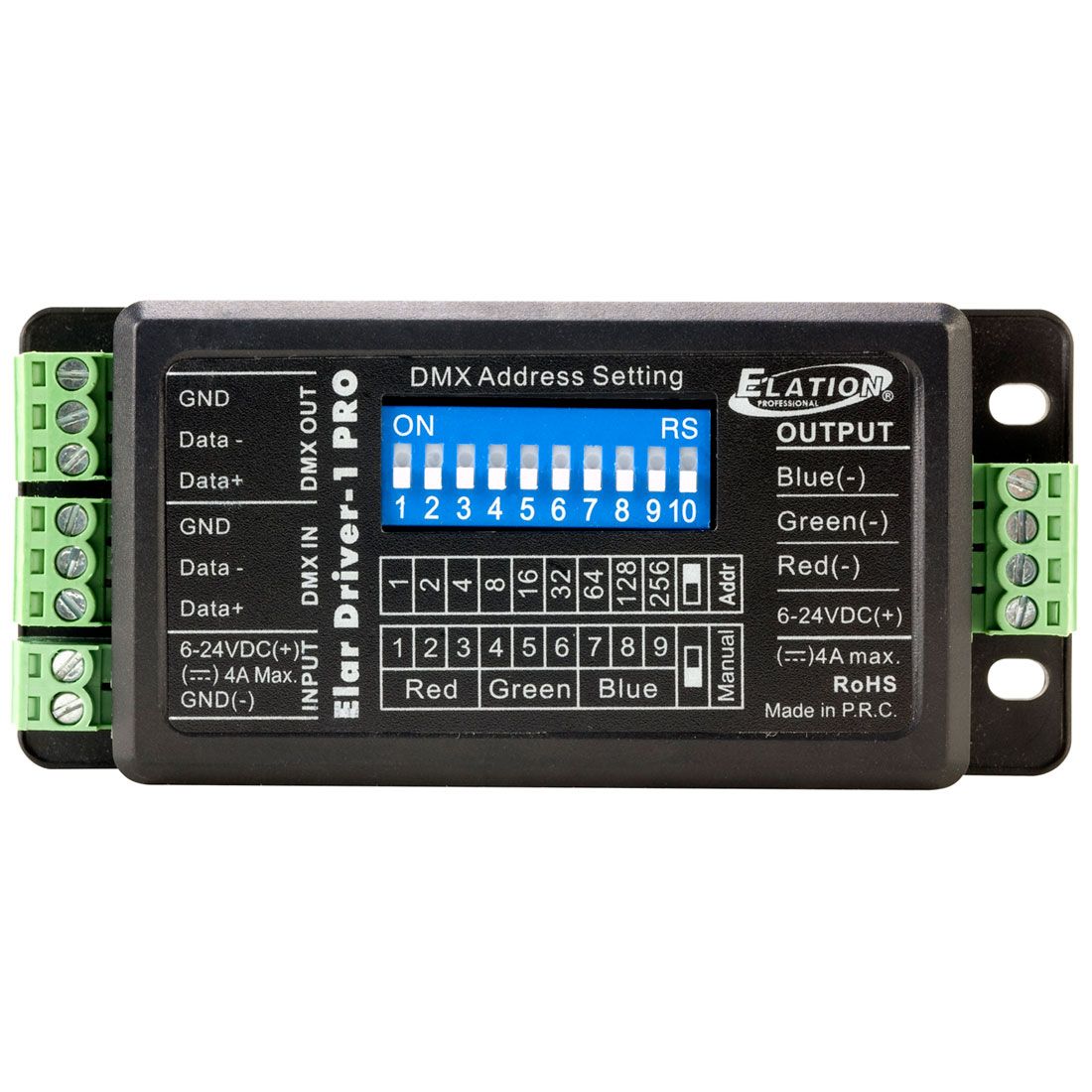

ELAR Driver 1 PRO

The ELAR DRIVER1 PRO™ is a RGB LED driver which provides 3 channel RGB control and flicker free 2,000 Hz PWM dimming via DMX-512 and manual RGB variable intensity control via onboard dip switches. The driver is contained in a compact polycarbonate housing and includes 12-14 AWG wire terminal blocks for 2-pin power, 3-pin DMX in/out, and 4-pin LED connections, dip switches for DMX addressing, and is powered by 6-24VDC 5A. Its small compact design allows for easy mounting and integration into any system and includes a linking clip to attach additional drivers together.

Technical Data

FEATURES

Compact RGB LED Driver
3 Channel RGB DMX-512 Control
Manual RGB Variable Intensity Control
Flicker Free 2,000 Hz PWM Dimming via DMX-512
12-14 AWG Wire Terminal Block Connections
6-24VDC 5A Power Requirement


CONTROL / CONNECTIONS

DMX IN via 3pin Terminal Block (included)
POWER IN via 2pin Terminal Block (included)
DMX OUT via 3pin Terminal Block (included)
DMX/POWER OUT via 4pin Terminal Block (included)


SIZE / WEIGHT

Length: 3.5” (90mm)
Width: 1.6” (39.9mm)
Height: 0.8” (20mm)
Weight: 0.12 lbs. (0.05kg)


ELECTRICAL / THERMAL

Refresh Rate 2,000 Hz
Power Input 6-24VDC 5A
Power Output 6-12VDC 5A Max | 24VDC 4A Max
32°F to 104°F (0°C to 40°C)

Specifications and documentation subject to change without notice
