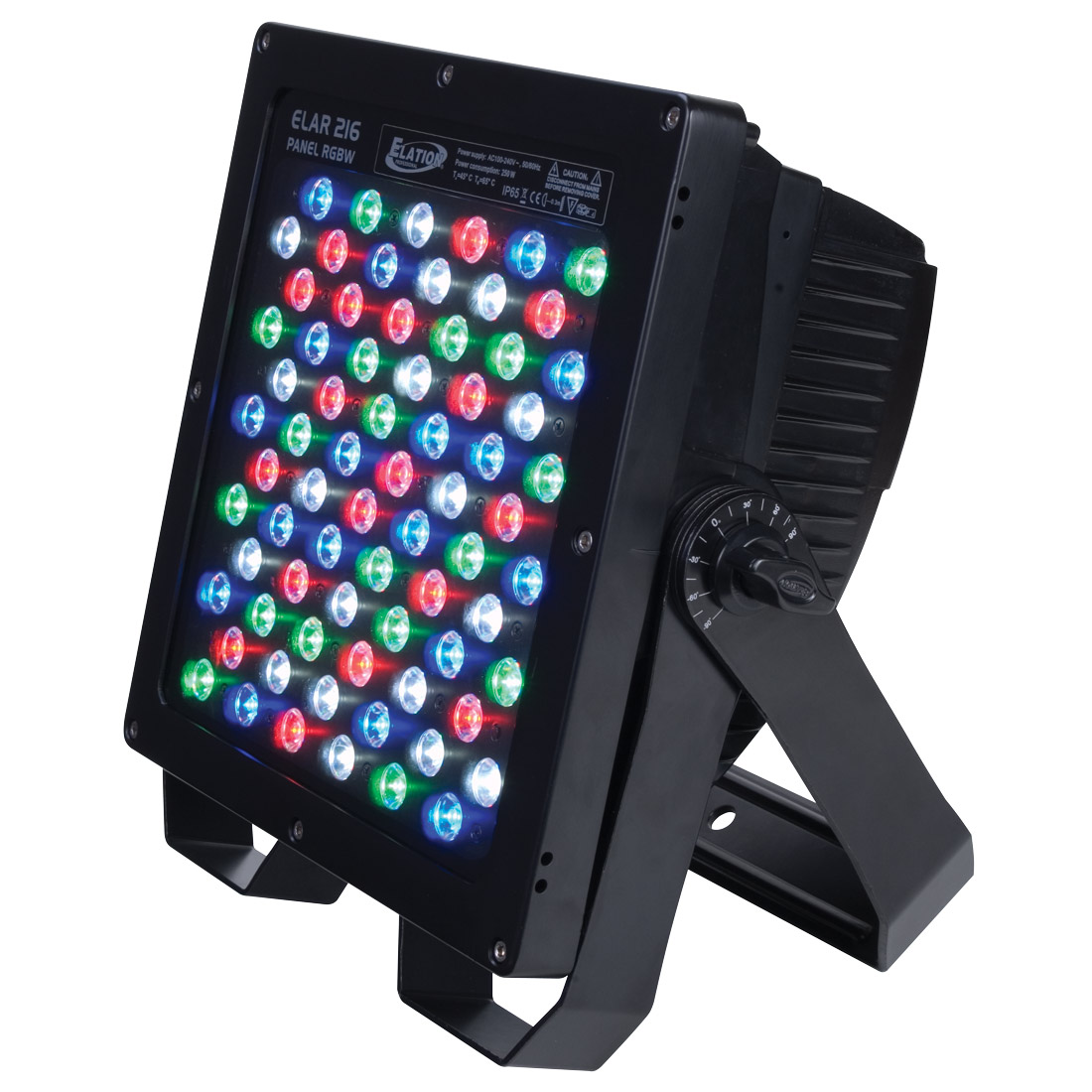

ELAR 216 Panel RGBW

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Elar 216 Panels RGBW from Elation Professional.

Technical Data

FEATURES

IP65 Rated
10° Beam 22° Field Angles
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking


SOURCE

72x 3W RGBW LEDs


PHOTOMETRIC DATA

10,430 LUX @2,5M


EFFECTS

Electronic Strobe 1-25FPS
Color and Chase Macros
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(4) DMX Channel Modes (4/5/7/9)
(4) Button Control Panel
Color LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out


SIZE / WEIGHT

Length: 341mm
Width: 372mm
Vertical Height: 200mm
Weight: 12kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
250W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
