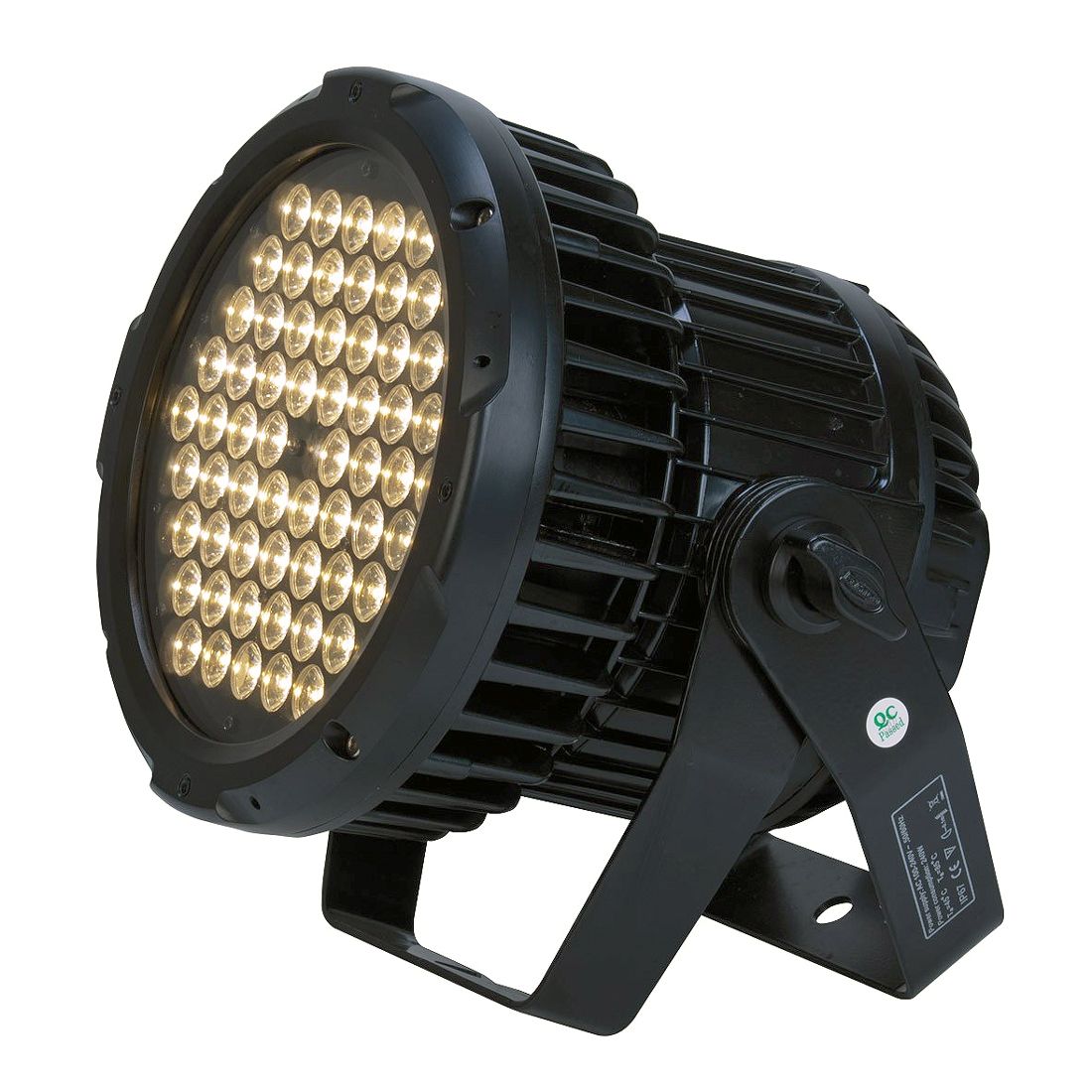

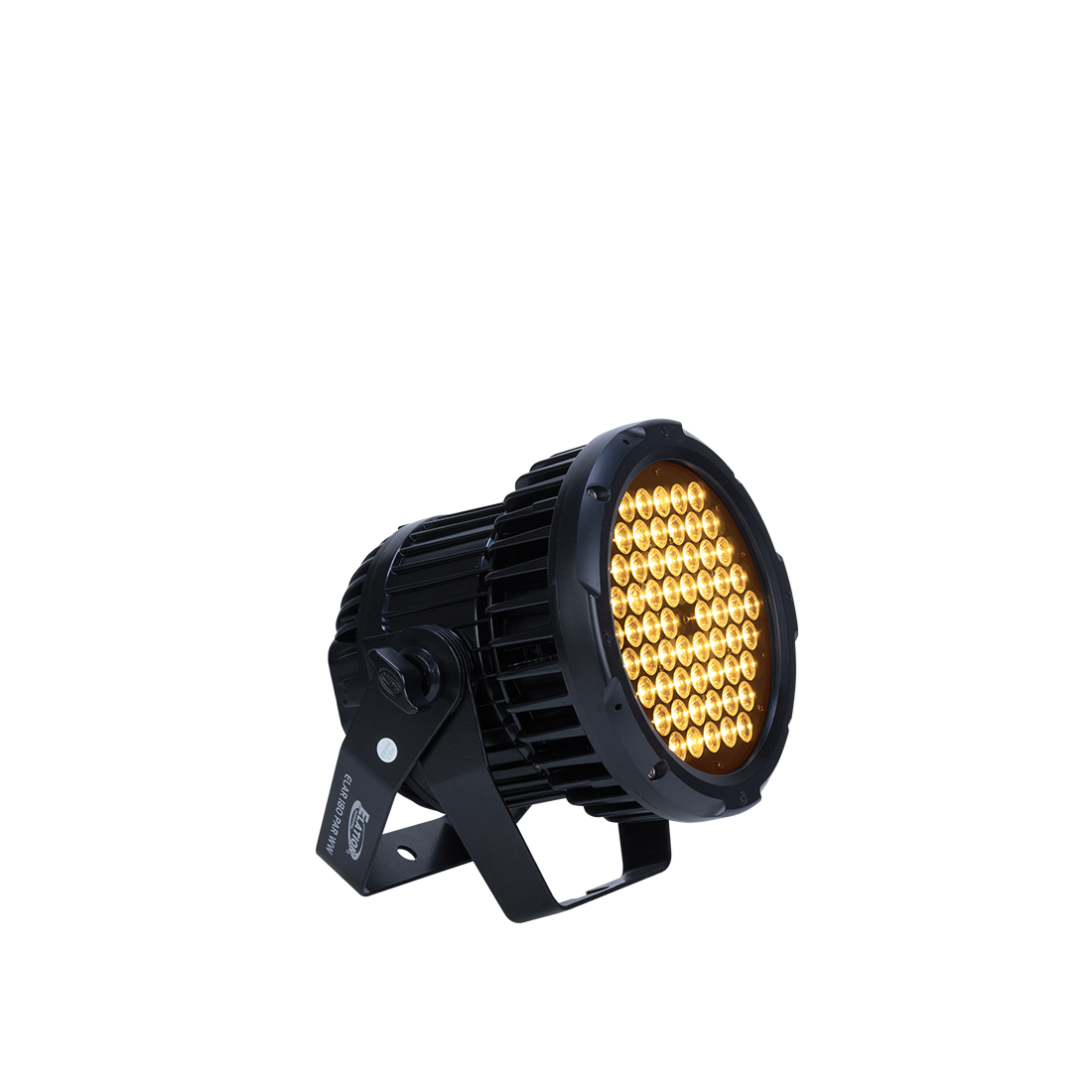

ELAR 180 PAR WW

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Elar 180 Pars from Elation Professional.

Technical Data

FEATURES

IP65 Rated
6.5° Beam 20° Field Angles
No-Service Convection Cooled
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking


SOURCE

60x 3W Warm White LEDs
3200K Color Temperature
100,000 Hour Average Life


PHOTOMETRIC DATA

10,930 LUX @2,5M


EFFECTS

Electronic Strobe 1-25FPS
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(2) DMX Channel Mode (1 / 2)

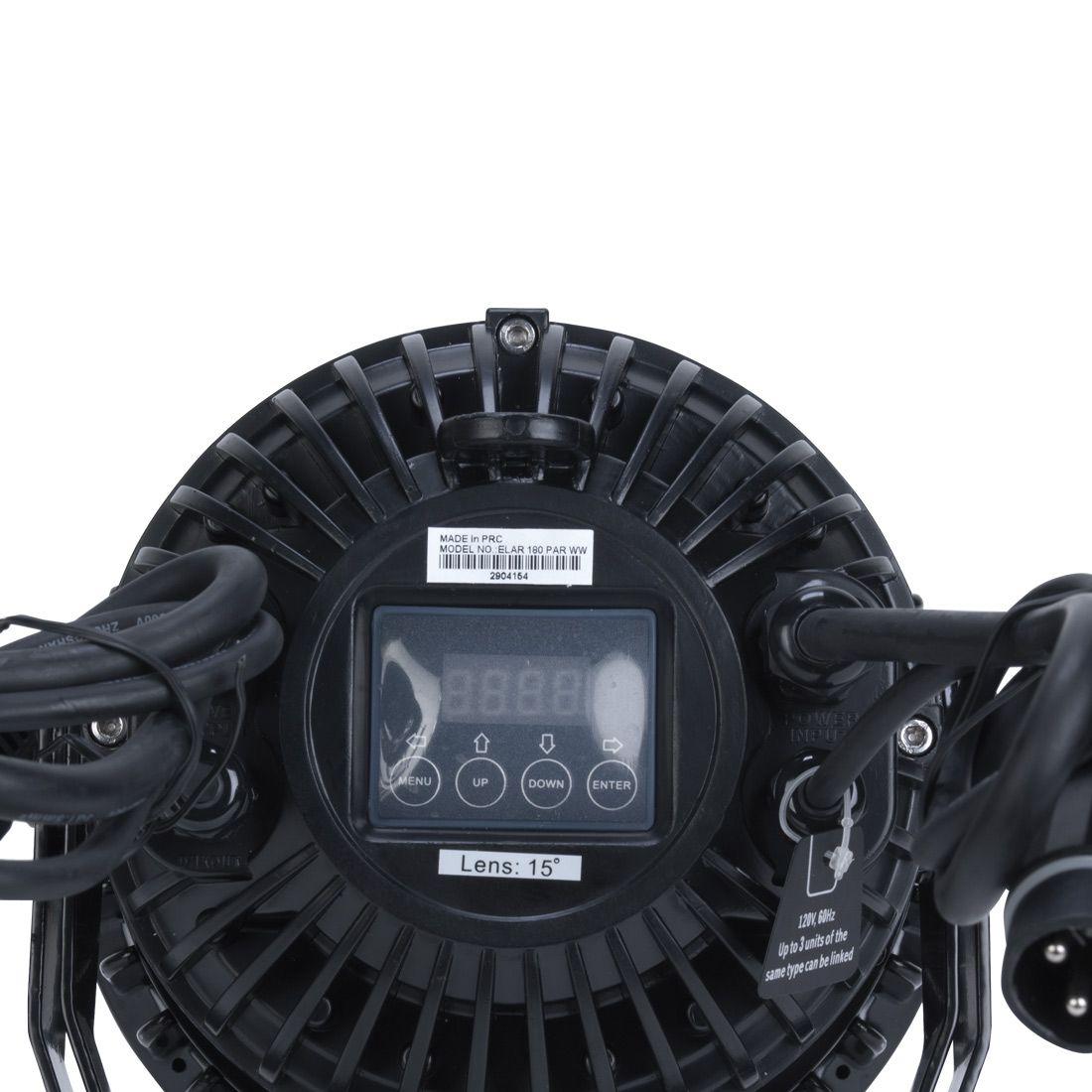

(4) Button Control Panel
Color LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out


SIZE / WEIGHT

Length: 226mm
Width: 267mm
Vertical Height: 232mm
Weight: 7,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
240W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
