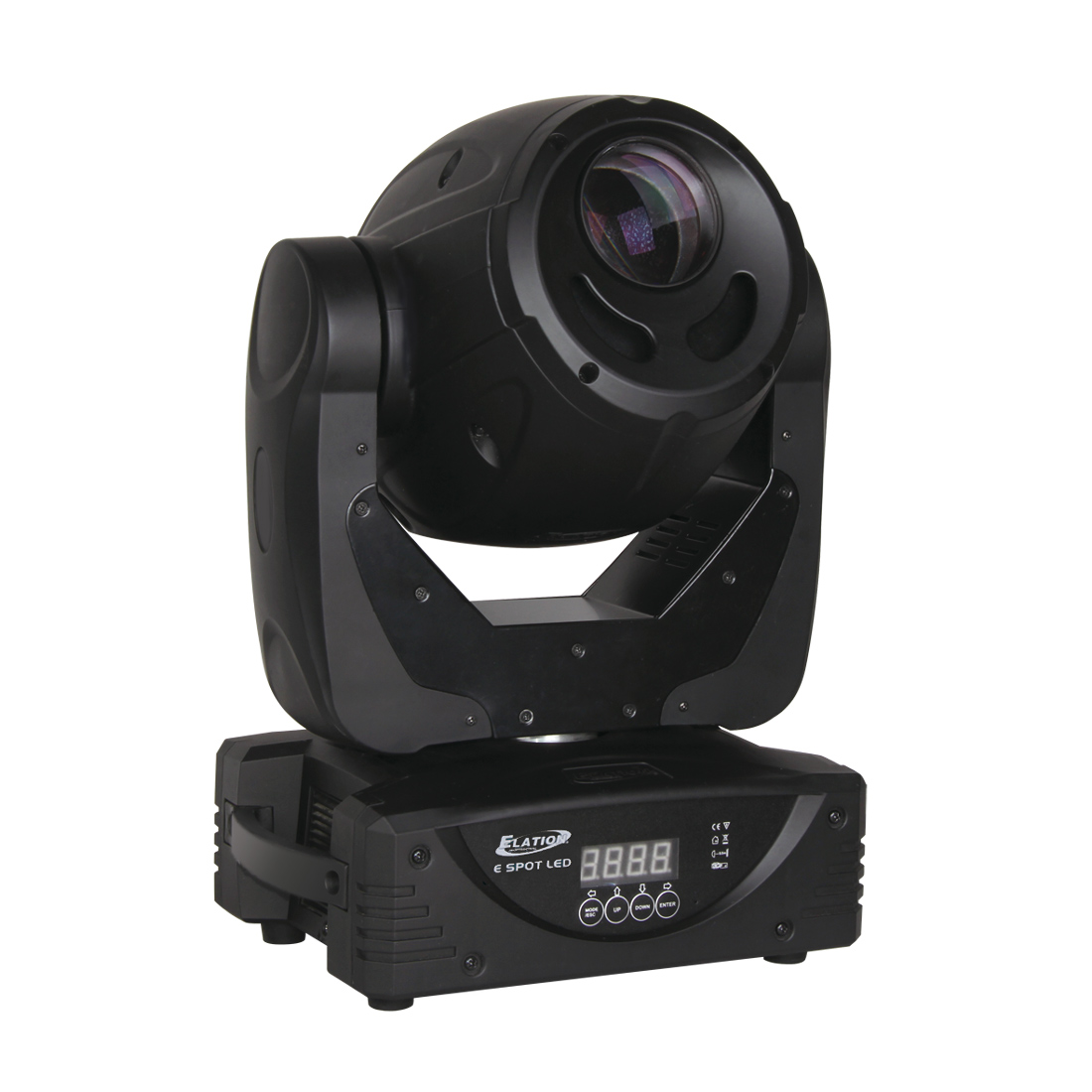

E Spot LED II

The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and 3D glass prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

Technical Data

FEATURES

540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
Motorized Focus

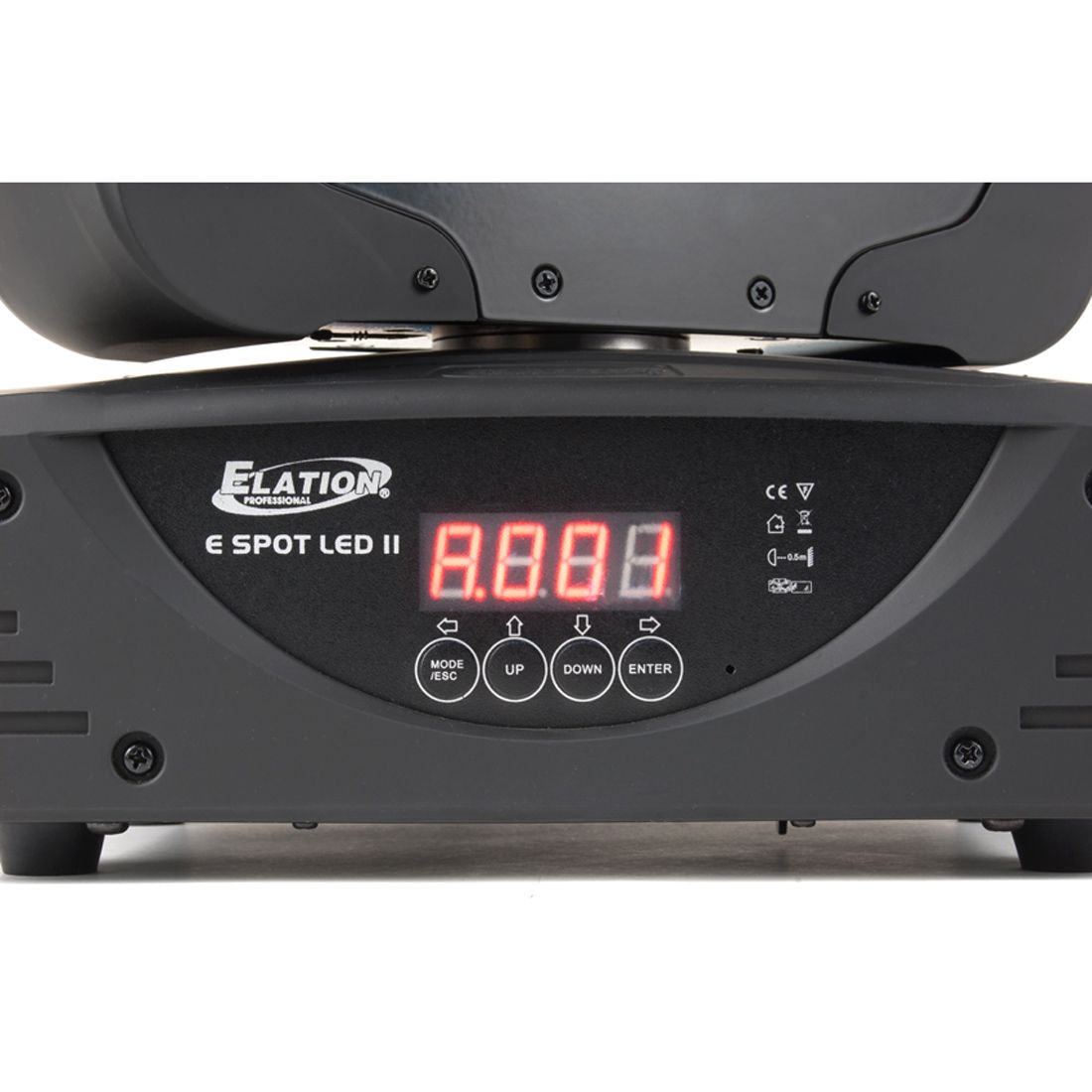

4 Button Control Panel
Microphone for Sound Activated Programs
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary


LAMP

60-Watt Cool White 6500°K LED Engine
60,000 Hour Average LED Life


PHOTOMETRICS

10.160 LUX @2,5M @15°


EFFECTS

Two Direction Rainbow Effect
Electronic Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet, 5 Facet + 3D Glass Rotating Prisms

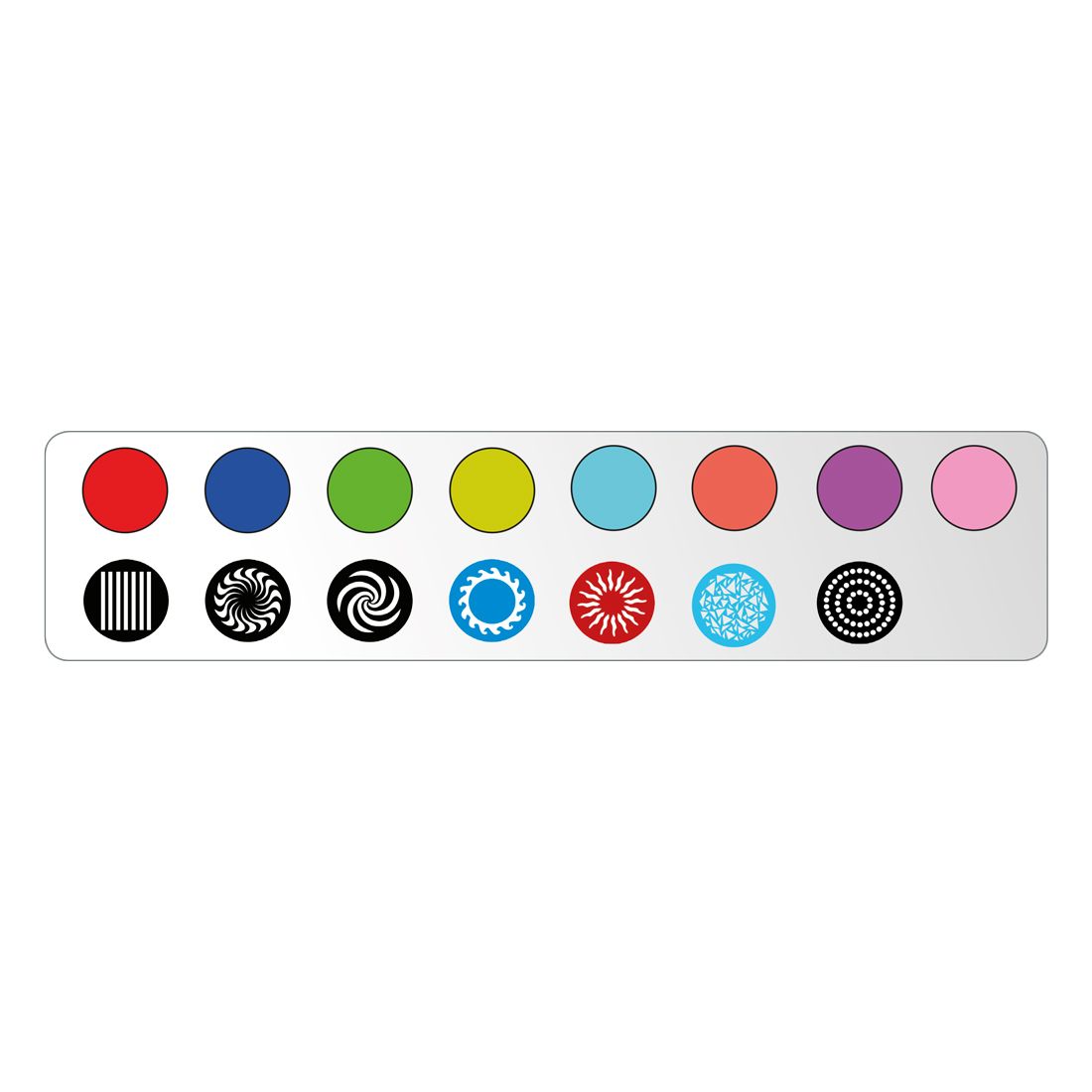

COLOR

8 Static Dichroic Colors + White (Open)


GOBOS

2 Gobo Wheels With 7 Interchangeable Glass Rotating / Indexing Gobos
Plus 7 Static Interchangable Gobos Plus Open
Size:  OD 27mm / ID 22mm

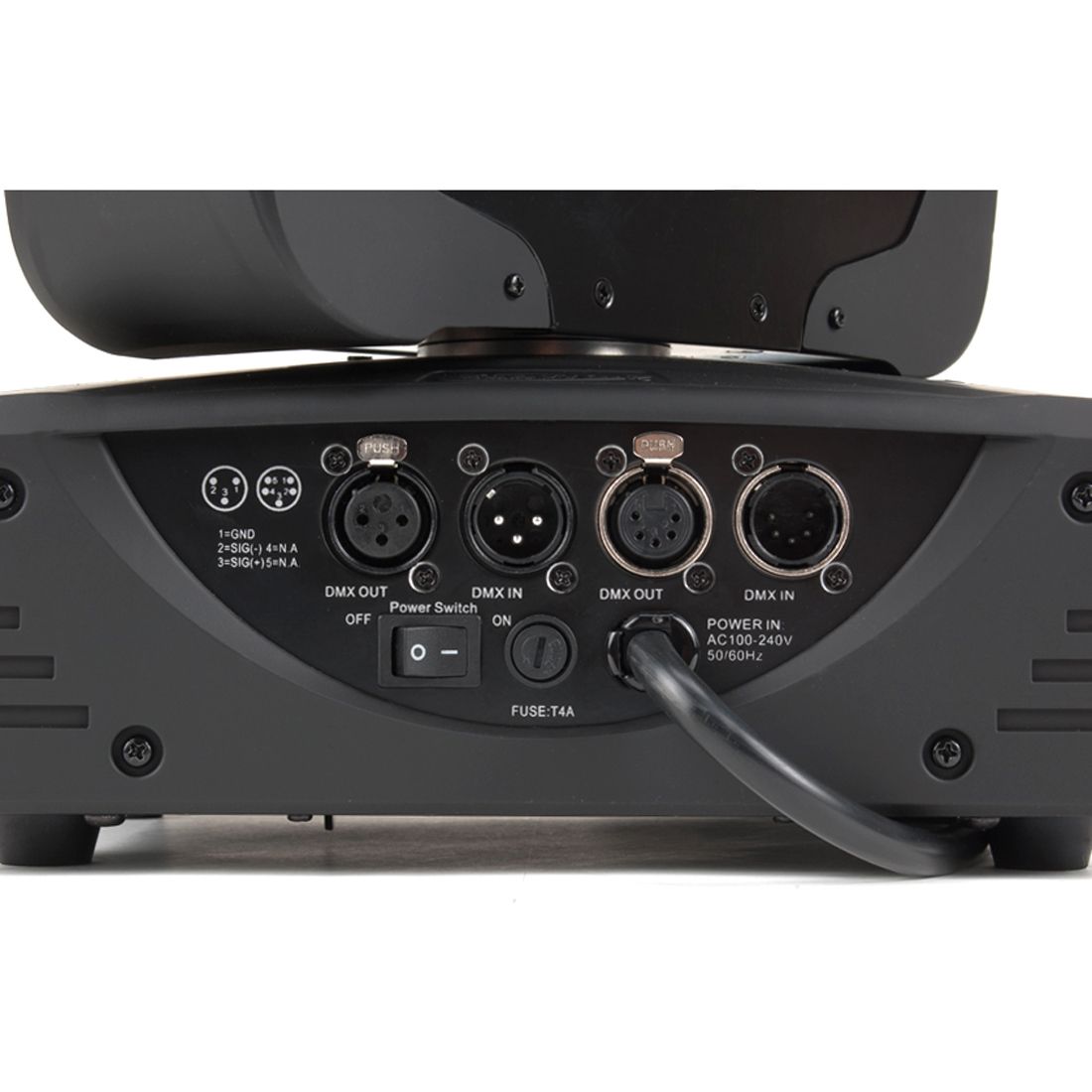

CONTROL / CONNECTIONS

2 DMX Channel Modes (12 / 14)
3pin & 5pin DMX In/Out


SIZE / WEIGHT

Length: 301mm
Width: 204mm
Vertical Height: 435mm
Weight: 10,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
180W Max Power Consumption
-25°C to 45°C


Specifications and documentation subject to change without notice
