E-Node 8 II - Artnet/DMX Node

E-Node 8 II - Artnet/DMX NodeArchive

Code 1321000066

E-Node 8 II - Artnet/DMX Node

- DMX-512 and High Speed DMX- 1000K(1M) protocol compatible
- Supporting TCP/IP, Artnet and CL100M protocol
- Output channels can be patched with any input
- Software runs with PC platform via Rj45
- Fixed built-in 128 memory CHIP
- Real-time record function
- Up to 32 Shows can be created

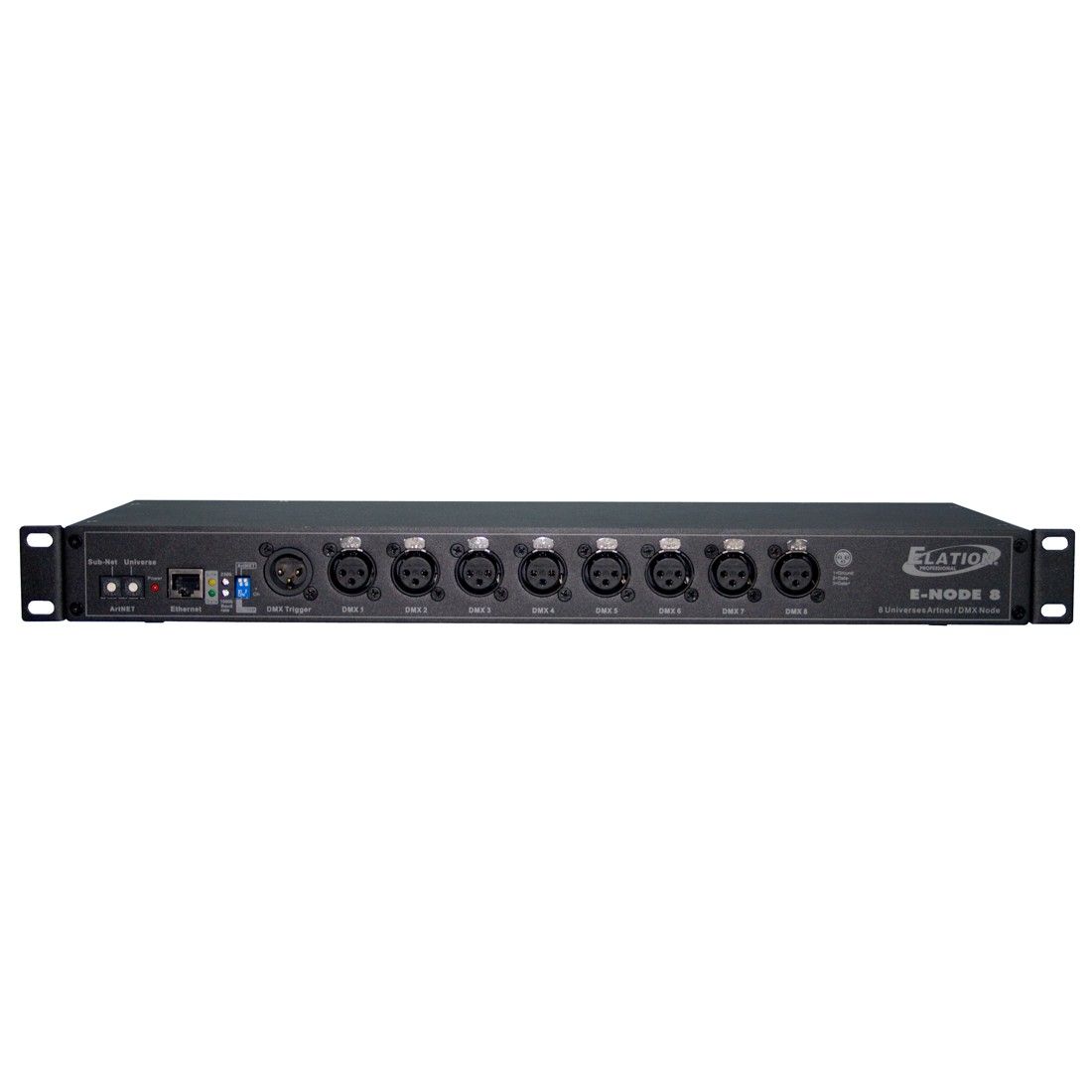

The E-Node 8 is affordable ethernet/artnet node providing an ethernet input to 8 DMX Universe output. It is ideal for large pixel mapped dmx systems and compatible with most popular pixel mapping software controllers. By software configuration you can pre-load graphic files and store on board the E-Node 8 or trigger remotely from DMX or time clock trigger via the internal time clock.

Technical Data

Specifications

- Standard DMX-512 and High Speed DMX-1000K(1M) protocol compatible.
- With network control, supporting TCP/IP, Artnet and CL100M protocol.
- Fixed built-in 128 memory CHIP allows to hold DMX data files.
- Up to 32 Shows can be created,
- 100Mbit version
- Astronomical time color schedule event table.
- DMX trigger function available with DTC-512 or USB-cable trigger.
- Configuration software runs with PC platform via Rj45
- power input AC 100-240V, 50/60Hz
- data input RJ45 socket for Ethernet and 3-pin XLR male
- data output 8pcs of 3-pin XLR female socket
- housing sheet metal black powder finish
- ingress preotection ratinig IP20
- driver output signal DMX-512 (1990) / DMX-1000K
- ethernet protocolTCP/IP
- ArtNet connection
- 3-pin XLR
- operation temperature -10 degC to +50 degC
- storage temperature -20 degC to +70 degC
- Dimension (LxWxH):1U 19"" rack mount, 482x205x44mm
- Weight 1.5kg

Specifications and documentation subject to change without notice
