DR-PRO Rack

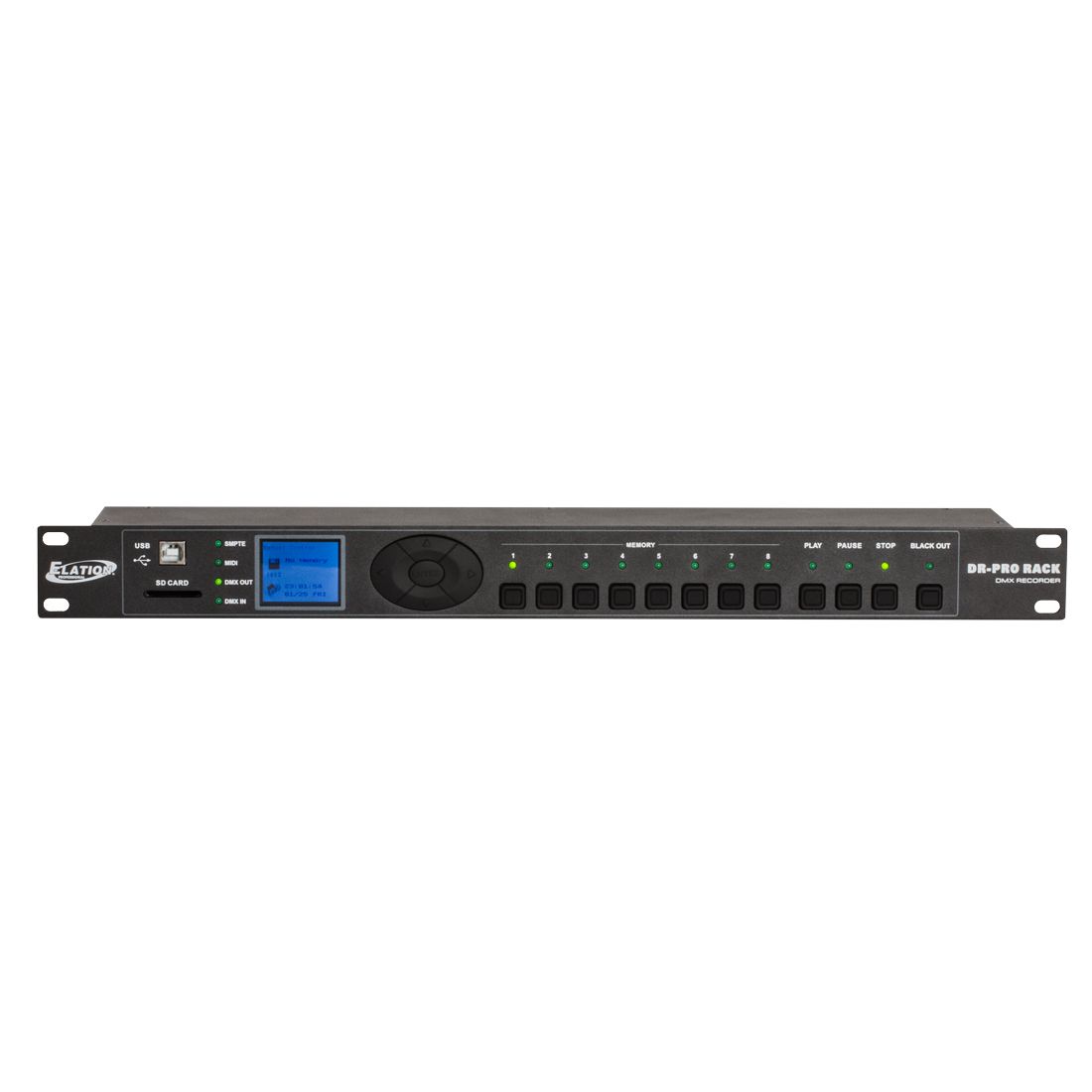

The DR PRO Rack™ is a 19” rack mountable DMX recorder/playback device, with up to 8 memories on the playbacks, 5 operation modes including SMPTE/MIDI time code triggering, 4 recording modes, password lock function and 5 hours of total recording time. The recorder has a 128x160 character colored LCD display, SD card and USB ports for data memory and software upgrades, 3pin SMPTE, 5pin MIDI input, 3pin DMX in/out ports and 12 Phoenix connectors for dry contact closure triggering.

Technical Data

FEATURES

(8) Memory Banks of Static Scenes, Chases, or Shows
(5) Operation Modes
(4) Recording Modes
Password Lock Function
Over (5) Hours of Recording Time
128x160 Character Color LCD Display

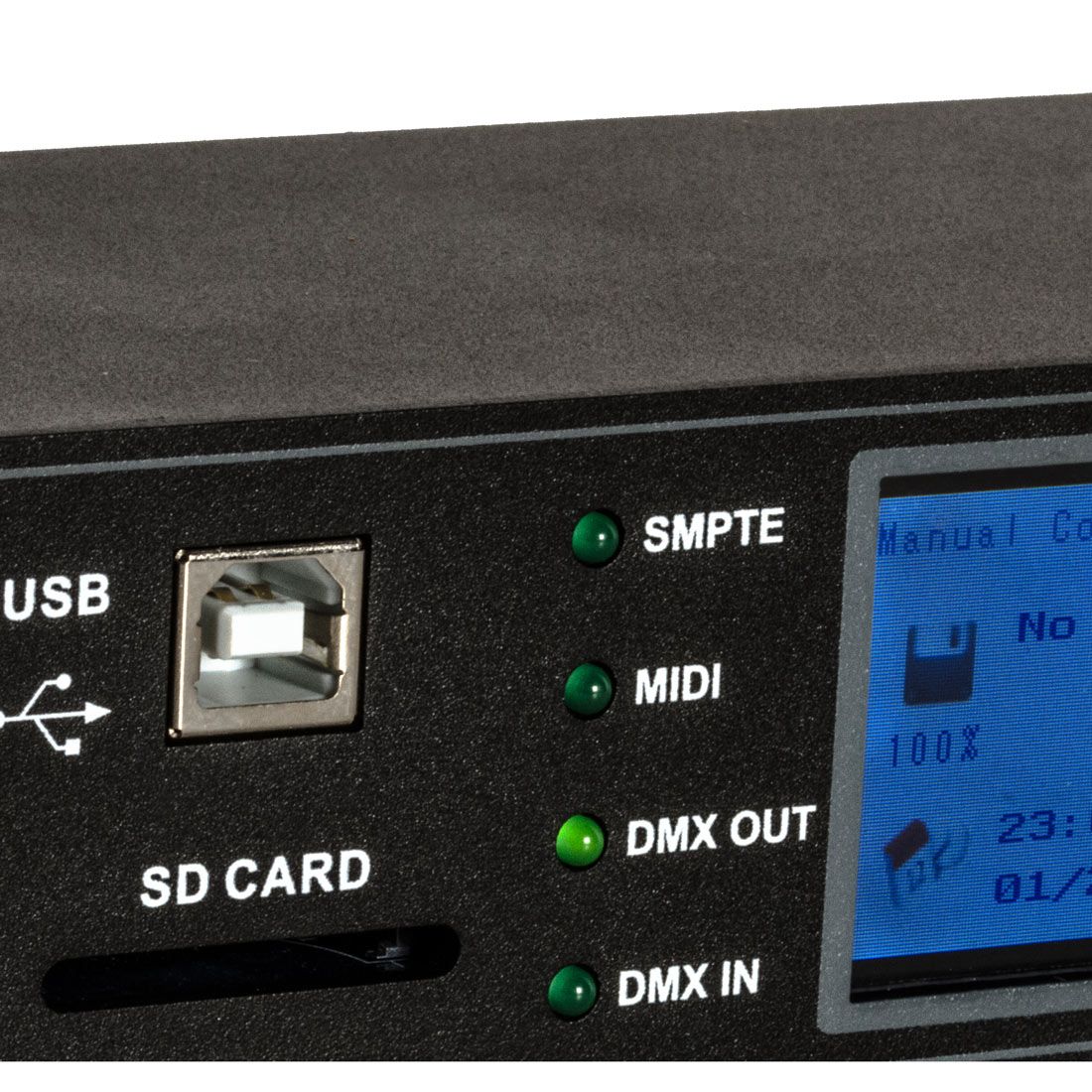

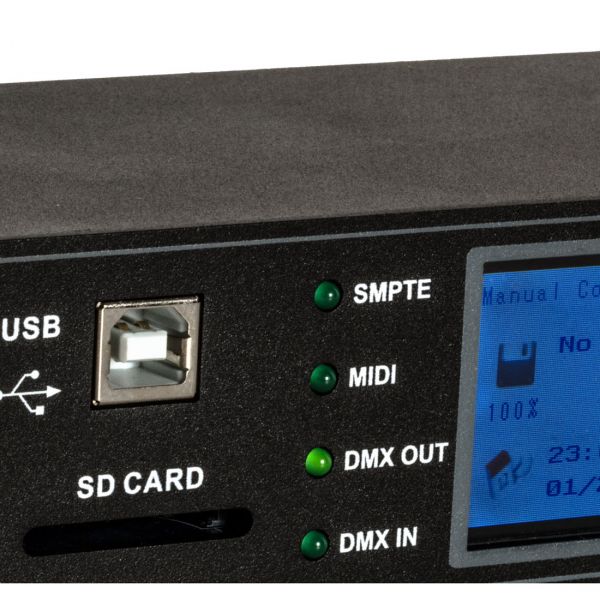

SD Card Slot / USB Port for Data Memory/Software Upgrades

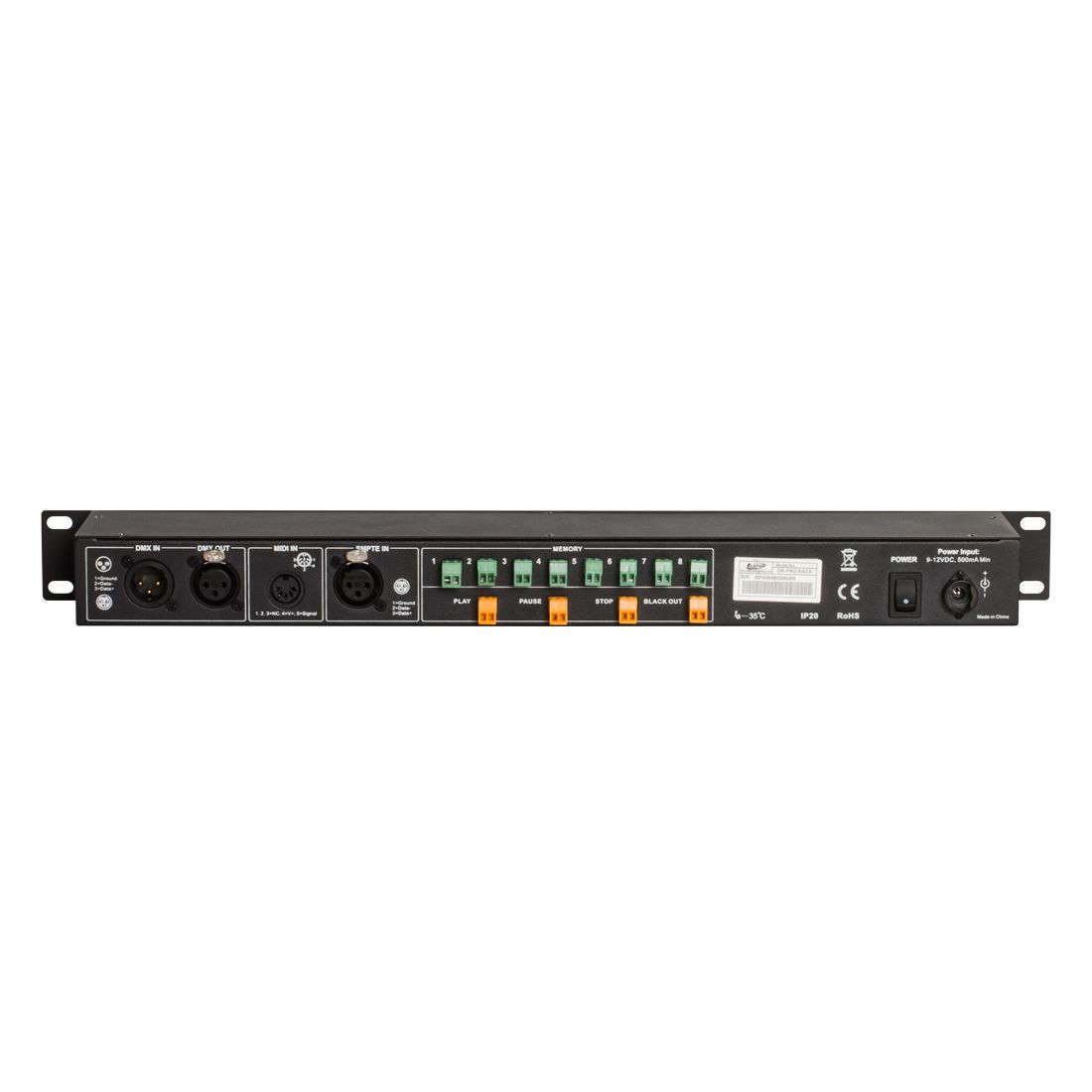

CONNECTIONS

3pin XLR DMX In/Out
3pin XLR SMPTE Input
5pin MIDI Input
USB Type B and SD Card Slot (accepts up to 2GB card)
(12) Phoenix Connectors for dry contact closure triggering
9-12VDC 500mA Power Supply (included)


SIZE / WEIGHT

19” (482mm) x 3.1” (78mm) x 1.7” (44mm)
2.7 lbs. (1.2kg)


FIRMWARE UPDATES

Current firmware can be found here (login required)


Specifications and documentation subject to change without notice
