DMX Branch 4 - DMX Splitter

DMX Branch 4 - DMX Splitter

Code 1321000035

DMX-BRANCH/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4™ includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to 4 additional units, 4 sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs....

Code 1321000035

DMX Branch 4 - DMX Splitter

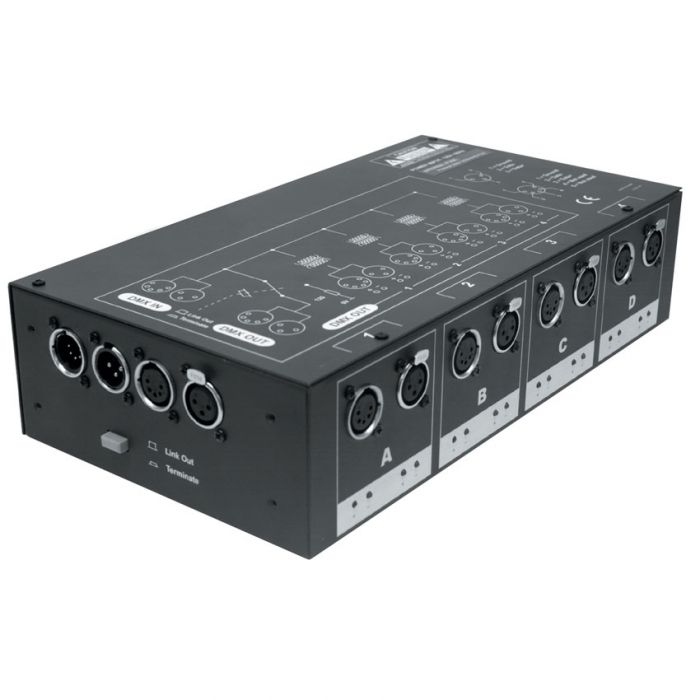

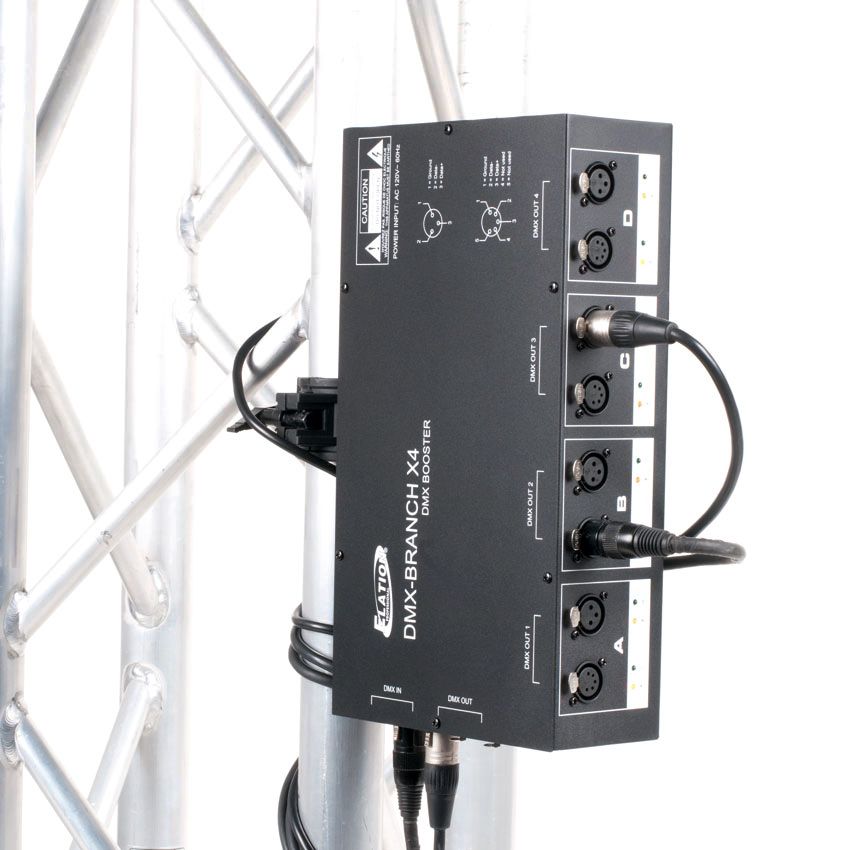

DMX-BRANCH/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4™ includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to 4 additional units, 4 sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs. Flexible installation options are possible like truss mounting using the included 3/16” (4.7625mm) threaded hole for a clamp (not included) and a 19-inch rack mounting kit is included.

Technical Data

FEATURES

3pin & 5pin DMX Inputs

3pin & 5pin DMX Outputs (thru)

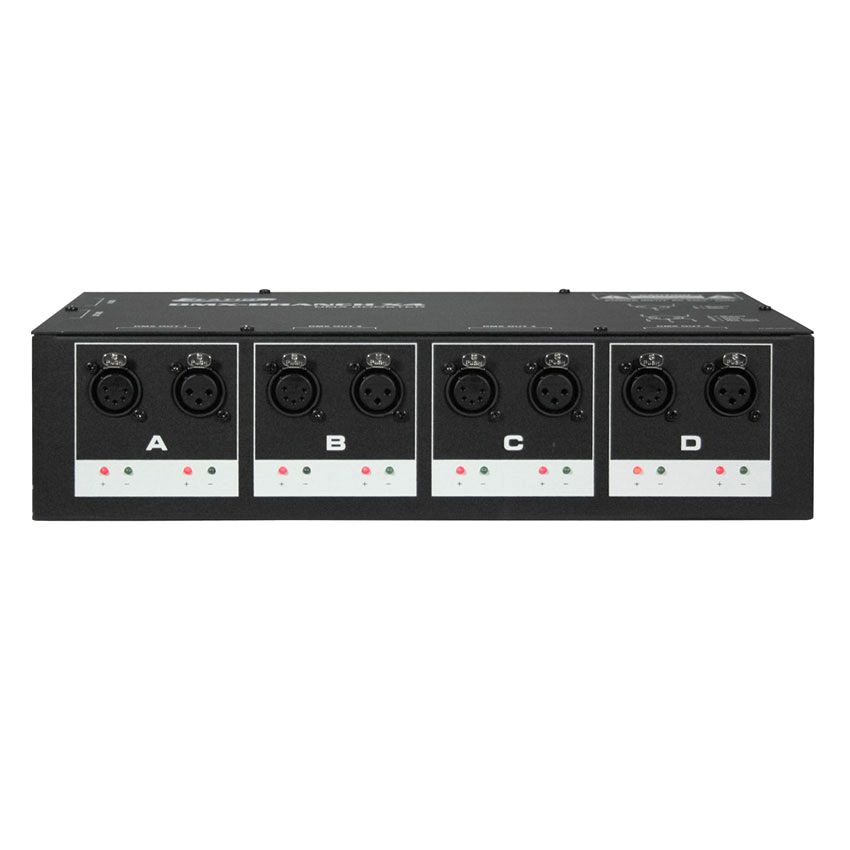

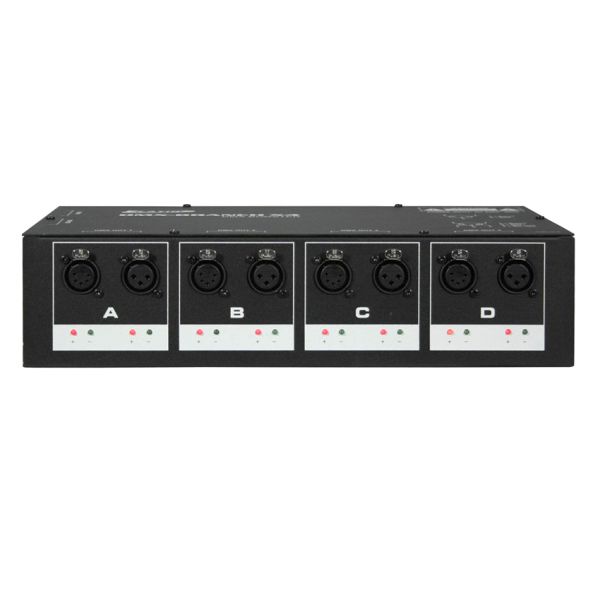

4-Way 3pin & 5pin Isolated DMX Outputs

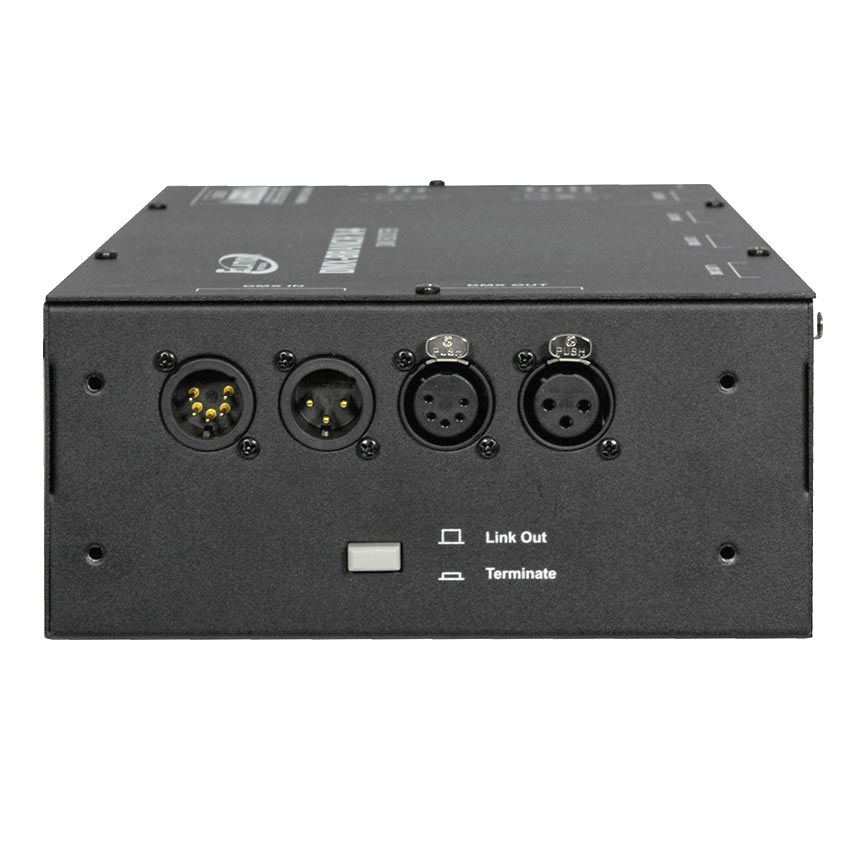

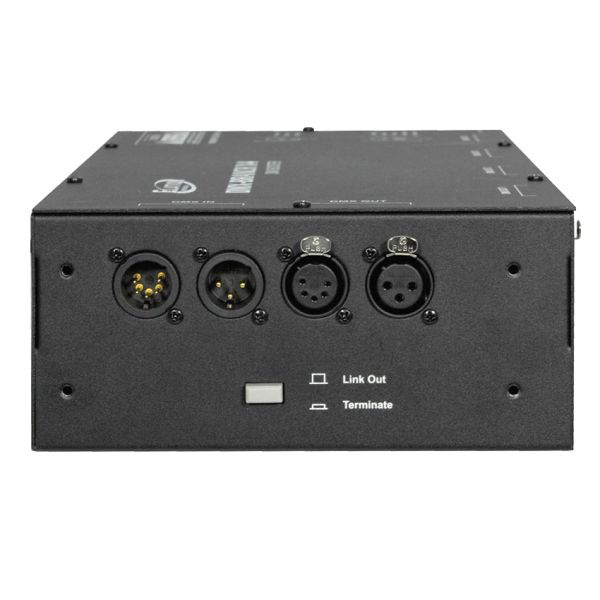

Link Out / Terminate Button

Linkable Up To (4) Units

DMX Data LED Indicators

19-inch Rack Mount Kit (included)

3/16” (0.1875mm) Threaded Hole for Clamp (not included)

SIZE / WEIGHT

Length: 13.0” (330mm)

Width: 7.25” (184mm)

Vertical Height: 3.0” (76mm)

Weight: 7.0 lbs. (3.2 kg)

ELECTRICAL / THERMAL

AC 240V - 60Hz

Fuse: 5A 250V 5x20mm

INCLUDED ITEMS

19-inch Rack Mount Kit

Specifications and documentation subject to change without notice
