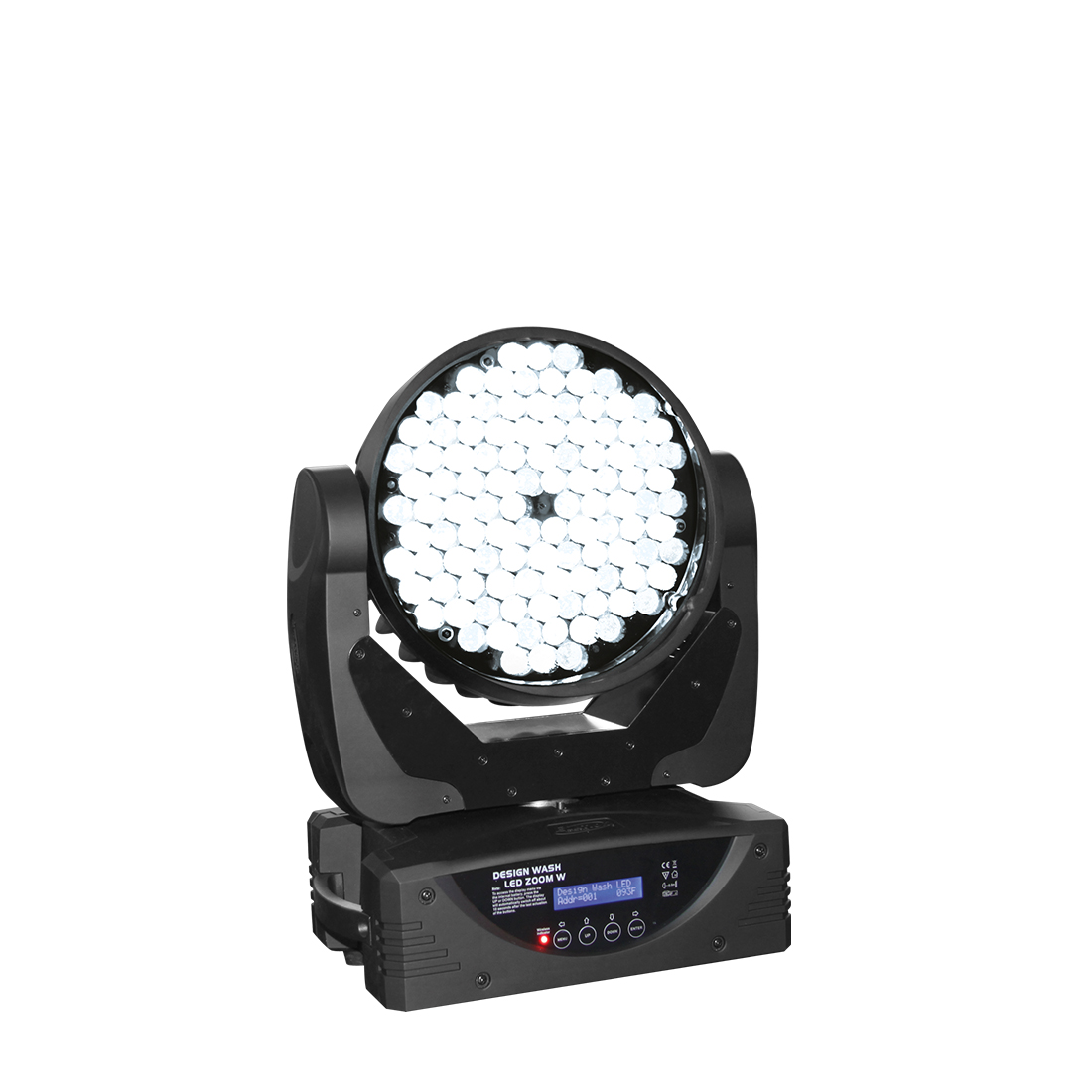

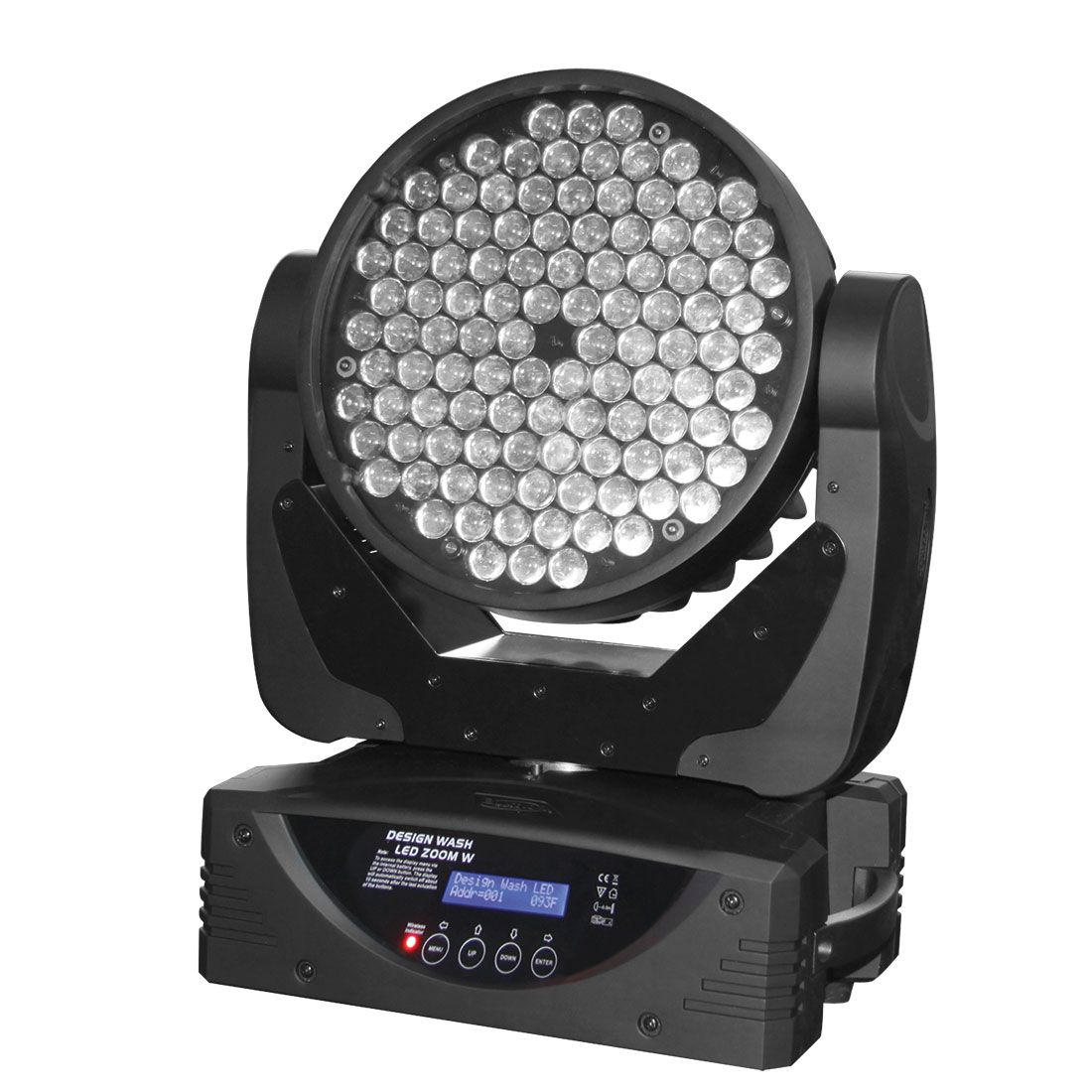

Design Wash LED Zoom CW

The Design Wash LED Zoom CW™ is a high output pro grade cool white zoom wash LED luminaire featuring (108) 3W Osram™ 7,500K Cool White LEDs, producing 8,300 lumens with a 6° to 19° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and Film, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

High Output Pro Grade Zoom Wash LED Luminaire
8,300 Total Lumens
6° - 19° Motorized Zoom
Flicker Free Operation for Broadcast TV and Film


SOURCE

(108) 3W Osram™ 7,500K Cool White LEDs
50,000 Hour Average LED Life


PHOTOMETRIC DATA

Distance @8.2 ft (2.5m)
68,380 LUX 6,353 FC (6° Min Zoom Full ON)
7,202 LUX 669 FC (19° Max Zoom Full ON)


EFFECTS

Dimming: 0% - 100%
Strobe: 1-18fps


CONTROL / CONNECTIONS

(10) DMX Channels
(4) Button Control Panel
LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin and 5pin DMX In/Out


SIZE / WEIGHT

Length: 13.4” (341mm)
Width: 8.7” (220mm)
Vertical Height: 17.5” (445)
Weight: 21.0 lbs. (9.5 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

Specifications and documentation subject to change without notice
