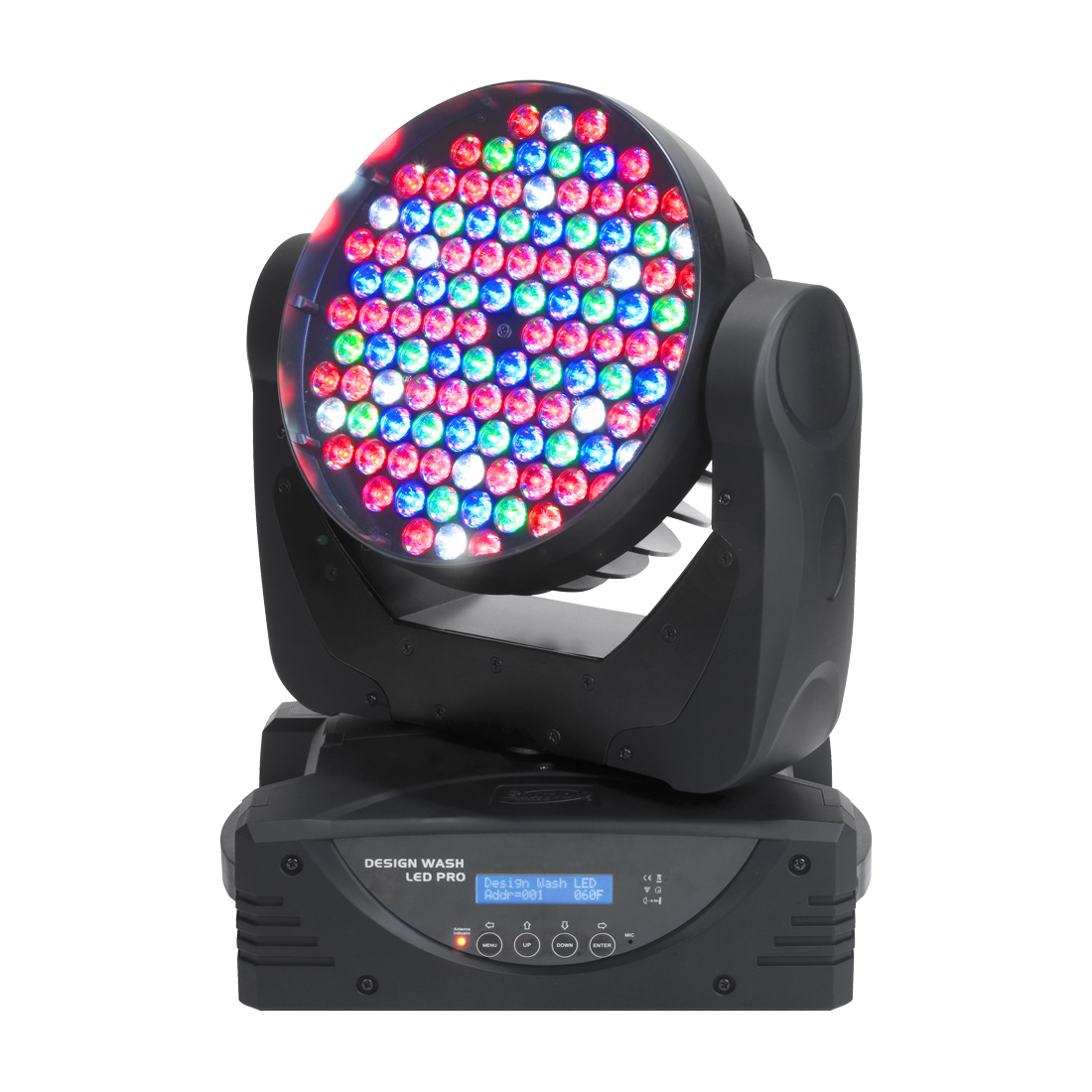

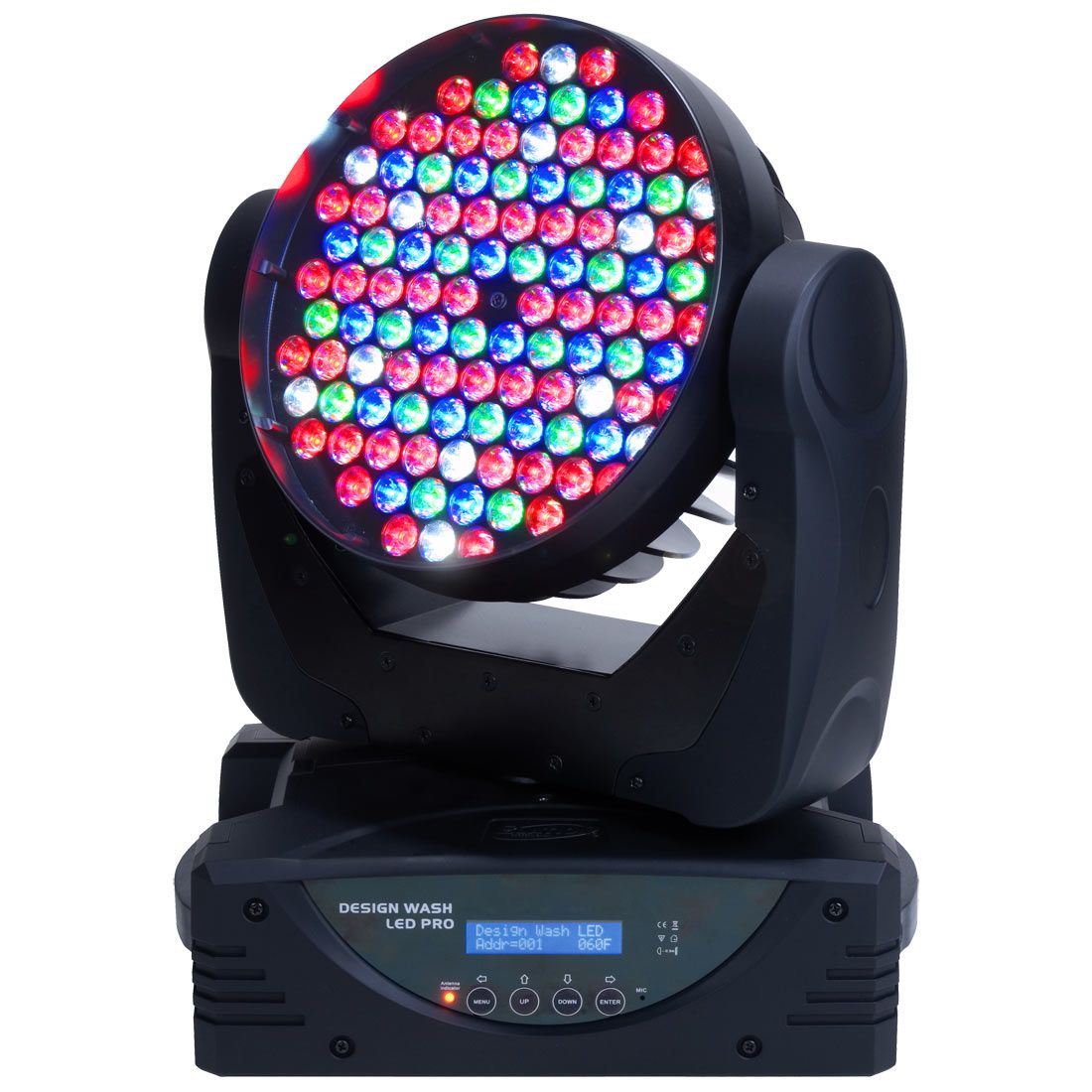

Design Wash LED Pro

- 108 x 3W RGBW LEDs

 - 324W Total Light Output (13.780 LUX @ 2,5m)

 - Red,Green, Blue and White LEDs

 - Optimized Color Mixing

 - EWDMX - Wireless DMX built-in

 - 630° PAN, 265° TILT

 - Very Fast Movement

Technical Data

- 108 x 3W LED’s

 - 52 Red ,22 Green, 22 Blue + 12 White

 - 50.000 hour rated LED source

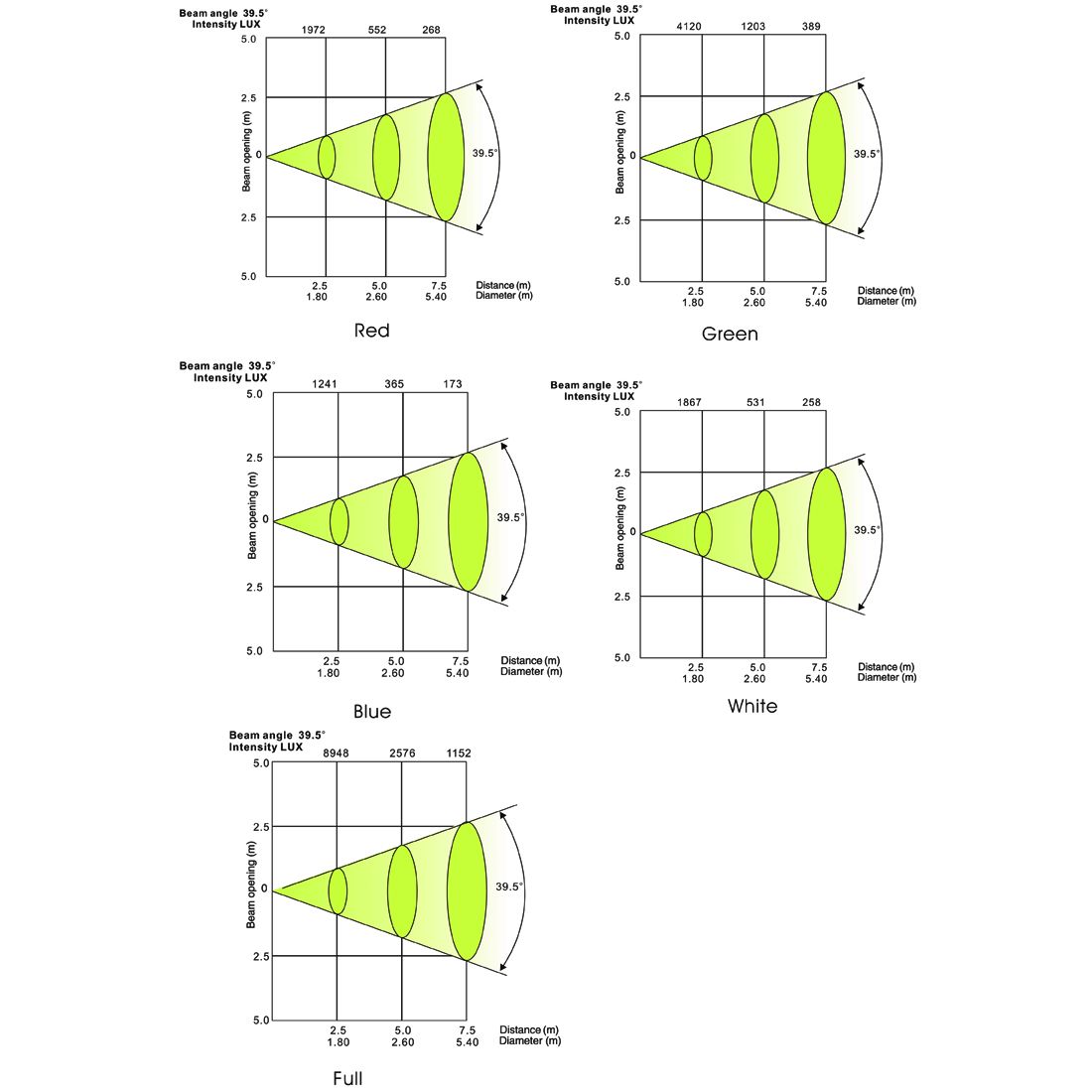

 - 13.780 Lux @ 2,5m @ Full on

 - 15° lens installed, results in:

 - 9° beam angle, 23° field angle

 - Full RGB+White color mixing feat. perfect pastel and white color tones

 - Built in Color, Strobe, Dimming macros

 - Electronic, flicker-free dimming

 - Variable speed strobe effect, 1-25 flashes per second

 - Automatic Pan / Tilt position correction

 - Maximum Pan-movement 630° or 540°/ 16 bit

 - Maximum Tilt-movement 265° / 16 bit

 - 3 Phase motors for fast, accurate Pan / Tilt positioning

 - Vector Mode with blackout MIB function

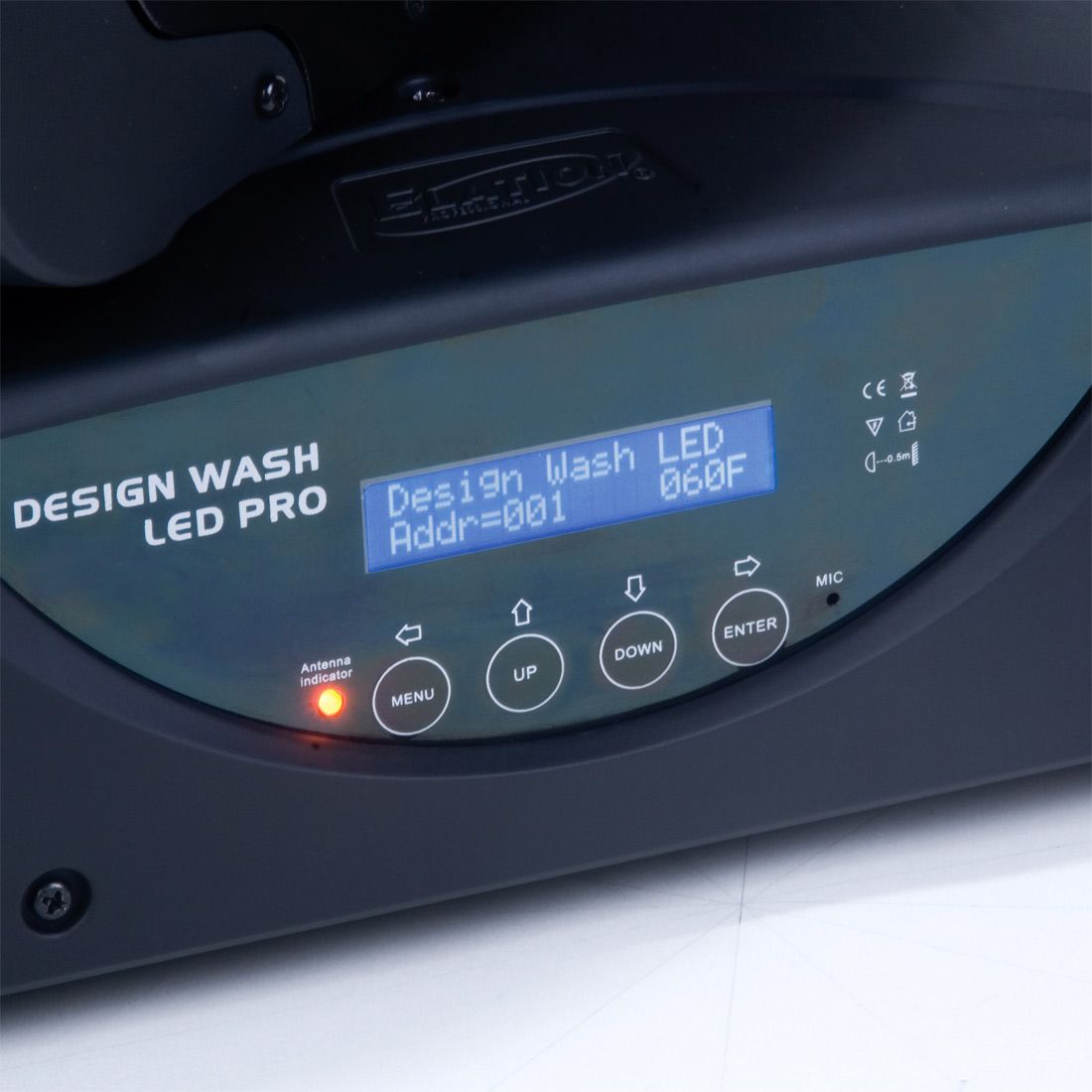

 - Battery powered blue LCD Matrix Display

 - EWDMX receiver for wireless DMX built-in

 - 13 DMX channels USITT DMX-512 (16-bit resolution)

 - other DMX modes available

 - Customizable DMX channel assignment

 - DMX, stand-alone, master/slave, sound activated mode

 - DMX recorder and edit function integrated

 - Software update via DMX, using optional E-Loader

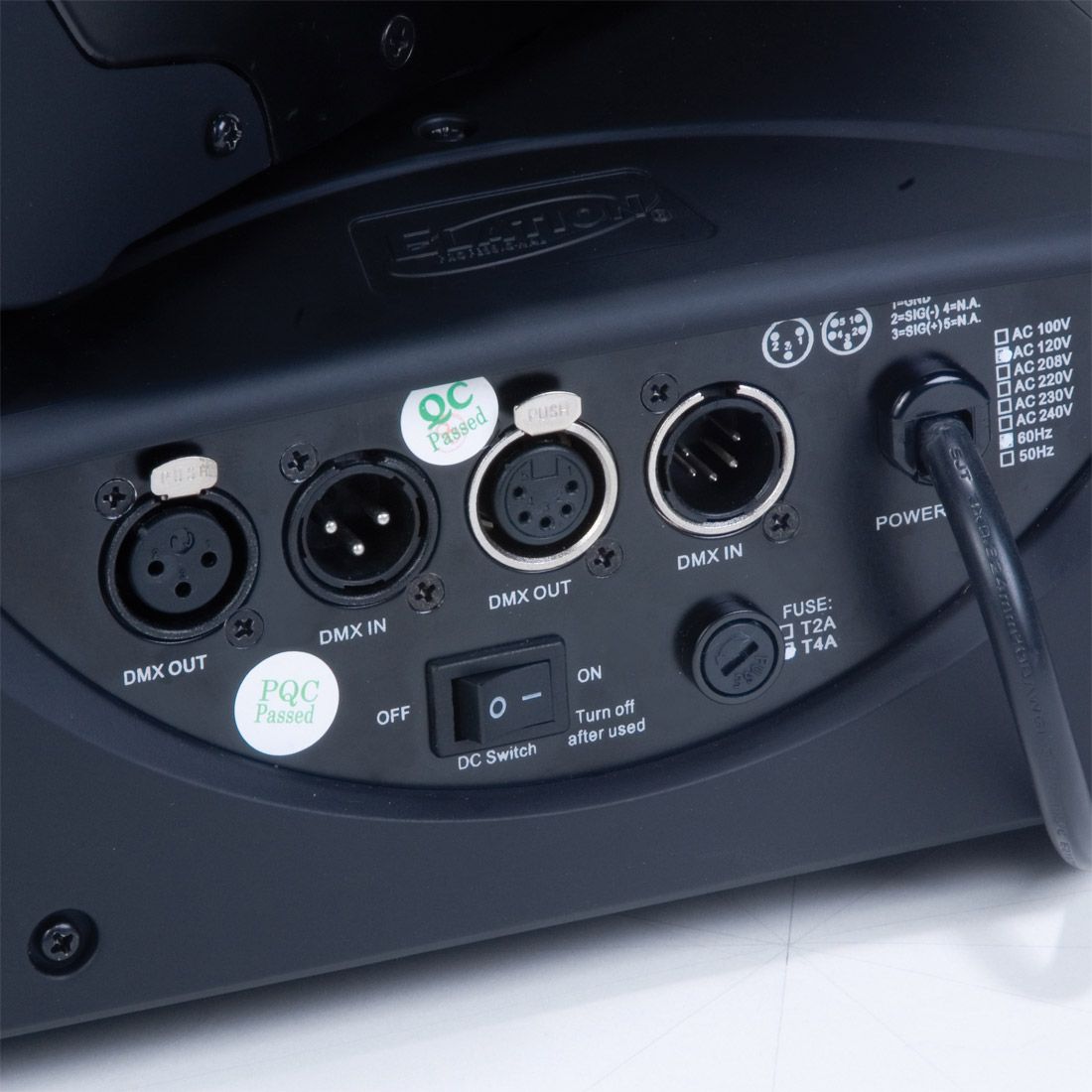

 - 3-pin and 5-Pin XLR serial input/output

 - Fan cooled - fans regulated by automatic, silent or DMX

 - Constant temperature readout / management function

 - DB rating @ 1M = 57.9db

 - 1x 1/4 turn fastening Omega Clamps

 - Electronic switching power supply

 - Power consumption: 350W

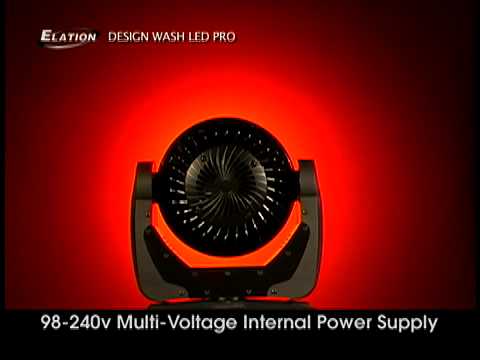

 - Voltage: AC 100V ~ 240V 50/60Hz

 - Dimensions (LxWxH): 332x219x438mm (Head up)

 - Weight: 9,3 kg

Specifications and documentation subject to change without notice
