Design Wash LED 60

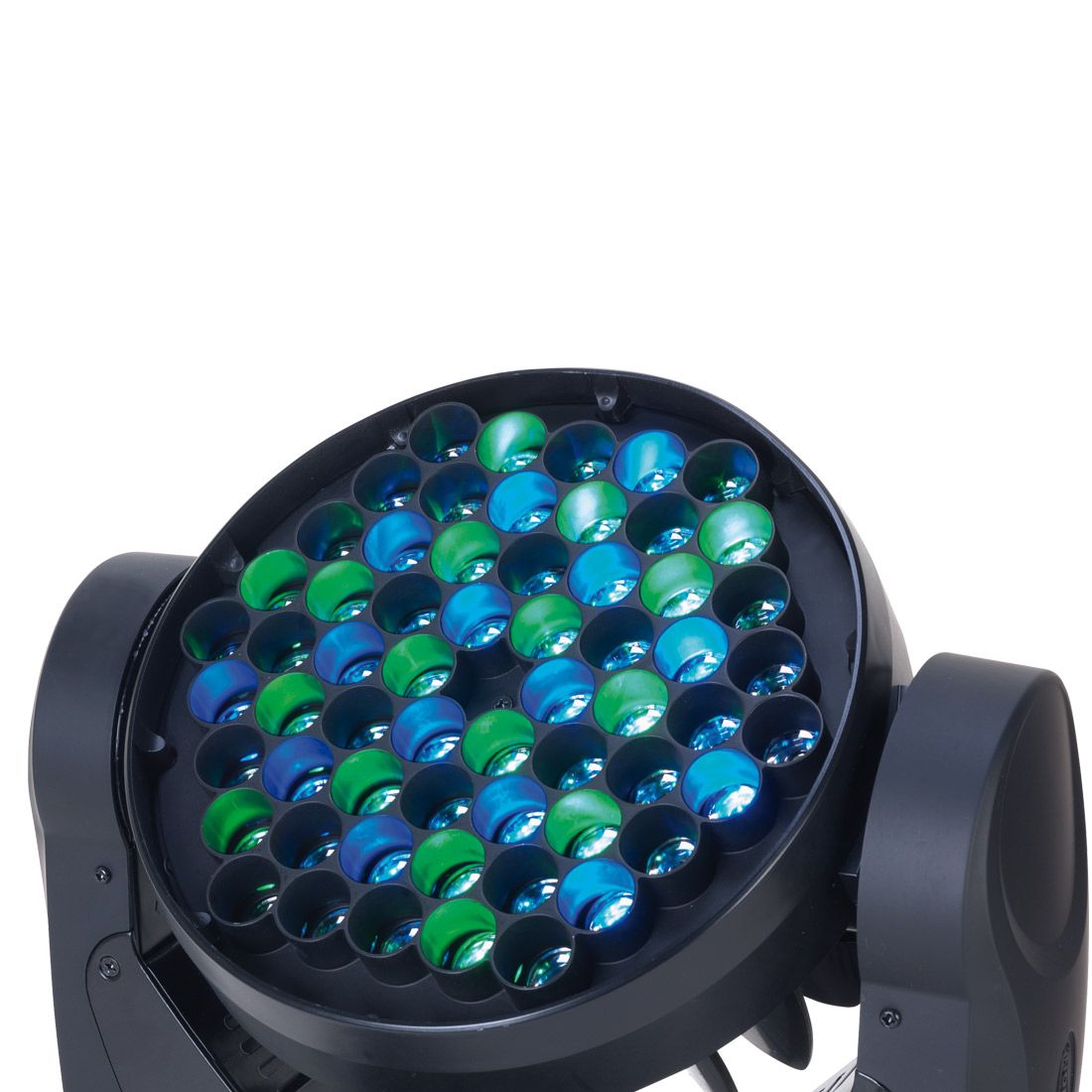

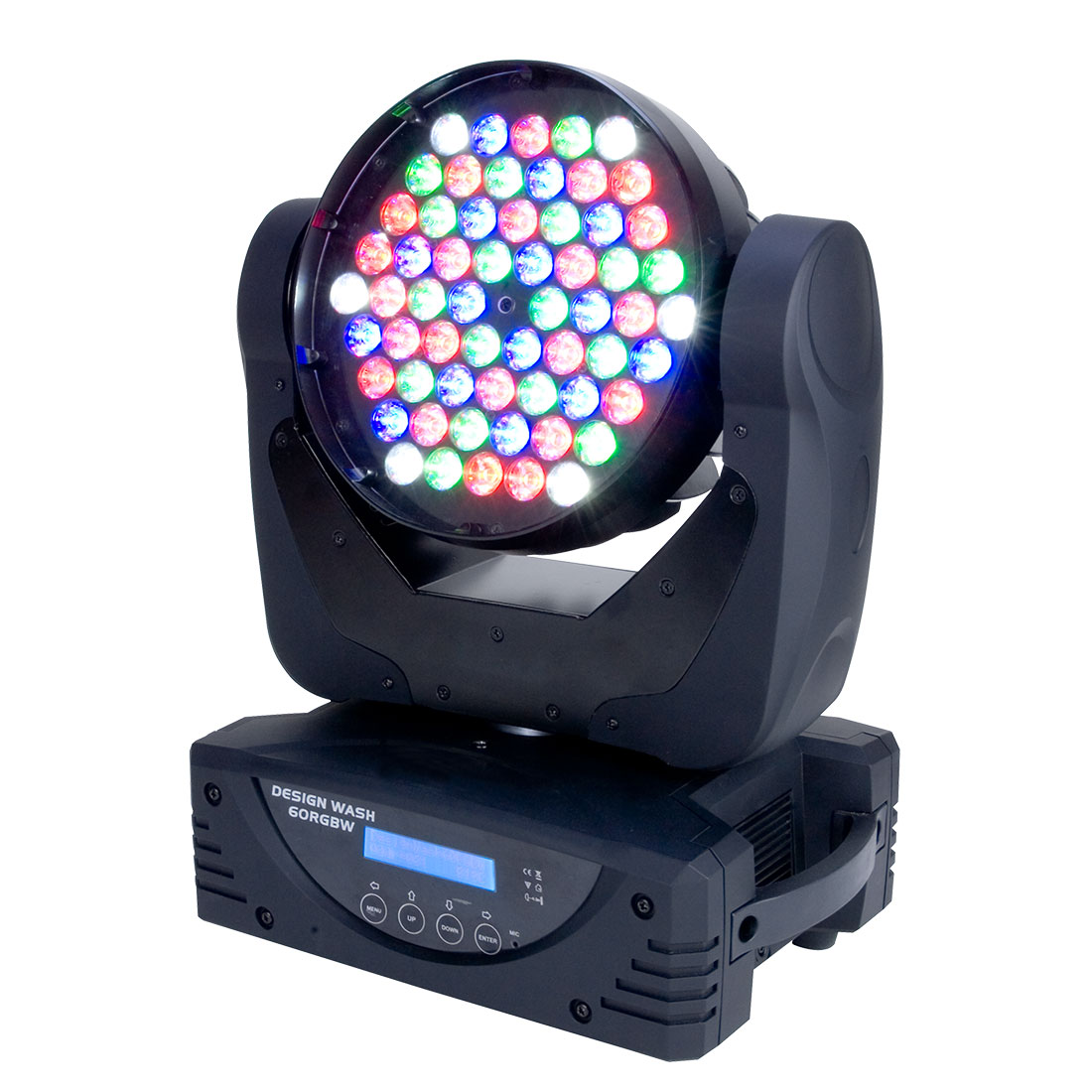

The DESIGN WASH LED 60 is an IP20 rated high output pro grade moving head wash fixture featuring (60) 3W Osram LEDs consisting of 22 Red, 17 Green, 15 Blue, and 6 White, high speed Pan and Tilt movement with 16-bit resolution, color mixing and rainbow effect, 7 internal auto programs, LCD menu display with 4 button control panel, flicker free operation for TV and Film, 3 & 5pin DMX connections, a low power consumption of 235W (at full power) and a multi-voltage universal auto switching power supply (100-240v 50/60Hz).

Technical Data

FEATURES

540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
Optimized Color Mixing
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary


LAMP

60x 3W RGBW LEDs
22 Red, 17 Green, 15 Blue and 6 White
50,000 Hour Average Life


PHOTOMETRICS

7,370 LUX @2,5M
9° Beam Angle, 23° Field Angle


EFFECTS

Electronic Smooth Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe


COLOR

RGBW Single Color LEDs
22 Red, 17 Green, 15 Blue and 6 White


CONTROL / CONNECTIONS

1 DMX Channel Mode (13)
3pin & 5pin DMX In/Out


SIZE / WEIGHT

Length: 301mm
Width: 204mm
Vertical Height: 388mm
Weight: 7,6kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
235W Max Power Consumption
-25°C to 45°C


Specifications and documentation subject to change without notice
