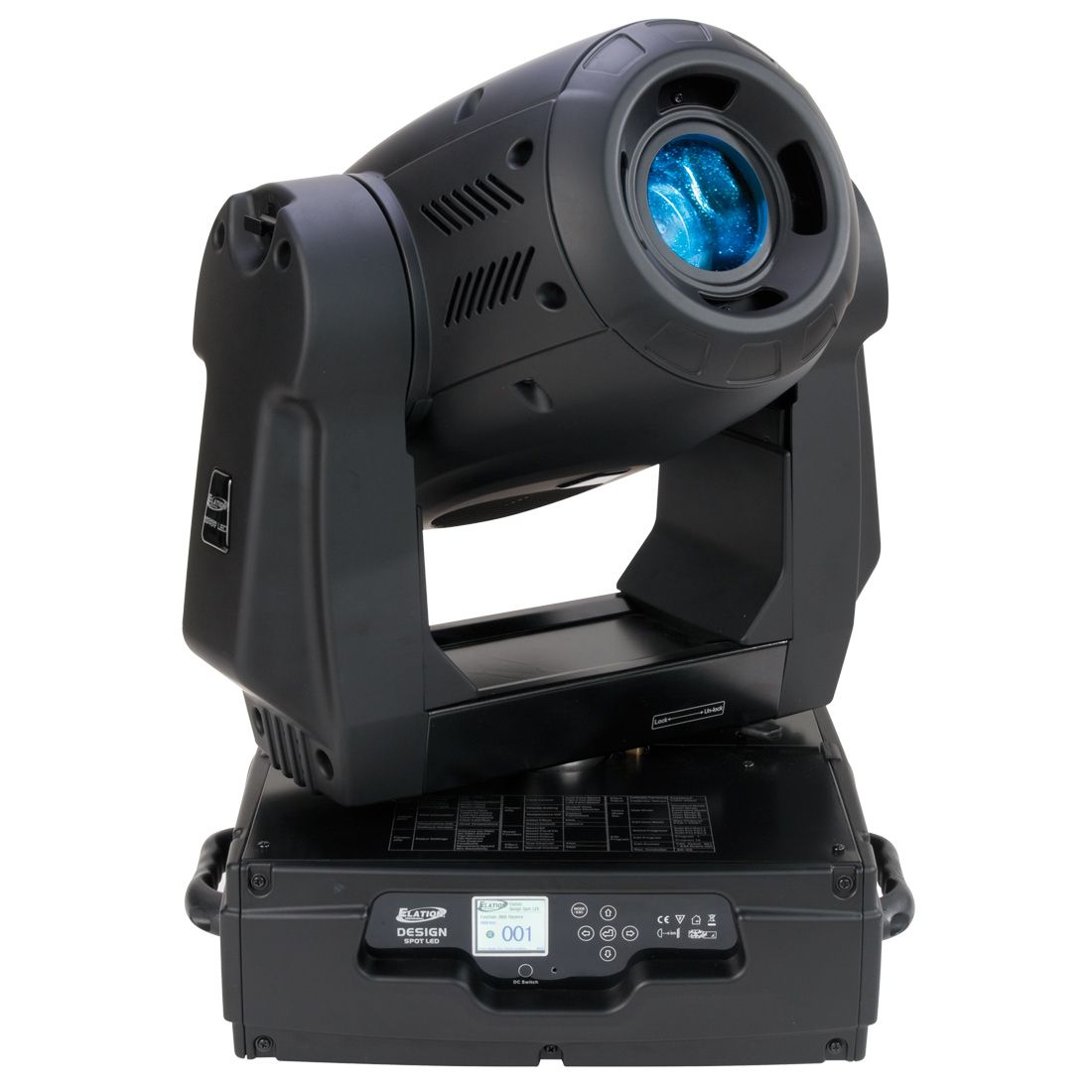

Design Spot LED

Technical Data

- Revolutionary 90W White LED Source
- 8232 Lux @ 2,5m with 6500°K
- 14 Gobos (7x stat./ 7x rot.)
- 8 Colors
- Prism / Iris / Focus
- Stepless Frost (Hybrid)
- Pan: 540° or 630°, Tilt: 265°


- Revolutionary 90W white LED source (6500°K)
- 50,000 hour rated LED source
- 8232 Lux @ 2,5m

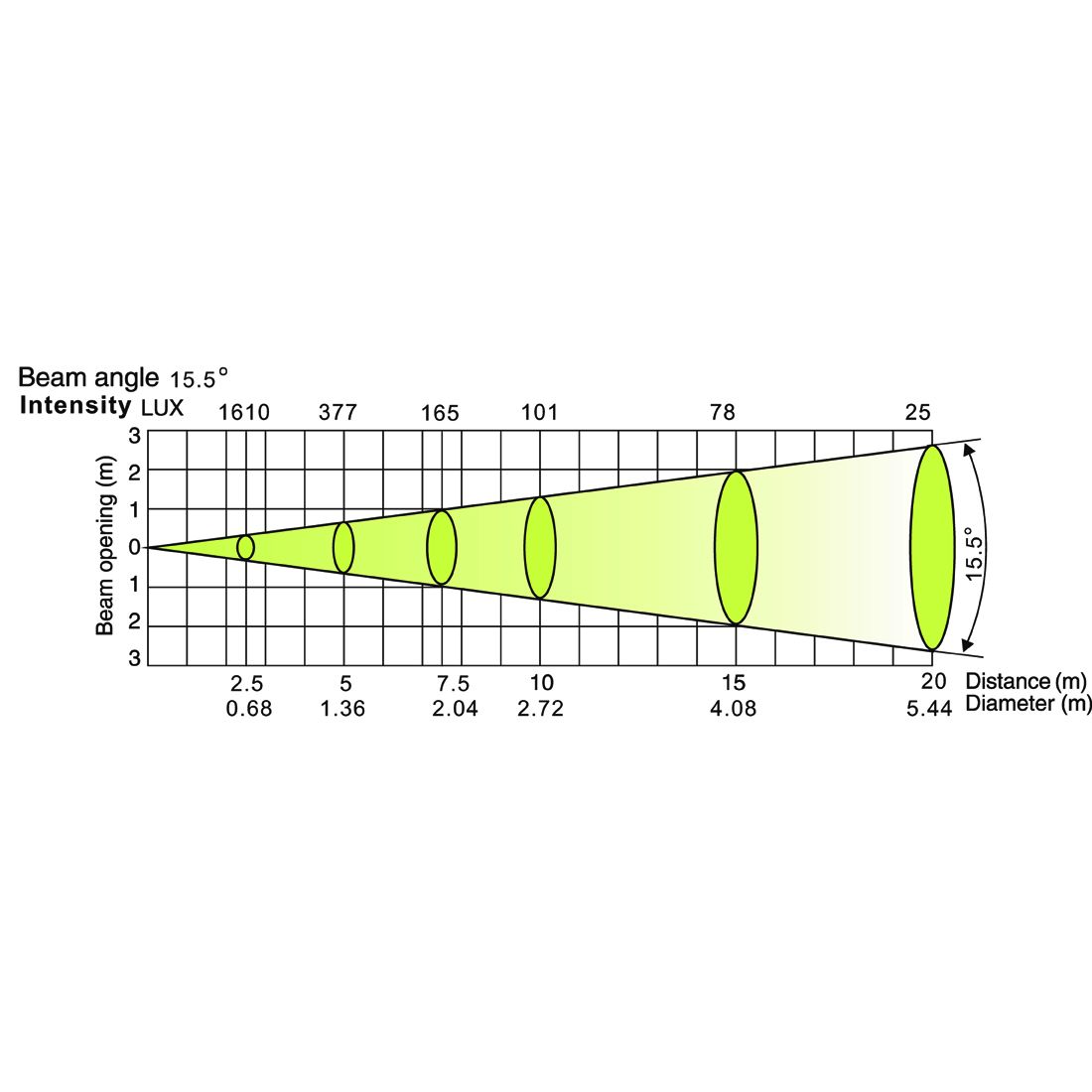

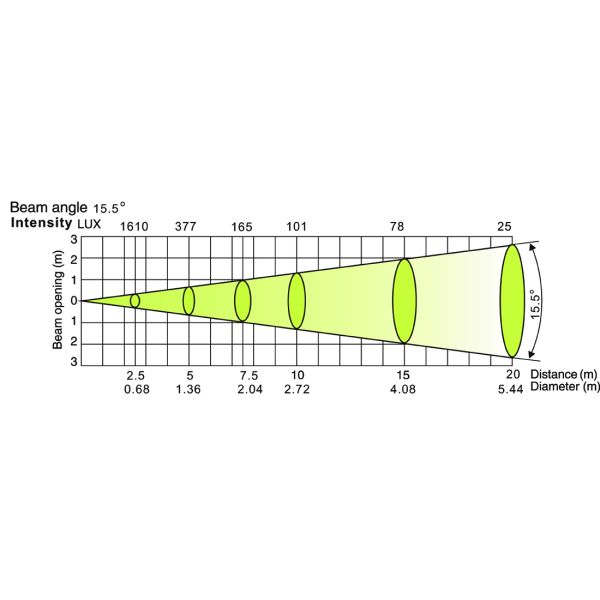

- 15° beam angle
- All lenses are anti-reflection coated
- 1 color wheel with total 8 colors + white
- Variable speed color scrolling both directions (rainbow)
- 2 gobo wheels with total 14 gobos, interchangeable (quickout)
- First wheel: 7 indexable, rotating gobos plus open
- Second wheel: 7 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Overlay (gobo morphing)
- Metal Gobo Size: 27mm outside, 22mm image diameter
- Glass Gobo Size: 27mm outside diameter, 22mm image diameter
- Rotating, indexing prism: 3-facet
- Macro-function for rotating gobo/prism combinations
- Variable speed iris with macros (5-100%)
- Variable Frost Filter (Hybrid effect for Wash)
- Dual flag mechanical dimming system
- Variable speed strobe effect
- Preset variable/random strobe and dimming pulse effects
- Motor driven focus from near to far
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630° or 540°/ 16 bit
- Maximum Tilt-movement 265° / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function

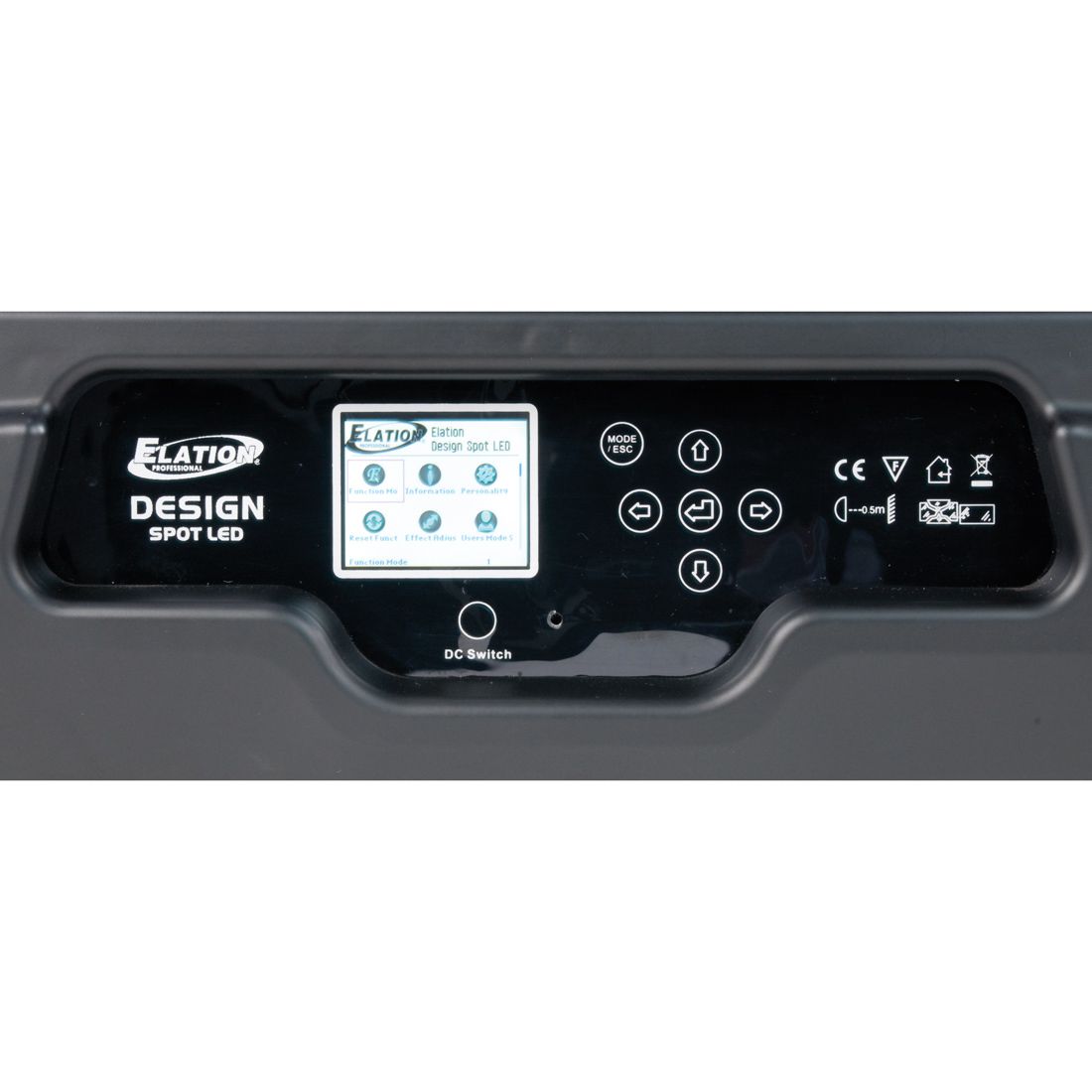

- LCD Matrix Display
- 16 DMX channels USITT DMX-512 (16-bit resolution)
- other DMX modes available
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader

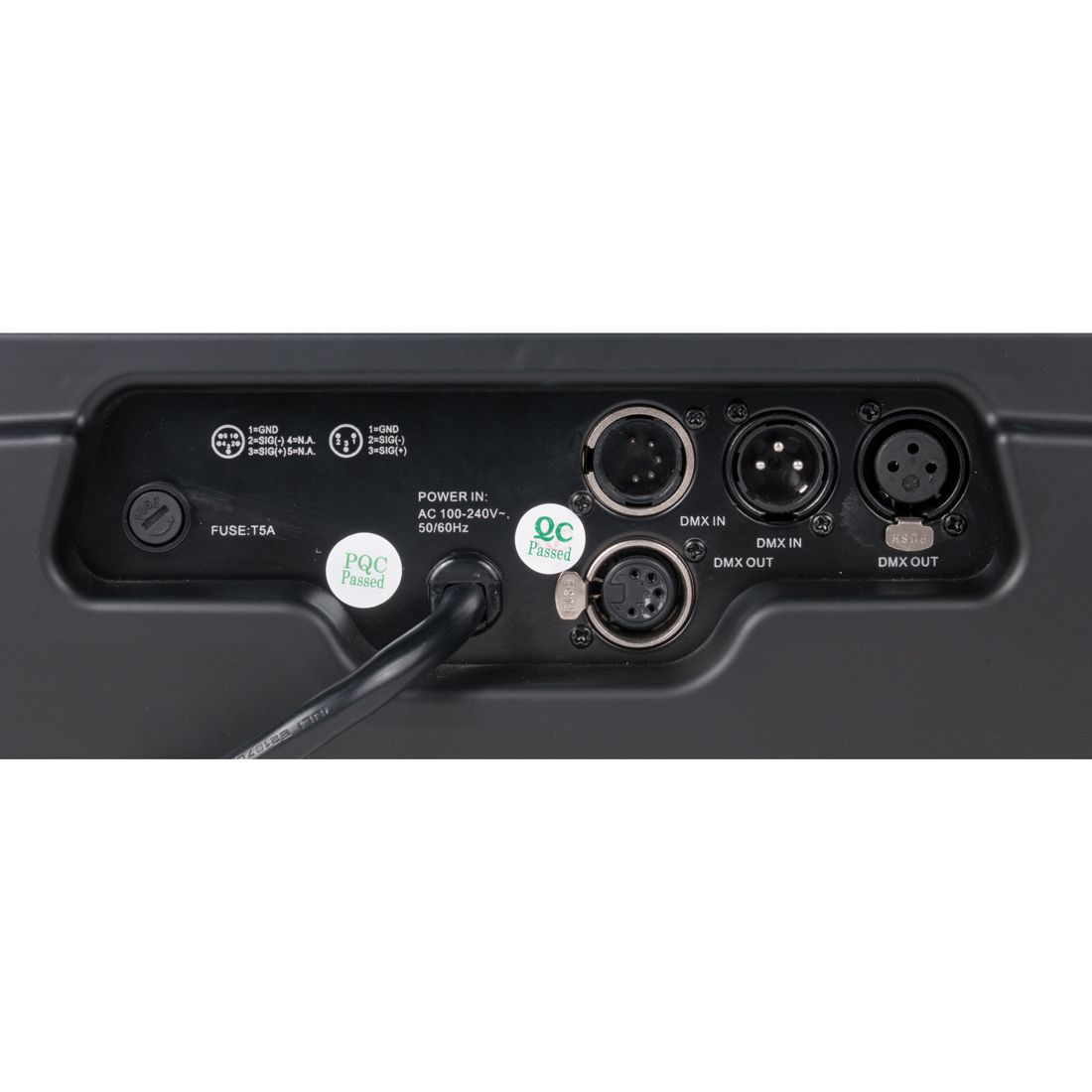

- 3-pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- DB rating @ 1M = 54.18db
- 2x 1/4 turn fastening Omega Clamps
- Electronic power supply
- Power consumption: 240W
- Voltage: AC 100V ~ 240V 50/60Hz

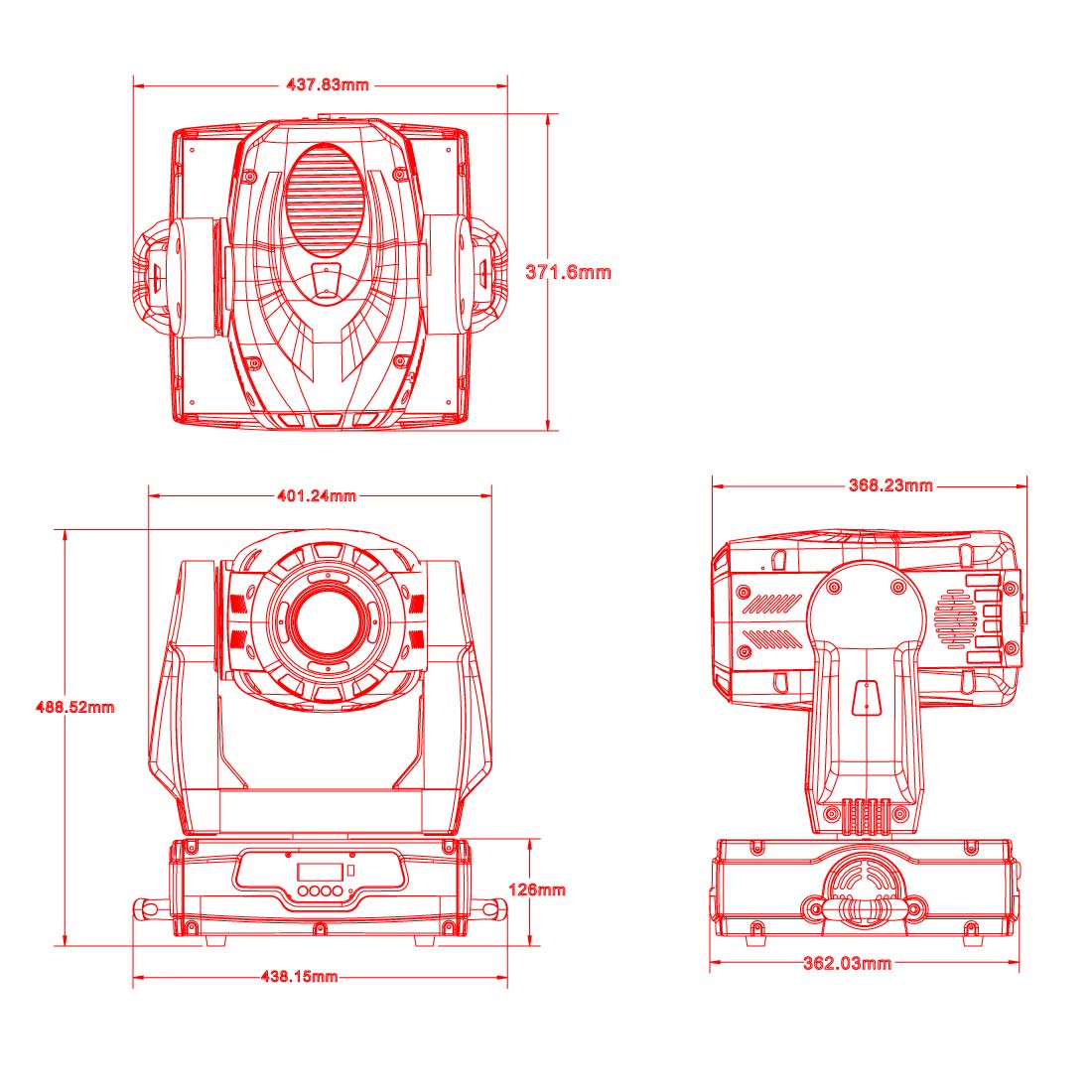

- Dimensions (LxWxH): 438x400x488mm (Head up)
- Weight: 22 kg

Specifications and documentation subject to change without notice
