Design Spot 575 BasicArchive

Code 1237000018

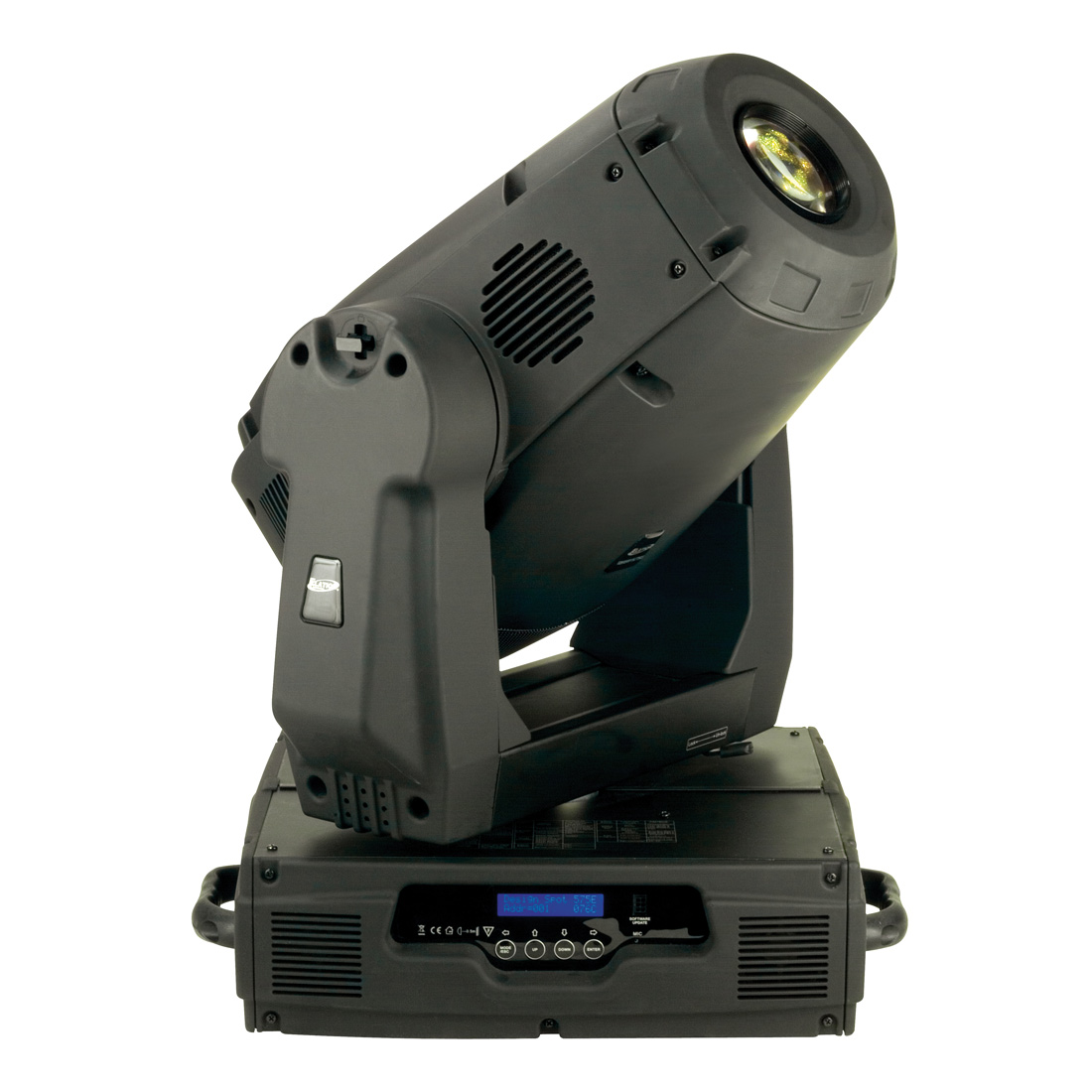

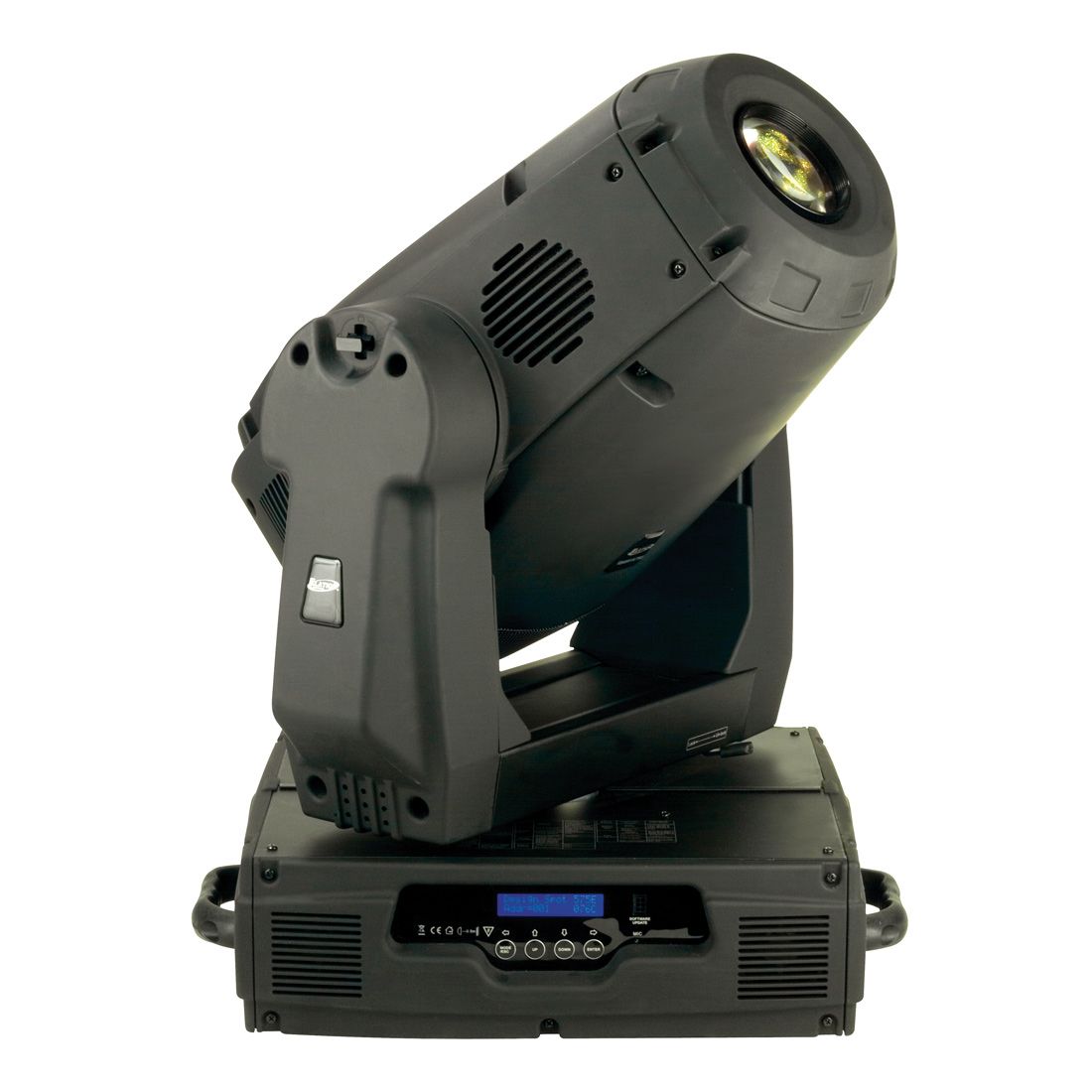

Design Spot 575 Basic

Technical Data

- 8 Colors / 6+7 Gobos
- Iris
- 3-Facet Rotating Prism
- 630degr  PAN (2s), 265degr.  TILT (1,5s)
- RDMX + Fan & Lamp Control
- Modular Construction, Pan/Tilt Lock
- Ultrabright Discharge, Premium Lenses

Specifications:
- Phillips MSR 575/2 SA/DE Gold (575W, 7200°K, 1000h) included

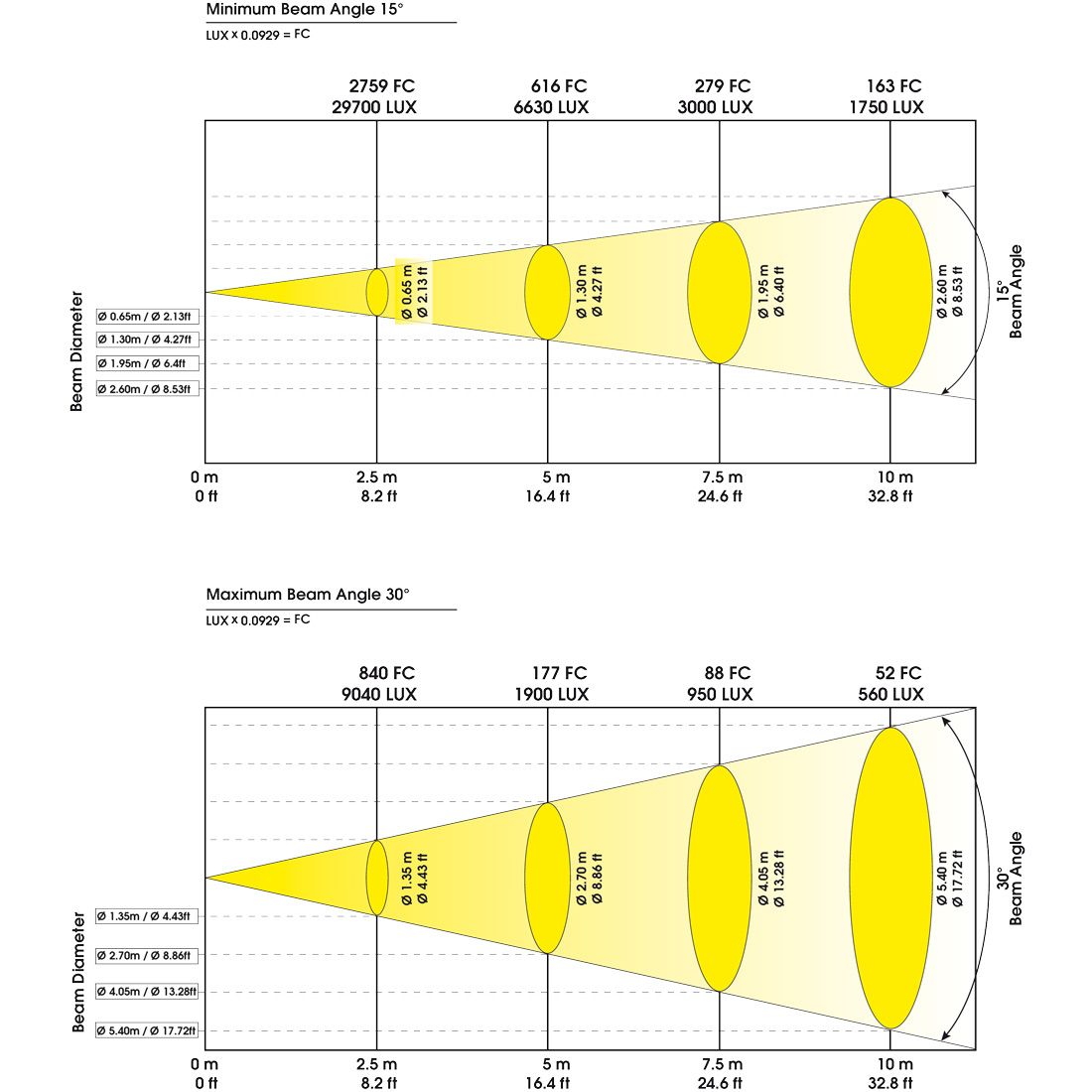

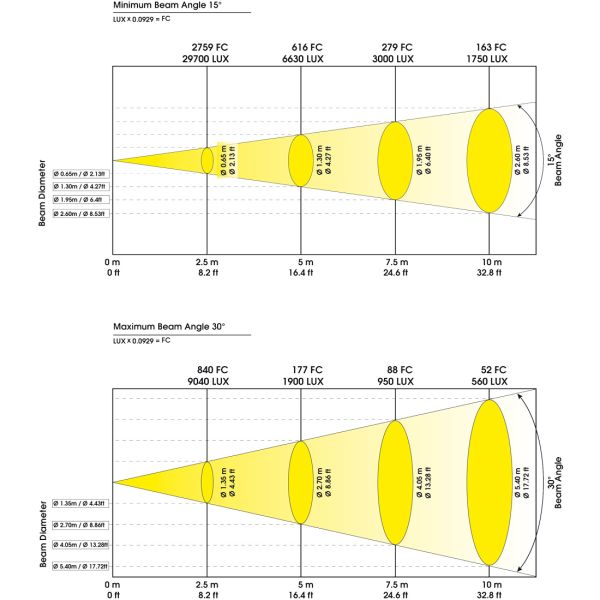

- 29.700 Lux @ 2,5m @ 15°
- 15degr beam angle
- High output luminous-parabolic dichroic reflector
- All lenses are anti-reflection coated
- 8 interchangeable (quickout) dichroic color filters:
- 5 colors + UV + White
- Variable speed color scrolling both directions (rainbow)

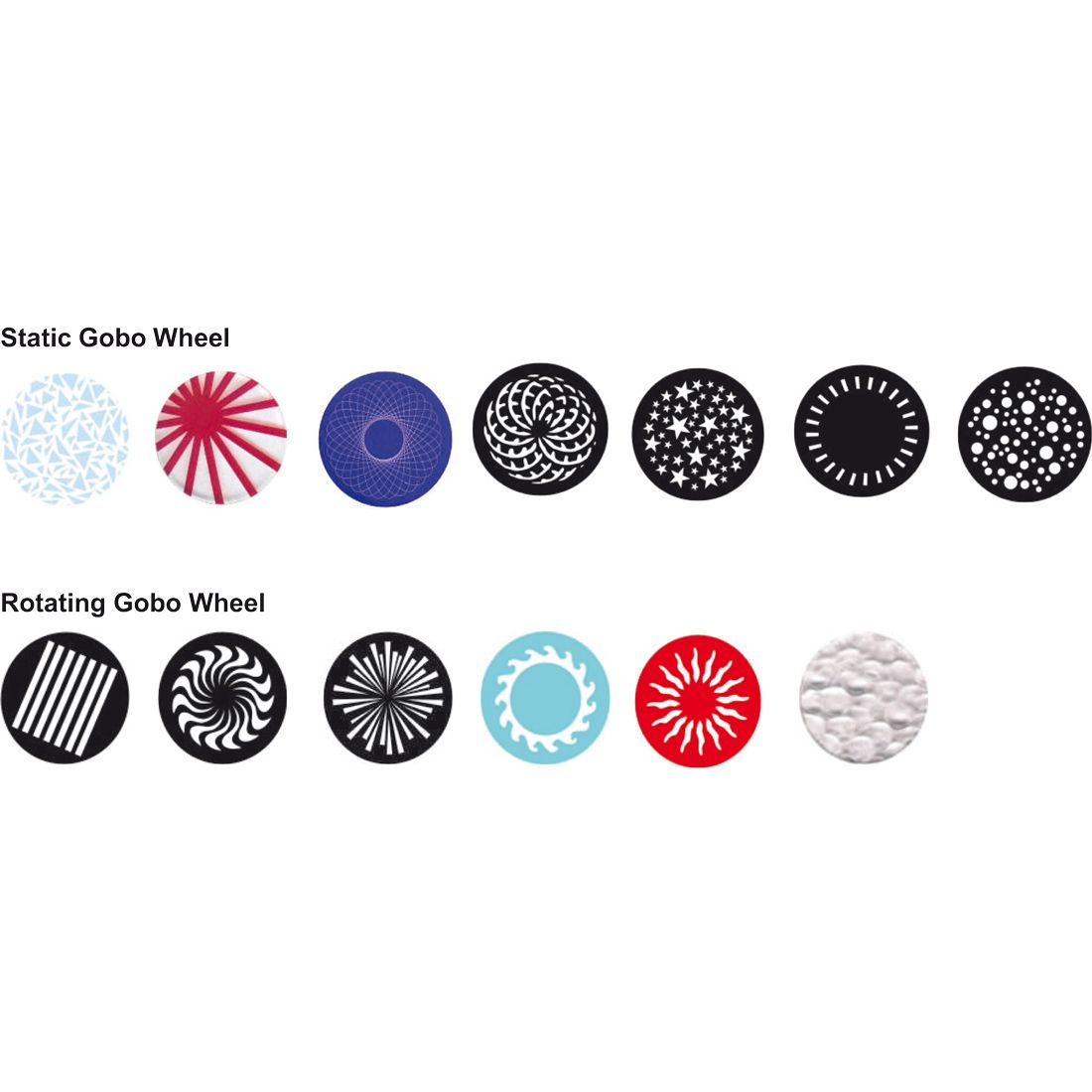

- 2 gobo wheels, total 13 gobos, interchangeable (quickout)
- First wheel: 6 indexable, rotating gobos plus open
- Second wheel: 7 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Overlay (gobo morphing)
- Metal Gobo Size: 27mm outside, 22mm image diameter
- Glass Gobo Size: 27mm outside, 22mm image diameter
- Rotating, indexing prism: 3-facet
- Macro-function for rotating gobo/prism combinations
- Variable speed iris with macros (5-100%)
- Dual flag mechanical dimming system
- Variable speed strobe effect, 1-13 flashes per second
- Preset variable/random strobe, dimming pulse effects
- Motor driven focus from near to far
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630degr. in 2.0 secs or 540degr./ 16 bit
- Maximum Tilt-movement 265degr. in 1.5 secs / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function
- Blue LCD Matrix Display
- 15 DMX channels USITT DMX-512 (standard mode)
- other DMX modes: full 16-bit / basic / custom 1/2/3
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- DB rating @ 1M = 59.6db
- 2x 1/4 turn fastening Omega Clamps
- Electronic ballast and power supply
- Power consumption: 600W
- Voltage: AC 100V ~ 240V 50/60Hz

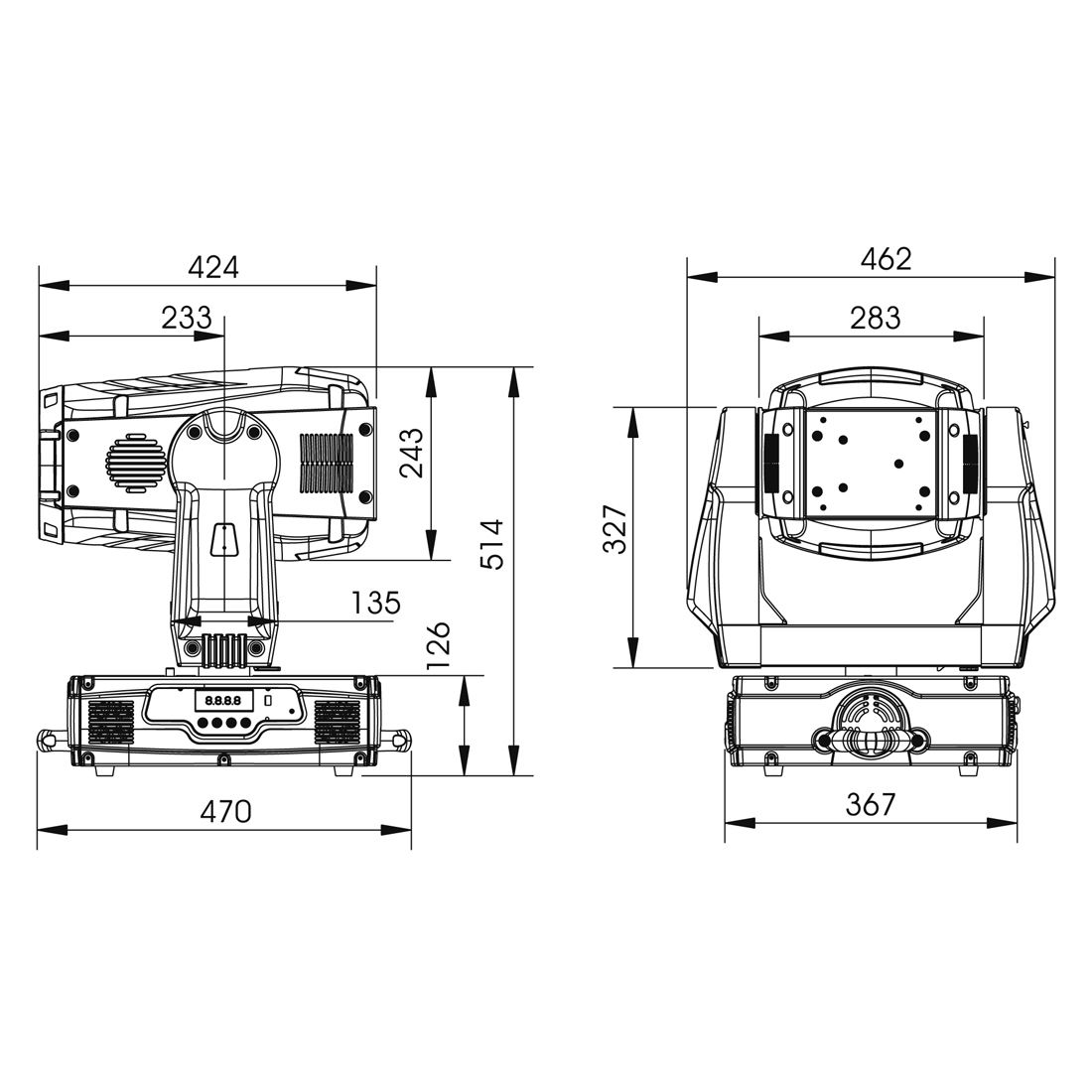

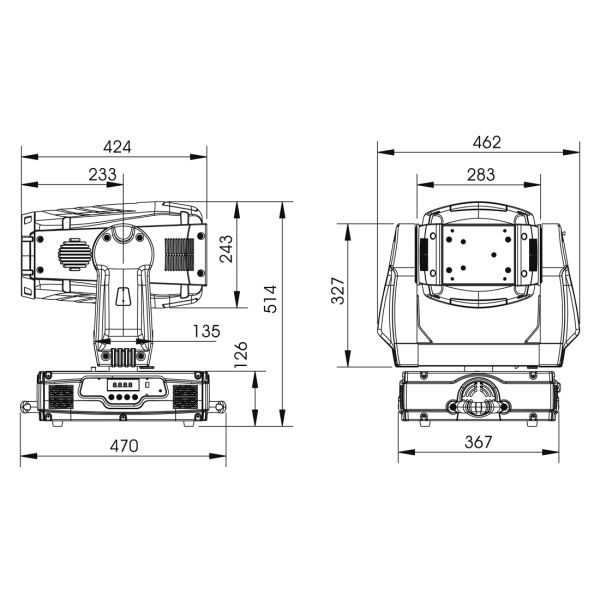

- Dimensions (LxWxH): 470x367x620mm (Head up)
- Weight: 28 kg

Specifications and documentation subject to change without notice
