Design Spot 250 ProArchive

Code 1237000009

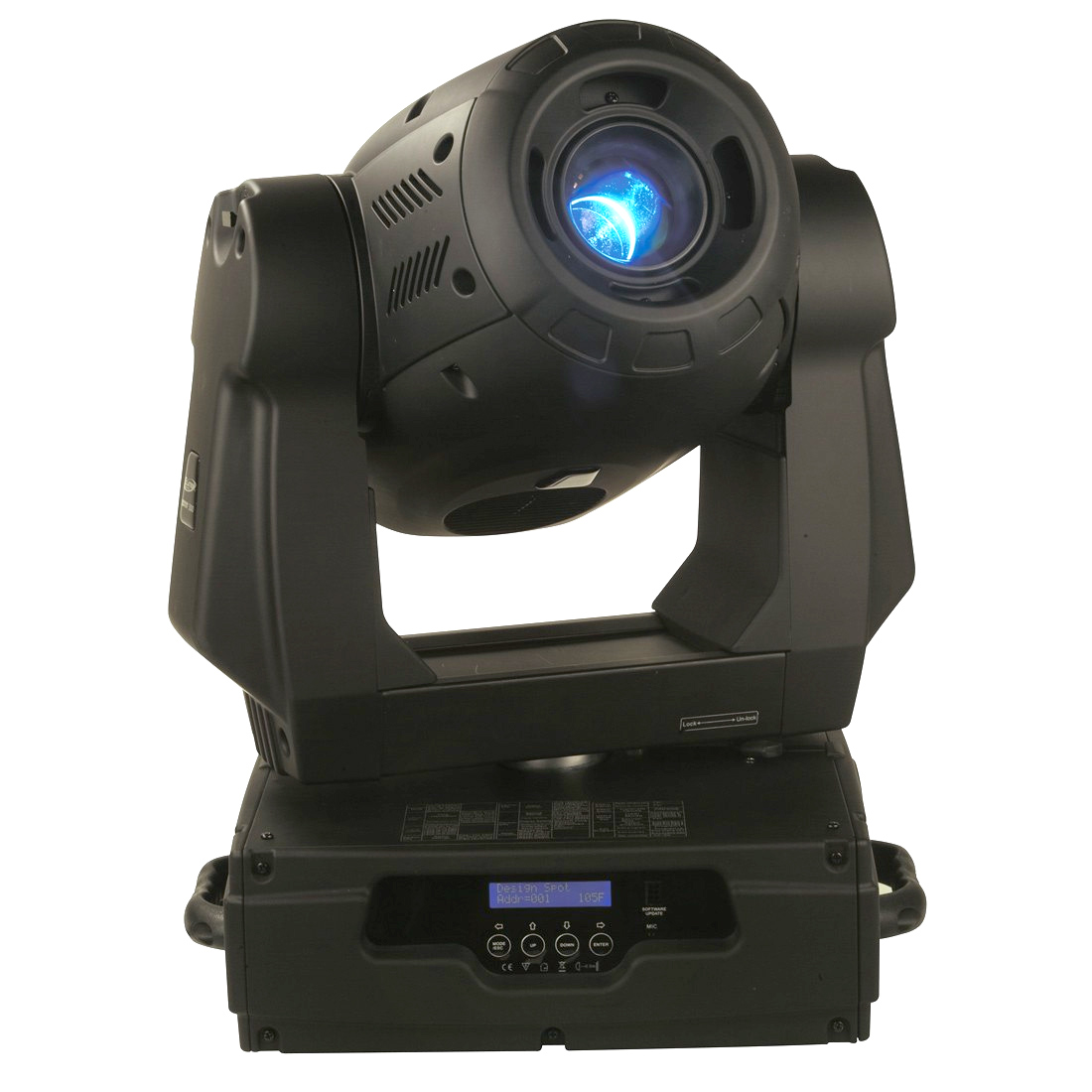

Design Spot 250 Pro

Technical Data

- 8 Colors / 7+7 Gobos
- Prism + Iris + Variable Frost
- 17° or 20° (interchangeable)
- 630° PAN (2s), 265° TILT (1,5s)
- RDMX + Fan & Lamp Control
- Modular Construction, Pan/Tilt Lock
- Ultrabright Discharge, Premium Lenses

Specifications:
- Phillips MSD 250/2 (250W, 8500°K, 3000 HRS) included

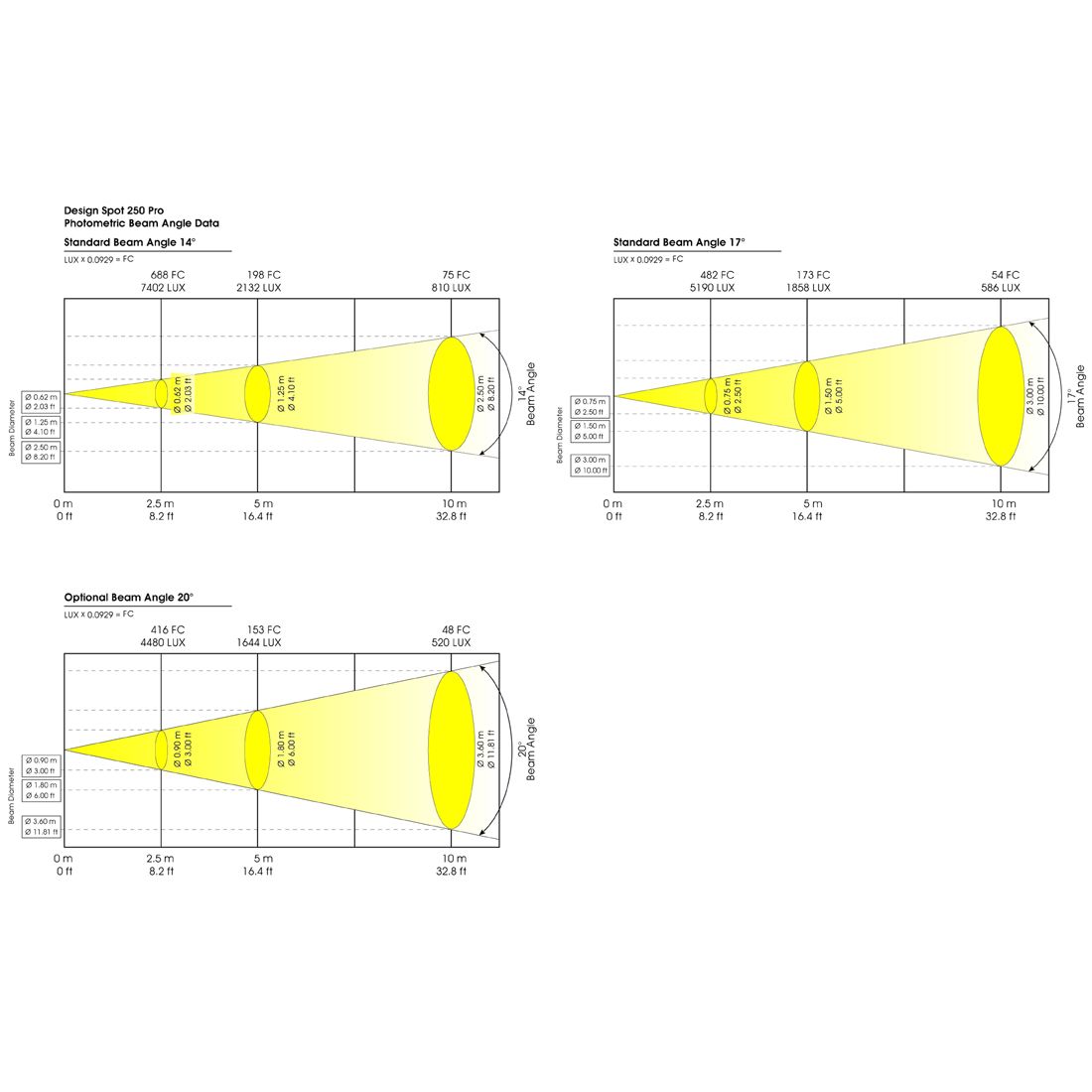

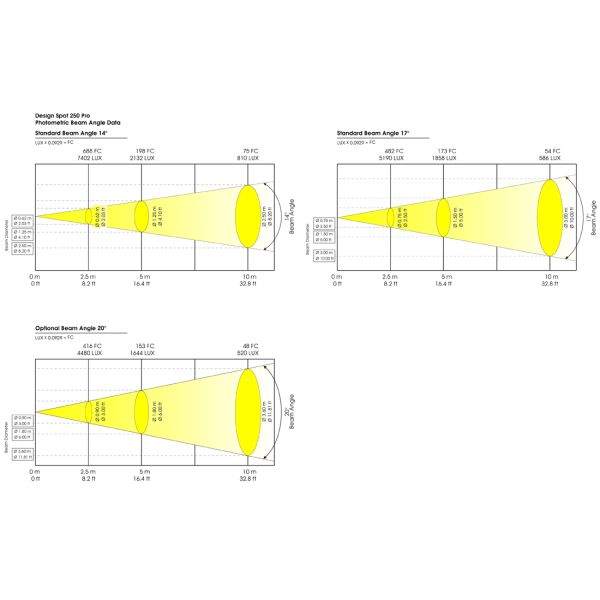

- 2872 Lux @ 5m @ 17°
- 17° or 20° beam angle
- High output luminous-parabolic dichroic reflector
- All lenses are anti-reflection coated

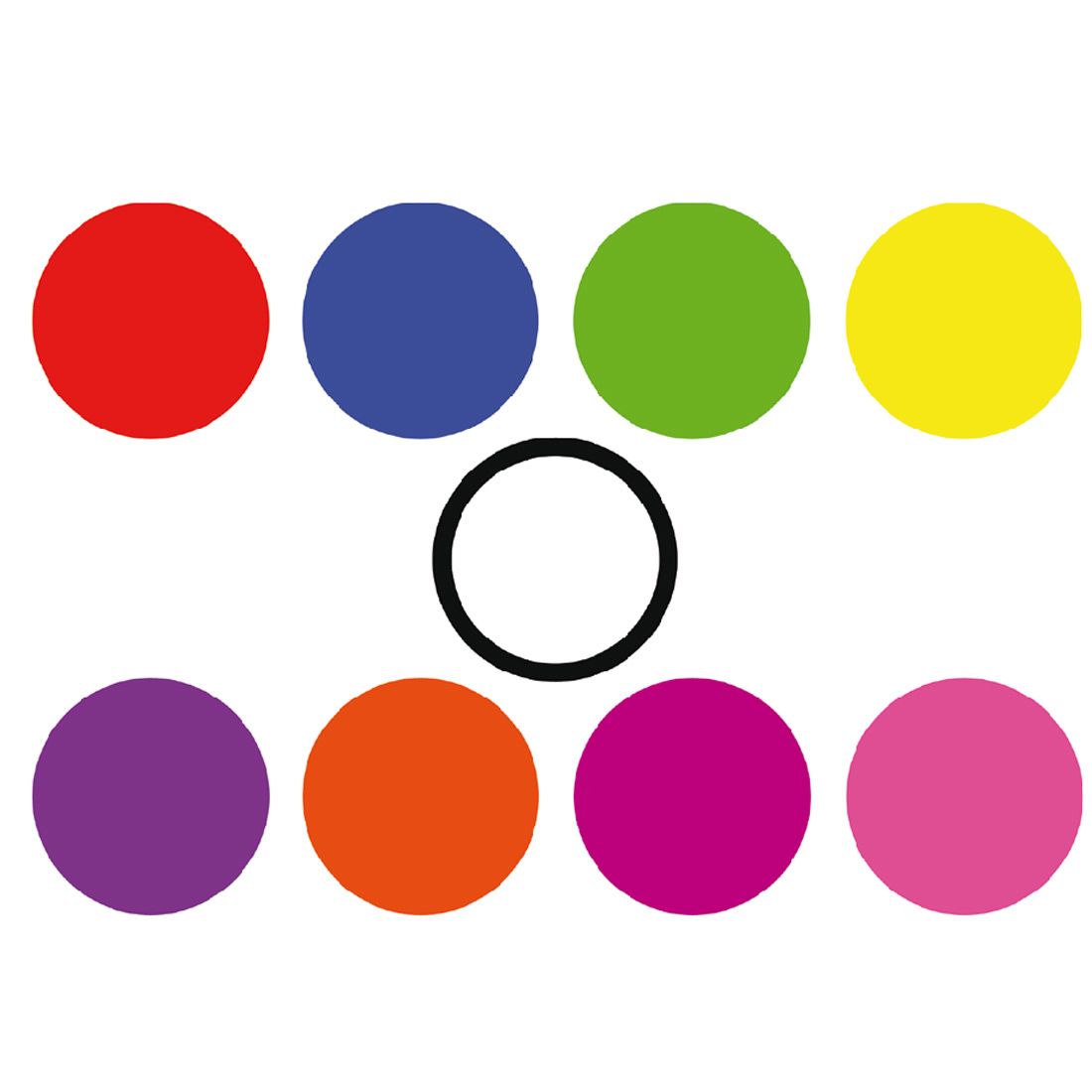

- 8 interchangeable (quickout) dichroic color filters:
- 7 colors + UV + White
- Variable speed color scrolling both directions (rainbow)
- 2 gobo wheels with total 14 gobos, interchangeable (quickout)

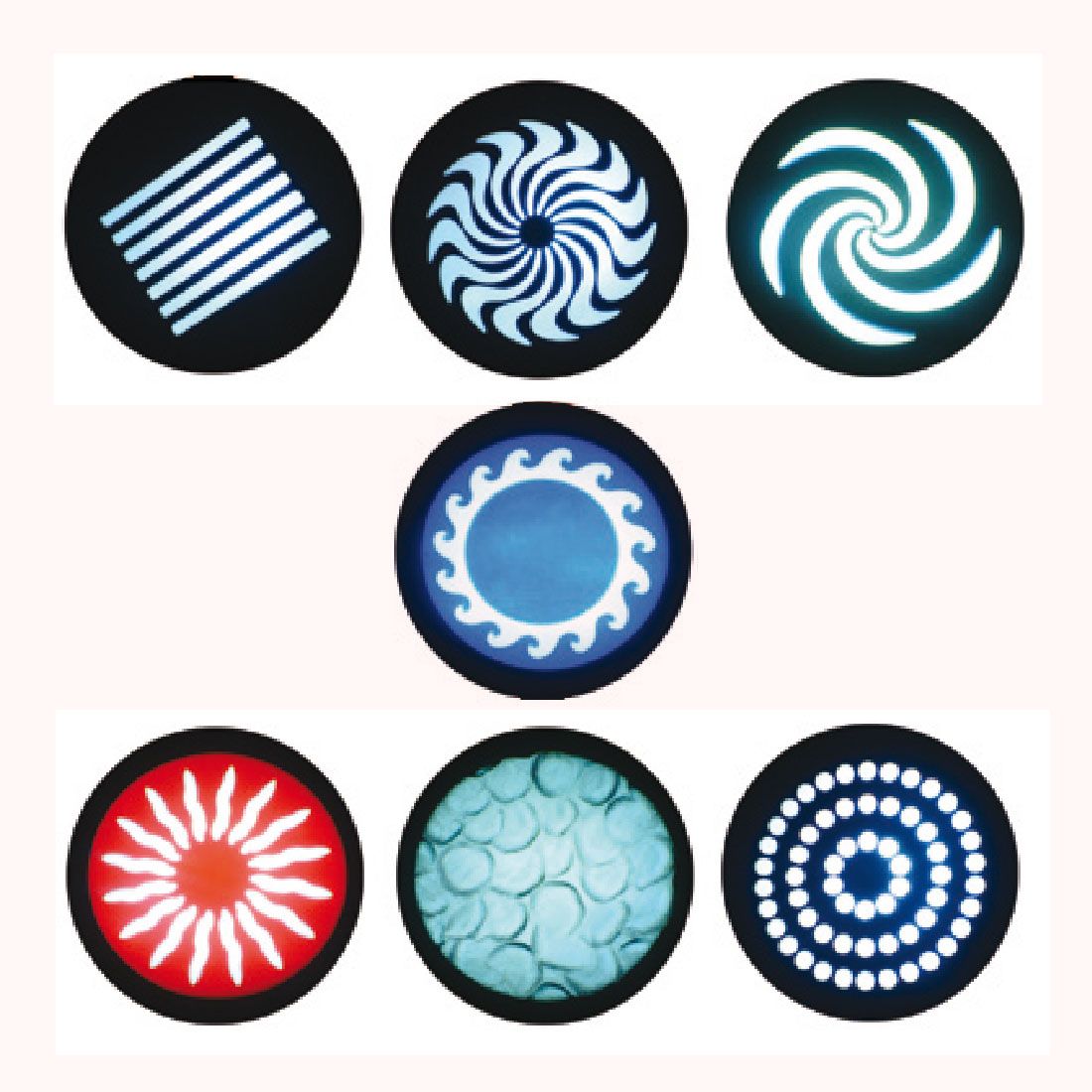

- First wheel: 7 indexable, rotating gobos plus open

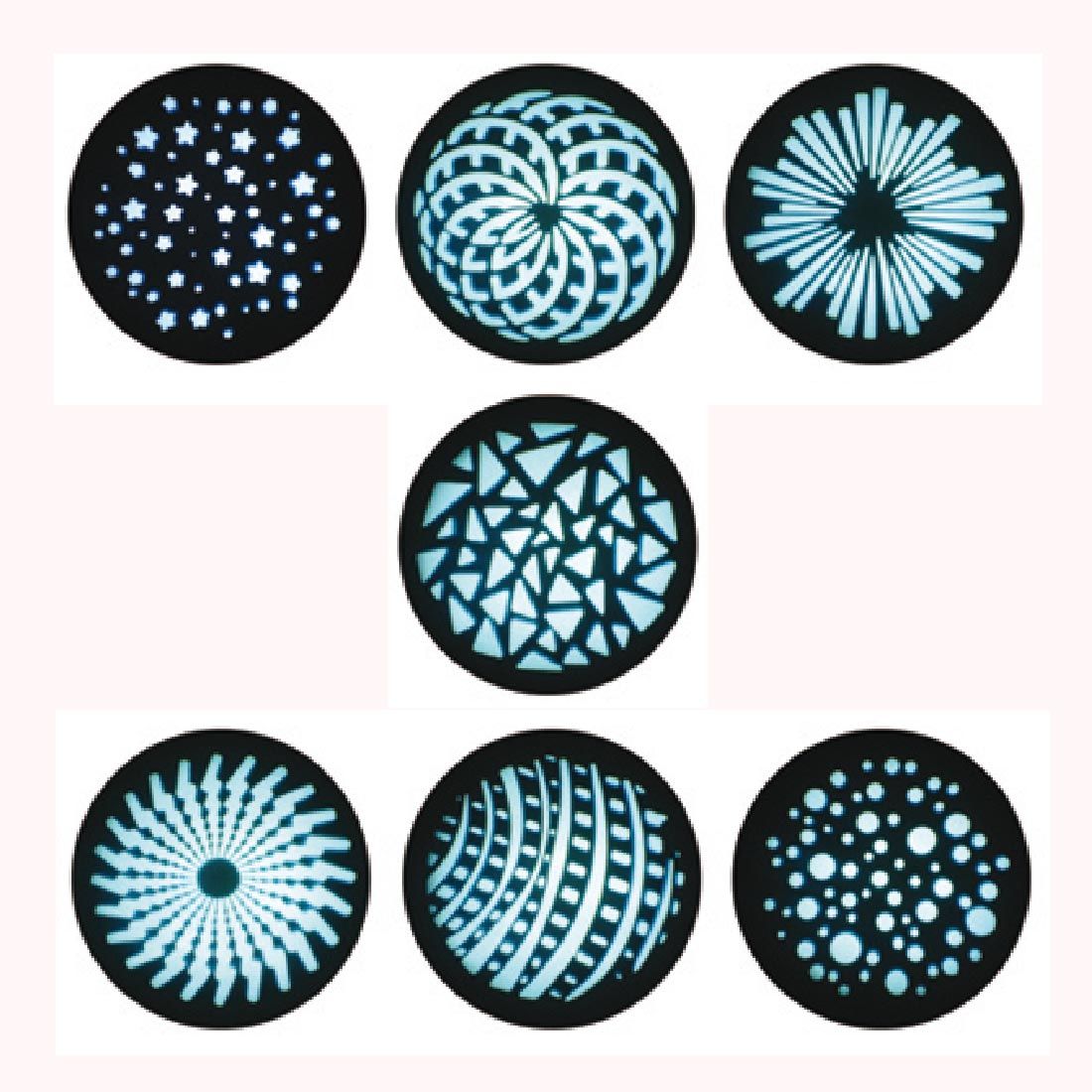

- Second wheel: 7 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Overlay (gobo morphing)
- Metal Gobo Size: 27mm outside, 22mm image diameter
- Glass Gobo Size: 27mm outside diameter, 22mm image diameter
- Rotating, indexing prism: 3-facet
- Macro-function for rotating gobo/prism combinations
- Variable speed iris with macros (5-100%)
- Variable Frost Filter (Hybrid effect for Wash)
- Dual flag mechanical dimming system
- Variable speed strobe effect, 1-13 flashes per second
- Preset variable/random strobe, dimming pulse effects
- Motor driven focus from near to far
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630° in 2.0 secs or 540°/ 16 bit
- Maximum Tilt-movement 265° in 1.5 secs / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function
- 16 DMX channels USITT DMX-512 (standard mode)
- other DMX modes: basic 8-bit (14ch) & custom 1/2/3
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- 2x 1/4 turn fastening Omega Clamps
- Electromagnetic ballast and power supply
- Power consumption: 400W
- Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
- Dimensions (LxWxH): 429x362x376mm (Head horiz.)
- Weight: 23 kg

Specifications and documentation subject to change without notice
