Design Spot 1200CArchive

Code 1237000012

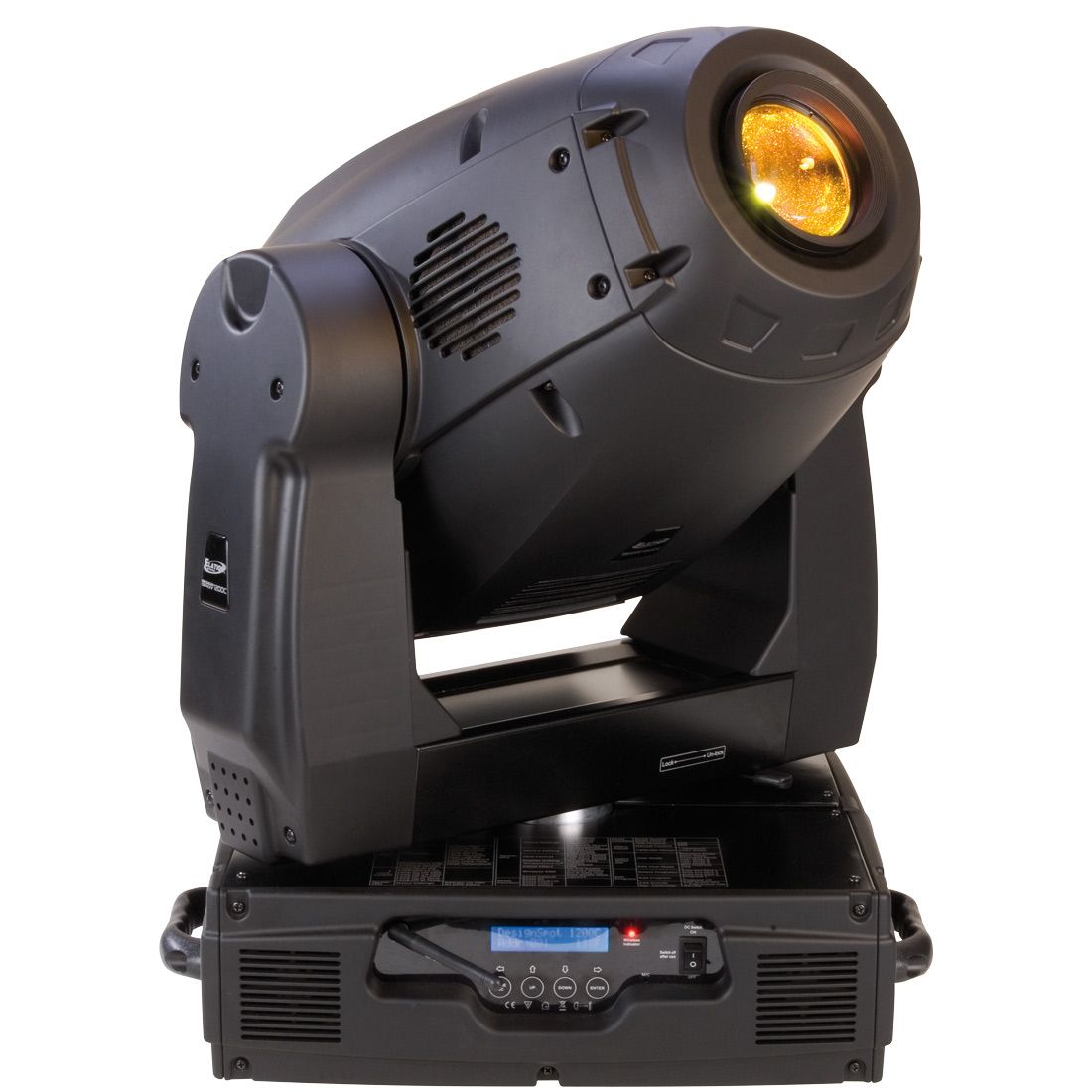

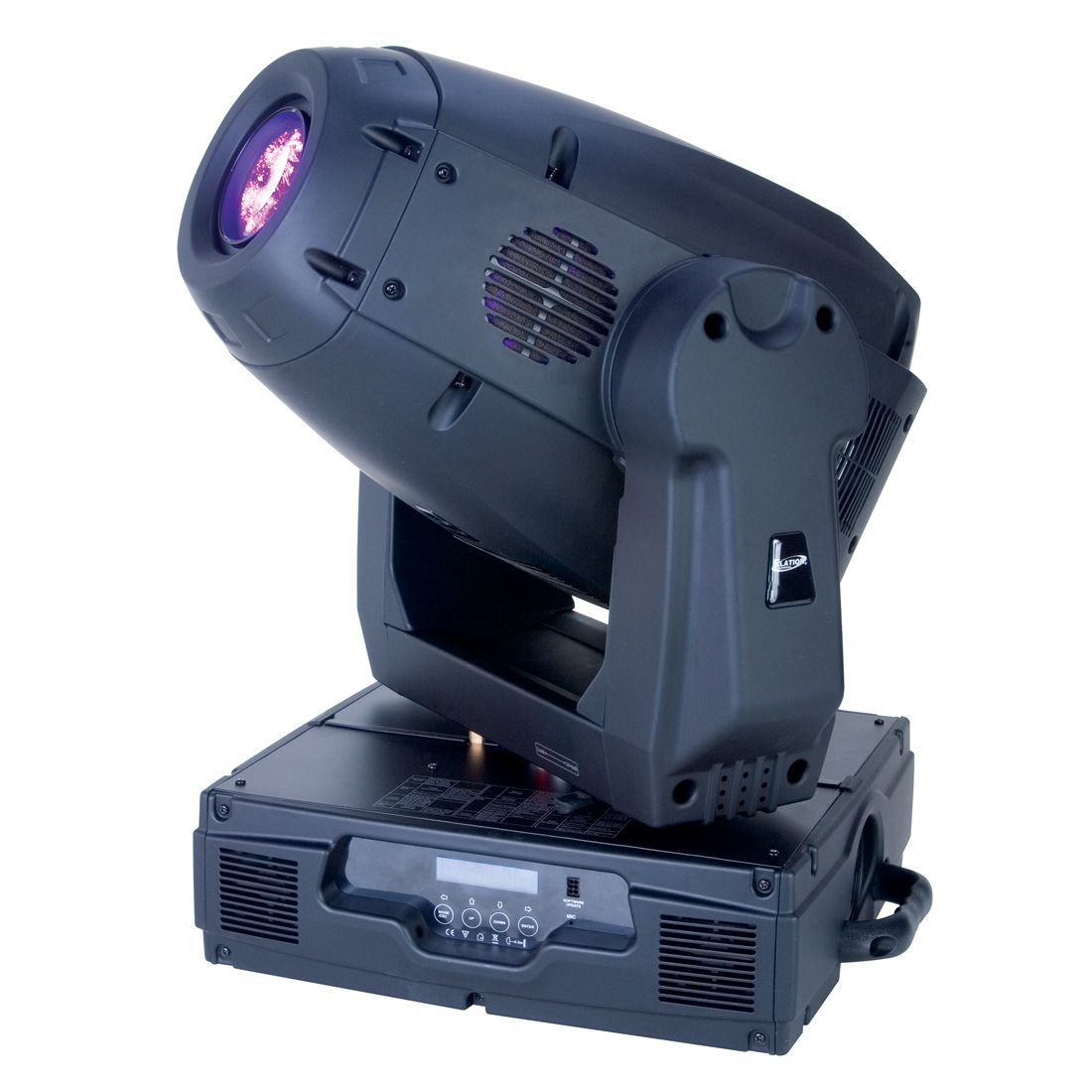

Design Spot 1200C

Technical Data

- Size of a 575 Head with 1200 discharge
- Ultrabright 1200Watt, Premium Lenses
- Zoom 16°-41° / CMY / rotatable Gobos
- Animation Wheel, 2 prism
- 630° PAN (2s), 265° TILT (1,5s)
- EWDMX + RDMX + Fan & Lamp Control
- Modular Construction, Pan/Tilt Lock

Specifications:
- Phillips Fast Fit MSR 1200 SA/DE (1200W, 7500°K, 750h) included

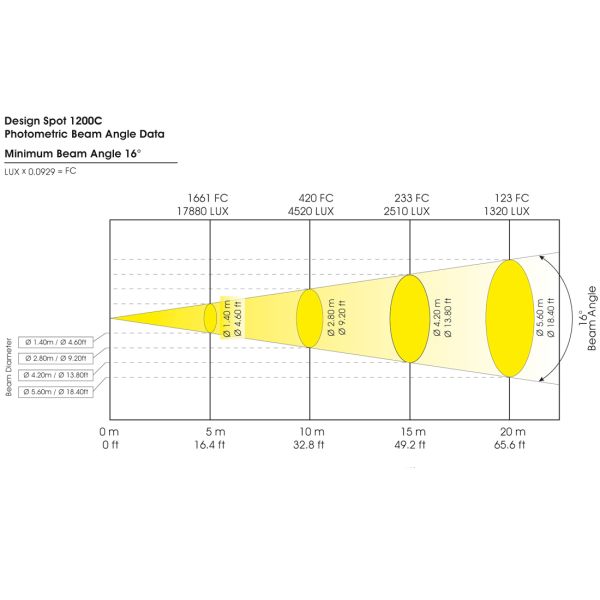

- 71.520 Lux @ 2,5m @ 16°

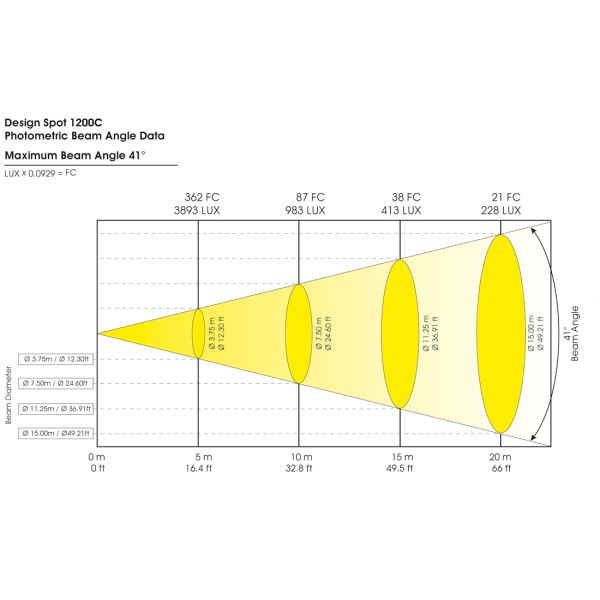

- 16°-41° beam angle
- High output luminous-parabolic dichroic reflector
- All lenses are anti-reflection coated
- CMY gradual color mixing
- 1 color wheel with 8 colors, interchangeable (quickout):
- 6 colors + UV + CTB + White
- Variable CTO
- Variable speed color scrolling both directions (rainbow)

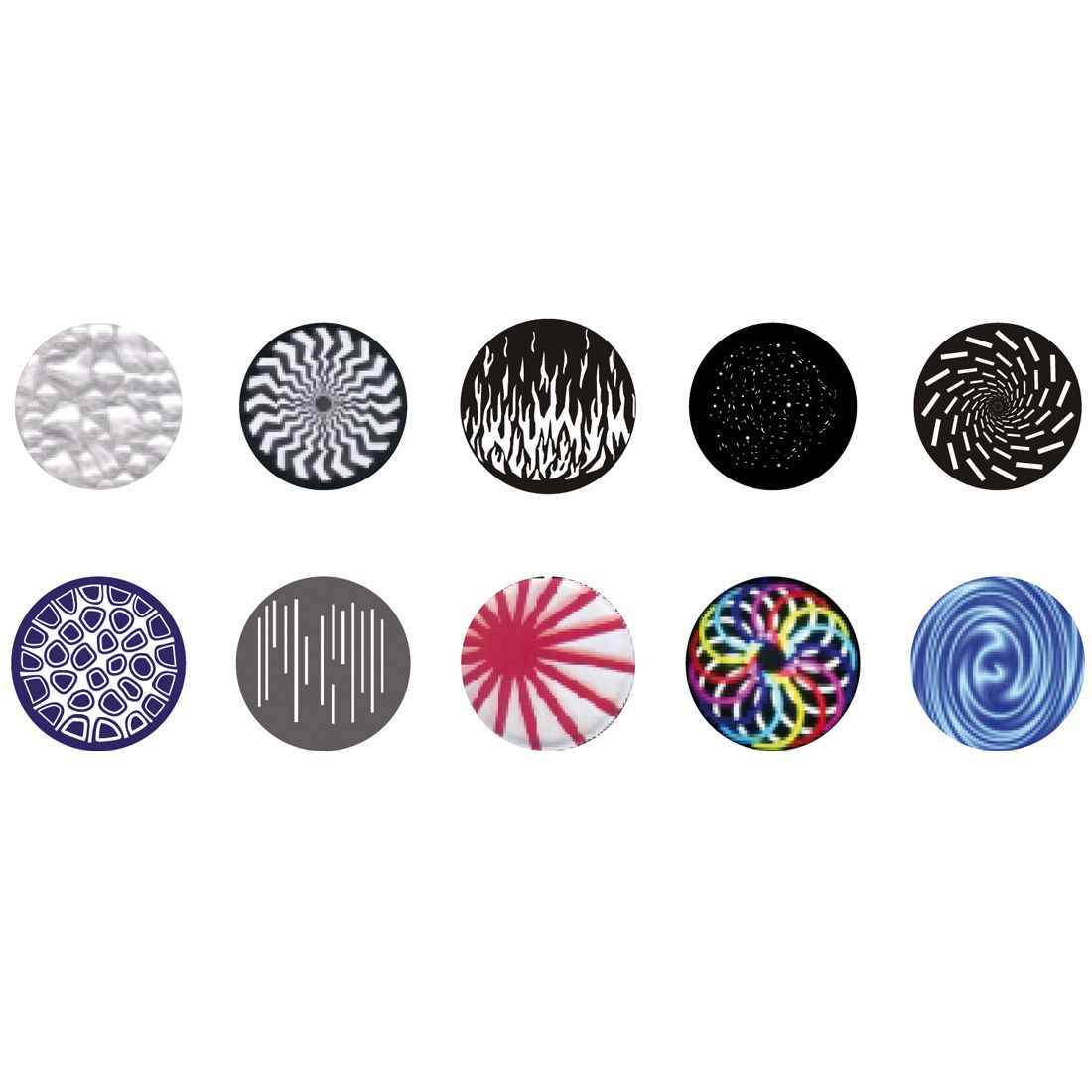

- 2 gobo wheels with 12 gobos, interchangeable (quickout)
- First wheel: 6 indexable, rotating gobos plus open
- Second wheel: 6 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Overlay (gobo morphing)
- Metal Gobo Size: 29mm outside, 24mm image diameter
- Glass Gobo Size: 29mm outside, 24mm image diameter
- Rotating animation effect wheel
- Rotating, indexing prism: 3-facet & 3D glass
- Macro-function for rotating gobo/prism combinations
- Variable speed iris with macros (5-100%)
- Variable Frost Filter (Hybrid effect for Wash)
- Dual flag mechanical dimming system
- Variable speed strobe effect, 1-13 flashes per second
- Preset variable/random strobe and dimming pulse effects
- Motor driven focus from near to far
- Motor driven zoom 16°-41°
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630° in 2.0 secs or 540°/ 16 bit
- Maximum Tilt-movement 265° in 1.5 secs / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function

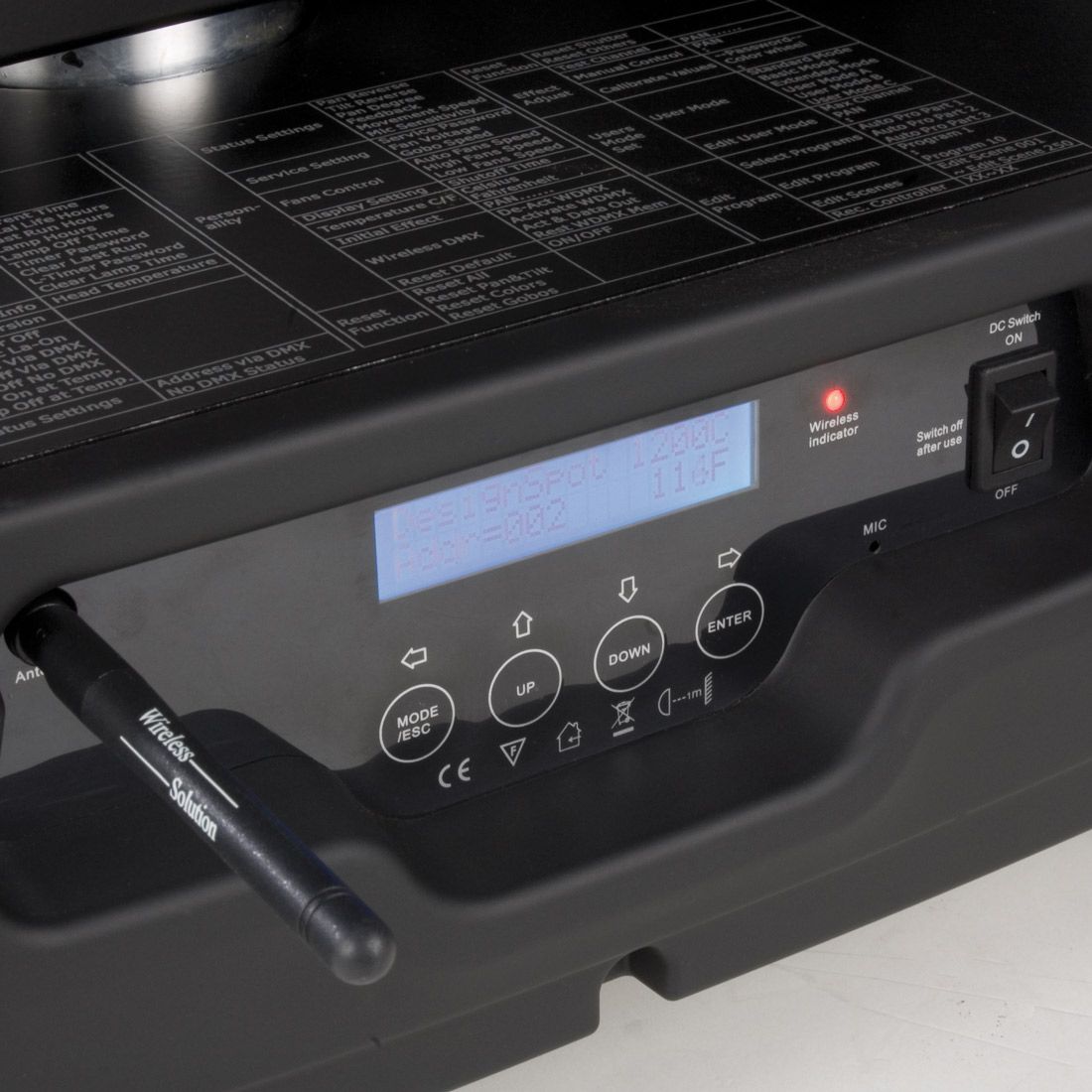

- Battery powered blue LCD Matrix Display
- EWDMX receiver for wireless DMX built-in
- 26 DMX channels USITT DMX-512 (standard mode)
- other DMX modes: full 16-bit / basic / custom 1/2/3
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- DB rating @ 1M = 55,5db
- 2x 1/4 turn fastening Omega Clamps
- Electronic ballast and power supply
- Power consumption: 1500W
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (LxWxH): 470x462x517mm (Head up)
- Weight: 35.5 kg

Specifications and documentation subject to change without notice
