Design Promo DMXACArchive

Code 1231000013

Design Promo DMXAC

Technical Data

- 540 degree movement
- 4ch 16-bit DMX control
- Internal programs
- Automatic repositioning
- DMX in/out on top base
- 16A CEE 7/7 out on top base

The DMX-controlled "Promo Base 360" and "Promo Base DMXAC" are designed to rotate banners, flags or lighting fixtures on exhibitions, in theatres or in clubs. They are great for retail environments and other applications where advertising needs to be highlighted.
The "Promo 360" can turn continuously 360 degree in micro steps (16bit resolution) and the "Promo DMXAC" turns for 540 degree max and has builtin DMX and AC power supply and offers addtional motor control. With the last you are able to rotate any DMX item such as Lasers, LED Wash lights, Strobes etc. Rotation is possible in both directions. Speed is adjustable by DMX.

Specifications

- 540 degree PAN rotating base

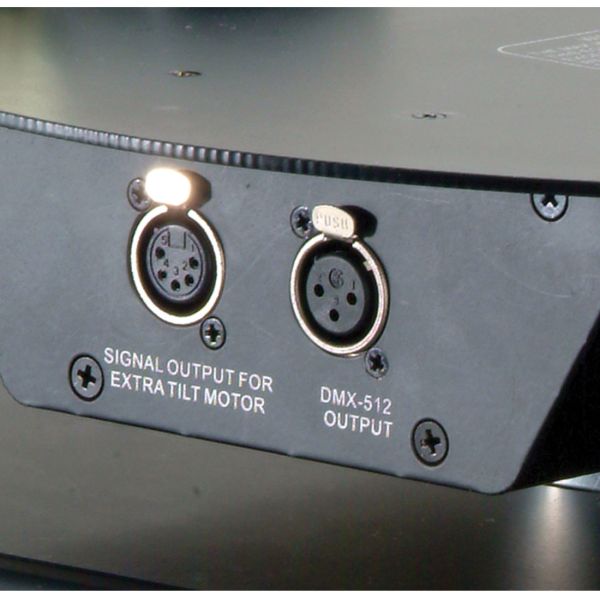

- DMX (3 + 5 pin) and AC power outlet on rotating base
- 16 bit movement resolution
- DMX controlled (USITT DMX-512)
- 4 DMX Channels
- Operation temperature: -10 to +40 degree Celcius
- Auto correction
- Max. current for top base: 16A
- Master/Slave function
- Built-in Stand-Alone programs
- Very silent cooling system
- optional (Tilt) - Motor
- Max load: 10kg
- Power supply: 230V/50Hz
- Power draw: 45W

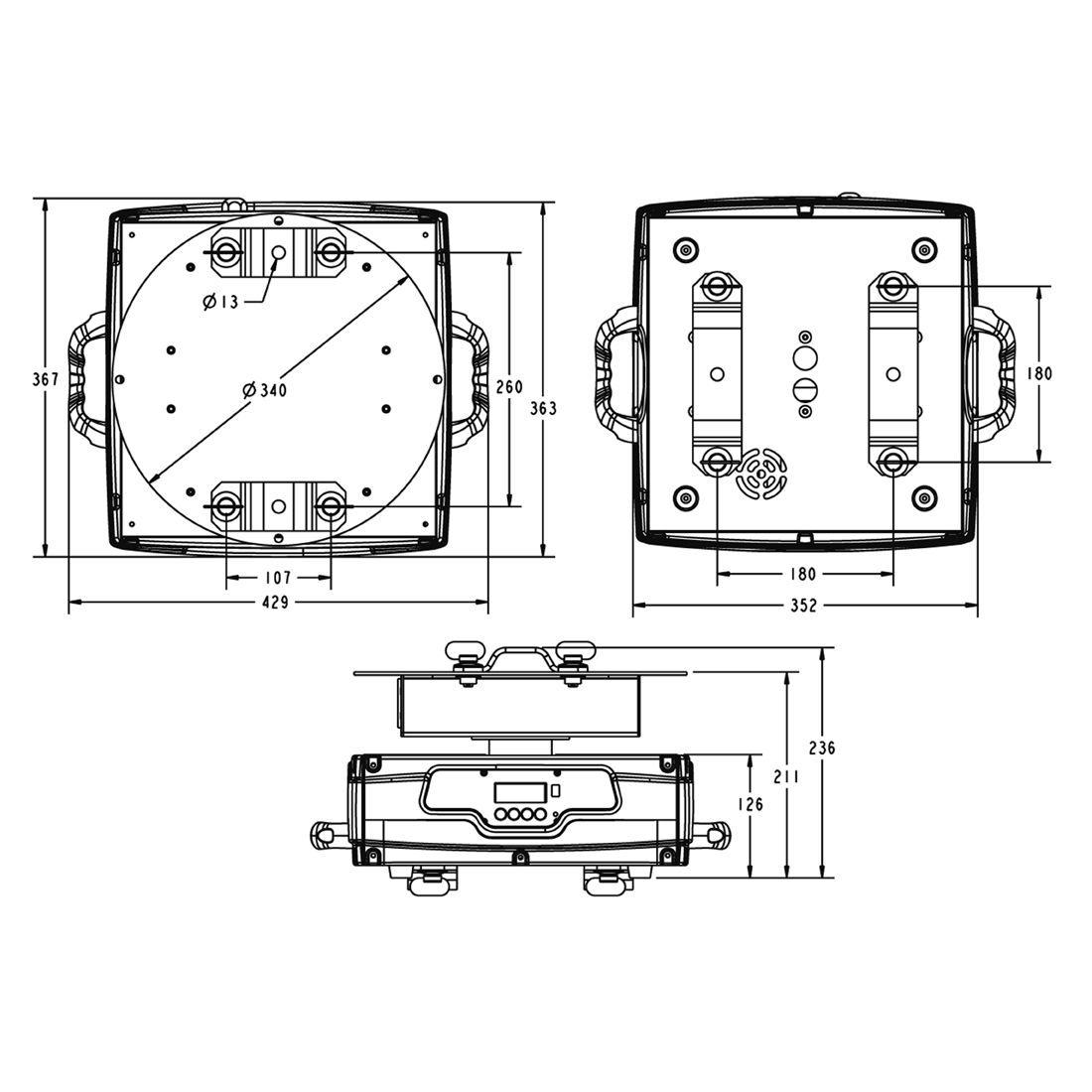

- Dimensions: 429 x 352 x 236mm
- Weight: 15kg

Specifications and documentation subject to change without notice
