Design Promo 360Archive

Code 1231000012

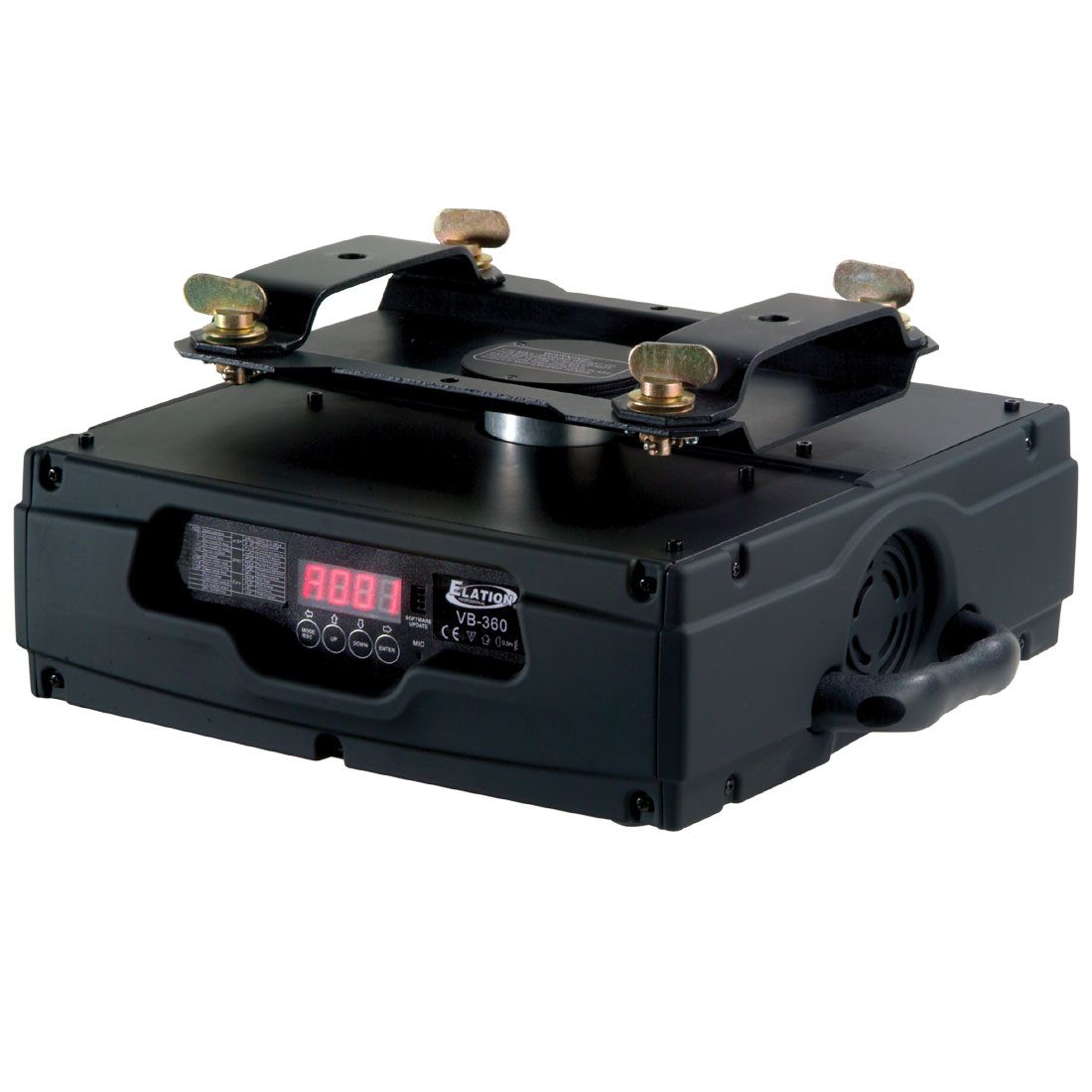

Design Promo 360

Technical Data

- 360° movement
- 4ch 16-bit DMX control
- Internal programs
- Automatic repositioning
- Quick out omega clamps
- 10kg additional load
- Silent fan & operation

The DMX-controlled "Promo Base 360" and "Promo Base DMXAC" are designed to rotate banners, flags or lighting fixtures on exhibitions, in theatres or in clubs. They are great for retail environments and other applications where advertising needs to be highlighted.
The "Promo 360" can turn continuously 360° in micro steps (16bit resolution) and the "Promo DMXAC" turns for 540° max and has builtin DMX and AC power supply and offers addtional motor control. With the last you are able to rotate any DMX item such as Lasers, LED Wash lights, Strobes etc. Rotation is possible in both directions. Speed is adjustable by DMX.

Specifications

- 360° PAN rotating base
- 16 bit movement resolution
- DMX controlled (USITT DMX-512)
- 4 DMX Channels
- Operation temperature: -10°C to +40°C
- Auto correction
- Primary/Secondary function
- Built-in Stand-Alone programs
- Very silent cooling system
- Max load: 10kg
- Power supply: 230V/50Hz
- Power draw: 45W

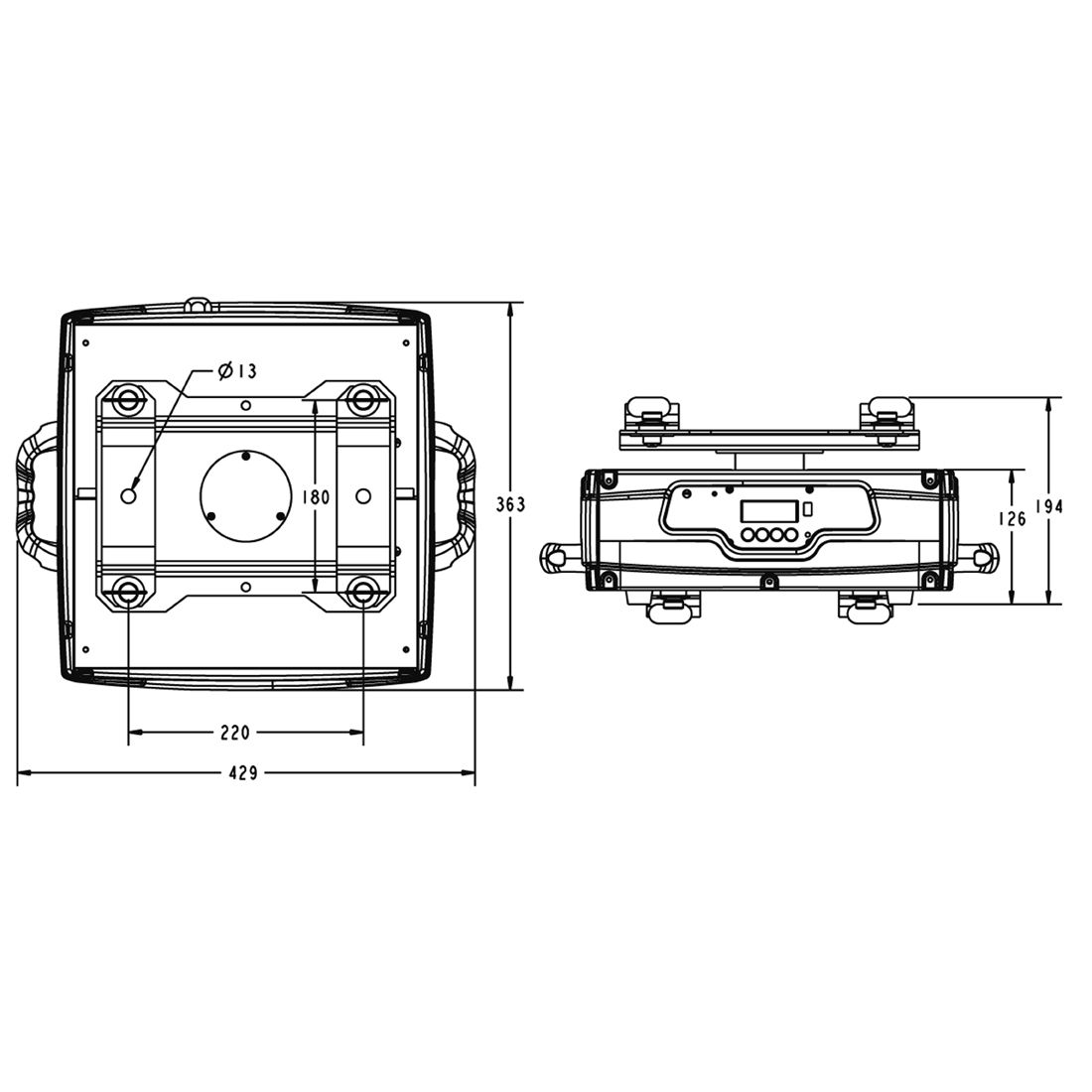

- Dimensions: 429 x 352 x 215mm
- Weight: 10,5kg

Specifications and documentation subject to change without notice
