Design PAR 575DArchive

Code 1237000020

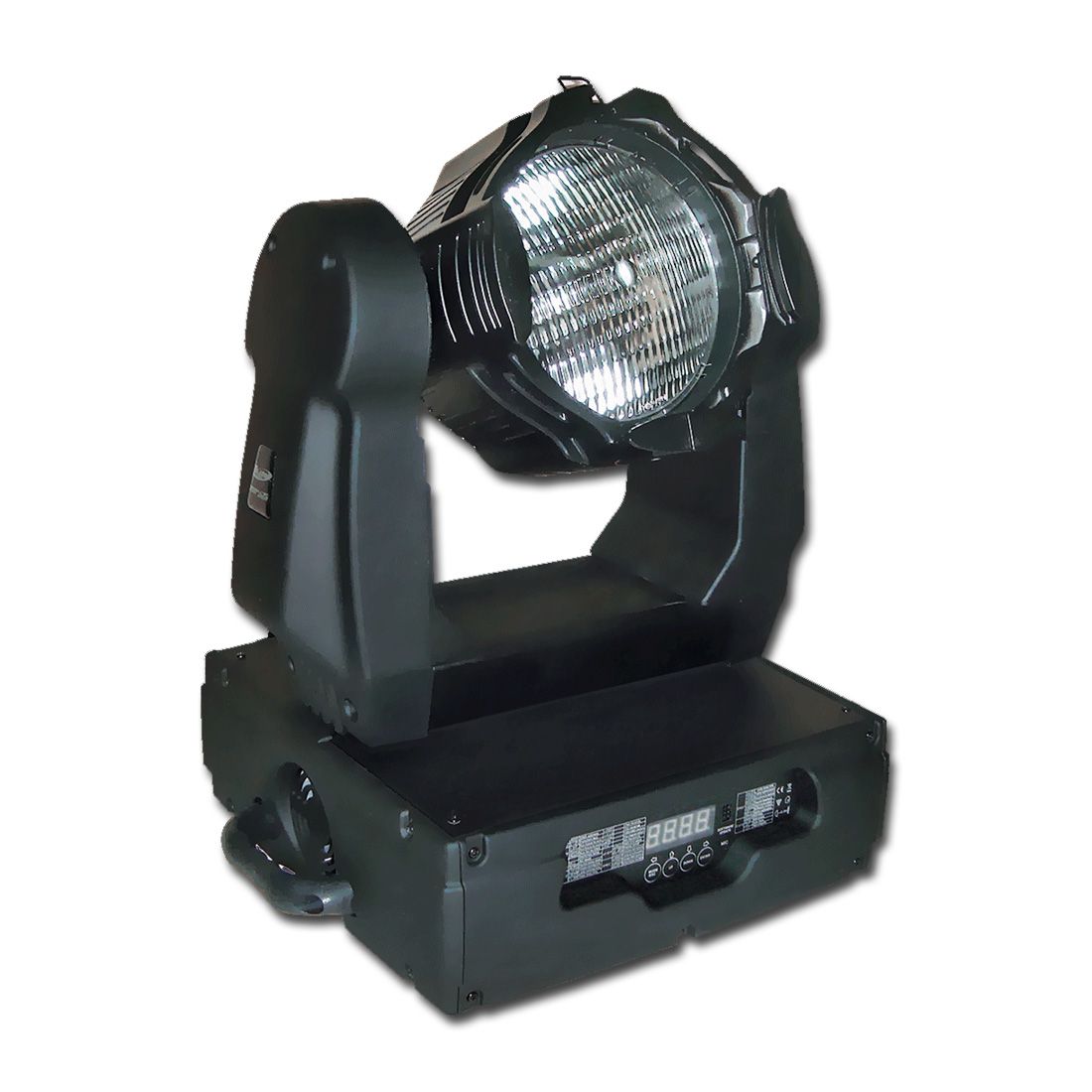

Design PAR 575D

Technical Data

- 630° movement
- 4ch 16-bit DMX control
- Internal programs
- Automatic repositioning
- Quick out omega clamps
- 10kg additional load
- Silent fan & operation

Specifications
- 575W discharge "Opti Par" moving head fixture
- Gel frame holder included
- Glass Dichroic Reflector for Even Lamp Output
- Anti-Reflective Coated Lenses
- Includes 4 Lens options: very narrow, narrow, medium & wide

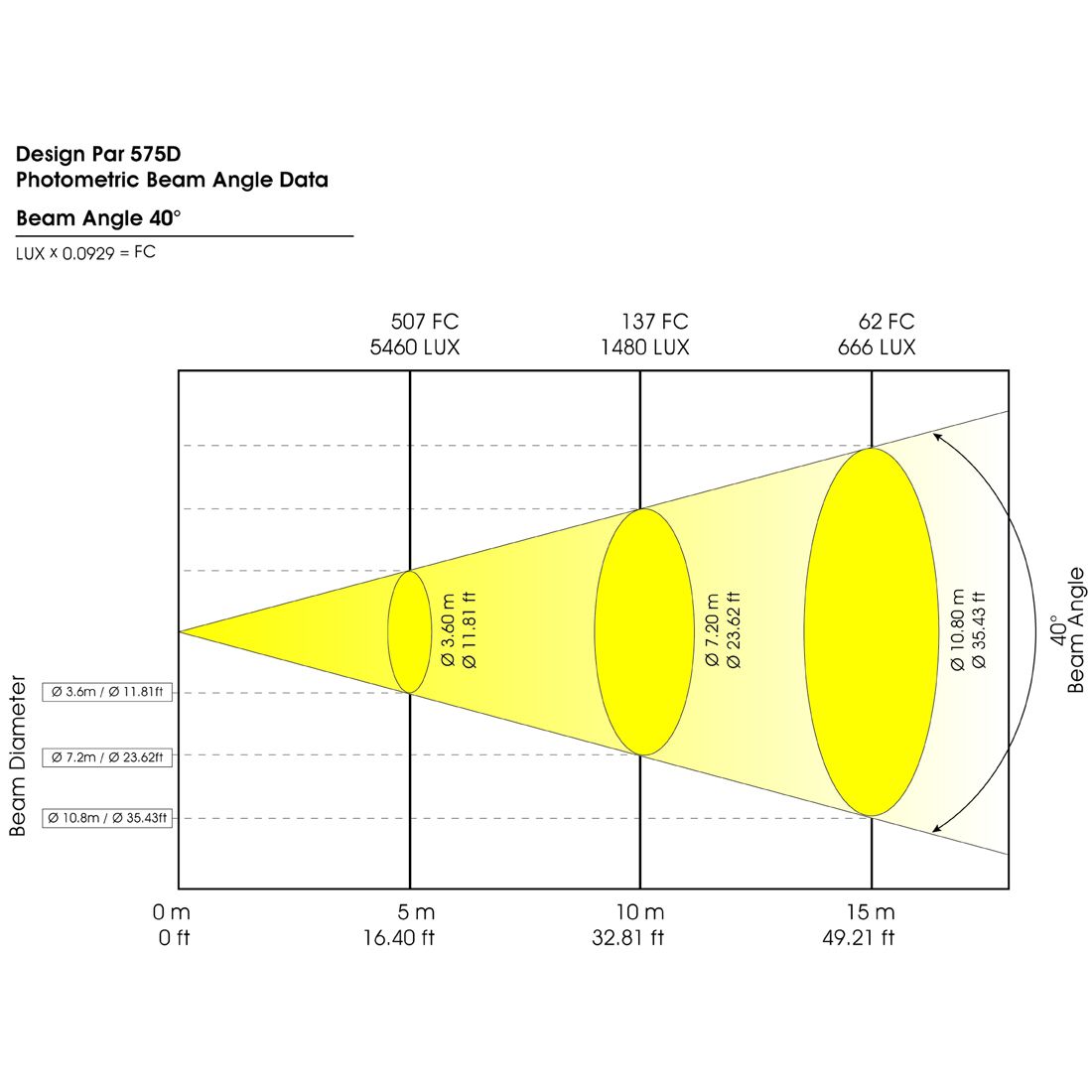

- 40° beam angle
- Auto test for all functions
- Pan 630° or 540° (User selectable) / Tilt 265°
- Fine Pan & Tilt, Built-in programs
- Automatic Pan/Tilt Correction
- 3 operation modes: DMX controlled, stand alone or sound activated
- RDMX - remote DMX addressing
- Control board with 4-digit display and foil-keyboard
- Digital display can be turned 180° to fit different installation position
- Built In lamp control via DMX
- Value of each DMX-channel can be displayed
- Uses 6 DMX Channels (16-bit mode)
- User Selectable Switching Power Supply (Internal)
- IP Rating: IP 20 - Power Supply: AC98-240V 50/60Hz
- Power consumption: 700W
- Ballast: Electronic
- Lamp: ZB-MSR 575/2 575W Discharge (not included)
- Lamp Life: 575W, 7200° K, 1,000 hrs. life

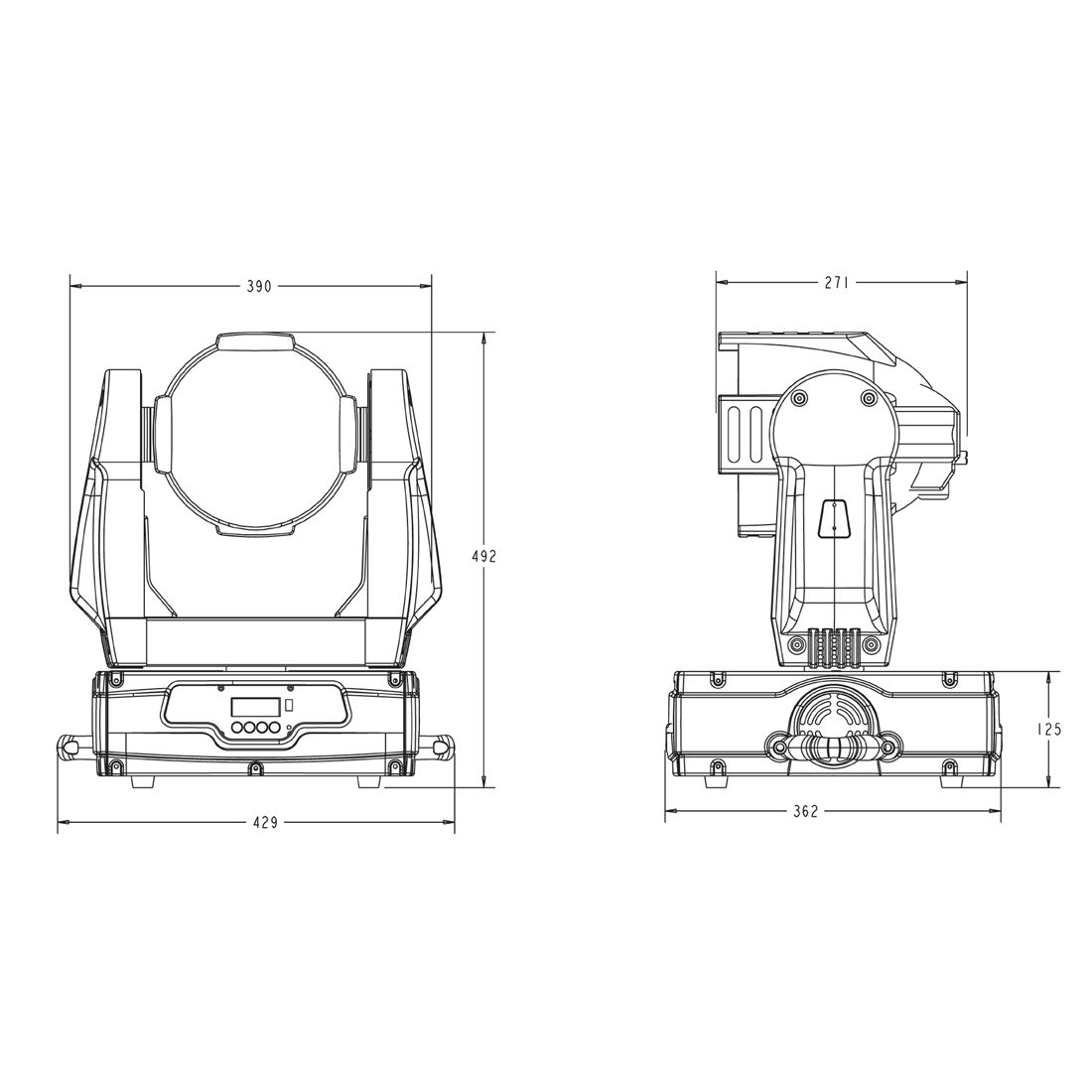

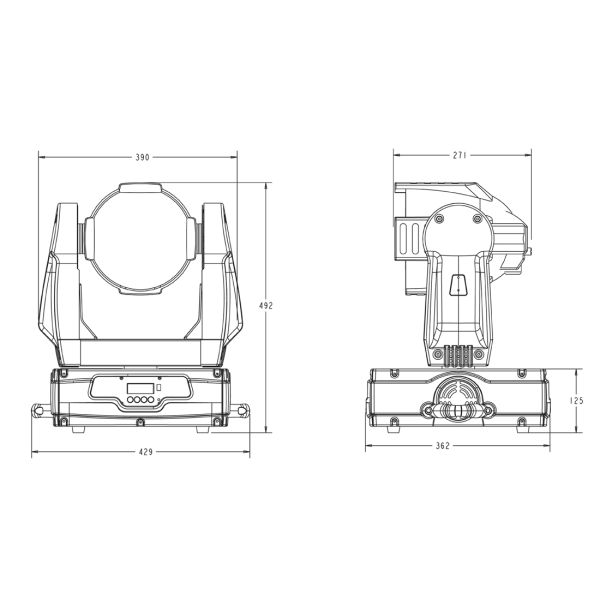

- Dimensions (LxWxH): 429 x 362 x 492mm
- Weight: 23 kg

Specifications and documentation subject to change without notice
