Design Media Base

Technical Data

- VGA/Component/HDMI/IF connectors
- DMX switchable CEE 7/7 outlet
- Audio RCA connectors
- 360 degr movement
- Internal scene memory
- Quick out load connectors
- 4ch 16-bit DMX control

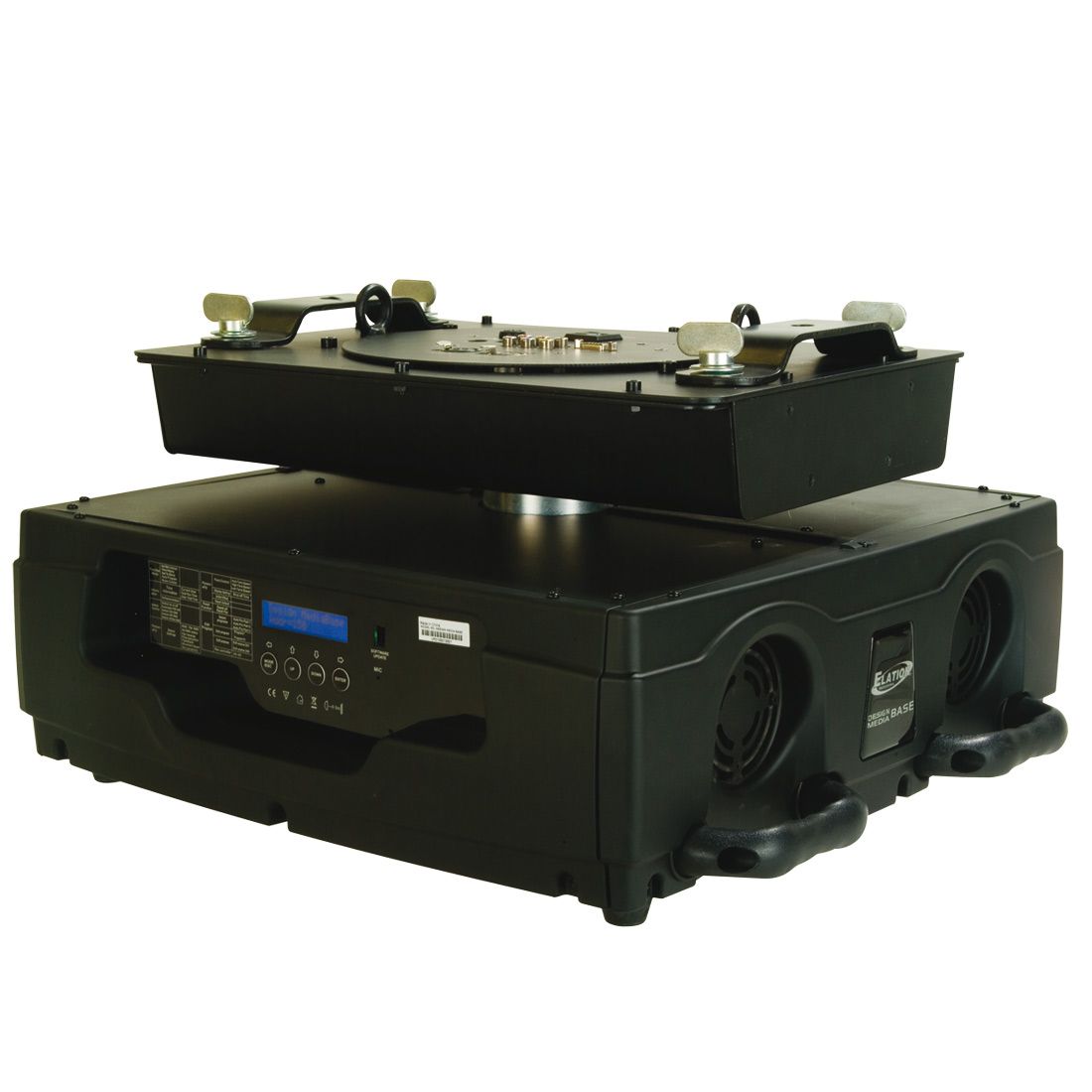

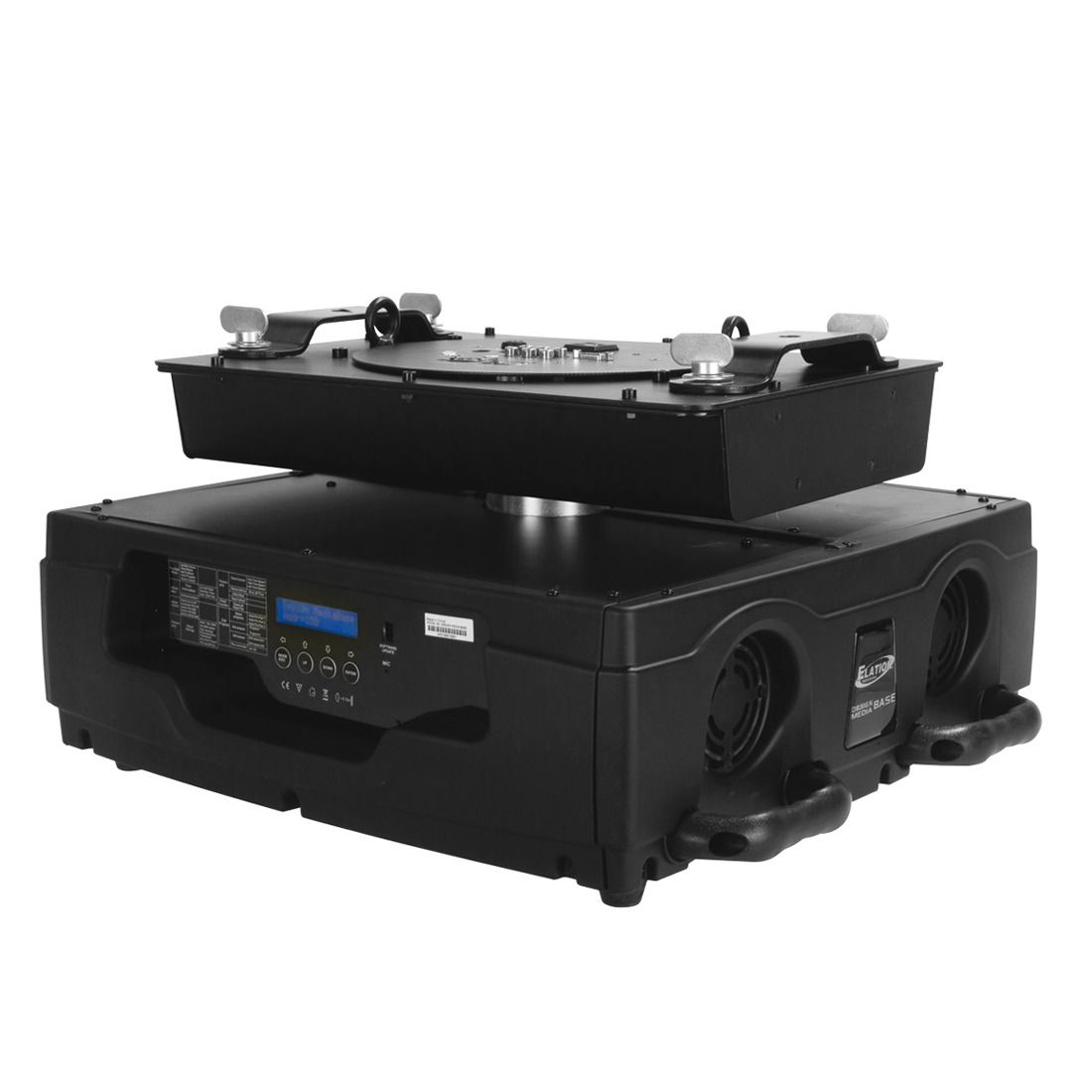

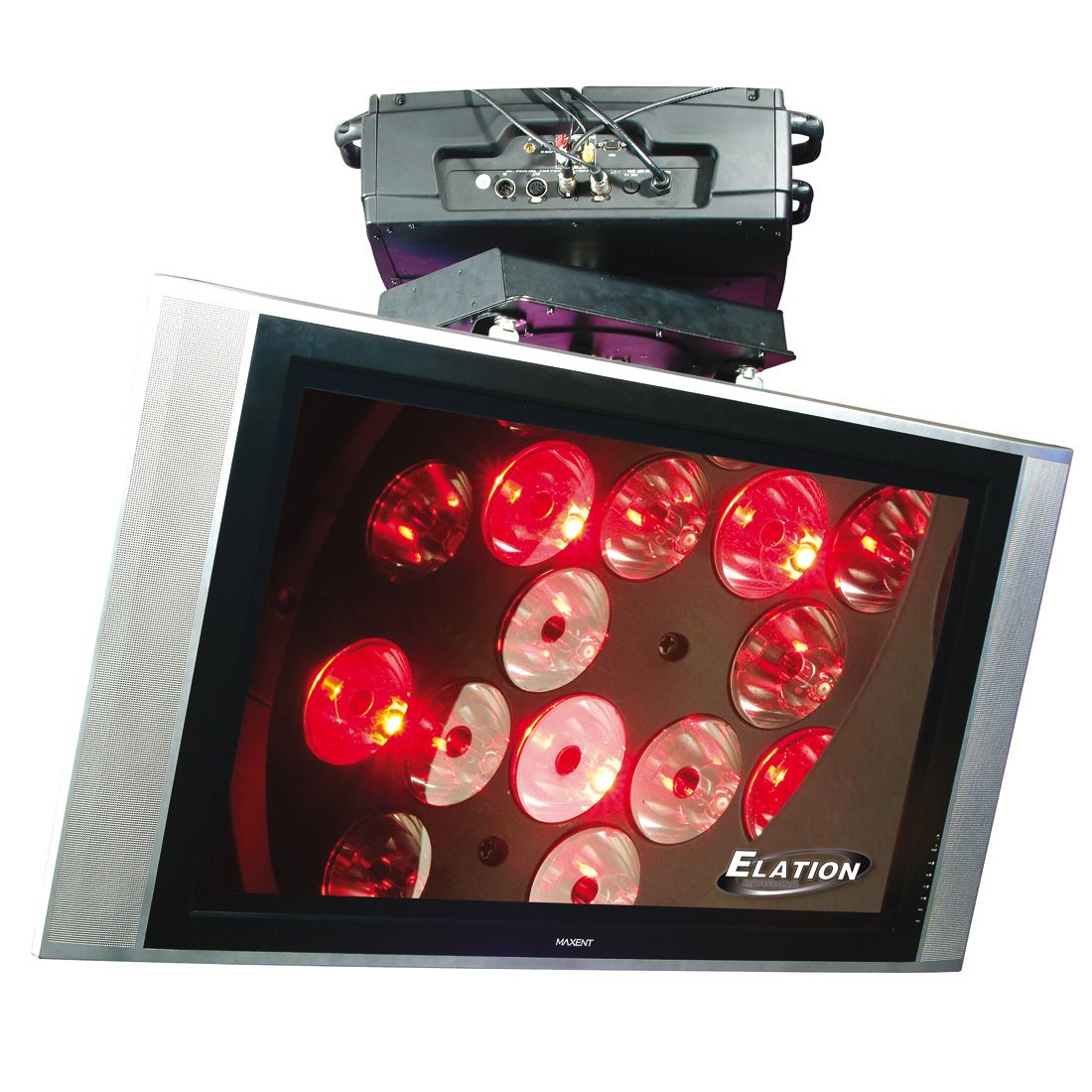

The DMX-controlled “Media Base” has been designed to rotate LCD Screens / Plasmas or Beamers on exhibitions, in thea- tres, clubs or as presenting eyecatcher for commercial pur- poses. Great for retail environments and other applications where advertising needs to be highlighted.
The “Media Base” can turn continuously 360 degr in micro steps (16bit resolution) and has a built-in sortiment of Video connectors and AC power supply (CEE 7/7 socket). The max load of additional 50kg makes it suitable for rotating big screens and other heavy loads. Rotation is possible in both directions. Speed is adjustable by DMX.


- Digital Display
- 3 & 5 Pin XLR, DMX Inputs and Outputs

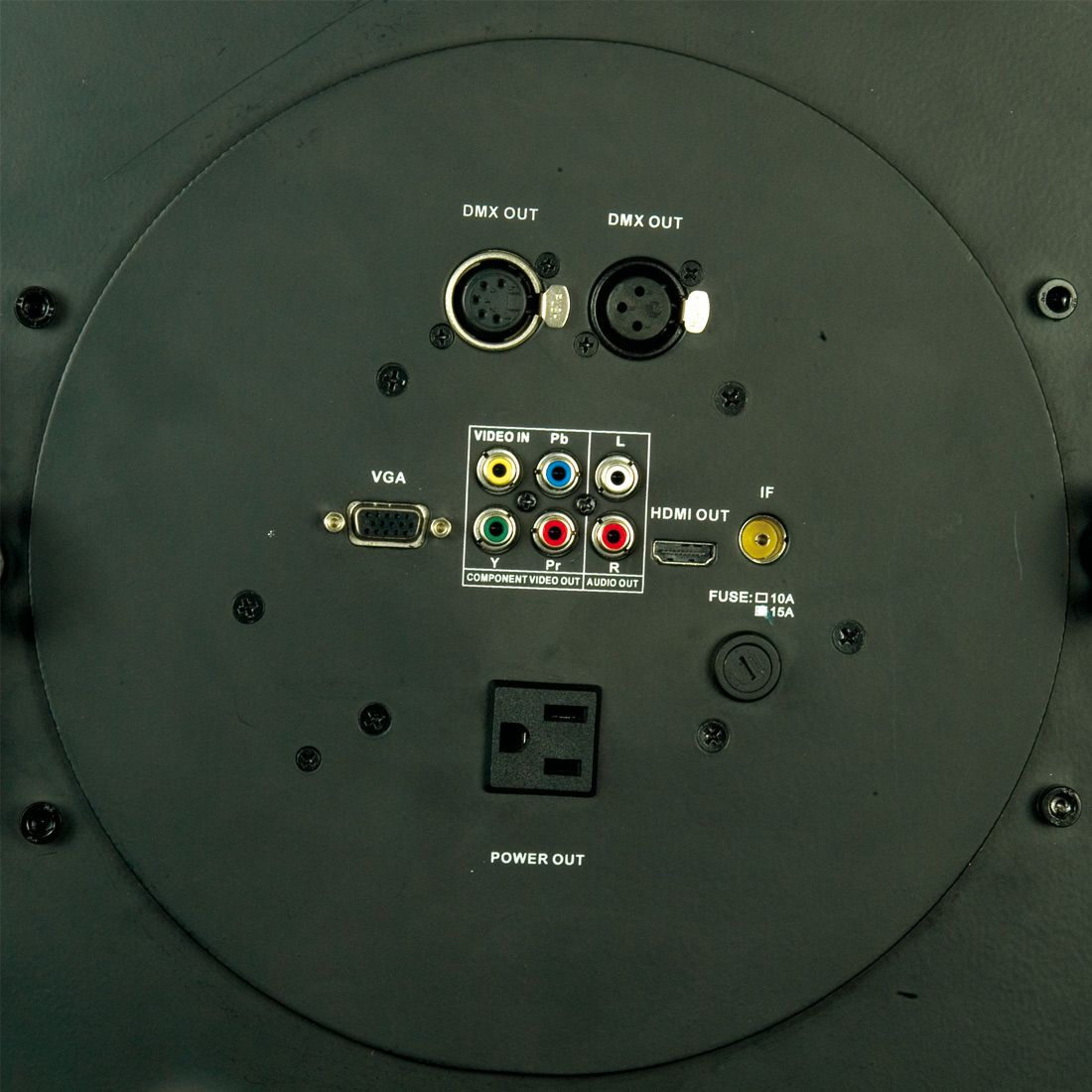

- Plasma connection types: VGA, Component, HDMI and IF
- Power connection type: 15A Edison outlet
- Power outlet Controllable via DMX
- Audio connections: RCA (L&R)
- Pan movement range: 360 degree (Coarse, Fine and Speed controllable via DMX)
- Operation Modes: DMX, via 4 Channels and Master/Slave stand alone
- Internal Scene Memory (250 Scenes Total)
- Internal programs (10 programs with 64 steps each)
- Maximum ambient temperature: 45 degr C
- Maximum weight capacity: 50 kg
- Maximum current draw: 10A
- Output load: 2400W @ 240V AC
- Power consumption: 38W (without load). Up to, 2400W with load.

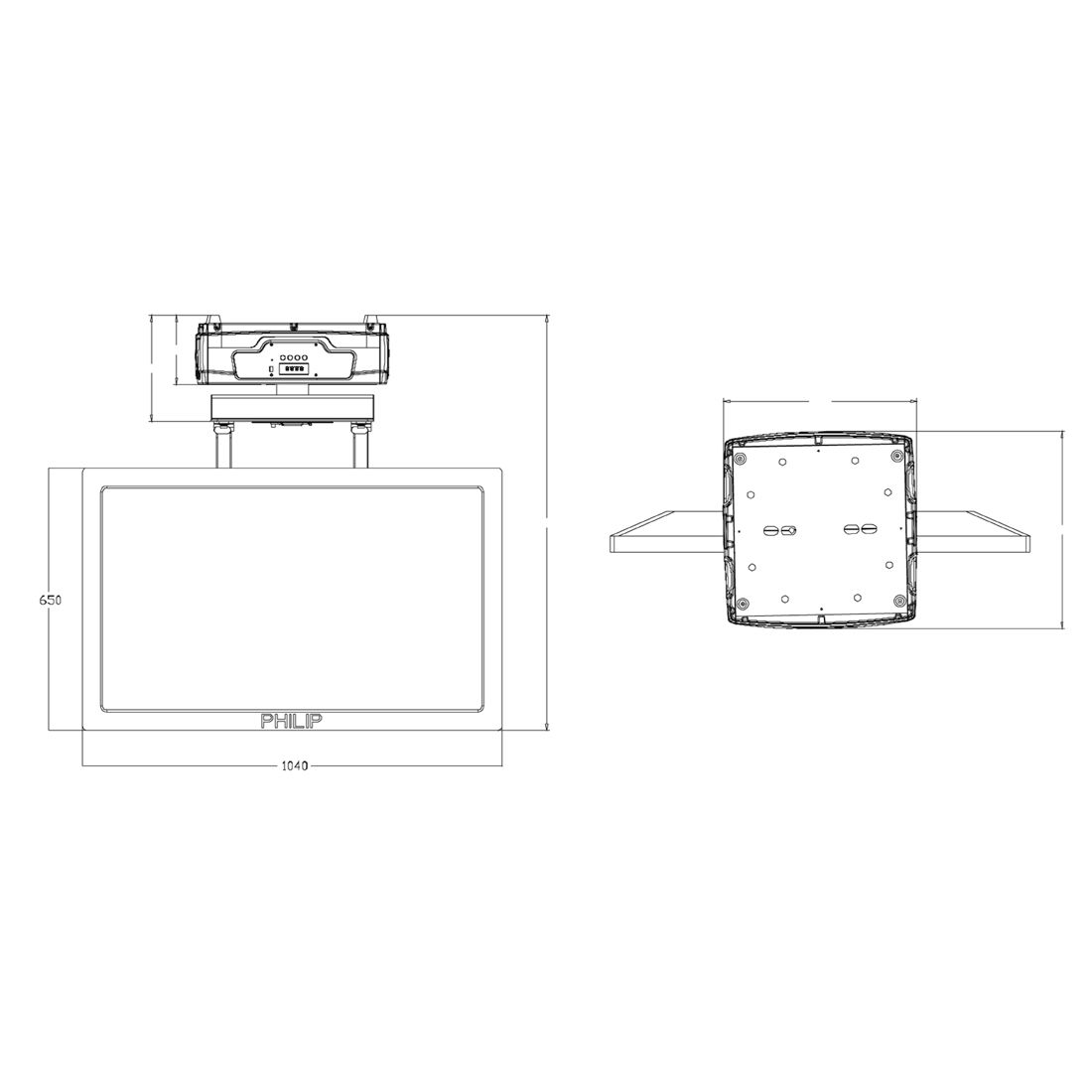

- Dimensions (LXWXH): 480 x 490 x 264 mm
- Weight: 27.5 kg

Specifications and documentation subject to change without notice
