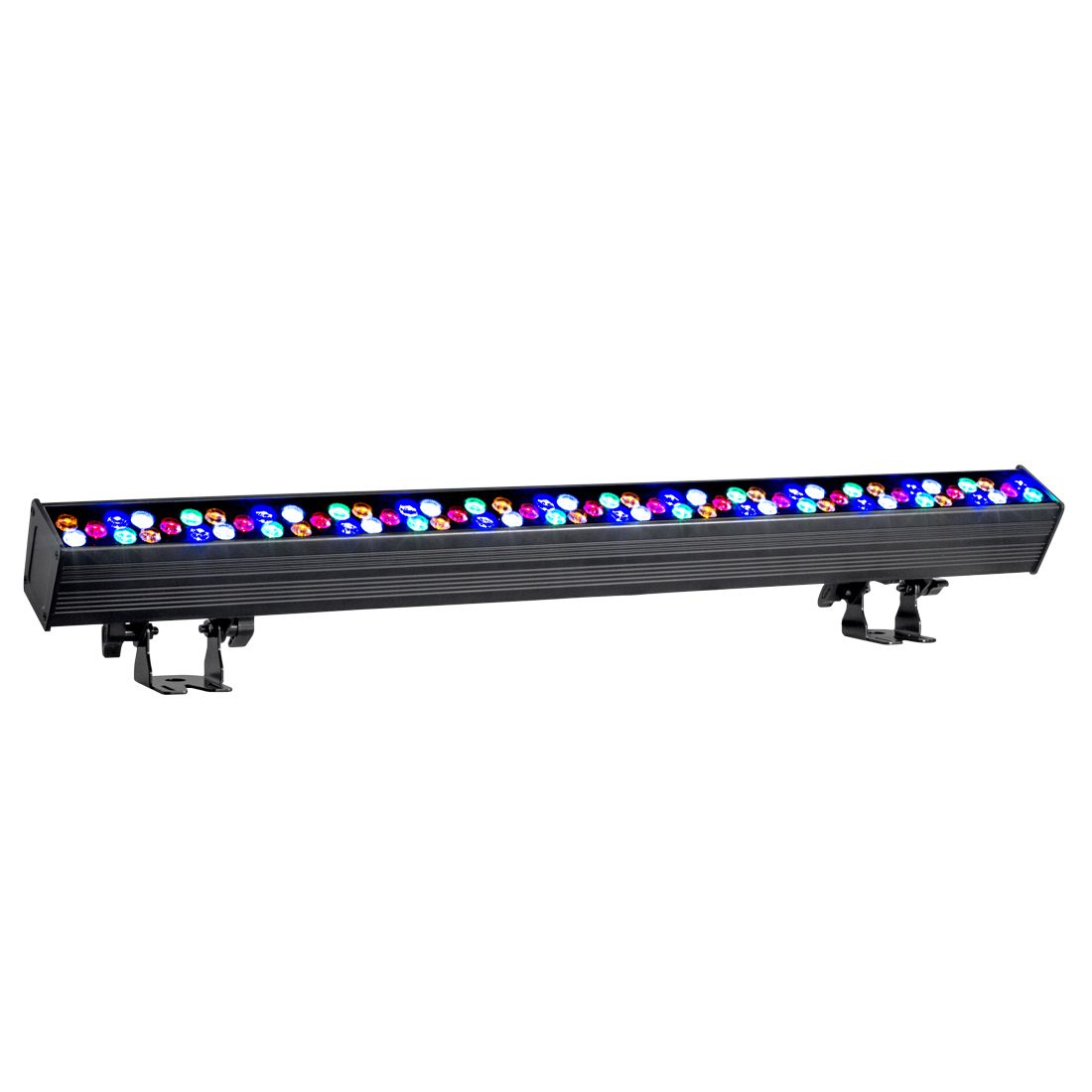

Design LED Strip RGBAW

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Design LED Strips RGBAW from Elation Professional.

Technical Data

FEATURES

36° Beam Angle
5 Zone Chase Control
Flicker Free Operation for TV and FILM
Uniformly Distributed Beam
Optional Remote Control (Design LED RFR)
Multiple Unit Power Linking


SOURCE

(75) 1W CREE RGBAW LEDs
50,000 Hour Average Life


PHOTOMETRIC DATA

7,610 LUX @ 1M


EFFECTS

Electronic Strobe 1-25FPS
Color and Chase Macros
Electronic Dimming: 0% - 100%

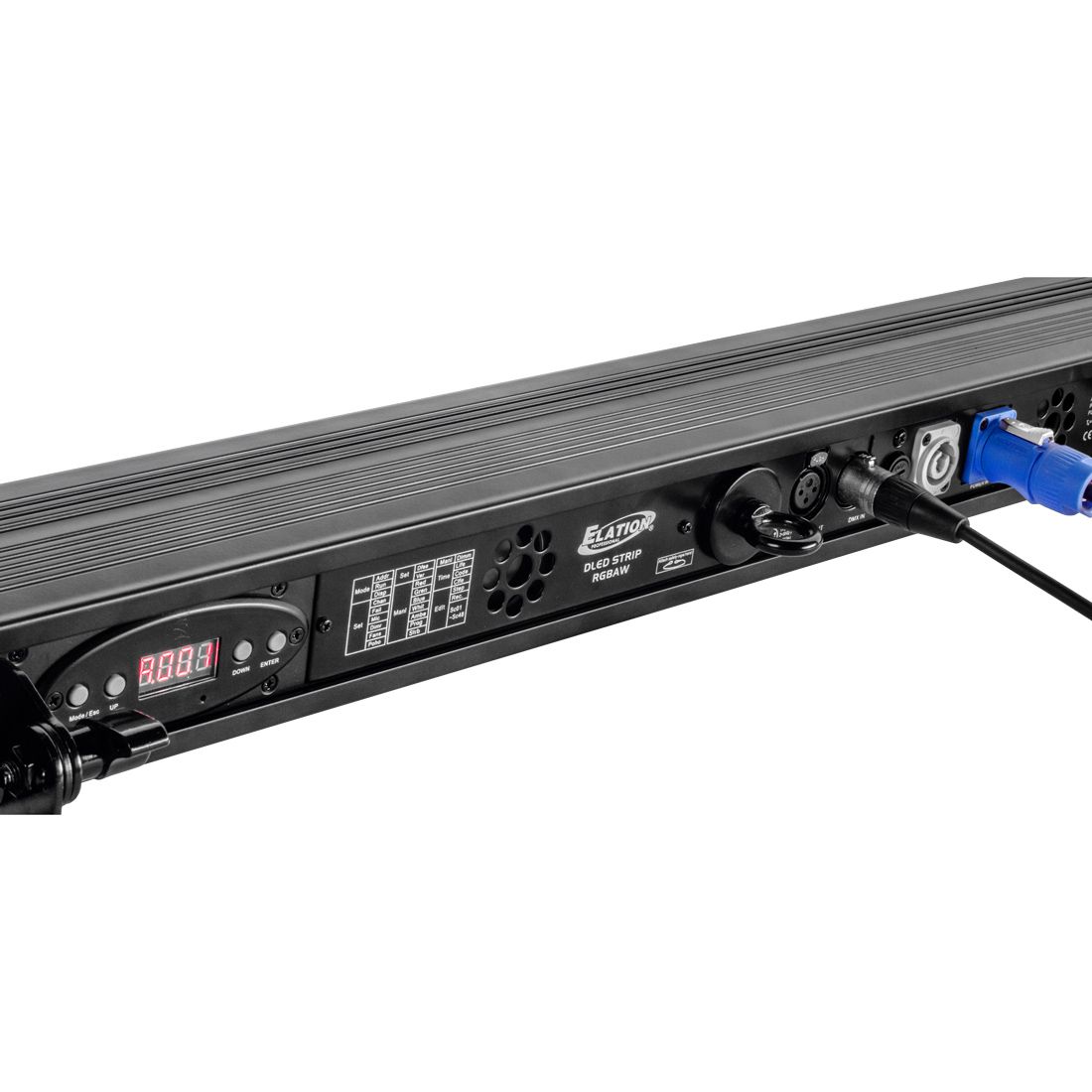

CONTROL / CONNECTIONS

(6) DMX Channel Modes (5/6/9/25/28)
(4) Button Control Panel
Color LCD Menu Display
Locking 3pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 1002mm
Width: 93mm
Vertical Height: 159mm
Weight: 6kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
90W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
