Code
1226200007
- 12x3W TRI LEDs (= 36W Power)
- 38,5 degr. beam angle
- Single LED pixel control
- Superior color mixing
- Uniformly distributed beam

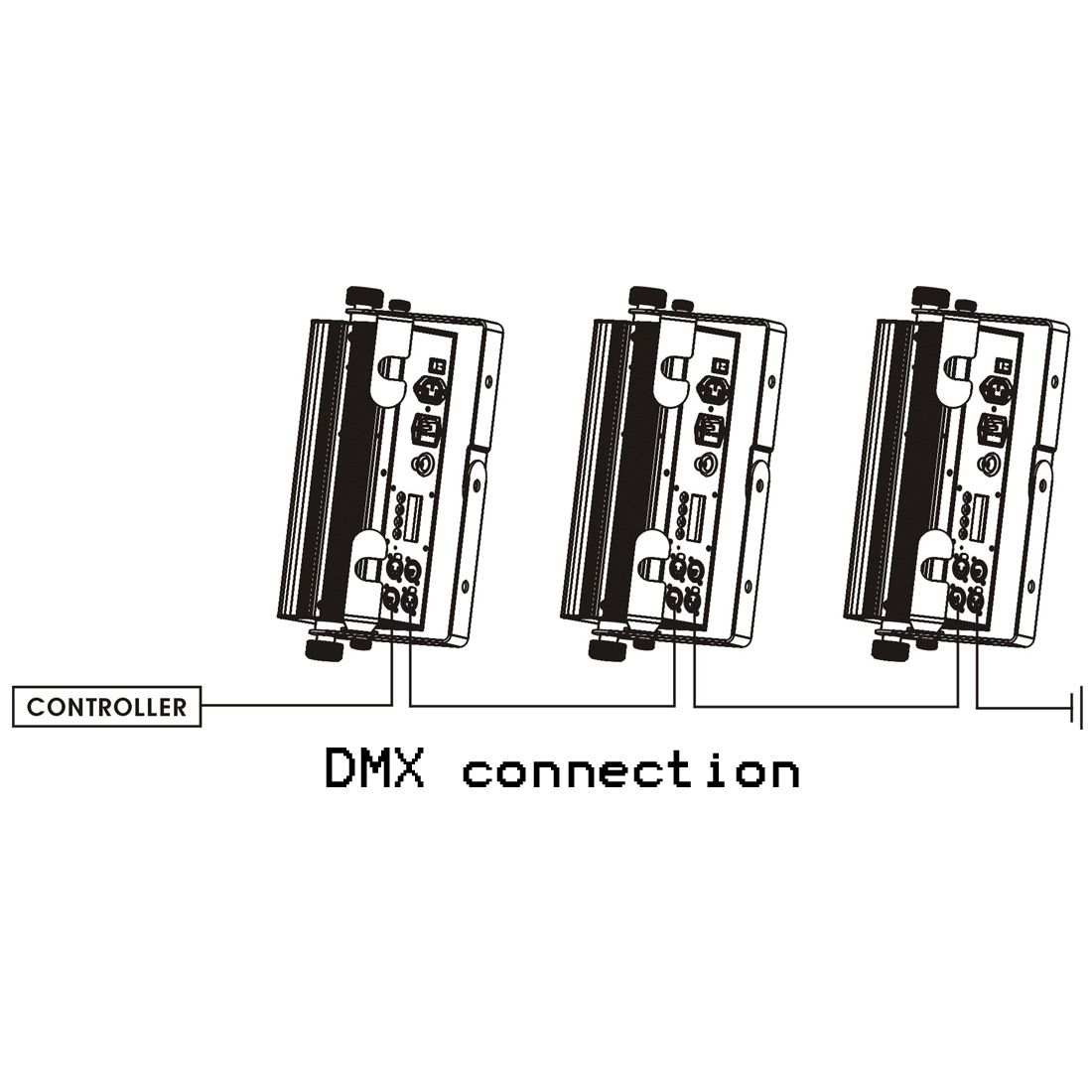

- Power & DMX loop through
- Combibrackets: floorstand or mount
Specifications
- 12 x TRI 3W LED`s - (Uses 3-in-1 TRI LED system for superior color mixing - no RGB shadows)- Long Life L.E.D. (rated at 100,000 Hours)
- Linear RGB color mixing allows for infinite color possibilities
- Compact design
- fan cooled

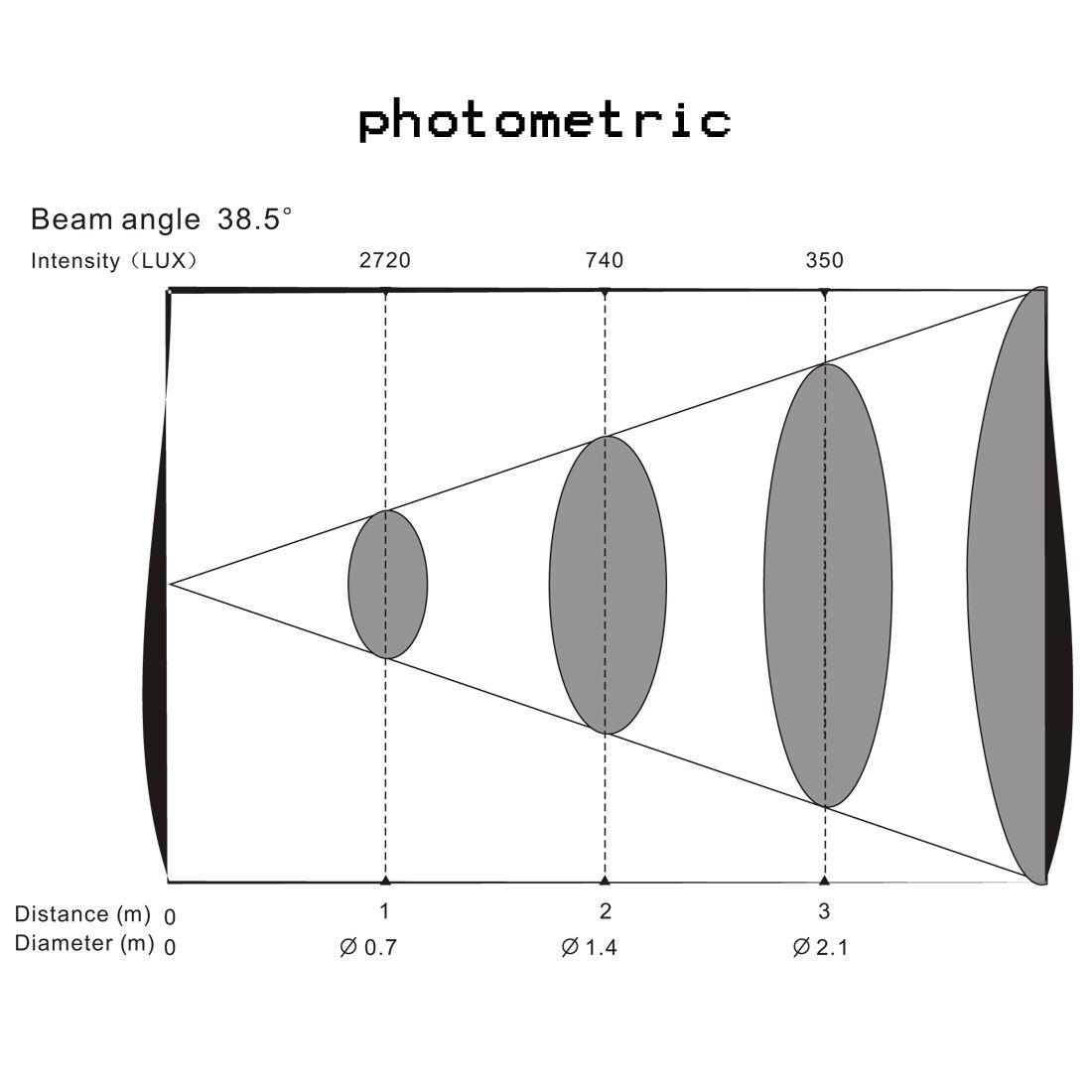

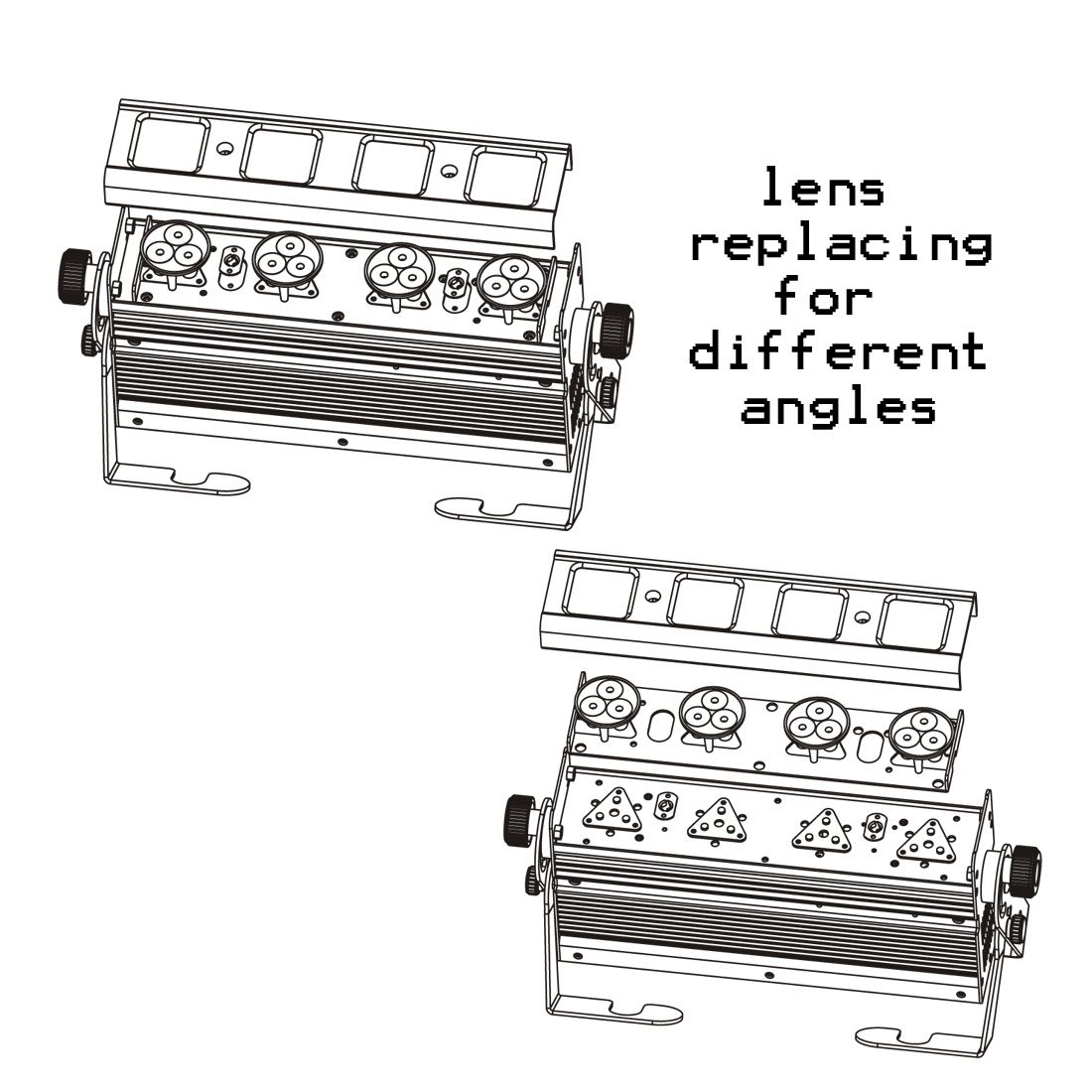

- 38.5º standard beam angle (Optional lenses TBA)

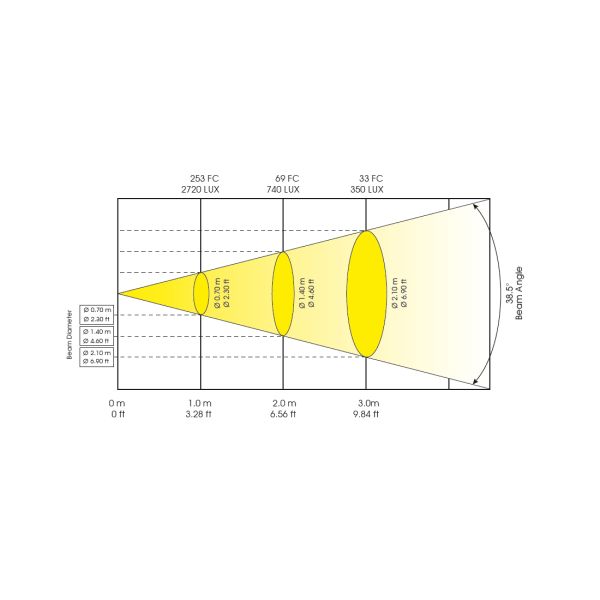

- 2720 LUX @ 1 meter (Measured with 38.5 degr. lenses)
- 350 LUX @ 3 meters (Measured with 38.5 degr. lenses)
- Built-in, auto switching power supply
- DMX controllable
- USITT-DMX 512
- 3, 4, 6, 12 & 15 CH DMX control modes

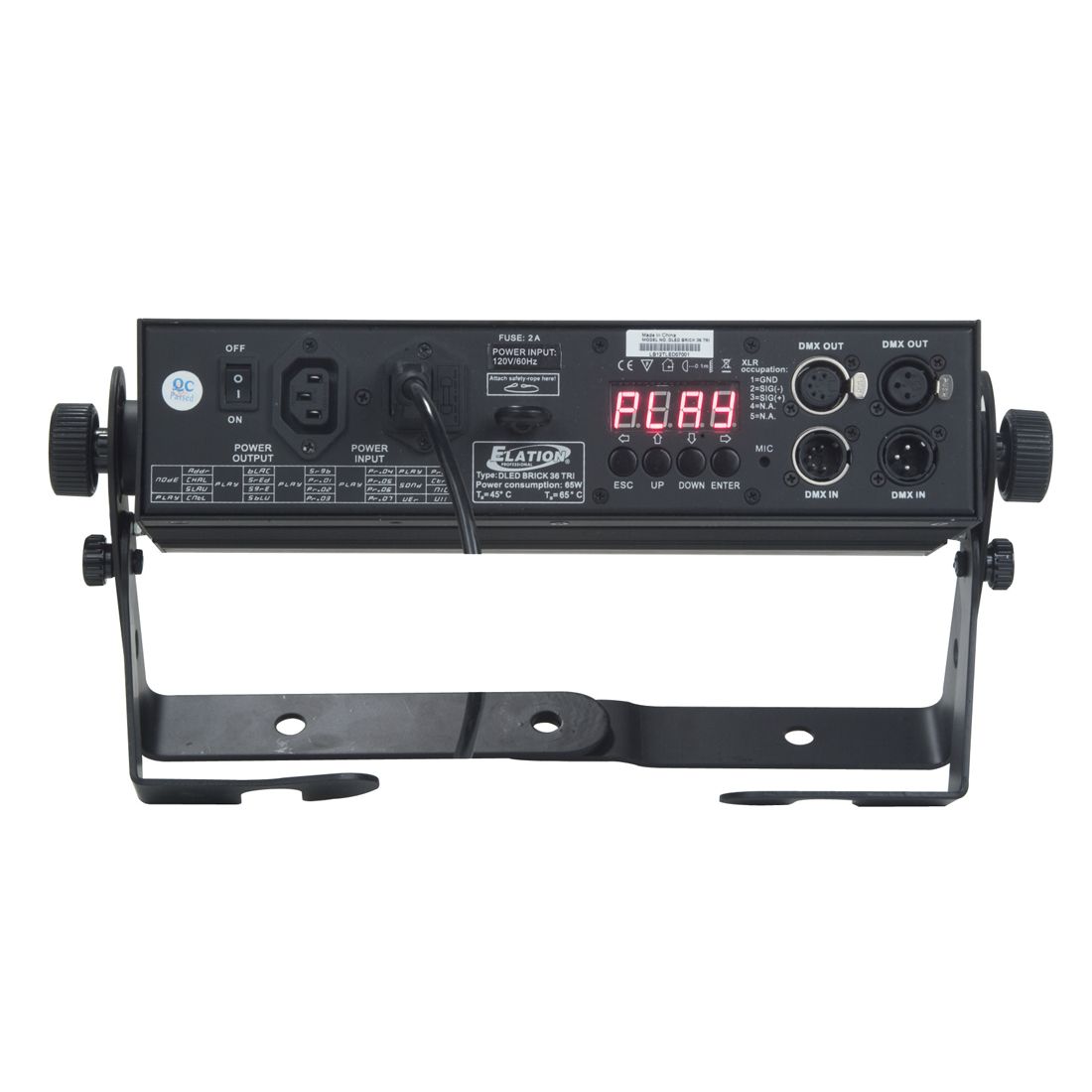

- LED display with easy to use function keys

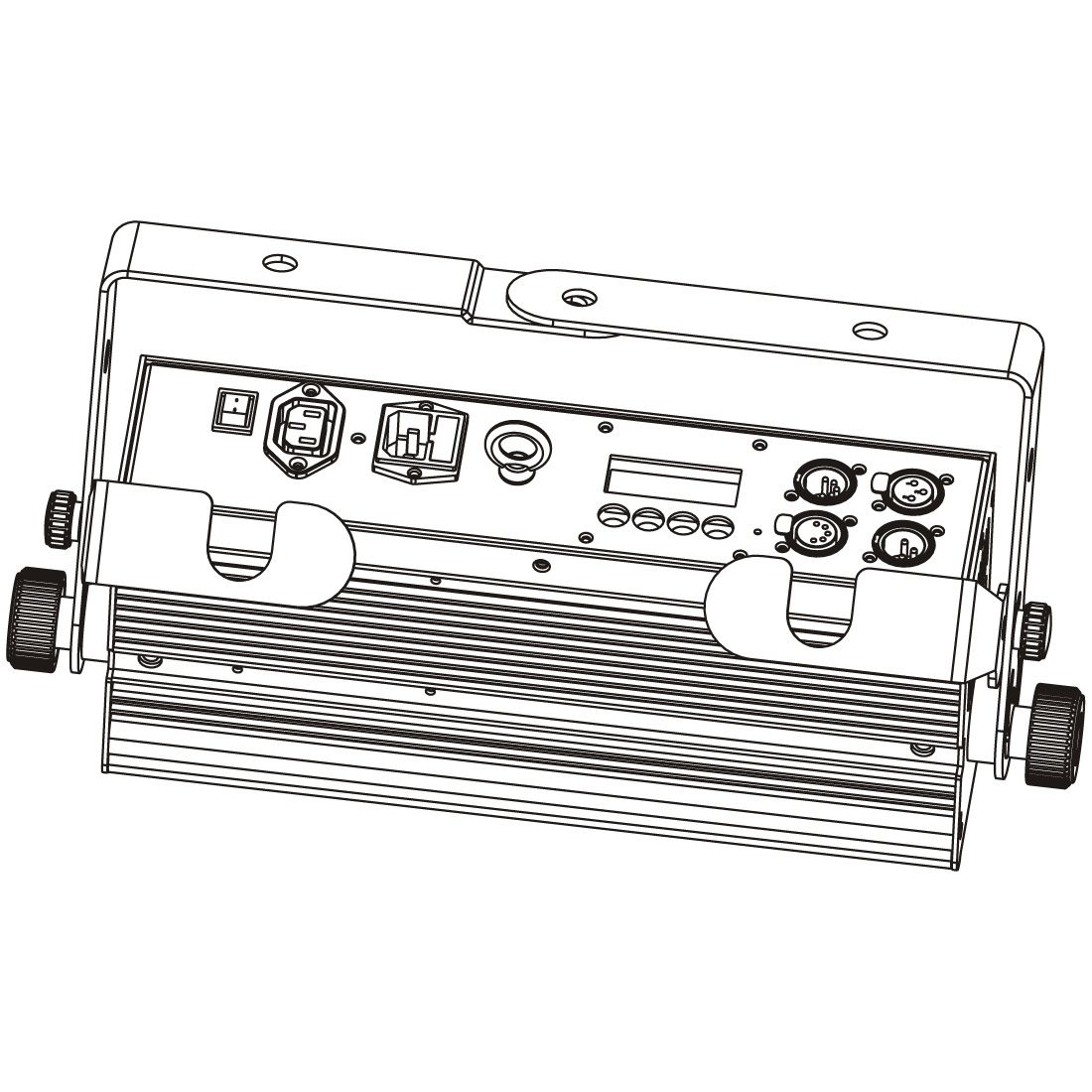

- 3 & 5 pin XLR data input & output
- IEC type, AC power input & output
- 6 built-in programs with speed control
- Strobe effect (1-25 flashed per second)
- Control each L.E.D. independently (12 & 15CH modes)
- Selectable dim options (Standard & Linear)
- 0-100% Dimming
- Primary / Secondary auto program and sound trigger
- Multi-voltage: 100-240VAC, 50/60Hz
- On/Off Power switch
- Power Consumption: 65 watts

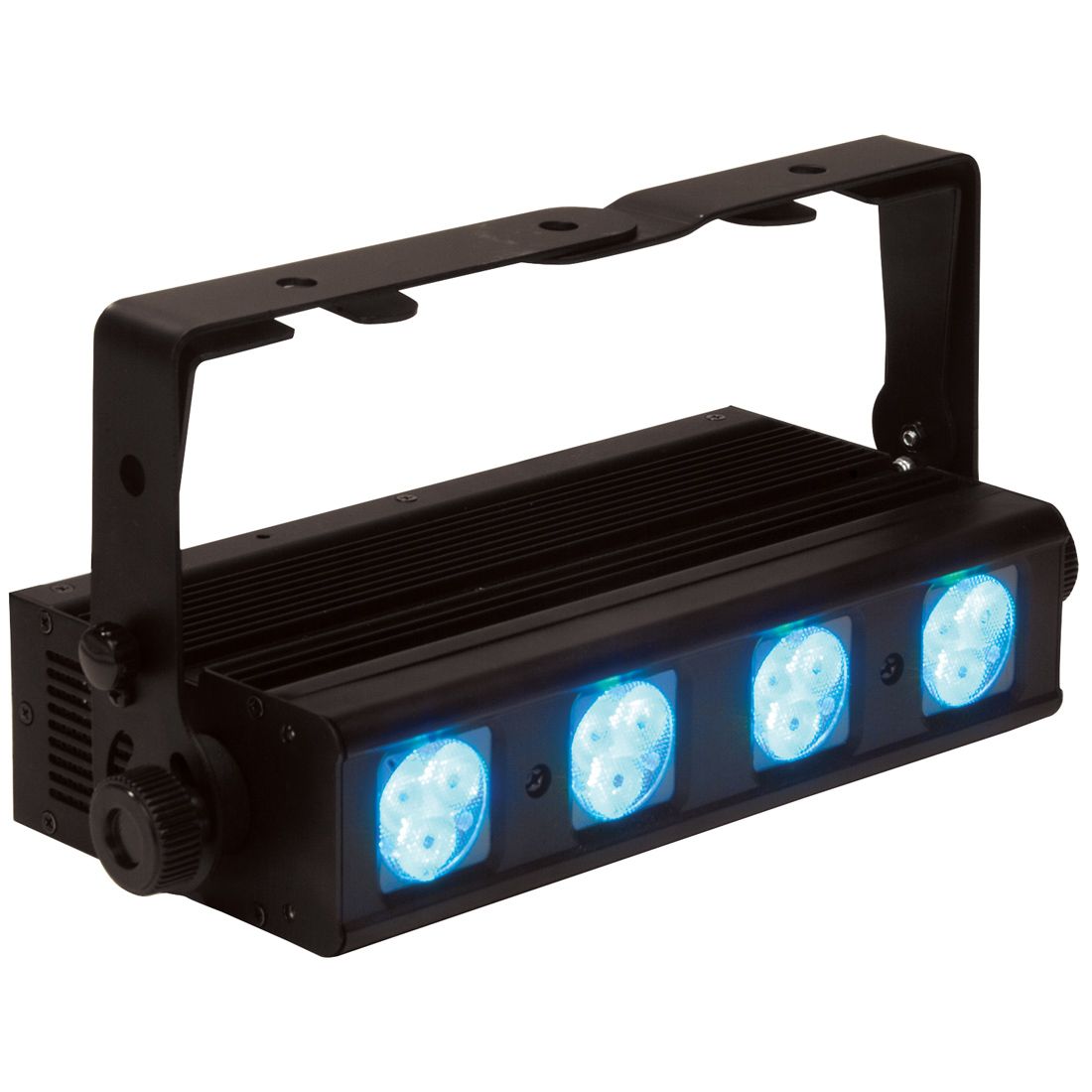

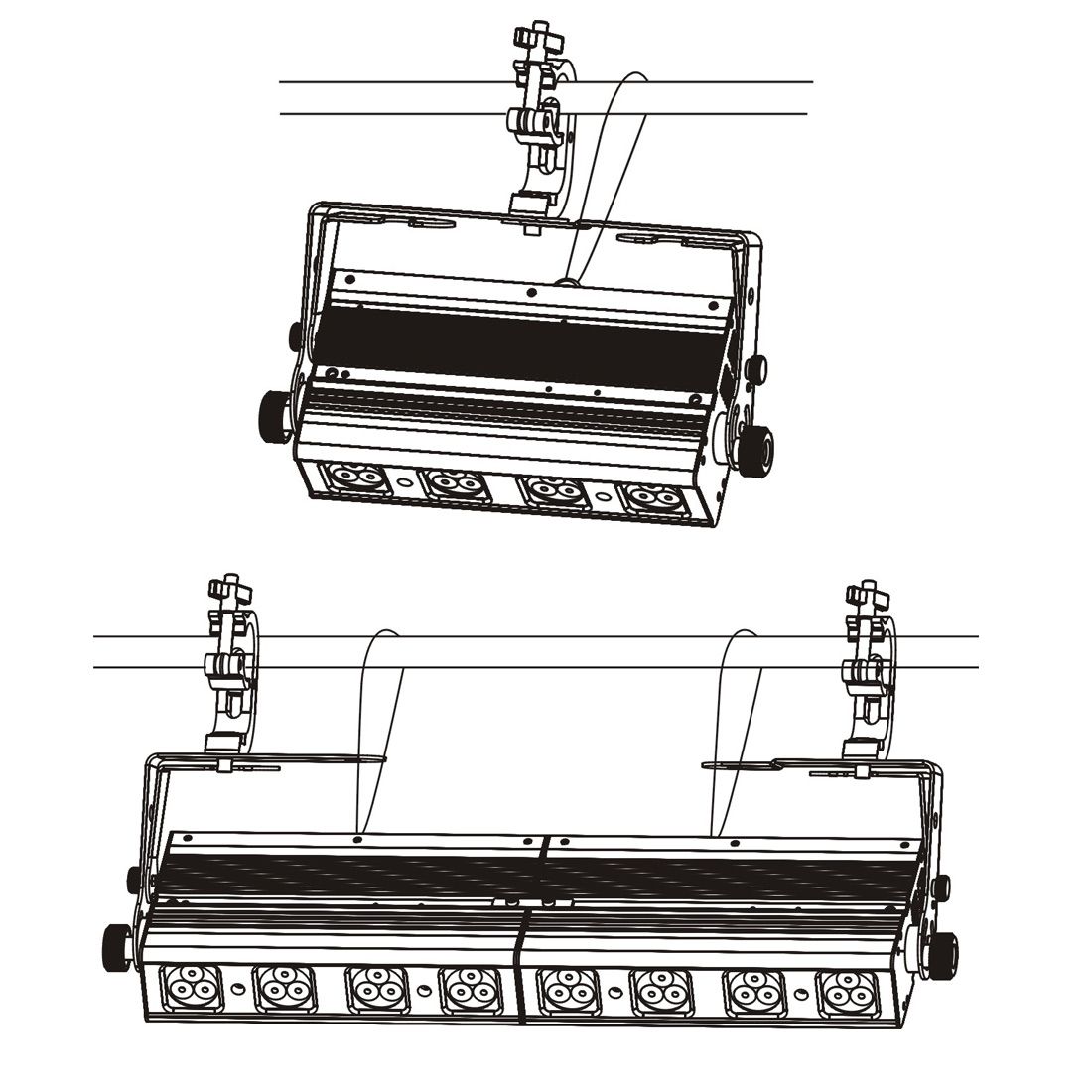

- Mounting bracket designed for floor, wall or truss mount
- Fixed eye bolt for safety cable

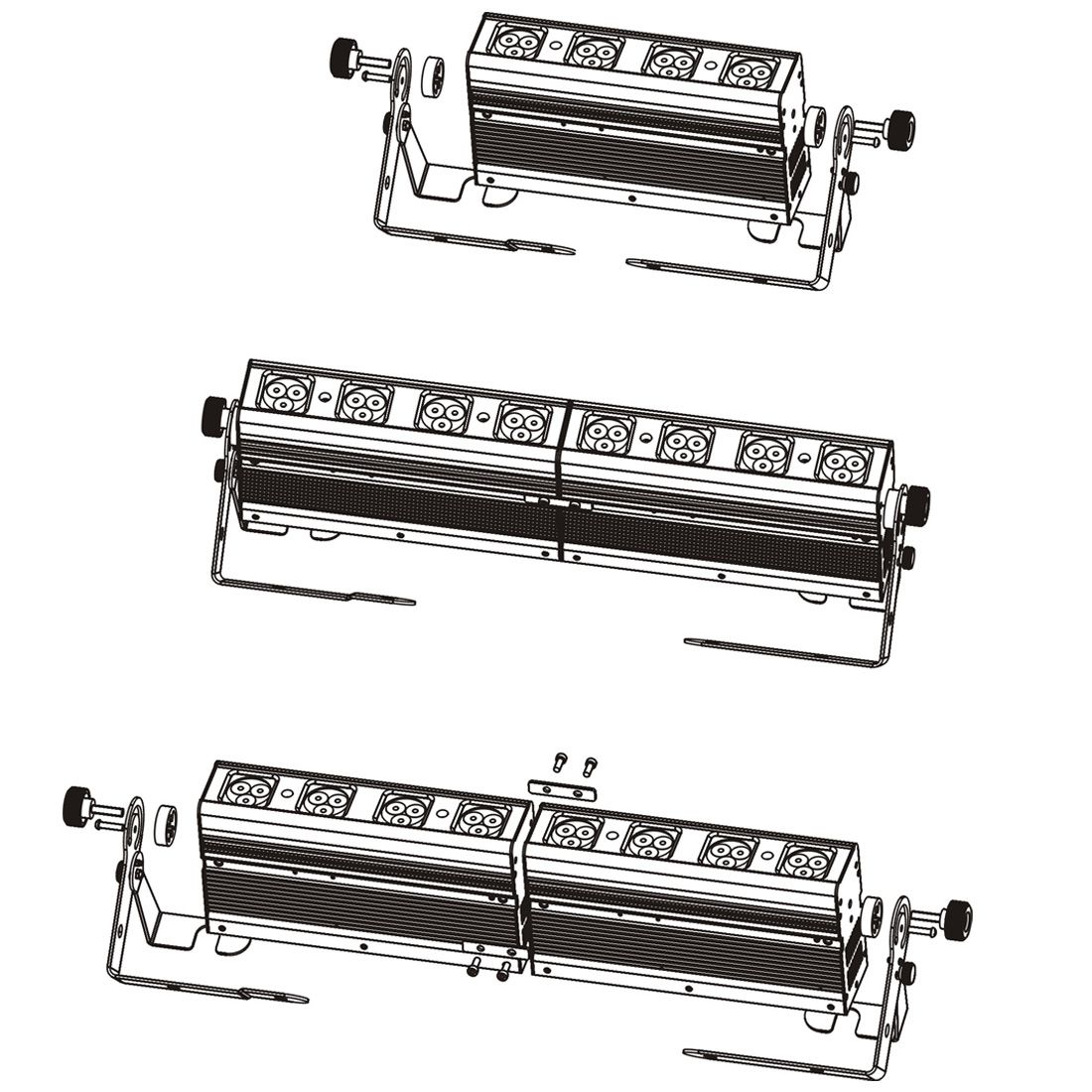

- Optional bracket kit available to hang up to (4) DESIGN LED 36 TRI BRICK`S

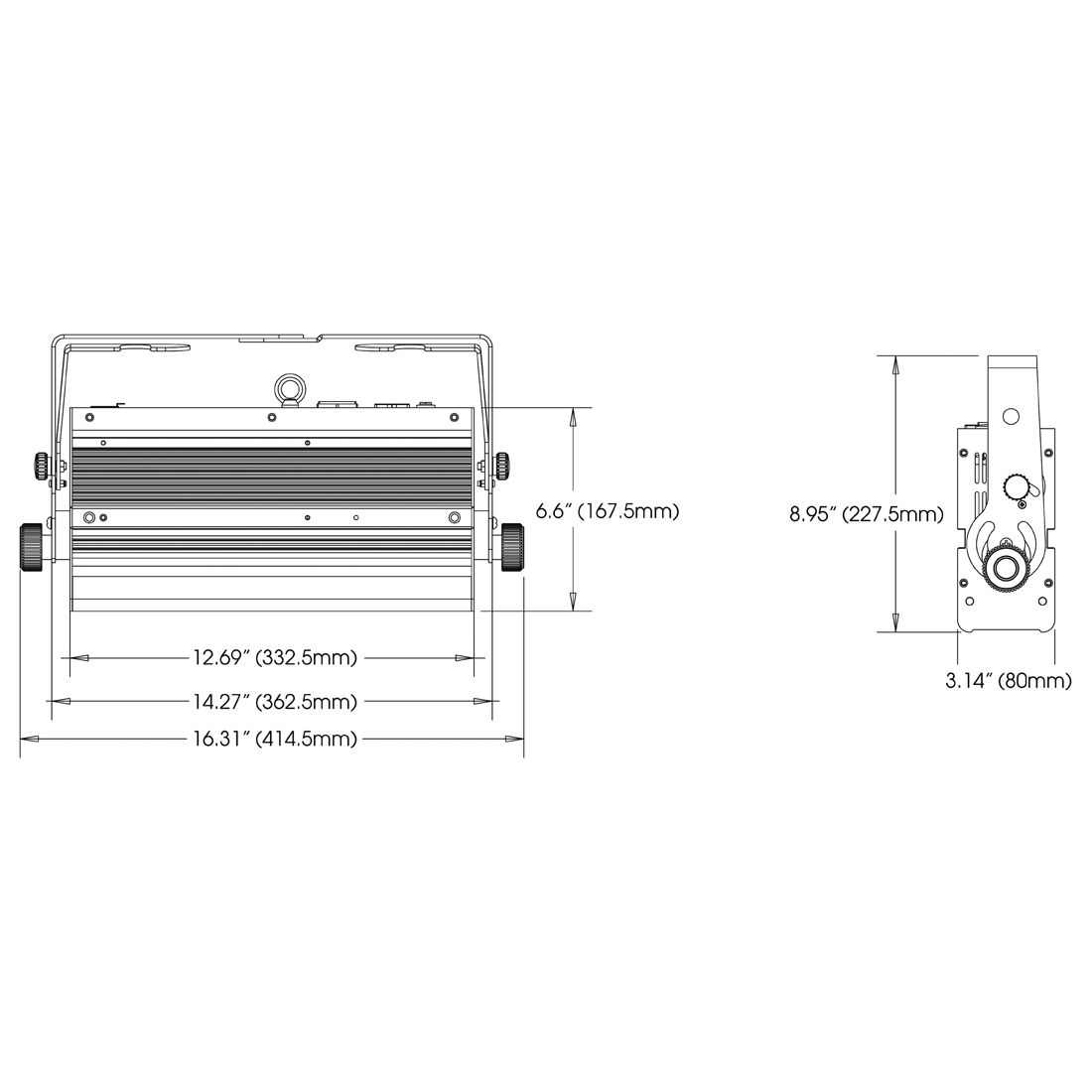

- Dimensions (LxWxH): 415 x 228 x 80mm
- Weight: 4,3kg
Specifications and documentation subject to change without notice
