Design LED 36 PROArchive

Code 1237000001

Design LED 36 PRO

Technical Data

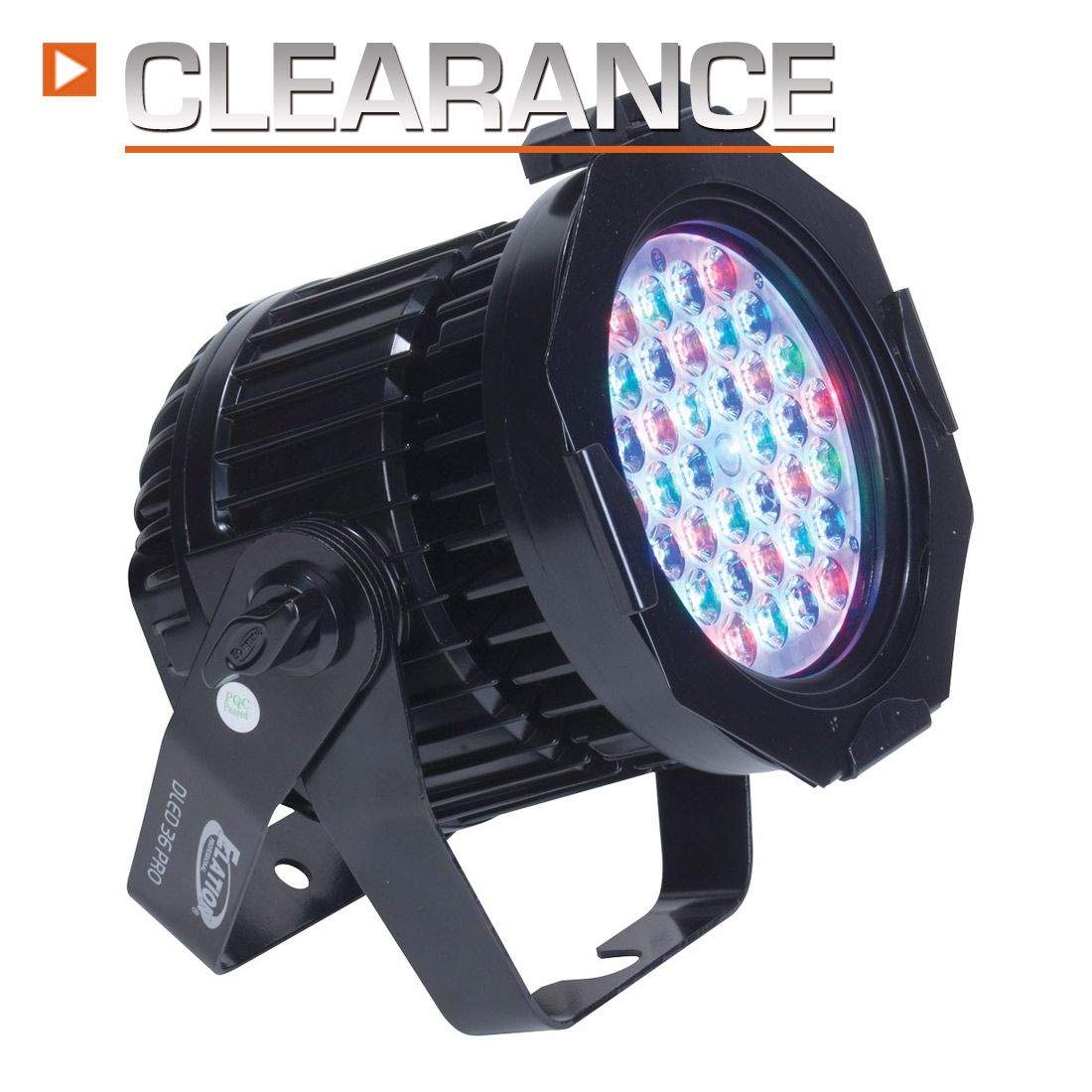

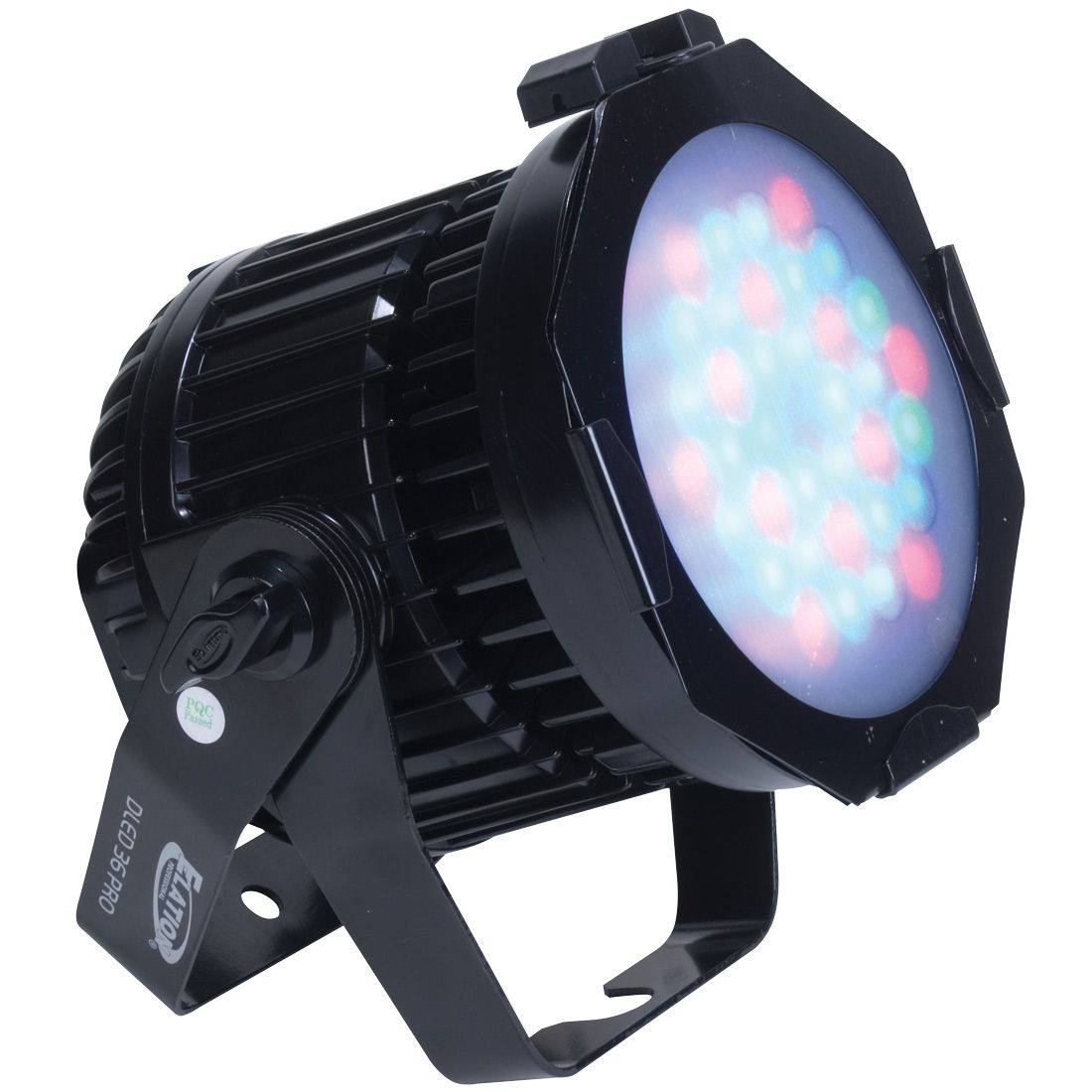

The Design LED36Pro (DLED36pro) by Elation Professional is a high output, compact L.E.D. color changer featuring full RGB color mixing using 36 3Watt LED’s - 12 RED, 12 BLUE and 12 GREEN running at a total of 108Watts power. The unit is made of a high quality die cast metal case and is designed with convection cooled heat sinks for silent operation.
 Providing up to 100,000 hours estimated LED life. The DLED 36Pro is rated at IP 65 ideal for indoor or outdoor applications and includes outdoor rated power and data cables along with a/c power 120v input cable but unit can operate from 90 – 240v AC via the internal auto sensing electronic power supply. Control data cables are 3 pin DMX. The DLED 36Pro includes a dual yoke mounting bracket for fixed installation or can be used as a split bracket for floor standing uplights. The unit also features an on board weather protected 4 button control menu with 4 digit LED display for setting control address, modes, manual or auto programs. The unit comes fitted standard with a 15° lens kit which produces a 14° beam angle and a 25° field angle. Optional wide and narrow lens kits are available.


- 36 x 3W High Efficient RGB LEDs
- 25° beam angle
- IP 65 outdoor rated
- High-Impact aluminum construction
- Stand-alone programs
- No-service convection cooled
- Linkable Power And DMX In/Out


- 36 x 3Watt RGB LEDs
- Long Life LED (rated at 50,000 Hours)
- 2377 Lux @ 3m @ Full

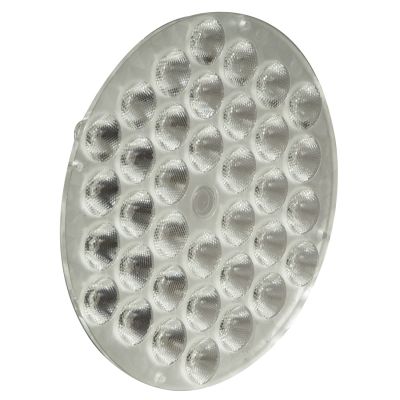

- 15° Lens Kit Standard produces a 25° beam angle
- 25° / 30° and 45° / 41° lens kits /beam angles optional available
- IP65 die cast aluminum body
- Flicker free operation for television and film
- 4 button LED Menu Display
- 3,4 or 6 Channel operation modes
- Auto Programs and Manual Control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- 3-pin XLR adaptors included
- Passive cooling
- Integrated Floor Stand / Dual Yoke bracket
- Power in/out linkable up to 10pcs
- Electronic Switching Power Supply
- Power Consumption: 150 Watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 232x185x218 mm
- Weight: 7.5 kg

Specifications and documentation subject to change without notice
