Design LED 36 BrickArchive

Code 1236200008

Design LED 36 Brick

Technical Data

- 12x 3W SSC LEDs (= 36W Power)
- Extreme Brightness, compact design
- 14° beam angle, 26° field angle
- Wash lenses for uniformly distributed beam
- Single LED pixel control
- Power & DMX loop through
- Combibrackets: floorstand or mount

Specifications

- 12x 3W SSC RGB LEDs, 36W total
- Long Life LED (rated at 100,000 Hours)
- Linear RGB color mixing allows for infinite color possibilities
- Mounting multiple units together in a line for linear strip design
- Convection cooled, compact design
- 14º beam angle, 26° field angle
- Built-in, auto switching power supply
- Flicker free operation
- DMX controllable, USITT-DMX 512
- 3, 4, 6, 12 & 15 CH DMX control modes
- LED display with easy to use function keys
- 3 & 5 pin XLR data input & output
- IEC type, AC power input & output
- 8 built-in programs with speed control
- Strobe effect (1-25 flashed per second)
- Control each LED independently (12 & 15 channel mode)
- Selectable dim options (Standard & Linear)
- 0-100% Dimming
- Master/ Slave auto program and sound trigger
- Multi-voltage: 100-240VAC, 50/60Hz (electronic ballast)
- On/Off Power switch
- Power Consumption: 50 watts
- Mounting bracket designed for floor, wall or truss mount
- Fixed eye bolt for safety cable
- Optional bracket kit available to hang up to (4) DLED 36 TRI BRICK`S (DLEDKIT)

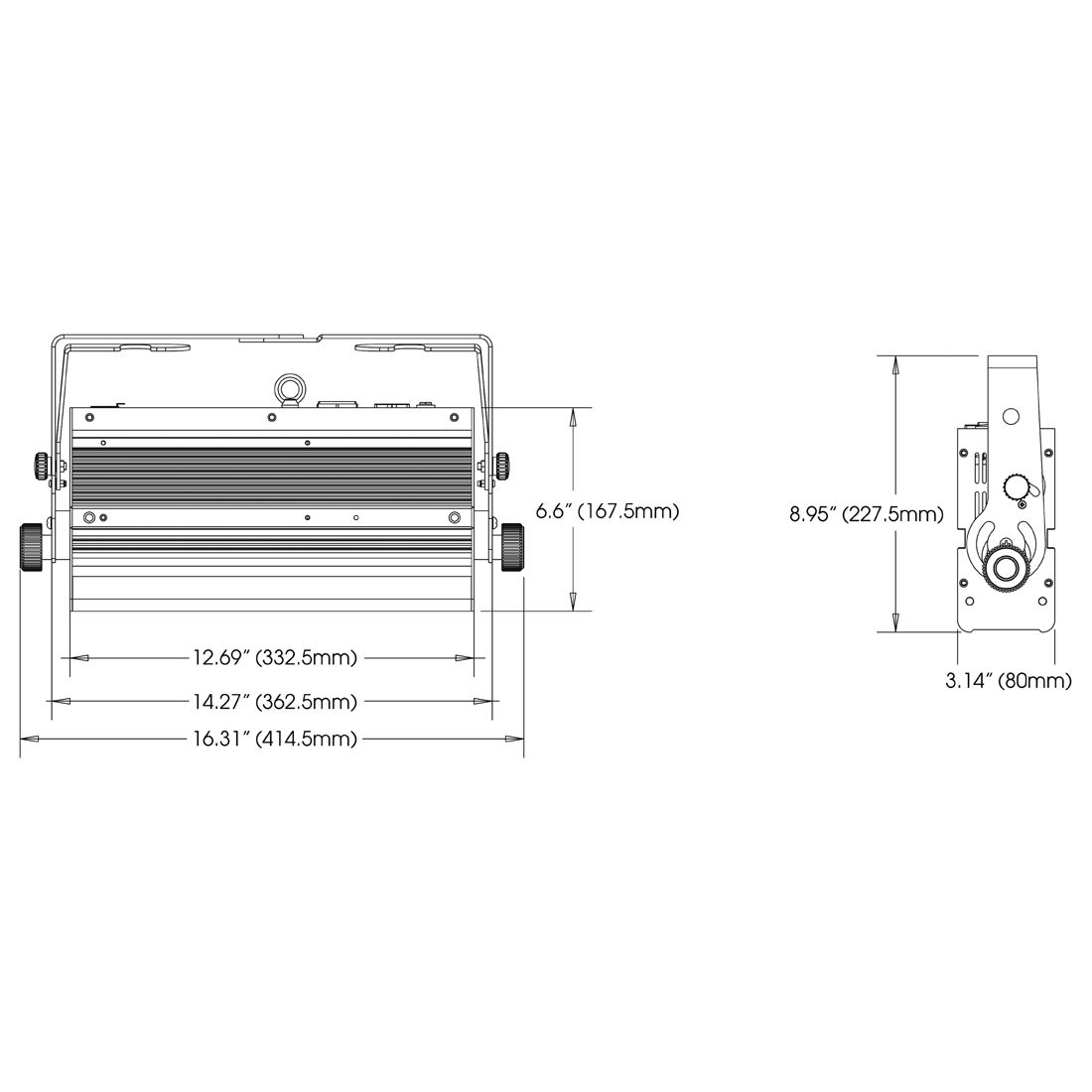

- Dimensions (LxWxH): 415 x 228 x 80mm
- Weight: 4,3kg

Specifications and documentation subject to change without notice
