Design LED 12 Brick MKIIArchive

Code 1226200013

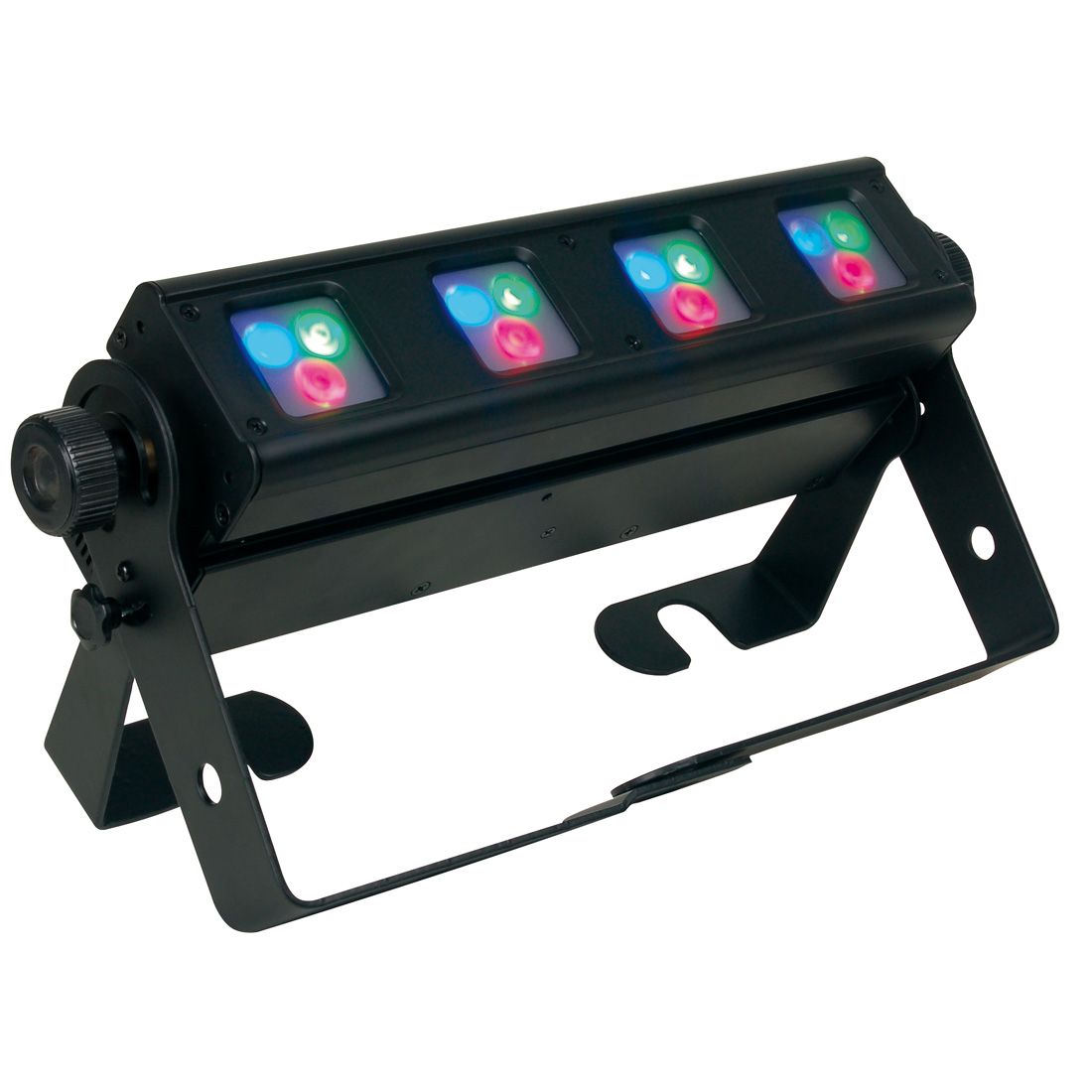

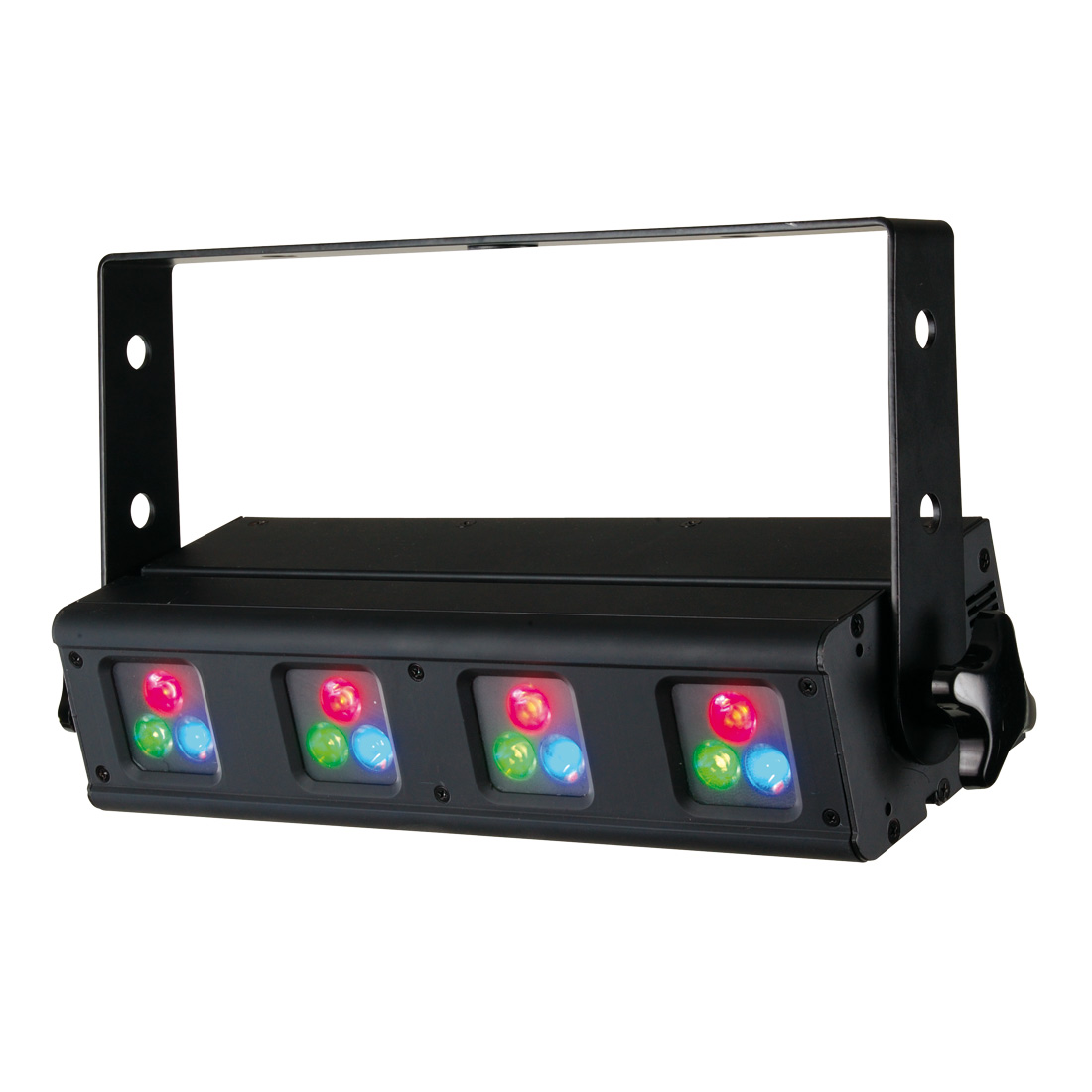

Design LED 12 Brick MKII

Technical Data

- 12x 1W Luxeon LEDs (= 12W Power)
- 44° beam angle
- Single LED pixel control
- Matched color mixing
- Built-in programs
- Power & DMX loop through
- Very compact and light

Specifications
- High output LED Color Changer
- 12 x 1W Luxeon LEDs - (4x R+G+B)
- Seamless RGB color mixing
- Infinite Color possibilities
- Compact Design

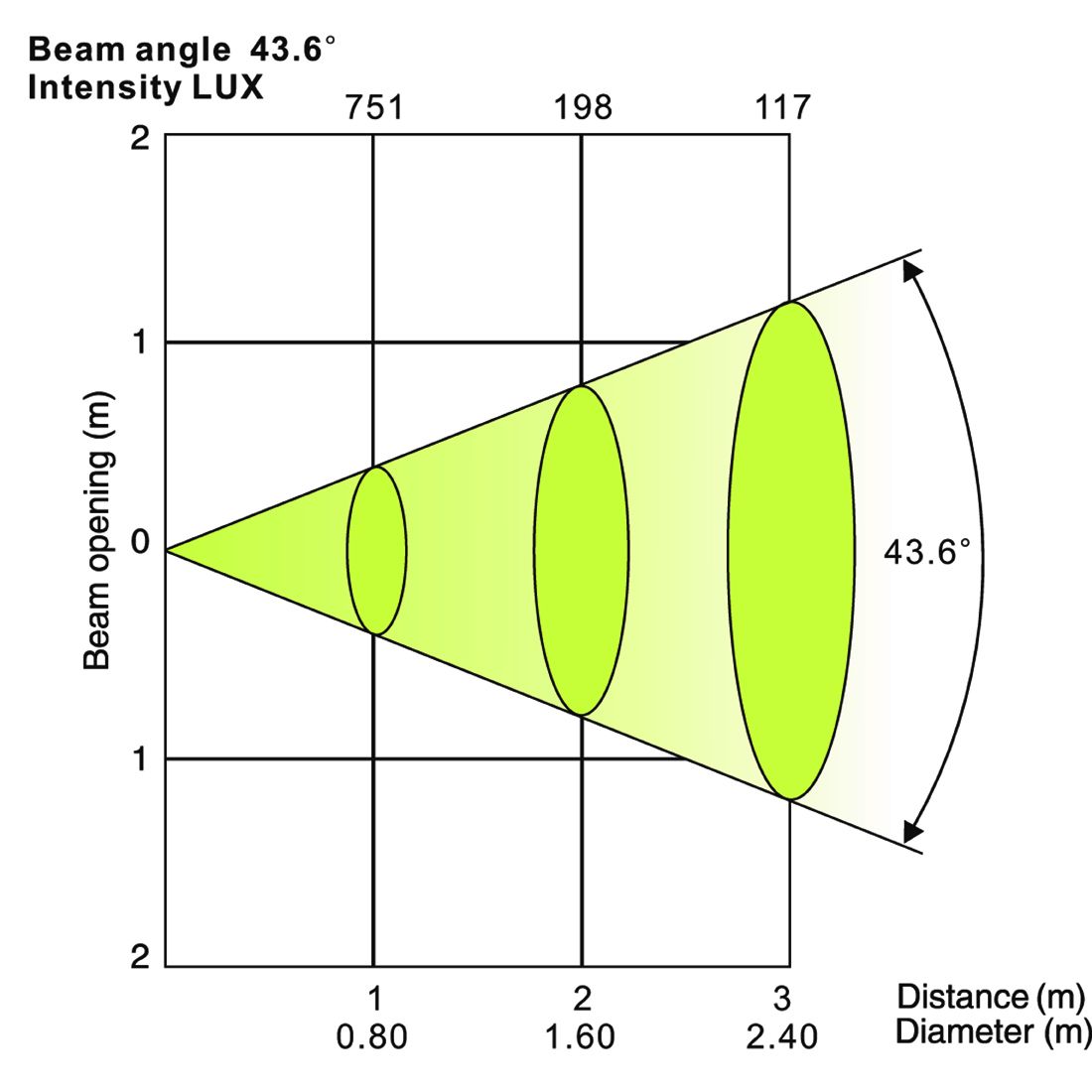

- 44º Beam Angle
- Long Life L.E.D. (rated at 100,000 Hours)
- Built-in Power Supply and DMX 512 Control
- USITT-DMX 512
- 3, 4, 6, 12, 15 operation modes
- 12 Position Binary dip switches
- 3 & 5 pin XLR in/out
- IEC Power in/out
- Master/ Slave auto program and music trigger
- 8 built-in programs with Speed control
- Strobe effect (1-18 flashed per second)
- Control each L.E.D. independently
- 0-100% Dimming
- 90-250V AC, 50/60Hz
- On/Off Power switch
- Power Consumption: 30 watts
- Mounting bracket and safety I-hook installed
- Optional bracket kit for multiple units (DLEDKIT)

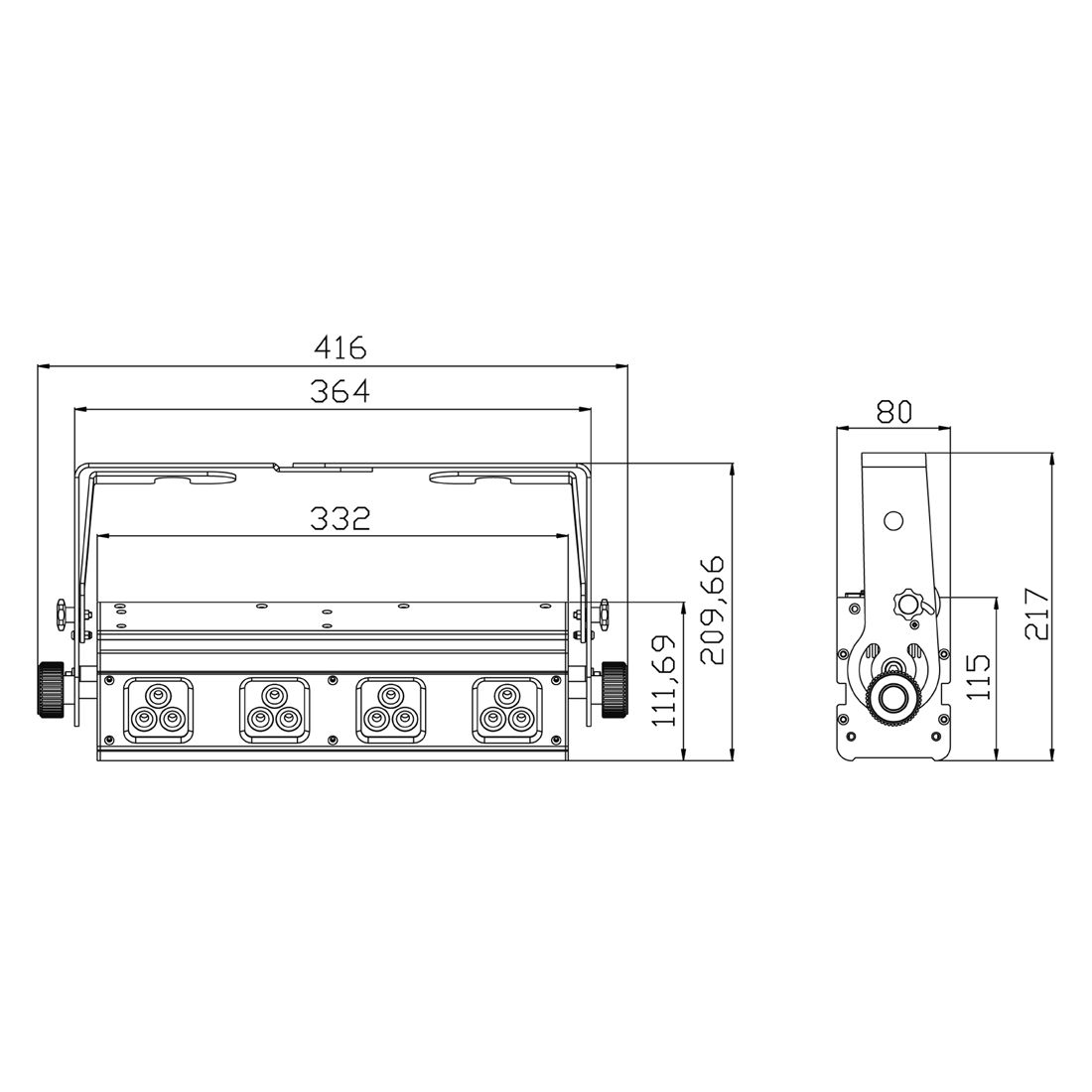

- Dimensions (LxWxH): 416 x 217 x 80mm
- Weight: 2 kg

Specifications and documentation subject to change without notice
