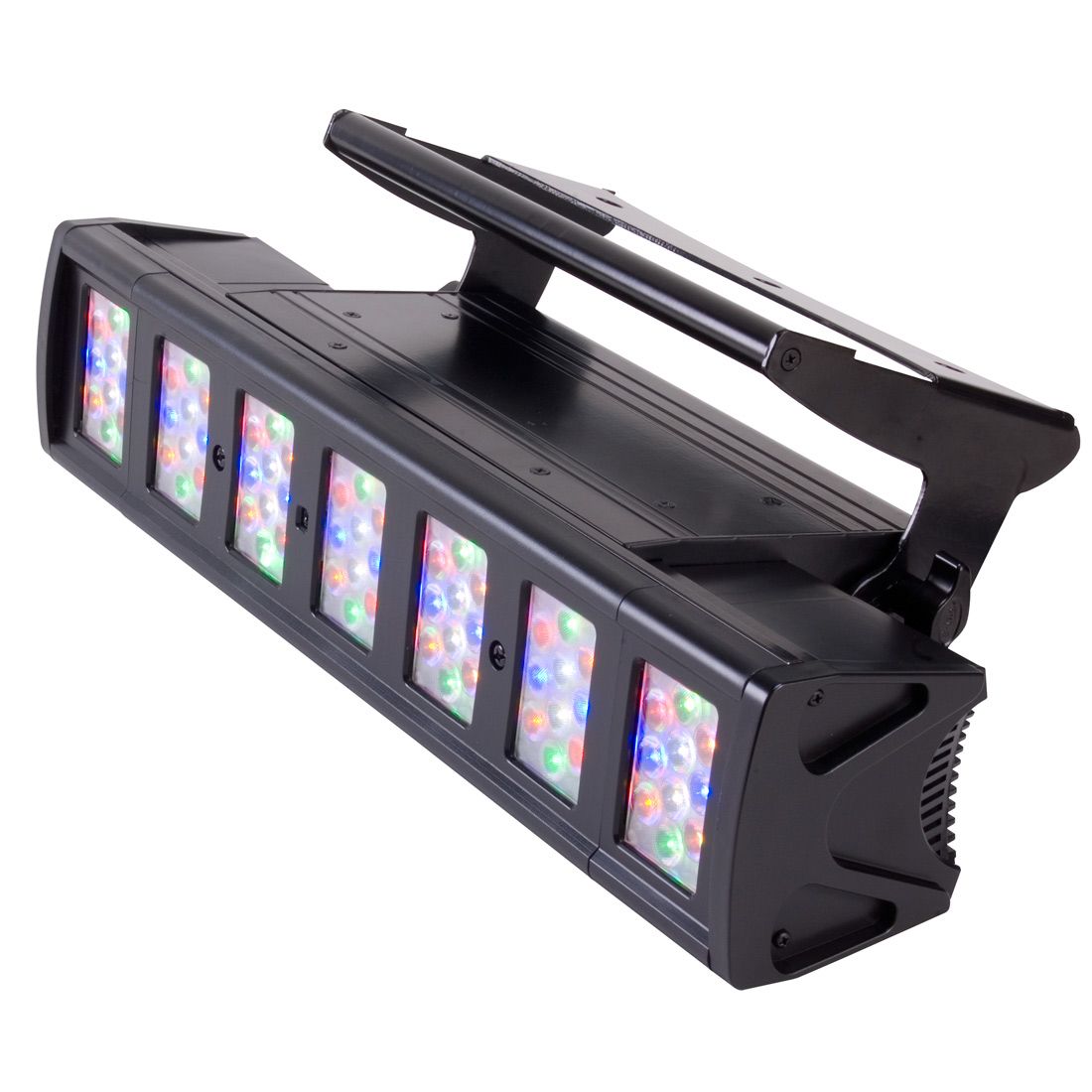

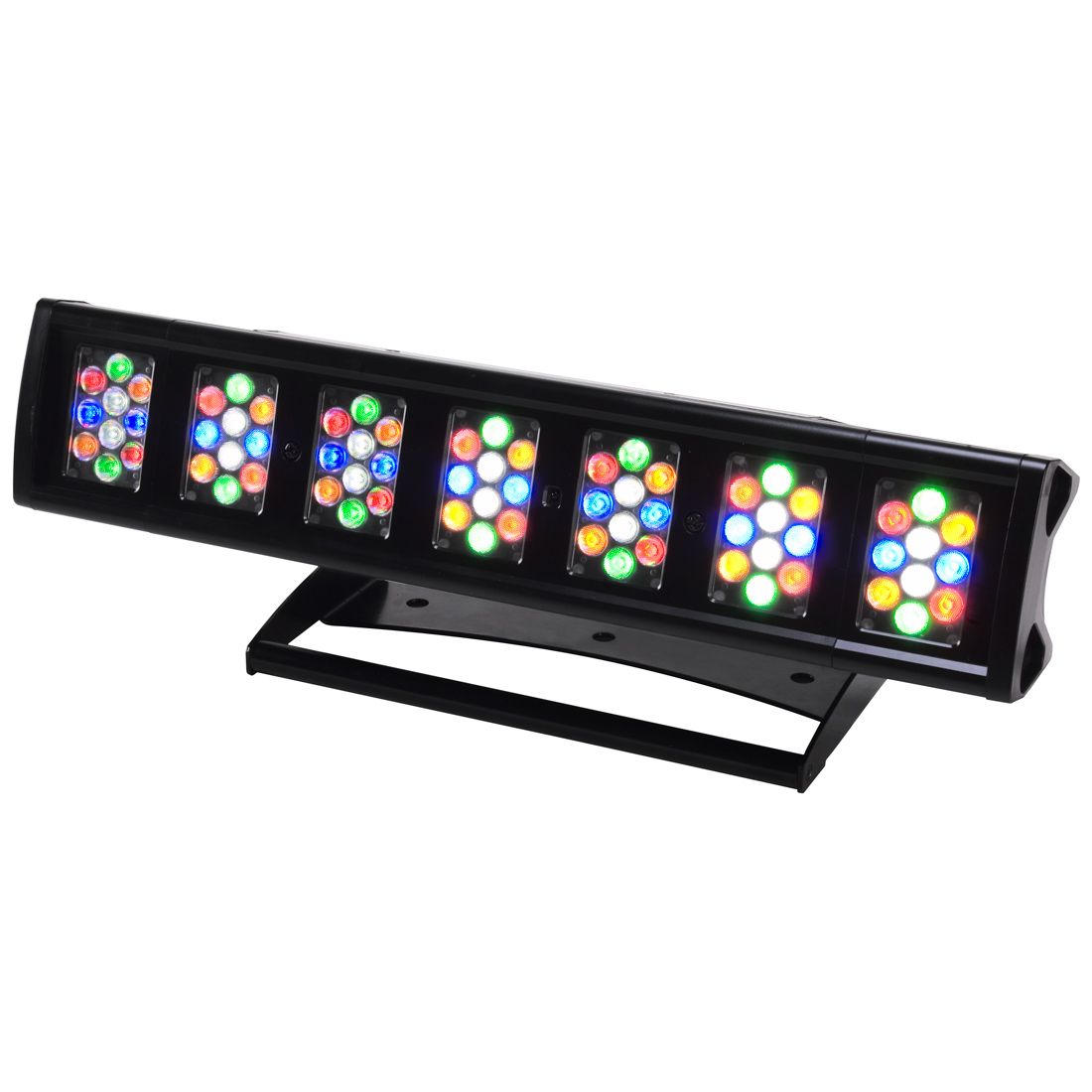

Design Brick 70

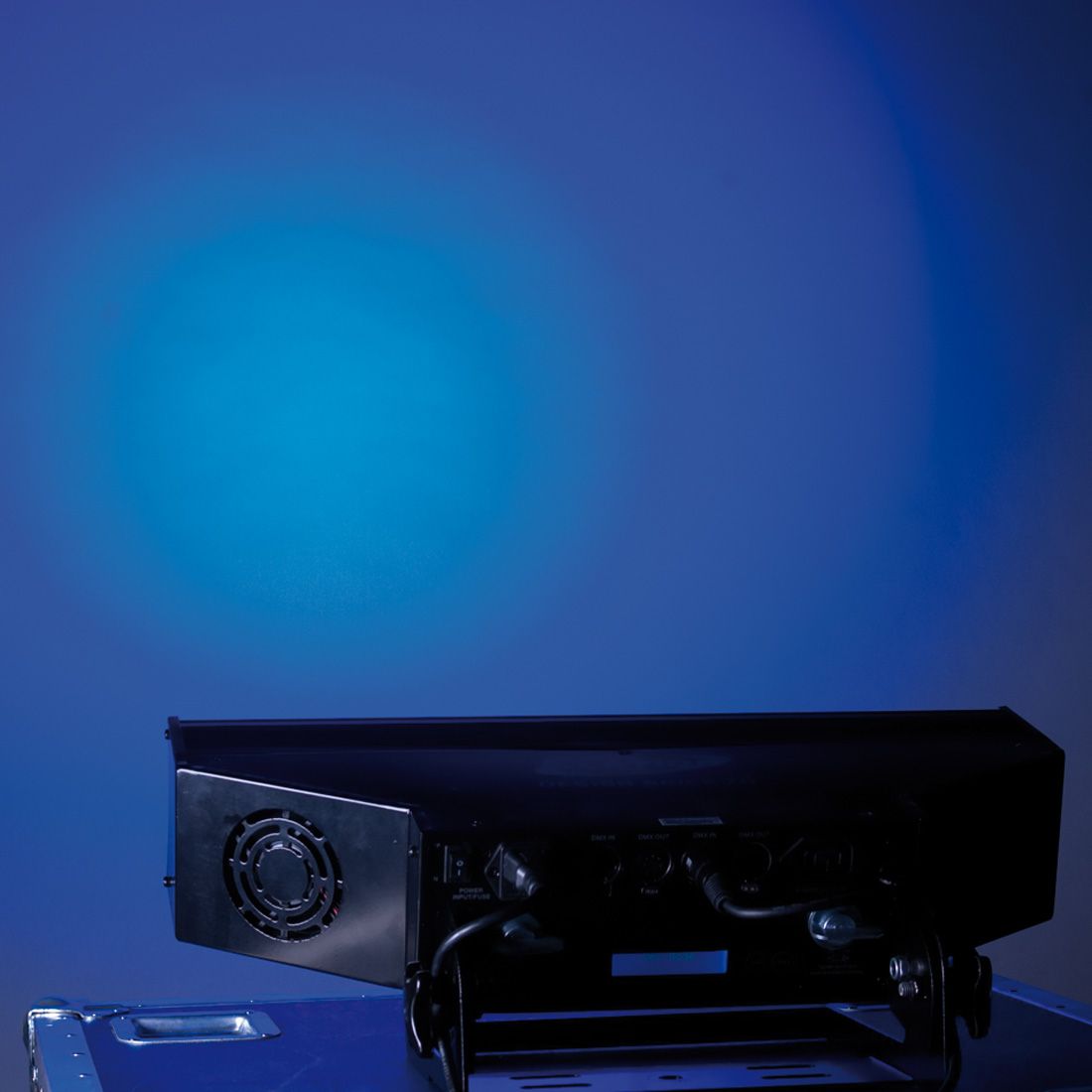

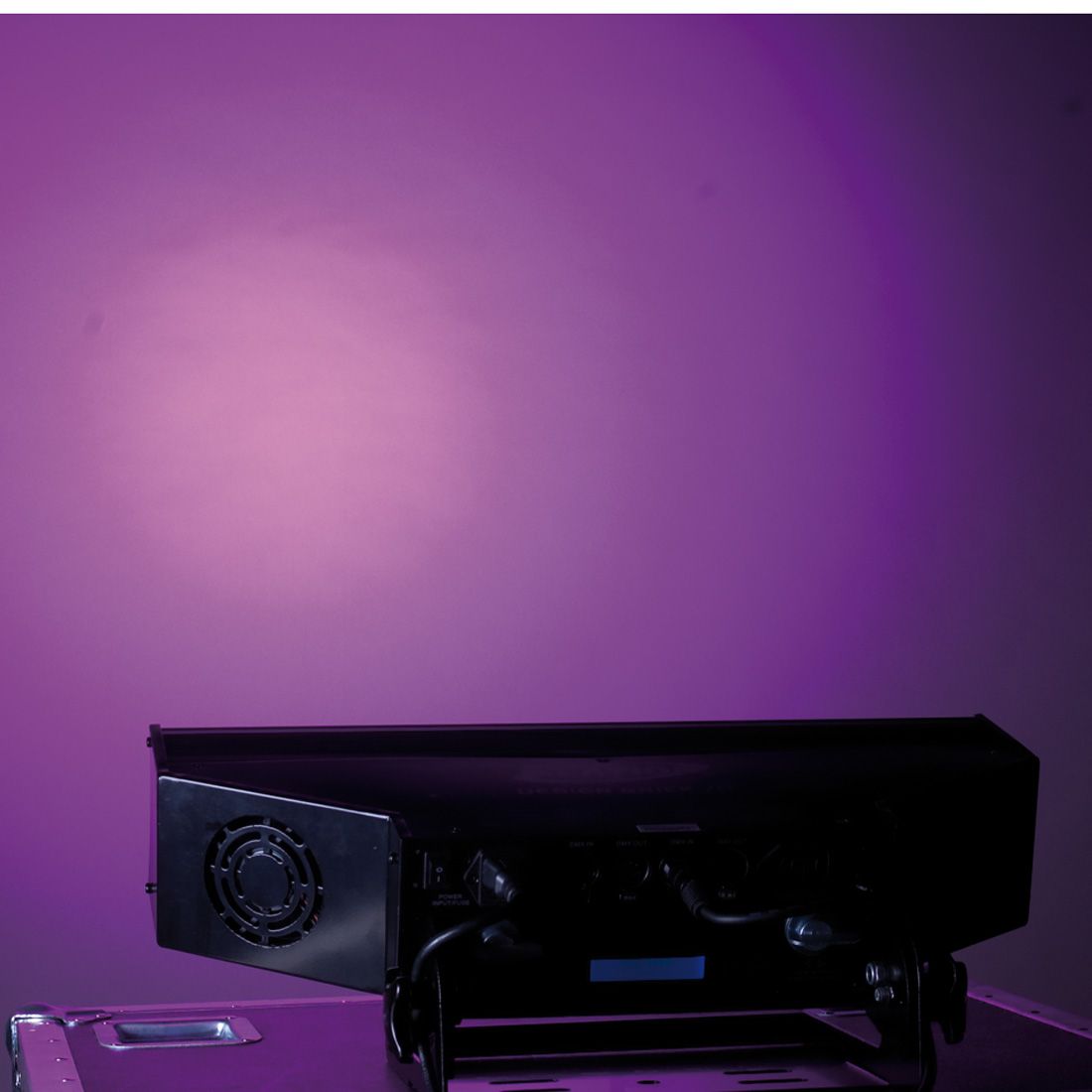

The DESIGN BRICK 70 is an incredible powerful L.E.D. fixture offering amazing color mixing possibilities. With its additional white and amber L.E.D.s, any color with individual saturation and brightness can be set up. Even pastel colors or warm white or very warm yellow and orange colors can be achieved easily, always maintaining a perfect color mix in the beam with high light output.

Technical Data

- 70x 3W SSC LEDs ( = 210 W Power)

- Single cell control

- RGB + white + amber

- Enormous output

- Built-in macros + effects

- LCD display setup

- Flicker free operation for television and film

Specifications

- 70x 3W SSC-LEDs, RGB + white + amber

- Seamless color mixing plus warm to cool white (3200K – 5600K)

- Long Life LED (rated at 100,000 Hours)

- 2820 Lux @ 3m

- 25º Beam Angle

- Control each pixel field independently

- Flicker free operation for television and film

- 4 button LCD b/w Menu Display

- USITT DMX 512

- RDMX: Remote DMX Addressing

- 4,5,8,11 or 35 Channel operation modes

- Sound Active, Macro, Auto, & DMX

- Built-in programs with Speed control

- Sound controlled via built-in microphone

- Holds last state when power off

- 0-100% Dimming

- Strobe effect (1-25 flashes per second)

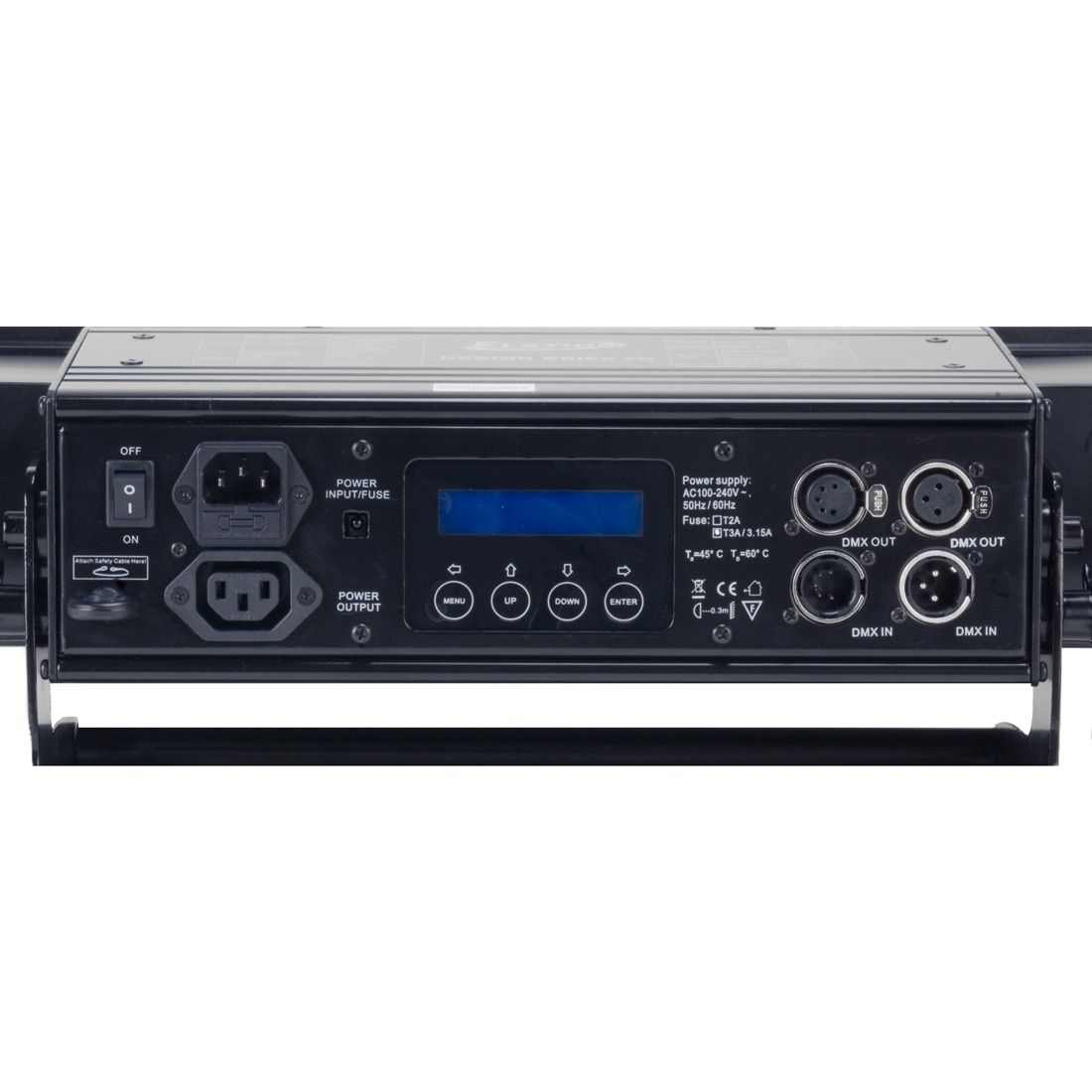

- 3 & 5 pin XLR in/out

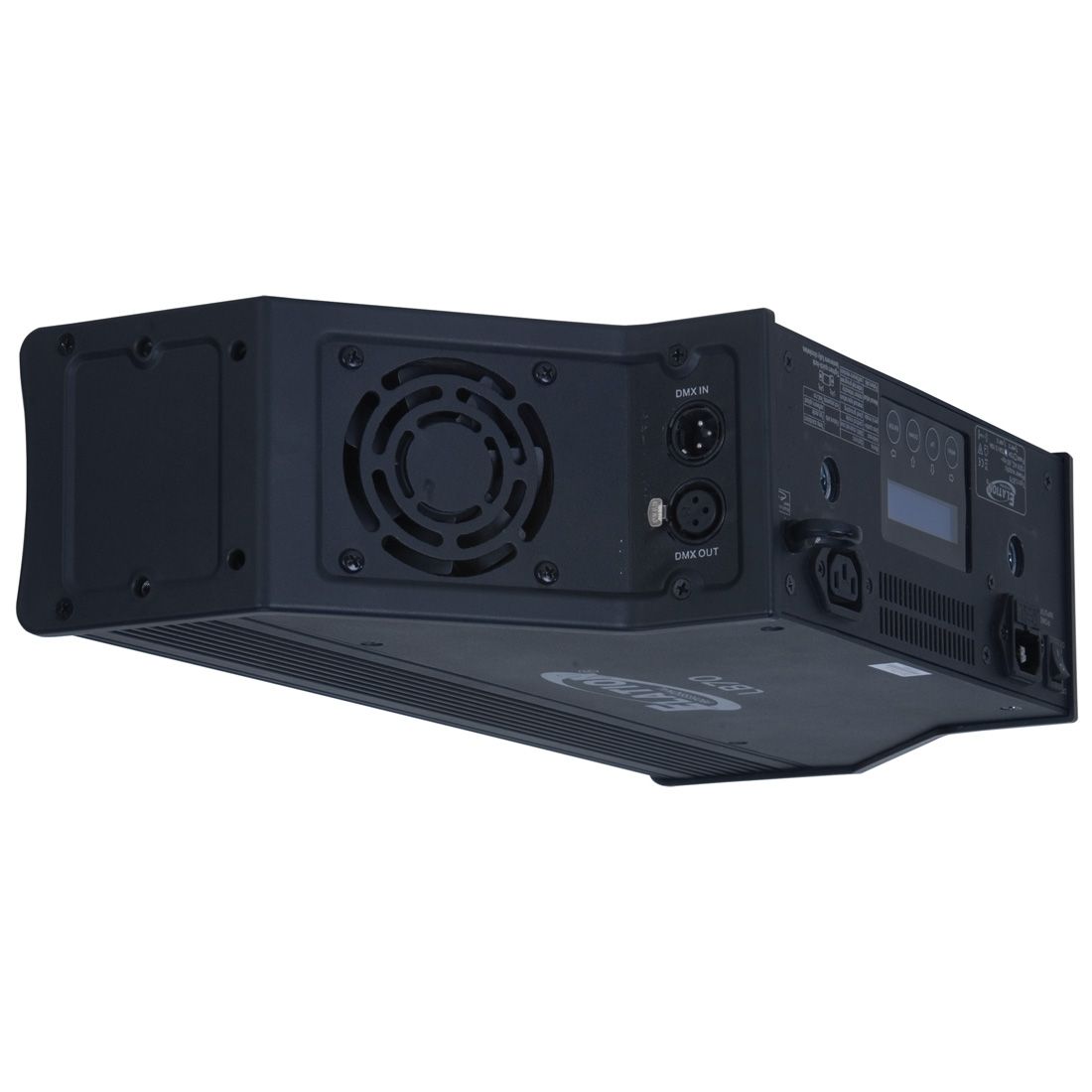

- Silent fan cooling

- Mounting bracket and safety I-hook installed

- On/Off Power switch

- In/Out power connectors

- Electronic Switching Power Supply

- Power Consumption: 250 watts

- 100-240V AC, 50/60Hz (Multi-voltage)

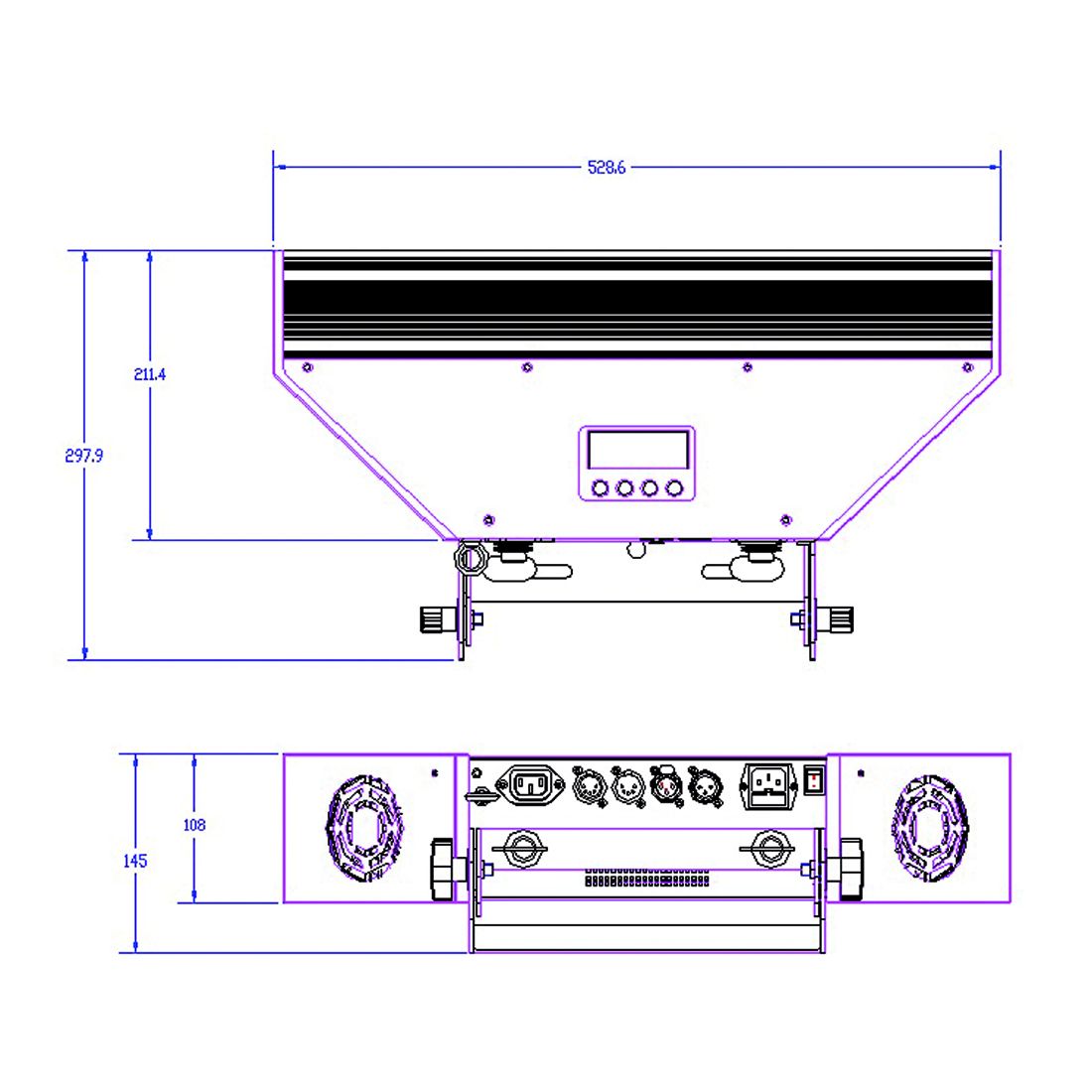

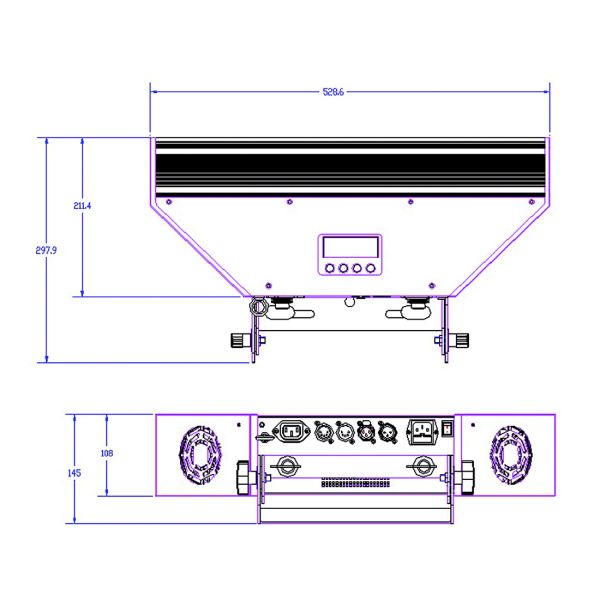

- Dimensions (LxWxH): 610x440x240 mm

- Weight: 8 kg



Specifications and documentation subject to change without notice
