CUEPIX STRIP WW

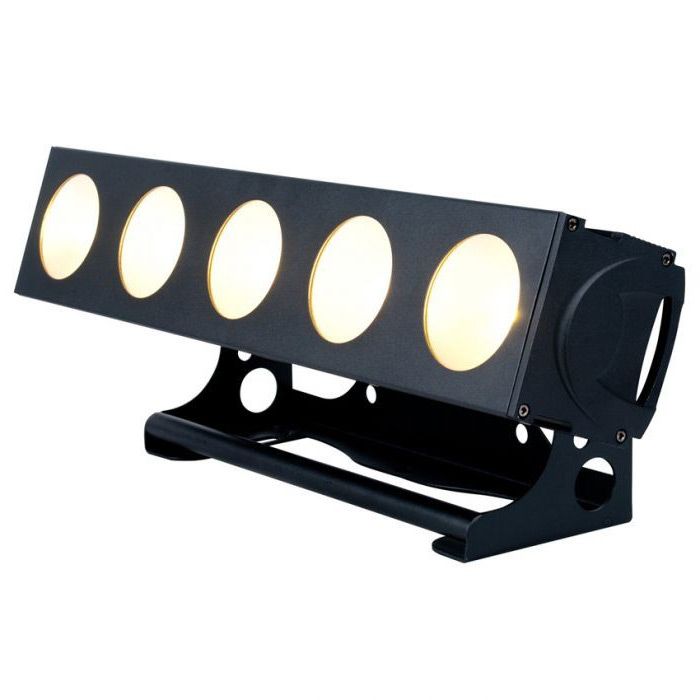

The CUEPIX Strip WW™ features (5) long life 30W Warm White 3,200K COB LEDs, a 60° beam angle, individual control of each COB module, no fans - silent operation, strobe effects, DMX, RDM (Remote Device Management), locking 3/5pin DMX in/out and locking power in/out connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated rigging bracket, 123W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Power Long Life Warm White COB LEDs
60° Beam Angle / 80° Field Angle
Individual Control of Each COB Module
No Fans - Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

(5) 30W Warm White 3,200K COB LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

4,170 LUX 387 FC @ 1m (3.3’)


EFFECTS

Individual Control of Each COB Module
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


CONTROL / CONNECTIONS

(6) DMX Channel Modes (1 / 2 / 5 / 6 / 8 / 10)
RDM (Remote Device Management)
(4) Button Control Panel
LCD Menu Display

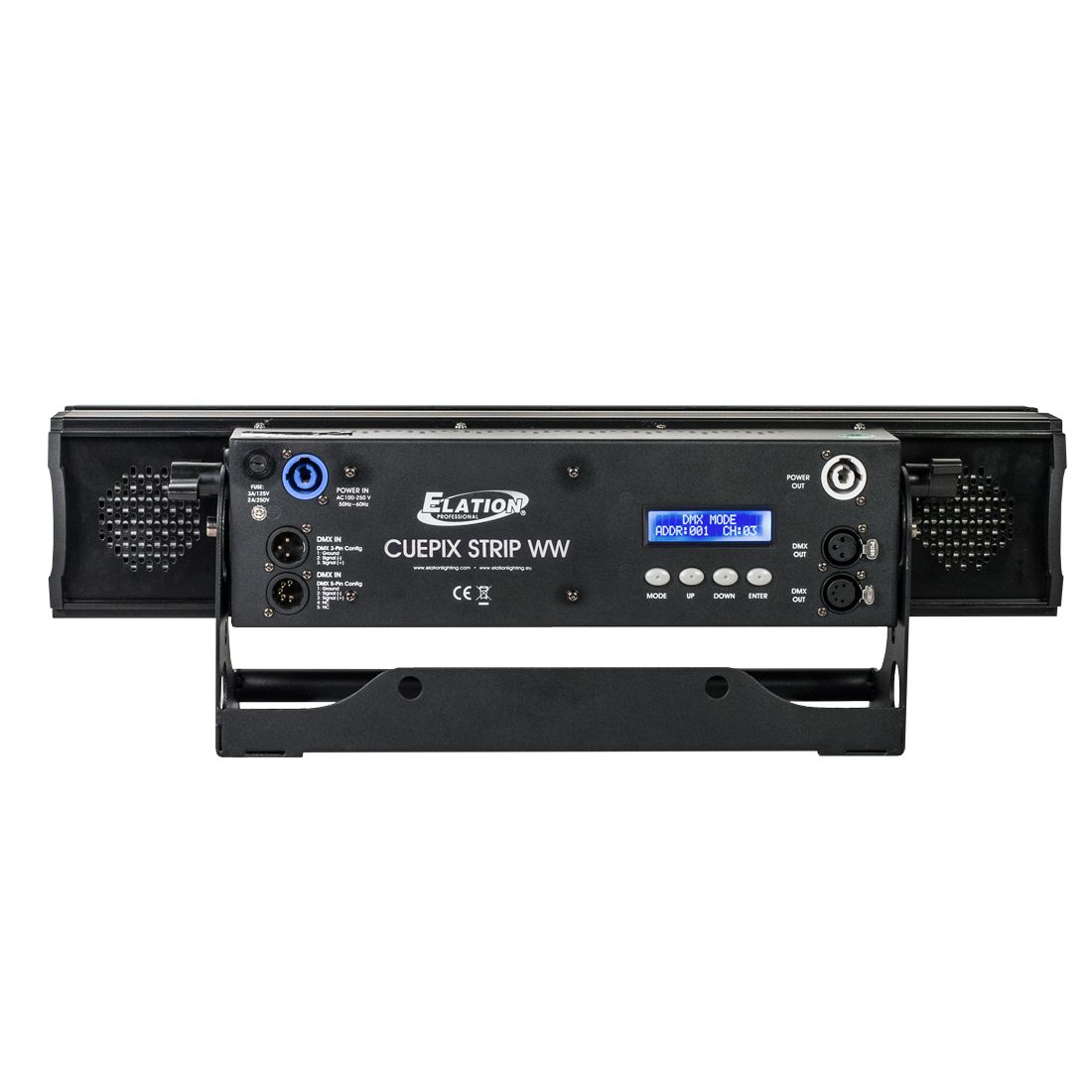

Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 550mm (21.7”)
Width: 161.2mm (6.4”)
Horizontal Height: 172.5mm (6.8”)
Weight: 6.3 kg (13.9 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
123W Max Power Consumption
-15°C to 45°C (5°F to 113°F)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
