Art-16 DMX Recorder by ACCLAIM LightingArchive

Code 1323000016

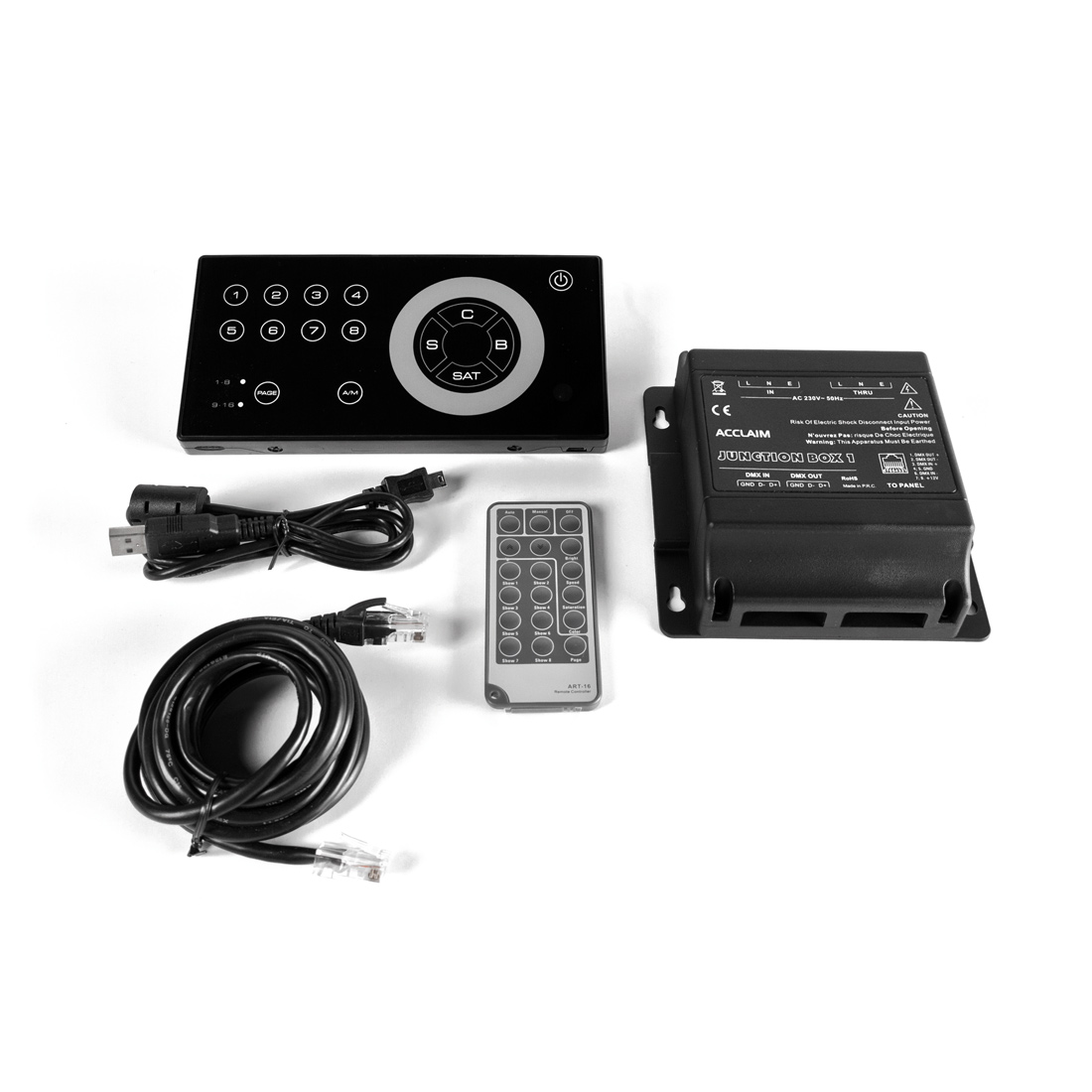

Art-16 DMX Recorder by ACCLAIM Lighting

Technical Data

- LED Mapping
- One DMX Universe output can control up to 680 pixels
- RGB values can be manually adjusted via PC software
- Adjustable speed for playback
- Touch interface
- Wall mounting or Tabletop usage
- USB port for communication with PC
- Works on Windows XP only
- Editable flash files(.swf) and Scene files (.scn)
- Output via standard RJ45 to control up to 170 RGB units via DMX
- With built-in real time clock to set individual trigger time for each show
- Real time DMX-recorder
- Up to 200 files/128MB in memory
- Up to 16 shows can be assigned
- DMX Remote Mode
- Time Trigger Mode
- Manual Mode
- USITT DMX 512 Out- and Input
- Infrared remote (included)
- Junction Box included (with built-in power supply)
- Button lock function
- Power Failure Memory
- Operating temperature:   0 degC to +40 degC
- Storage temperature: -20 degC to +70 degC
- Housing: Black Polycarbonate
- Power: ~ 230V 50Hz
- Dimensions: 170(L) x 85(W) x 15.5(H)mm
- Weight: 0,2kg

Specifications and documentation subject to change without notice
