1075

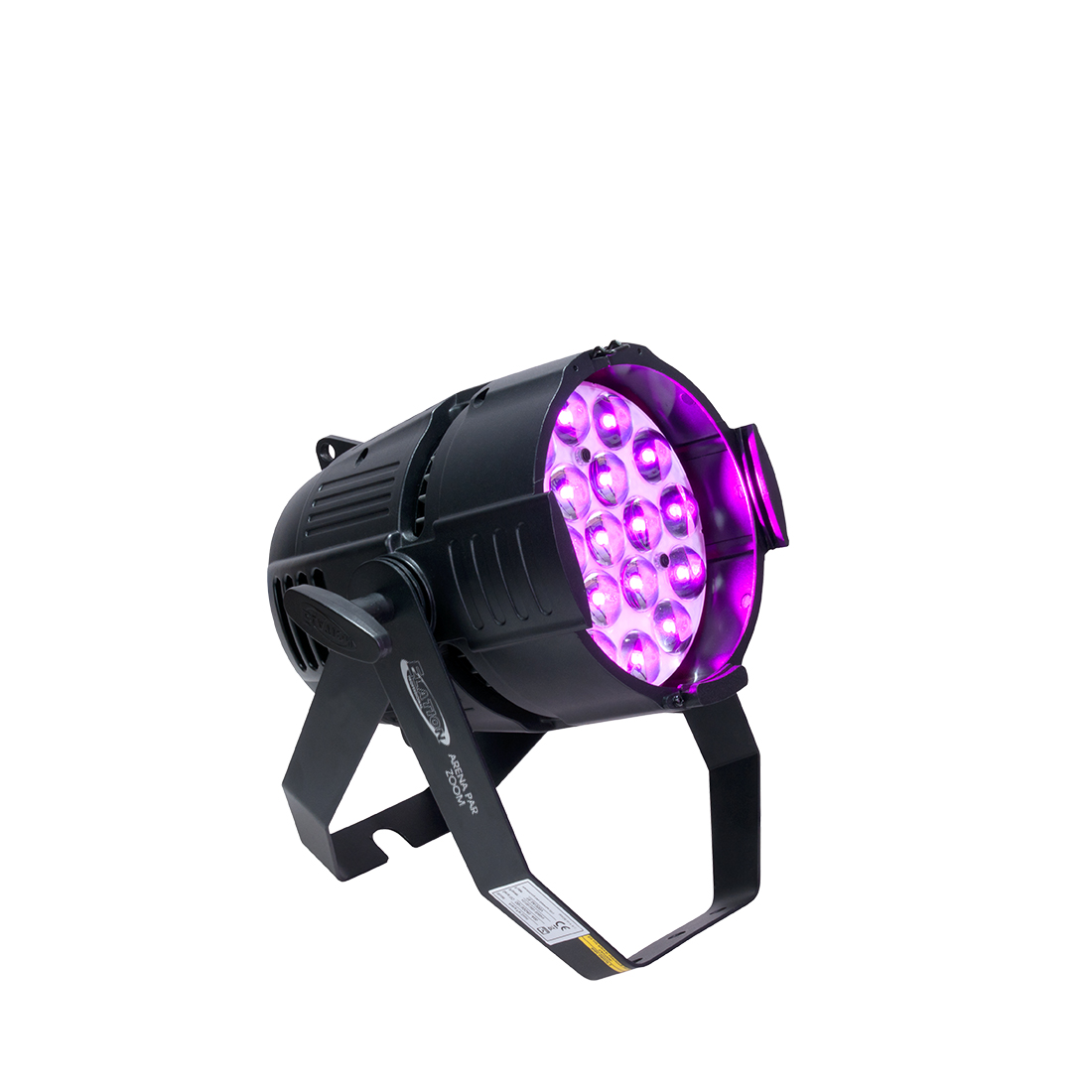

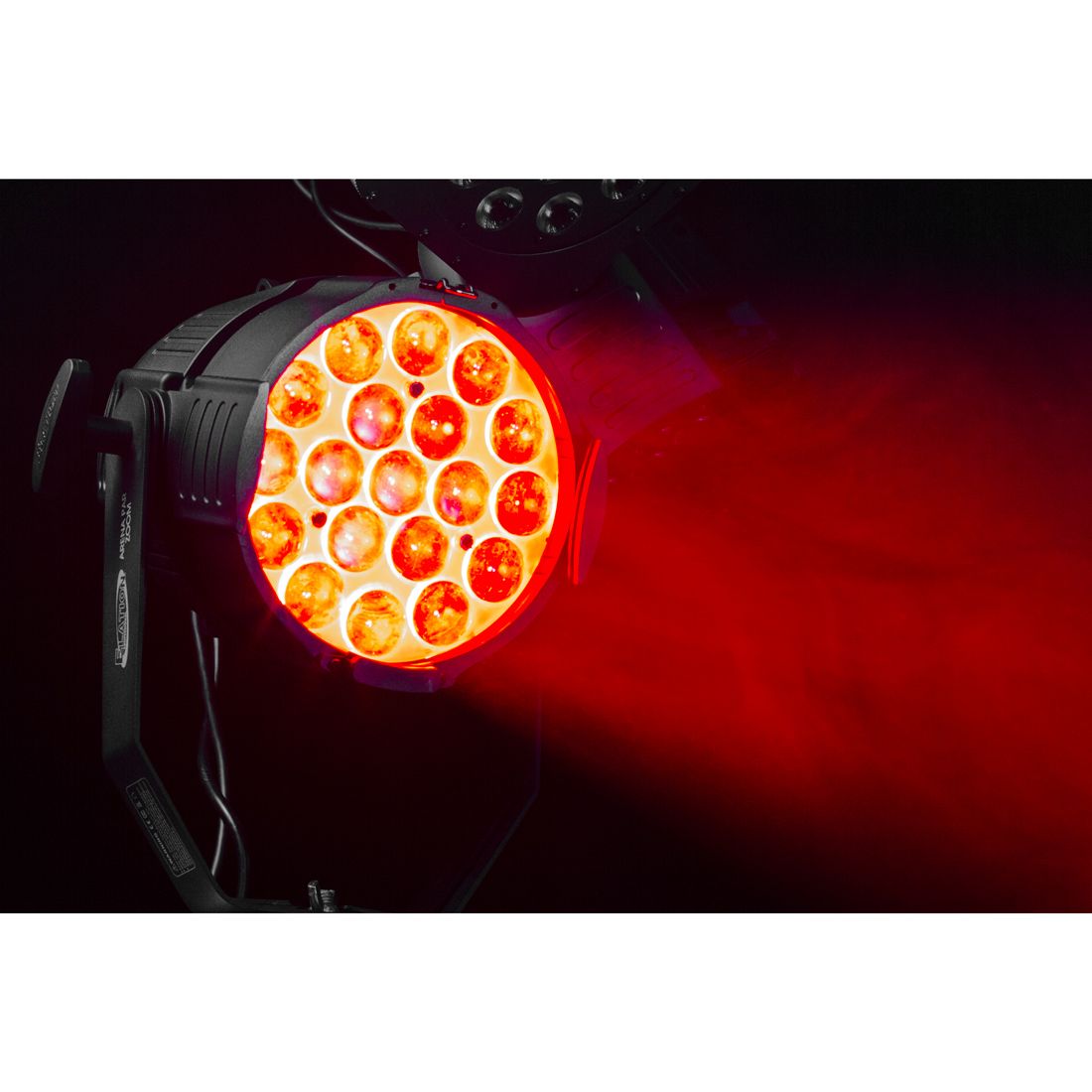

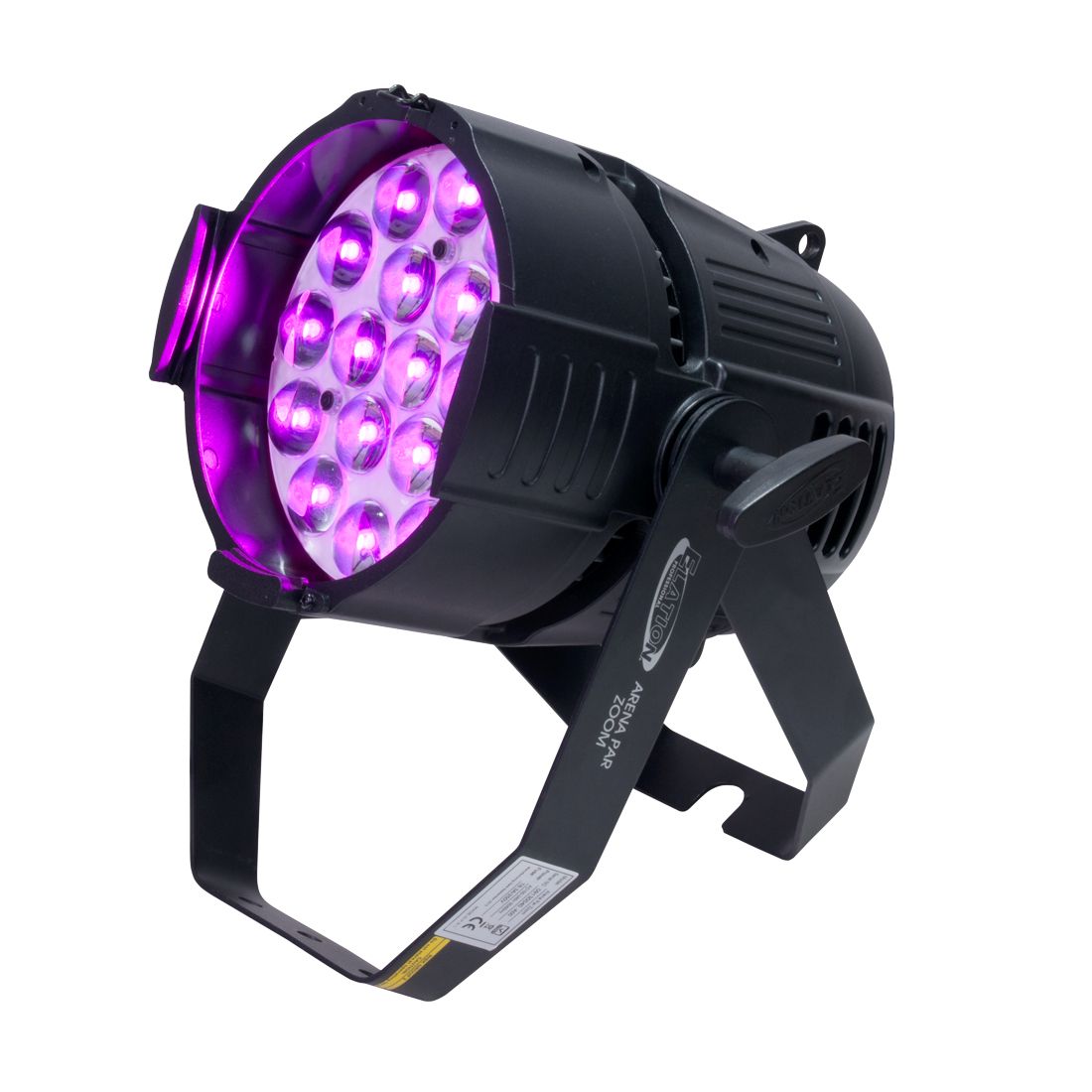

Arena Par Zoom

The Arena Par Zoom™ features (19) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, strobe effects, variable color temperature (3,200K – 7,200K), variable dimming curves, DMX, Locking 3/5pin XLR DMX In/Out and Power In/Out connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated dual yoke/floor stand and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Versatile LED Zoom Par Luminaire
Motorized 10° - 60° Zoom
Full RGBW Color Mixing
Variable Dimming Curves
Flicker Free Operation for TV and Film

SOURCE

(19) 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life*

PHOTOMETRIC DATA

12,600 LUX 1,171 FC @ 9.8’ (3m) (Min. Zoom)
900 LUX 84 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS

Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves

COLOR

Full RGBW Color Mixing
Variable Color Temperatures (3,200K - 7,200K)

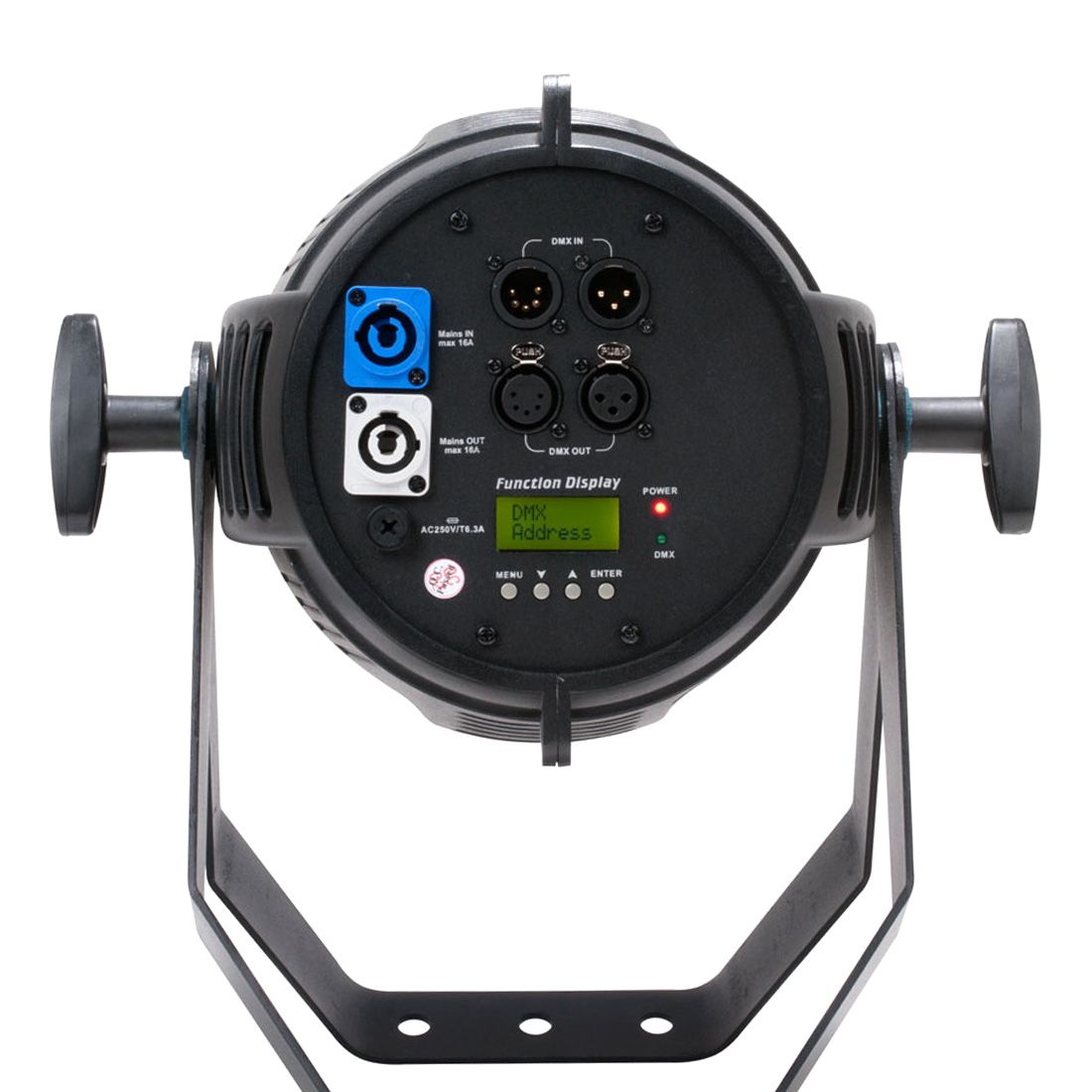

CONTROL / CONNECTIONS

(7) DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR DMX In/Out
Locking Power In/Out

SIZE / WEIGHT

Length: 12.8” (324mm)
Width: 10.9” (276mm)
Vertical Height: 14.5” (368mm)
Weight: 15.9 lbs. (7.2 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
220W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



Specifications and documentation subject to change without notice
