Arena Par CWArchive

Code 1236100106

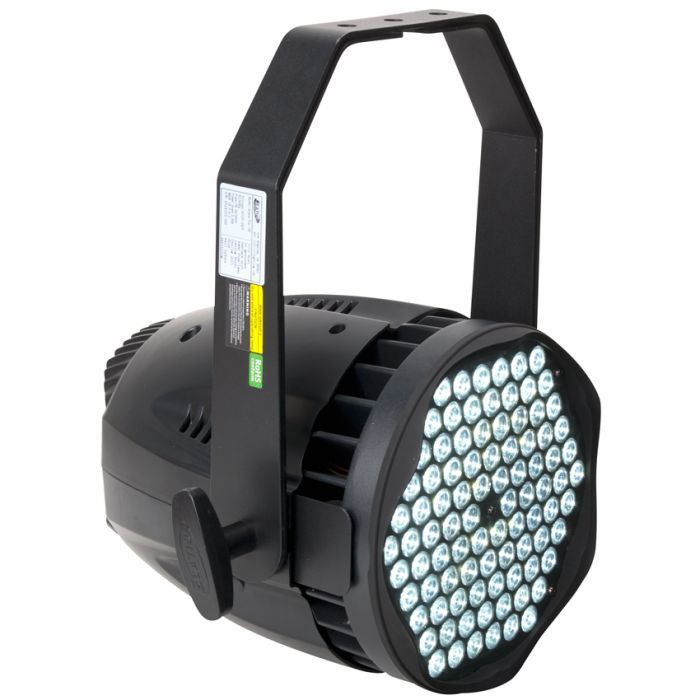

Arena Par CW

Technical Data

FEATURES • Die Cast Aluminum LED Par Can • DMX intelligent Cool White LED wash • 90 x 3W CREE XP-E LEDs • 15º standard beam angle • Rated IP 20 • Case Color: Black • Cooling: Fan Cooled • Electronic power supply • Electronic dimming (0-100%) • 4 Digit LED display • DMX controllable via 2 DMX modes: 1 or 2 • Primary/Secondary • On Board Control • Stand Alone • Flicker Free TECHNICAL SPECIFICATIONS • DMX Channels: 2 DMX modes: 1Ch & 2Ch • Control: USITT DMX-512, 5 pin XLR data input & output • Dimmer: Master Dimmer (1 ch mode) • Strobe: Yes • IP Rating: IP 20 • Power Supply: 100 - 240v, 50/60Hz • Power Consumption: 280W • Fuse: T 6.3A • Lamp: 90x 3W CREE XP-E LED • 6,500k color temperature • LED Life: 50,000 hrs. life • Lux: 11800 Lux @ 3M @ Full • Dimensions: (L x W x H) 14.25” x 12” x 16.5” / 356 x 299 x 414mm (with handle) (L x W x H) 10.5” x 12” x 9.25” / 265 x 299 x 234mm (no handle) • Weight: 18 lbs / 7.9 kg • Rigging: Split Yoke Bracket /safety and data cable optional • CE Approved

Specifications and documentation subject to change without notice
