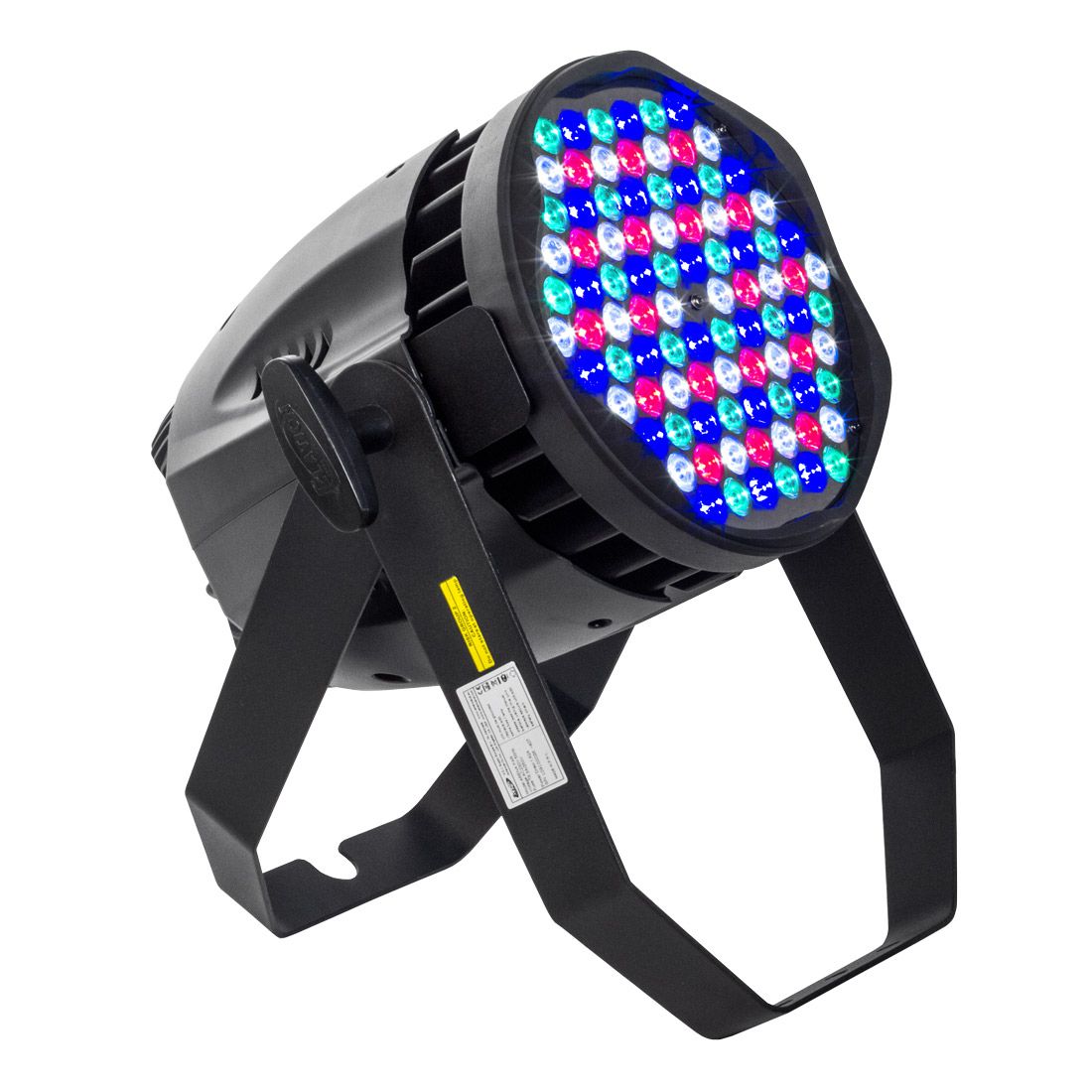

Arena Par

The Arena Par features (90) 3W RGBW LEDs, 15° beam angle, variable strobe macros, flicker free operation for TV and FILM, 3 in/out DMX, 4 button touch control panel, integrated dual rigging yoke / floor stand, 280W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).



Technical Data

FEATURES

Comparable to a Conventional Par 64 1000W
Flicker Free Operation for TV and FILM


SOURCE

90x 3W Osram™ RGBW LEDs
18 Red, 24 Green, 24 Blue, 24 White LEDs
50,000 Hour Average Life

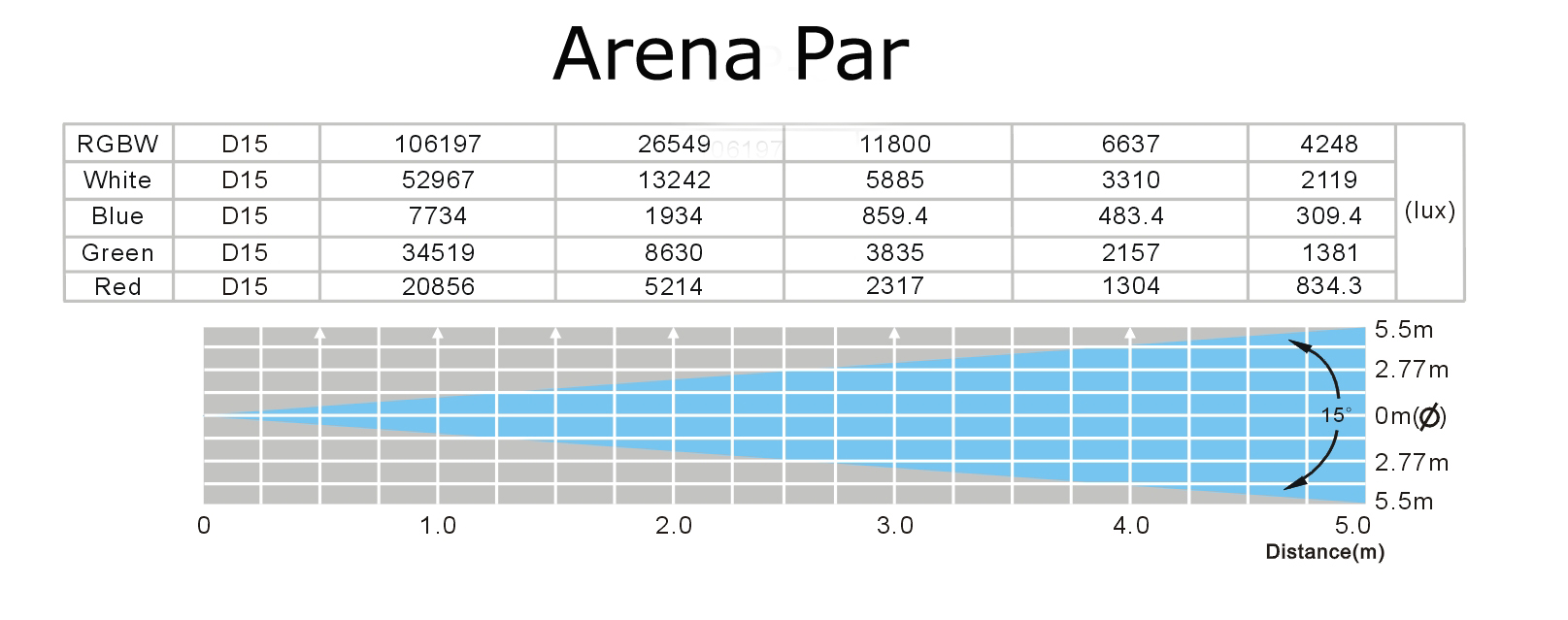

PHOTOMETRIC DATA

26,549 LUX @2M 15°


EFFECTS

Strobe + Variable Strobe Macros
Electronic Dimming: 0% - 100%


COLOR

RGBW Color Mixing


CONTROL / CONNECTIONS

3 DMX Channel Modes (4/5/7)
3pin DMX In/Out

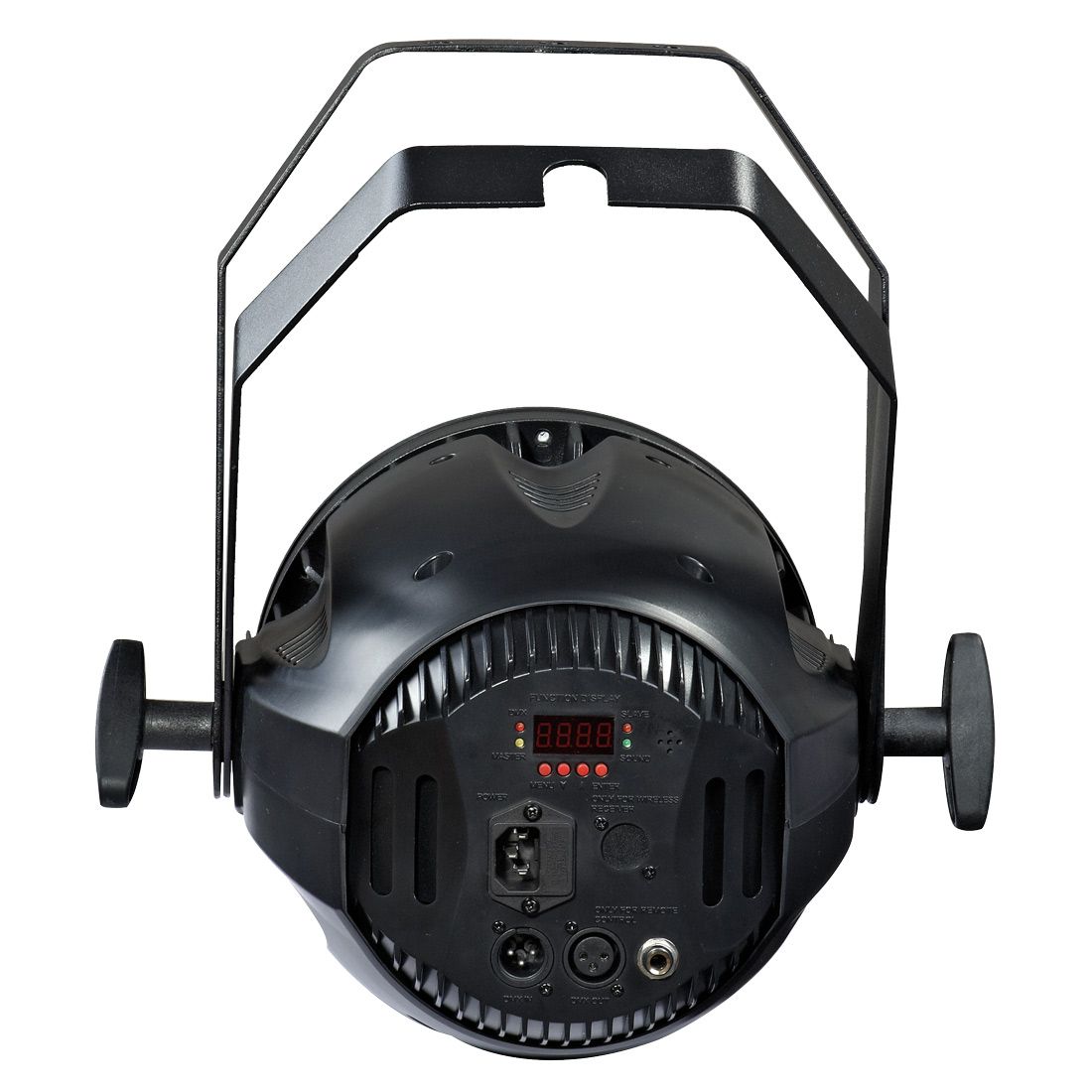

4 Button Control Panel
LCD Menu Display


SIZE / WEIGHT

Length: 299mm
Width: 234mm
Vertical Height: 265mm
Weight: 7.9kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
280W Max Power Consumption
-20°C to 40°C



Specifications and documentation subject to change without notice
