ACL Par 200 IP

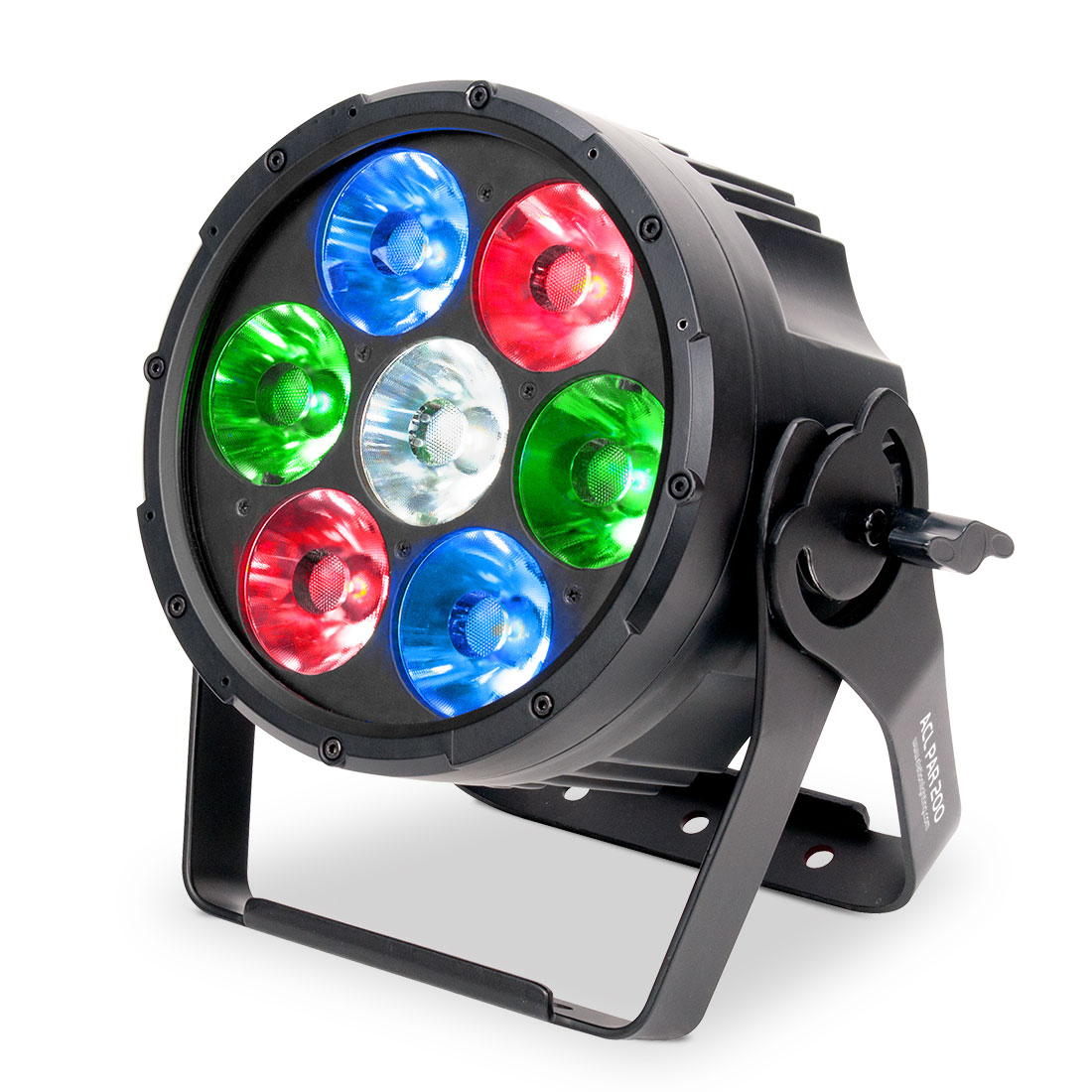

The ACL PAR 200IP™ is a versatile IP65 rated par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe effects, silent operation, variable dimming curves, DMX, RDM (Remote Device Management), IP DMX in/out and IP Power in/out connections, flicker free operation for TV and Film, 4 touch control pads, LCD menu display, 110W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data


Versatile IP65 Rated Par Luminaire
Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*


56,149 LUX 5,216 FC @ 3.3’ (1m)


Individual Pixel Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves




(11) DMX Channel Modes: (4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)

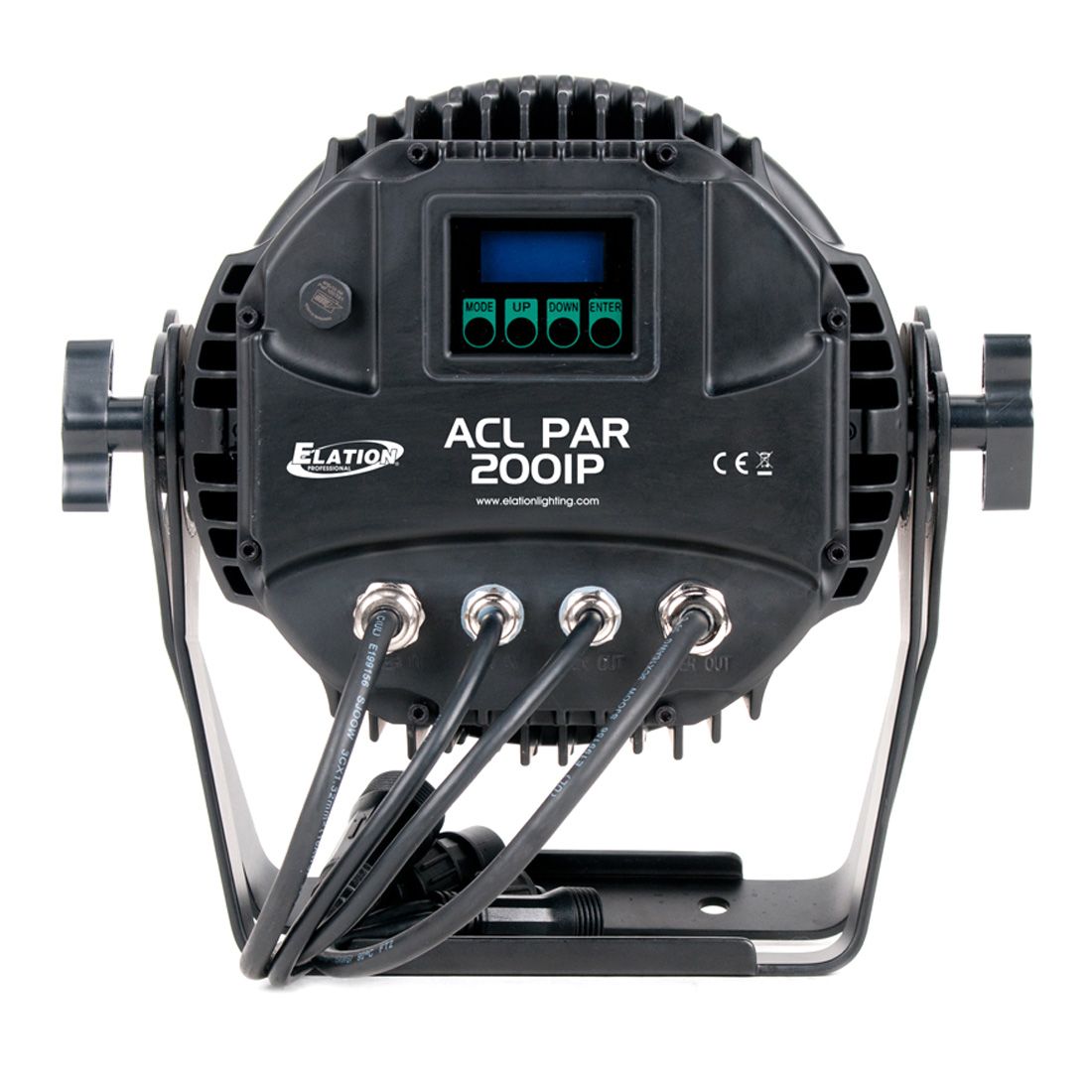

4 Touch Control Pads
LCD Menu Display
IP Power In/Out


Length: 12.3” (313mm)
Width: 6.9” (174.5mm)
Vertical Height: 11.8” (300mm)
Weight: 14.0 lbs. (6.4 kg)


AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)


Male CEE 7/7 to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)


1621000057 SIXPAR300/GFH Gel Frame Holder
1621000060 SIXPAR/BD300 Barn Doors
1226100230 LSF 10°

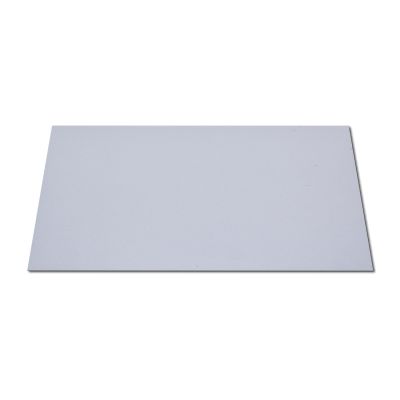

1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
1621000066 1M Power Link Cable
1621000042 2M Power Link Cable
1621000043 3M Power Link Cable
1621000044 5M Power Link Cable
1621000045 10M Power Link Cable
1621000067 20M Power Link Cable
1621000068 35M Power Link Cable
1621000053 Power IN CEE 7/7-IP Adapter Cable
1621000054 Power Out IP-CEE 7/7 Adapter Cable
1621000063 1M Data Link Cable
1621000046 2M Data Link Cable
1621000047 3M Data Link Cable
1621000048 5M Data Link Cable
1621000049 10M Data Link Cable
1621000064 20M Data Link Cable
1621000065 35M Data Link Cable
1621000051 DMX In XLR3-IP Adapter Cable
1621000052 DMX Out IP-XLR3 Adapter Cable
1621000125 DMX IN XLR5-IP Adapter Cable
1621000126 DMX Out IP-XLR5 Adapter Cable
1621000050 Terminator
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

Specifications and documentation subject to change without notice
