ACL Par 200

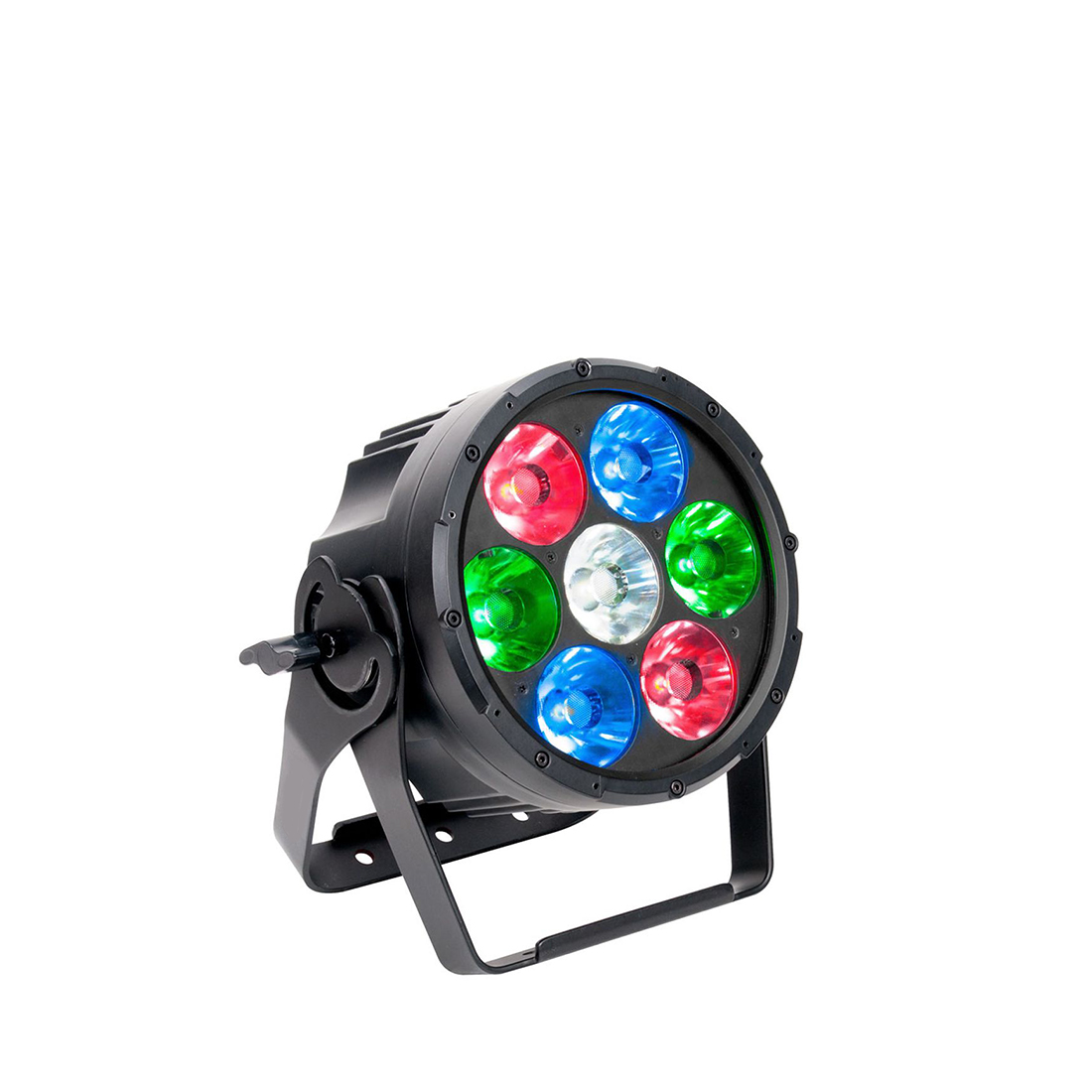

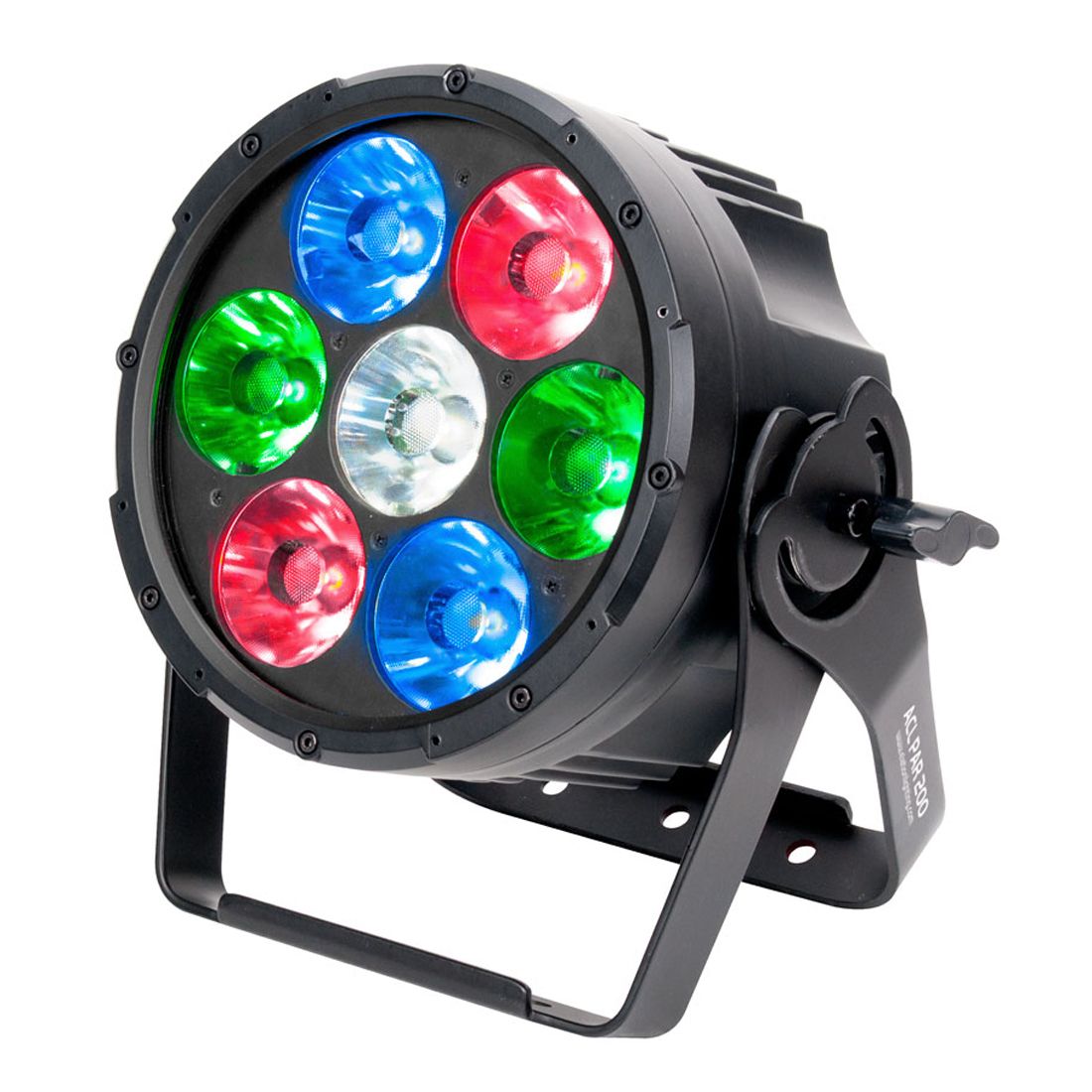

The ACL PAR 200™ is a versatile par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe effects, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out, and locking power in/out connections, flicker free operation for TV and Film, 4 touch control buttons, LCD menu display, 110W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Versatile 11° Beam Par Luminaire
Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
No Fan – Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*


PHOTOMETRIC DATA

36,935 LUX 3,431 FC @ 6.6’ (2m)


EFFECTS

Individual Pixel Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW

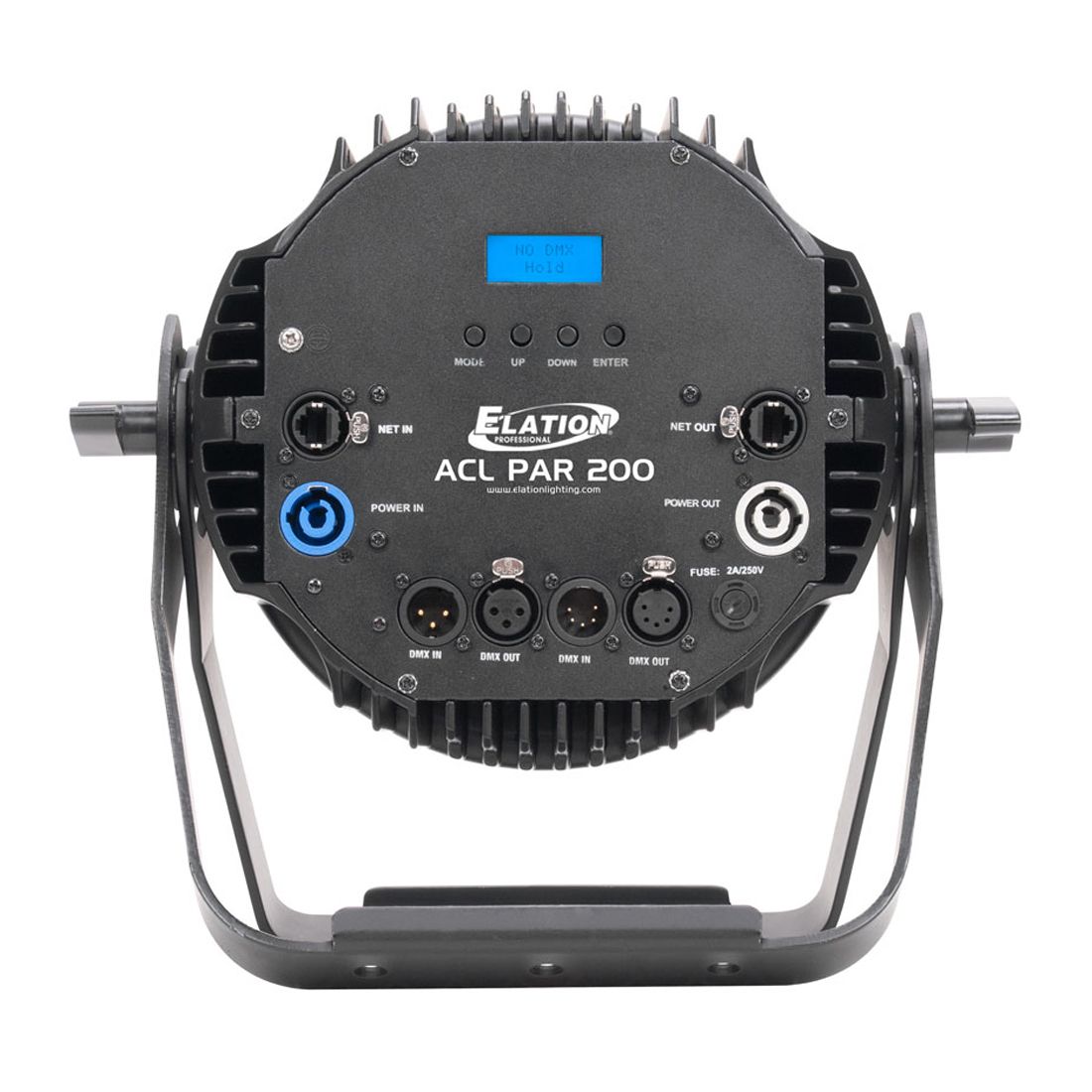

CONTROL / CONNECTIONS

(11) DMX Channel Modes: (4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible
LCD Menu Display
Locking 3/5pin XLR DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power In/Out


SIZE / WEIGHT

Length: 12.3” (313mm)
Width: 5.6” (142mm)
Vertical Height: 11.8” (300mm)
Weight: 13.0 lbs. (5.9 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
