ACL Curtain

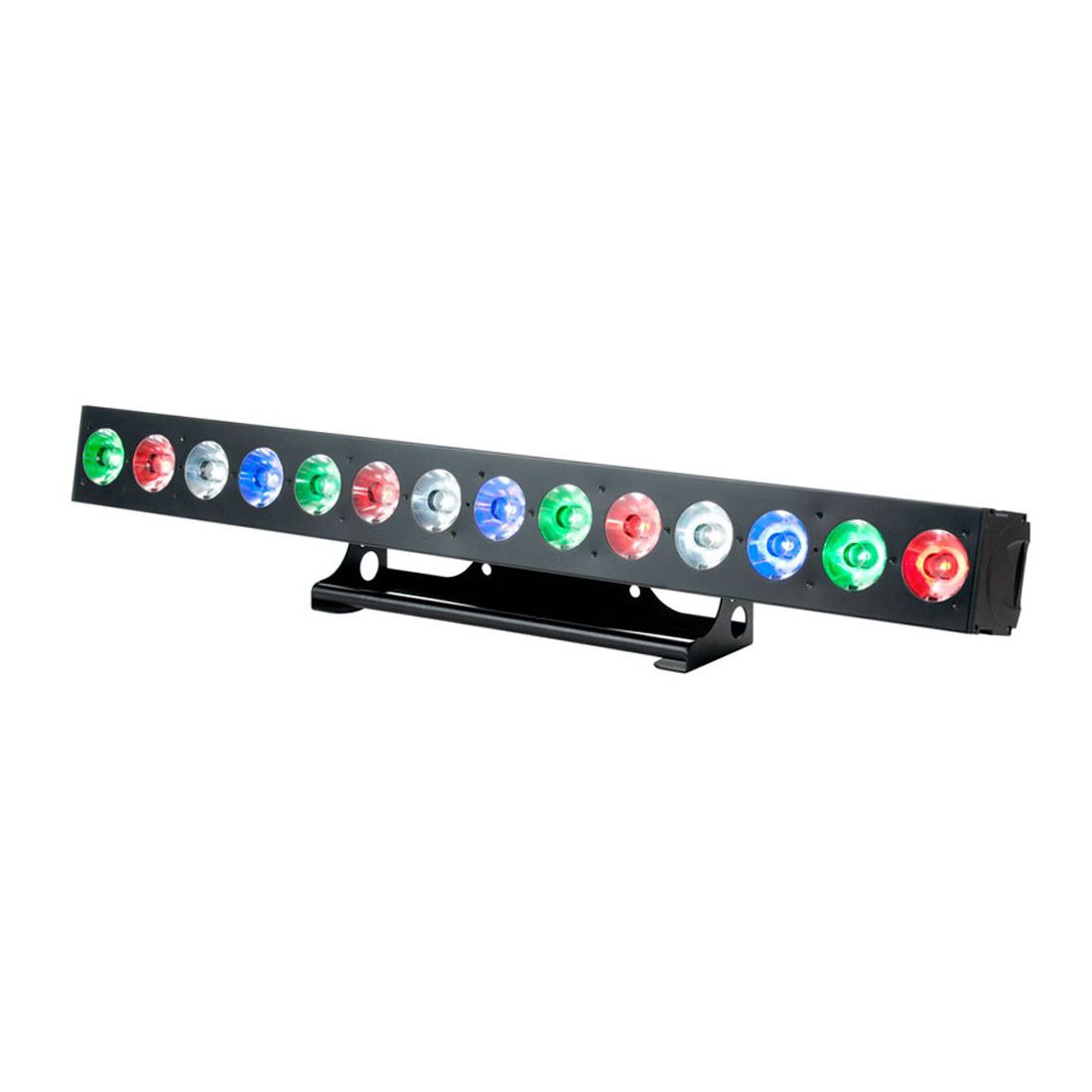

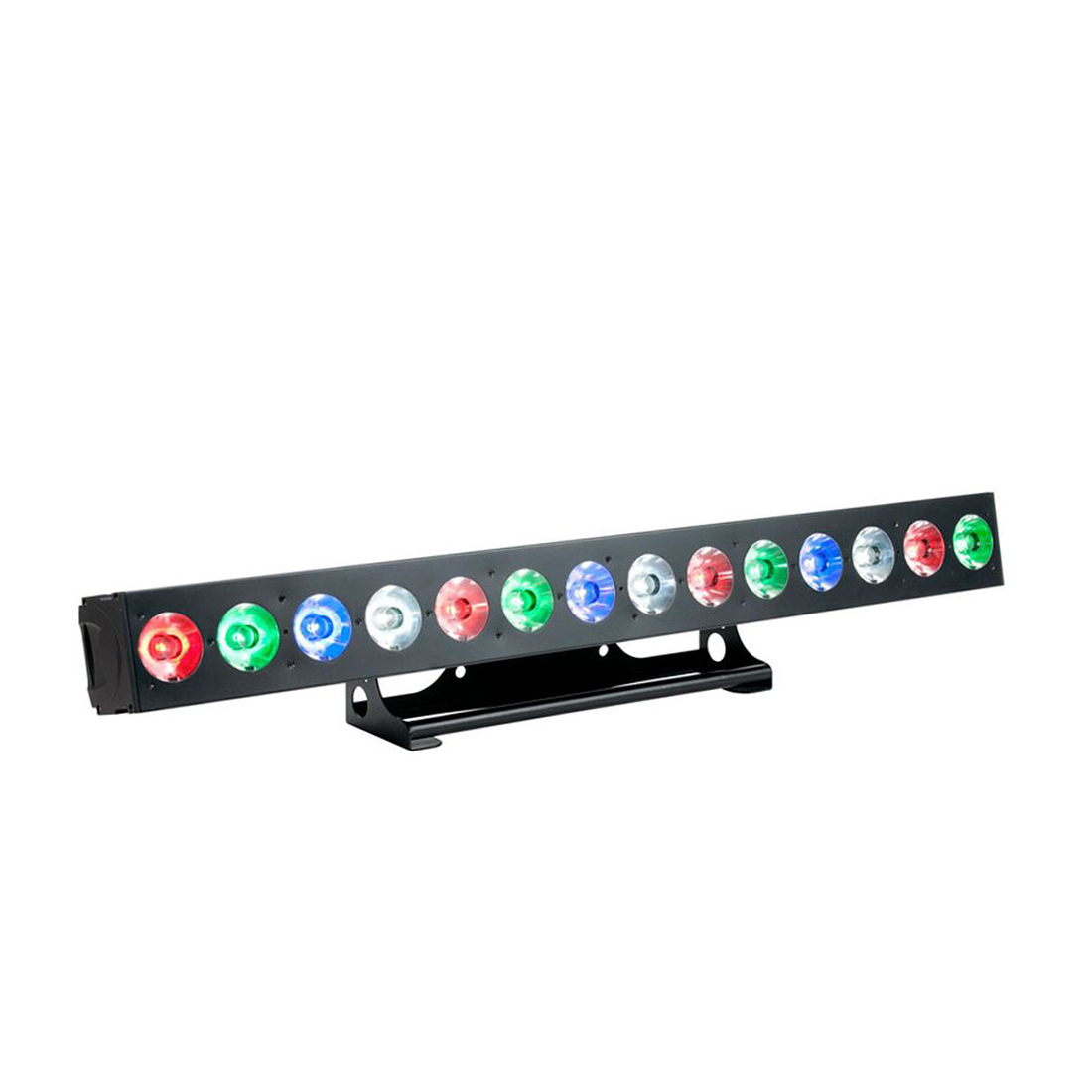

The new ACL CURTAIN™ is a versatile batten luminaire featuring (14) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 53° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, Locking 3/5pin XLR DMX In/Out, Power In/Out, and RJ45 Ethernet In/Out connections, (4) button control full color 180° reversible menu display, 240W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and included glare shield and frost filter.

Technical Data

FEATURES

Versatile 53° Beam Batten Luminaire
New Advanced Collimator Lens
(14) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM

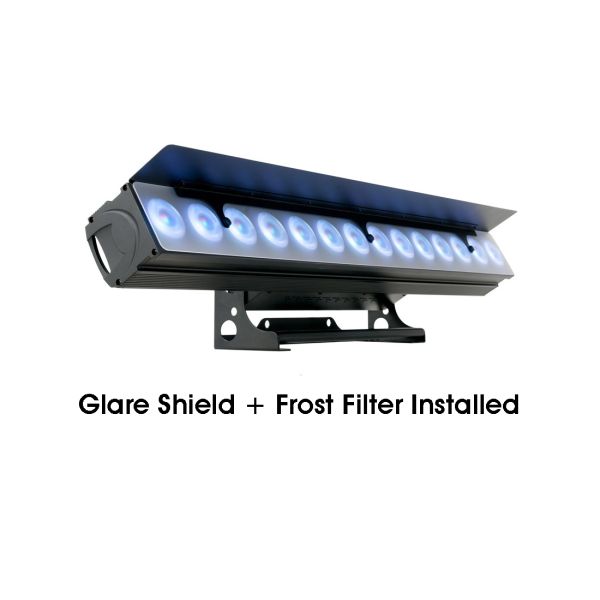

Glare Shield and Frost Filter Included


SOURCE

(14) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

46,740 LUX 4,342 FC @3.3’ (1m)
20,890 LUX 1,941 FC @6.6’ (2m)
13,520 LUX 1,256 FC @9.8’ (3m)
9,717 LUX 903 FC @13.1’ (4m)
7,664 LUX 712 FC @16.4’ (5m)


EFFECTS

Individual Pixel Control
Strobe and Selectable Dimming Curves


COLOR

RGBW


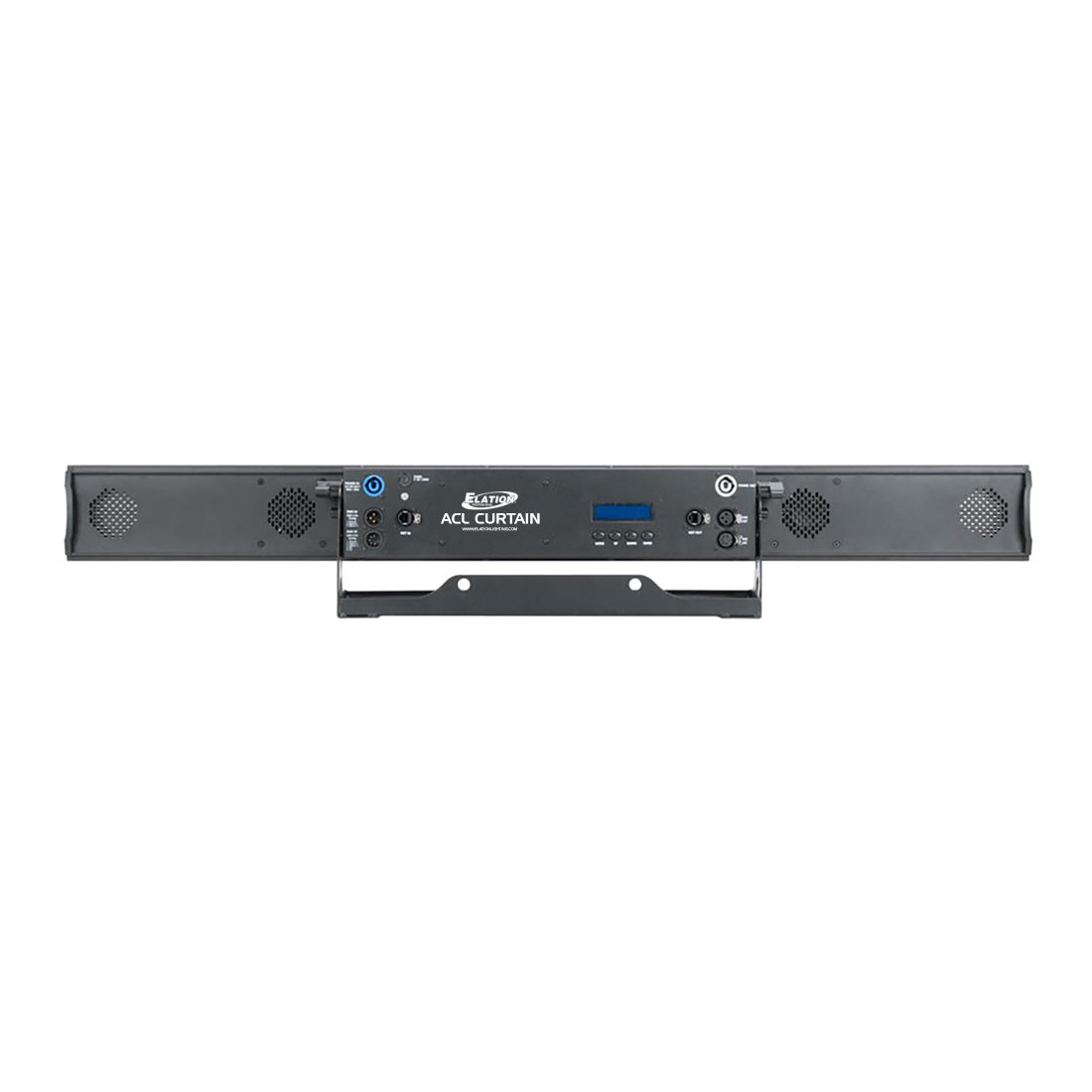

CONTROL / CONNECTIONS

(11) DMX Channel Modes:
(1CH:04 / 2CH:04 / 6 /1CH:08 / 2CH:08 / 10 / 12 / 56 / 58 / 60 / 63)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 3/5pin XLR DMX In/Out
Locking RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power In/Out


SIZE / WEIGHT

Length: 43.3” (1100mm)
Width: 9.5” (241.2mm) (Glare Shield Installed)
Vertical Height: 6.8” (172.5mm)
Weight: 24.0 lbs. (10.9 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
240W Max Power Consumption
Power Linking: 4pcs Max @110V / 9pcs Max @240V
5F to 113°F (-15°C to 45°C)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
