ACL Bar

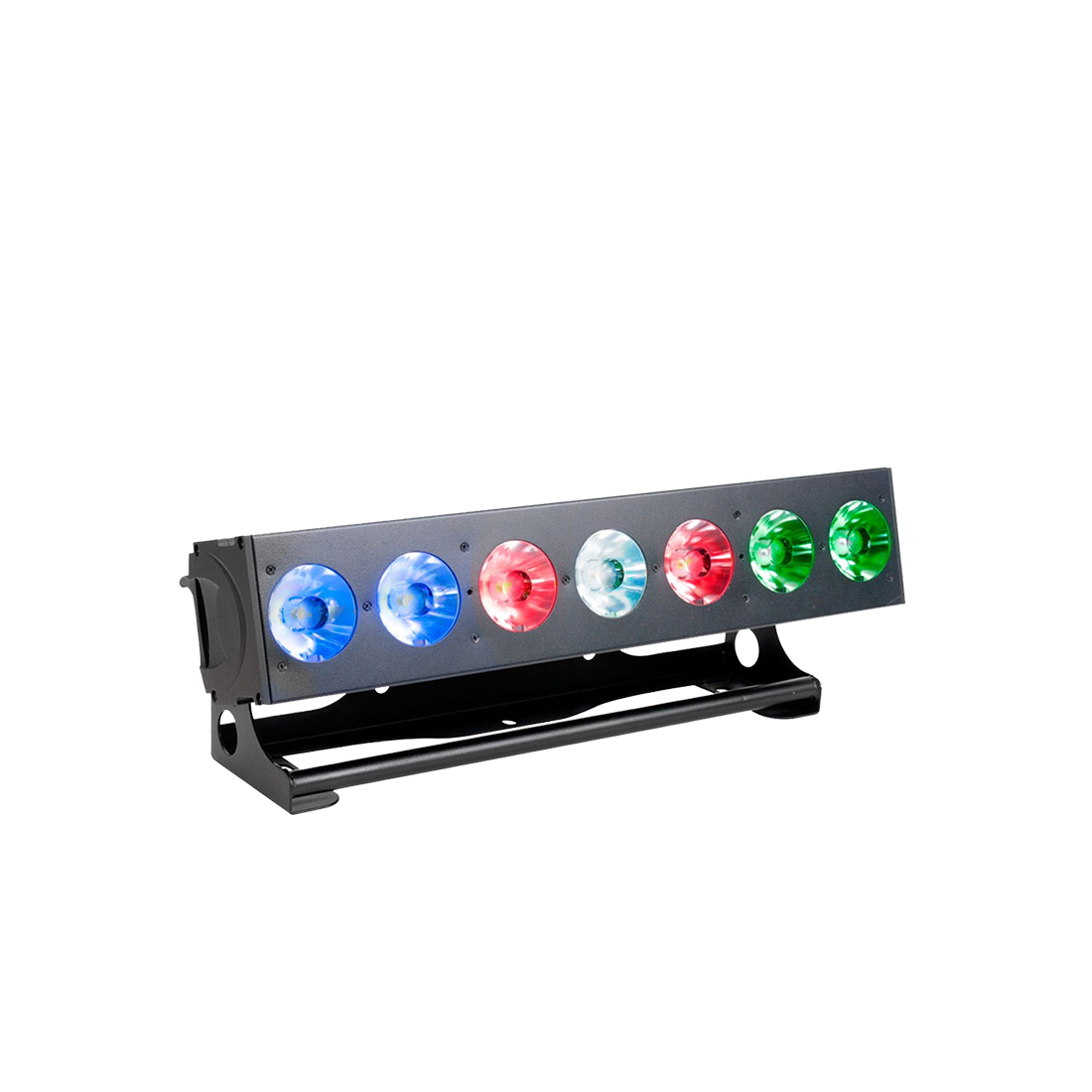

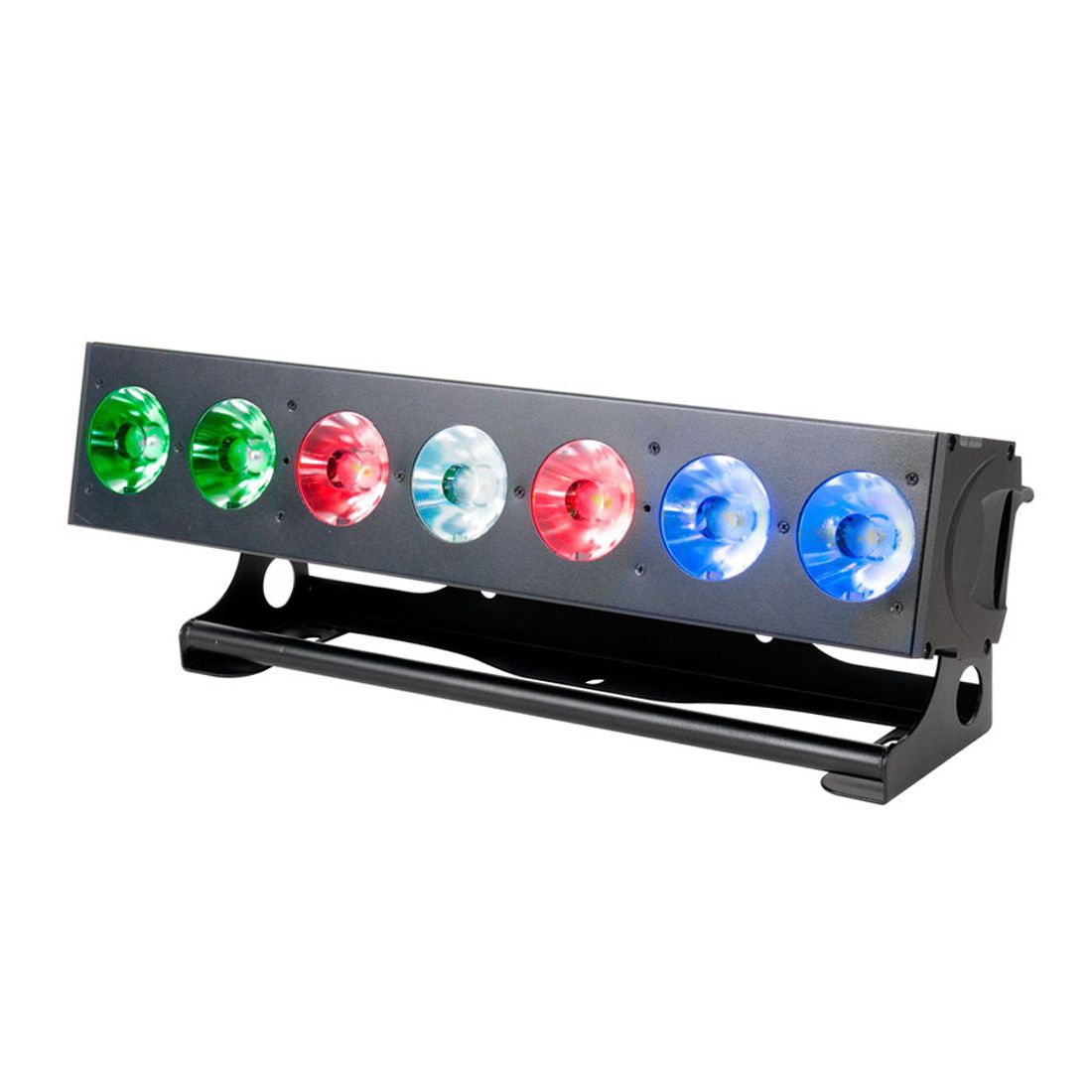

The new ACL BAR™ is a versatile bar luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support, 3/5pin XLR, power cable, and RJ45 ethernet in/out connections, (4) button control full color 180° reversible menu display, 135W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and included glare shield and frost filter.

Technical Data

FEATURES

Versatile 31° Beam Bar Luminaire
New Advanced Collimator Lens
(7) Pixel Controled RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM

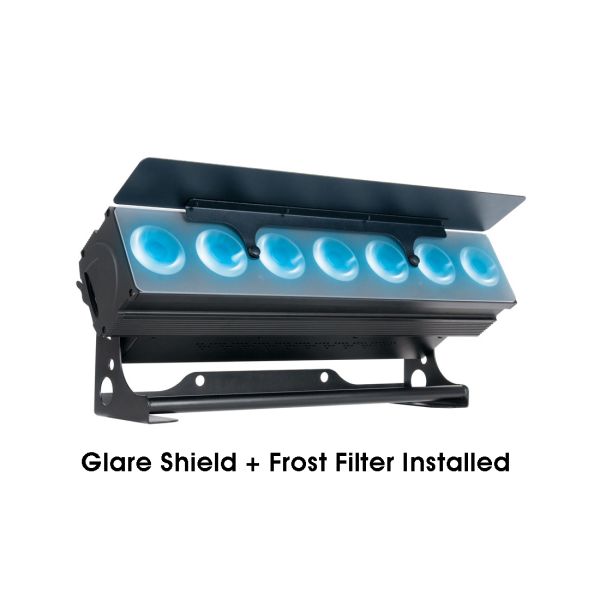

Glare Shield and Frost Filter Included


SOURCE

(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*


PHOTOMETRIC DATA

43,380 LUX 4,030 FC @3.3’ (1m)
19,330 LUX 1,796 FC @6.6’ (2m)
12,180 LUX 1,132 FC @9.8’ (3m)
8,575 LUX 797 FC @13.1’ (4m)
6,247 LUX 580 FC @16.4’ (5m)


EFFECTS

Individual Pixel Control
Strobe and Selectable Dimming Curves


COLOR

RGBW

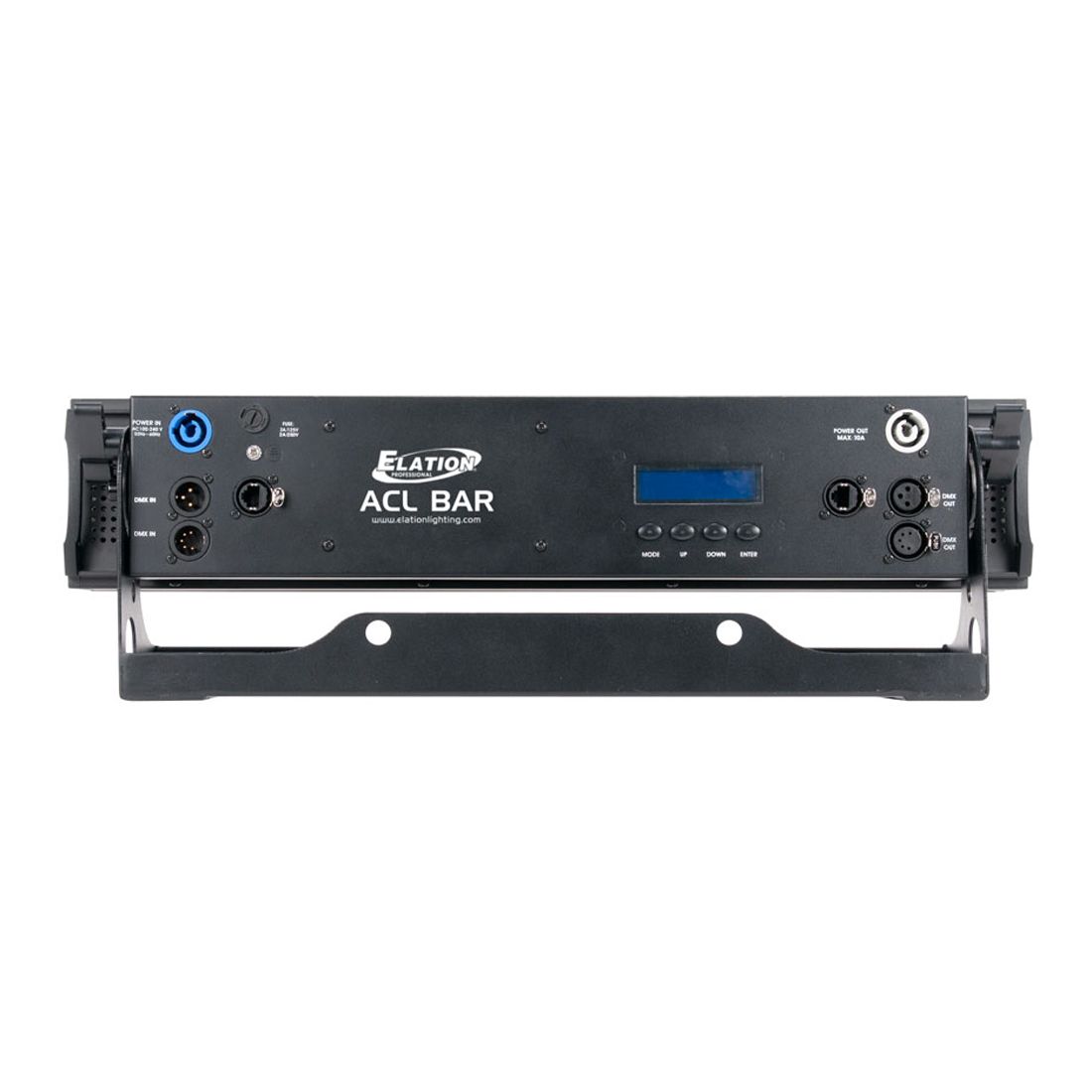

CONTROL / CONNECTIONS

(10) DMX Channel Modes:
(1CH:04 / 2CH:04 / 6 / 8 / 10 / 12 / 27 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
3/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking power In/Out
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 21.6” (550mm)
Width: 9.5” (241.2mm) (Glare Shield Installed)
Vertical Height: 6.8” (172.5mm)
Weight: 15.0 lbs. (6.8 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Specifications and documentation subject to change without notice
