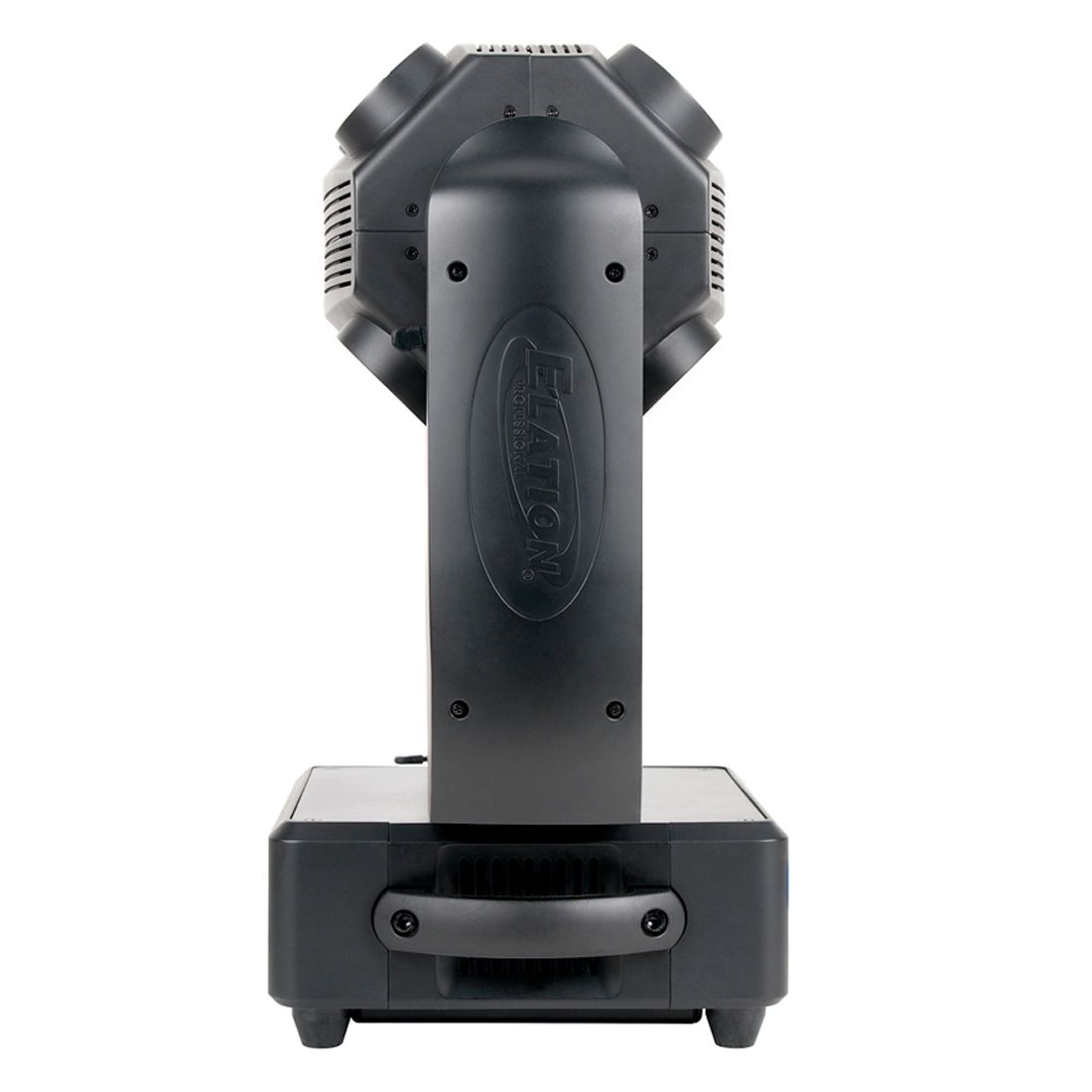

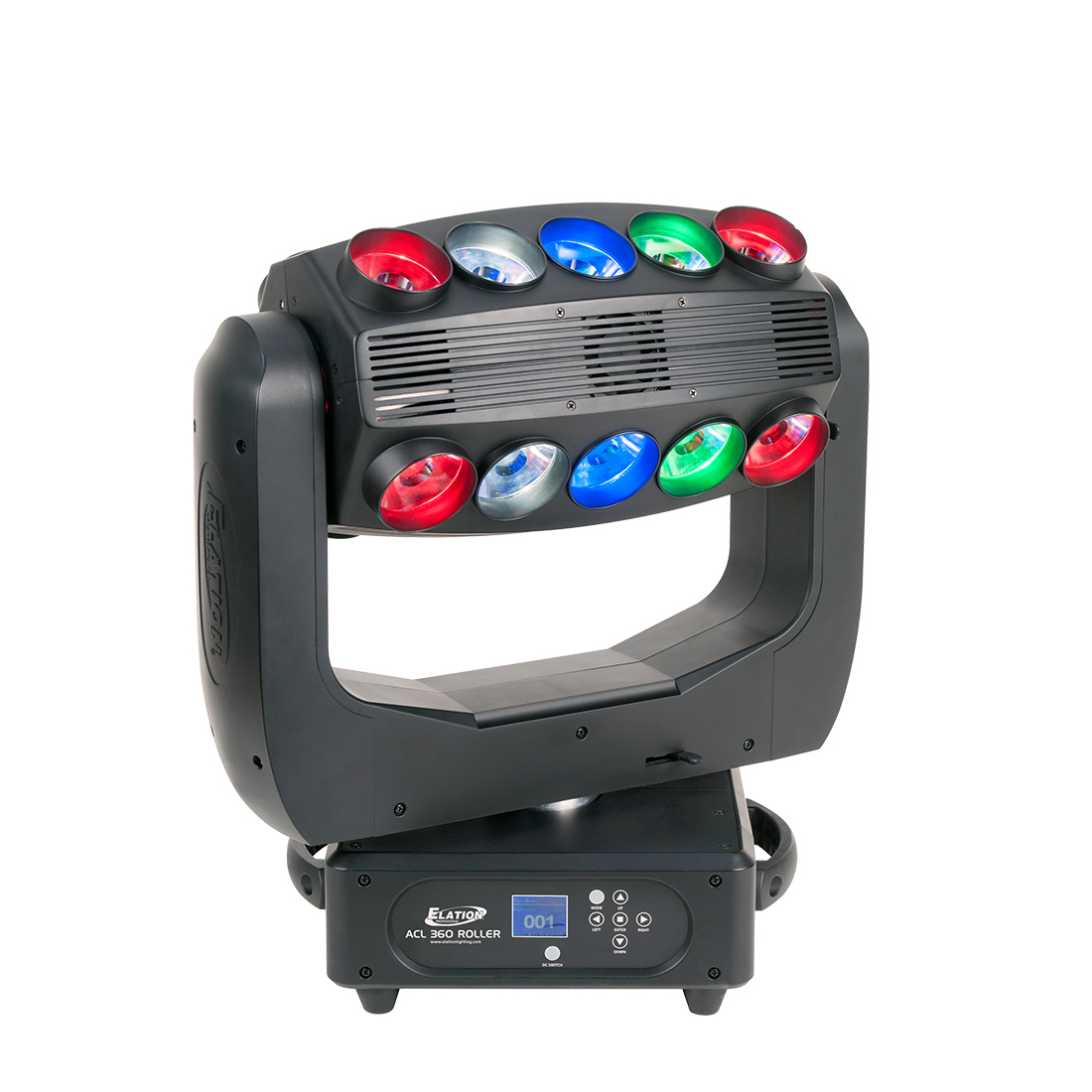

ACL 360 ROLLER

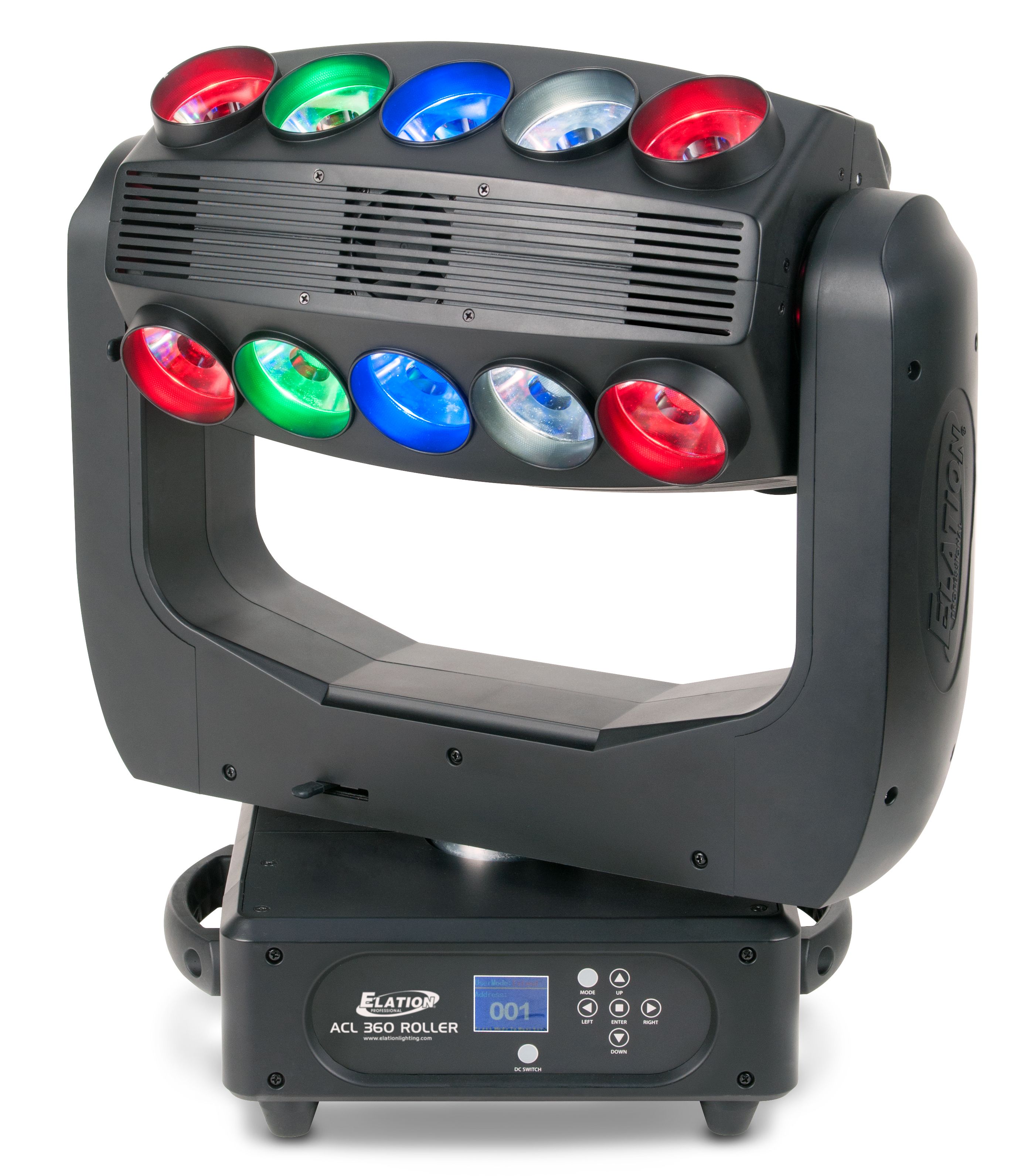

The ACL 360 ROLLER™ is a unique moving head effect luminaire featuring a total of (20) individual 15W RGBW 4-in-1 LEDs positioned equally on four individual arrays attached together. It features the advanced collimator optic lens that produces a 4° laser-like homogenized color changing beam from each LED, fast and precise 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out, and locking power in/out connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 280W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Unique Moving Head Effect Luminaire
Advanced Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Laser-Like Homogenized 4° Color Changing Beams
(20) Pixel Control RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

(20) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

37,630 LUX 3,496 FC @ 3.3’ (1m)


EFFECTS

Individual Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW


CONTROL / CONNECTIONS

(3) DMX Channel Modes (17 / 19 / 95)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

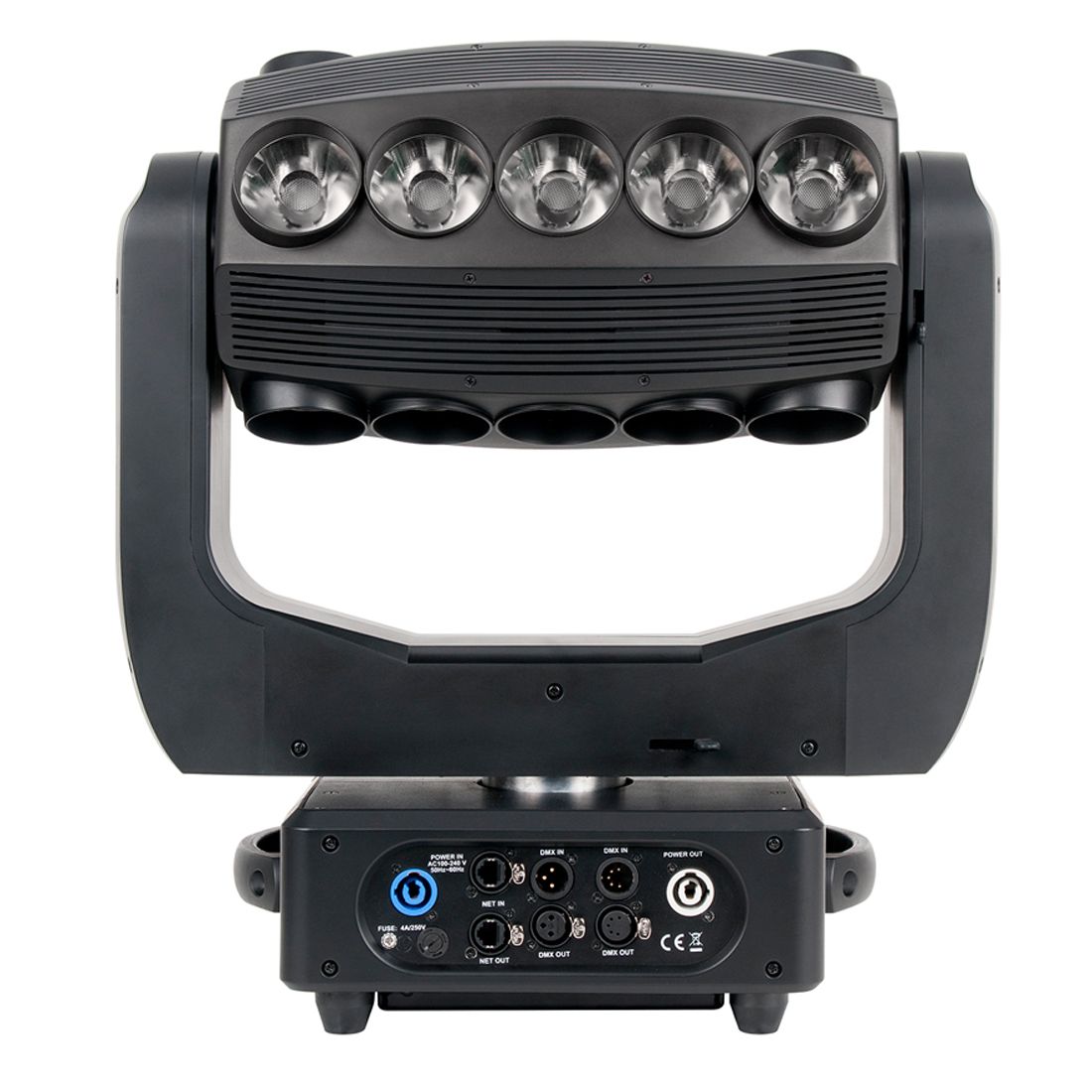

Locking 3/5pin XLR DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power In/Out


SIZE / WEIGHT

Length: 18.9” (480.7mm)
Width: 10.2” (260mm)
Vertical Height: 21.3” (541mm)
Weight: 44.0 lbs. (20 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
280W Max Power Consumption
5F to 113°F (-15°C to 45°C)


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome

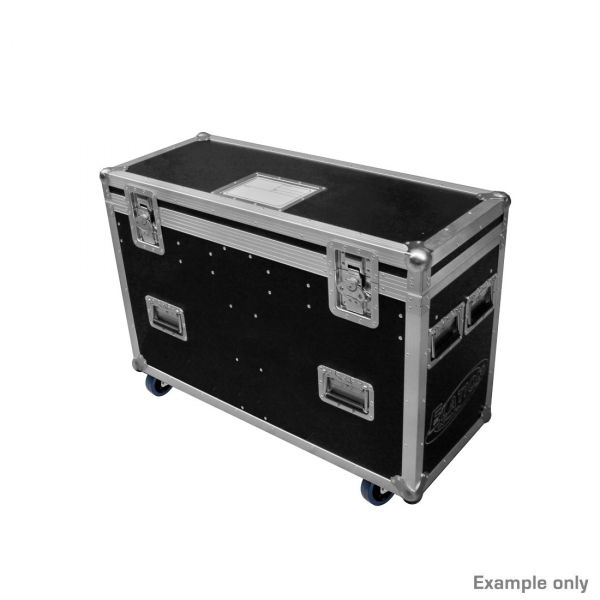

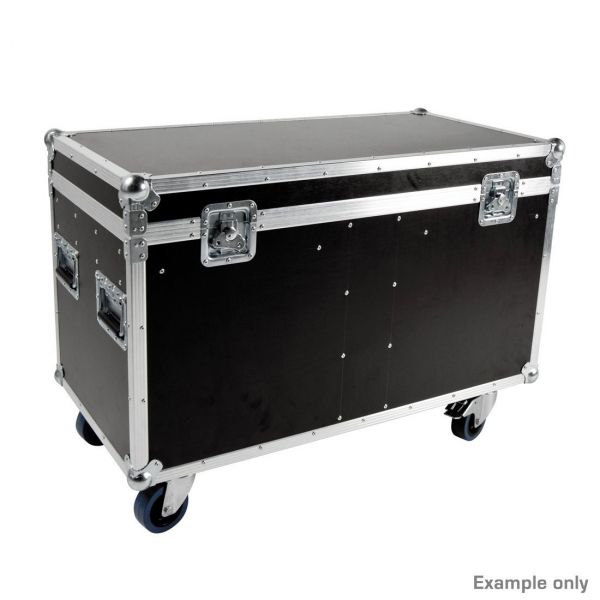

1521000263 Touring Case 2x ACL 360 Roller
1521000264 PRO Case 2x ACL 360 Roller
1521000265 Touring Case 4x ACL 360 Roller
1521000266 PRO Case 4x ACL 360 Roller

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
