Code 1310000076

4K Server

The four 4K outputs combined with the powerful ArKaos engine from MediaMaster PRO will produce smooth visuals that can be easily triggered using a few DMX channels on your lighting desk or notes on a MIDI controller. The new improved version houses a fast SSD drive as standard, has a fast recovery system by Acronis and is shock resistant up to 2G. Get access to a vast library of high quality digital media from the world’s best visual content providers.

Technical Data

FEATURES

128GB SSD System Drive
256GB Separate SSD Data Drive
MediaMaster PRO Software
Theatre mode & Fixture mode
CuePlayer
LED Mapper
KlingNET Mapper
Video Mapper
Soft Edge & Geometrical Correction
Acronis Backup System
12 Full HD Layers Simultaneously
12 HD Layers Simultaneously
Art-Net and MA-Net Compatible
MSEX Compatible


CONTROL TOUCH DISPLAY

Start MediaMaster
Monitor GPU, CPU and Temperature
Turn LED Strip On/Off
Monitor Outputs
EDID Management
Set Fan Speed
Monitor/Configure Network Connections

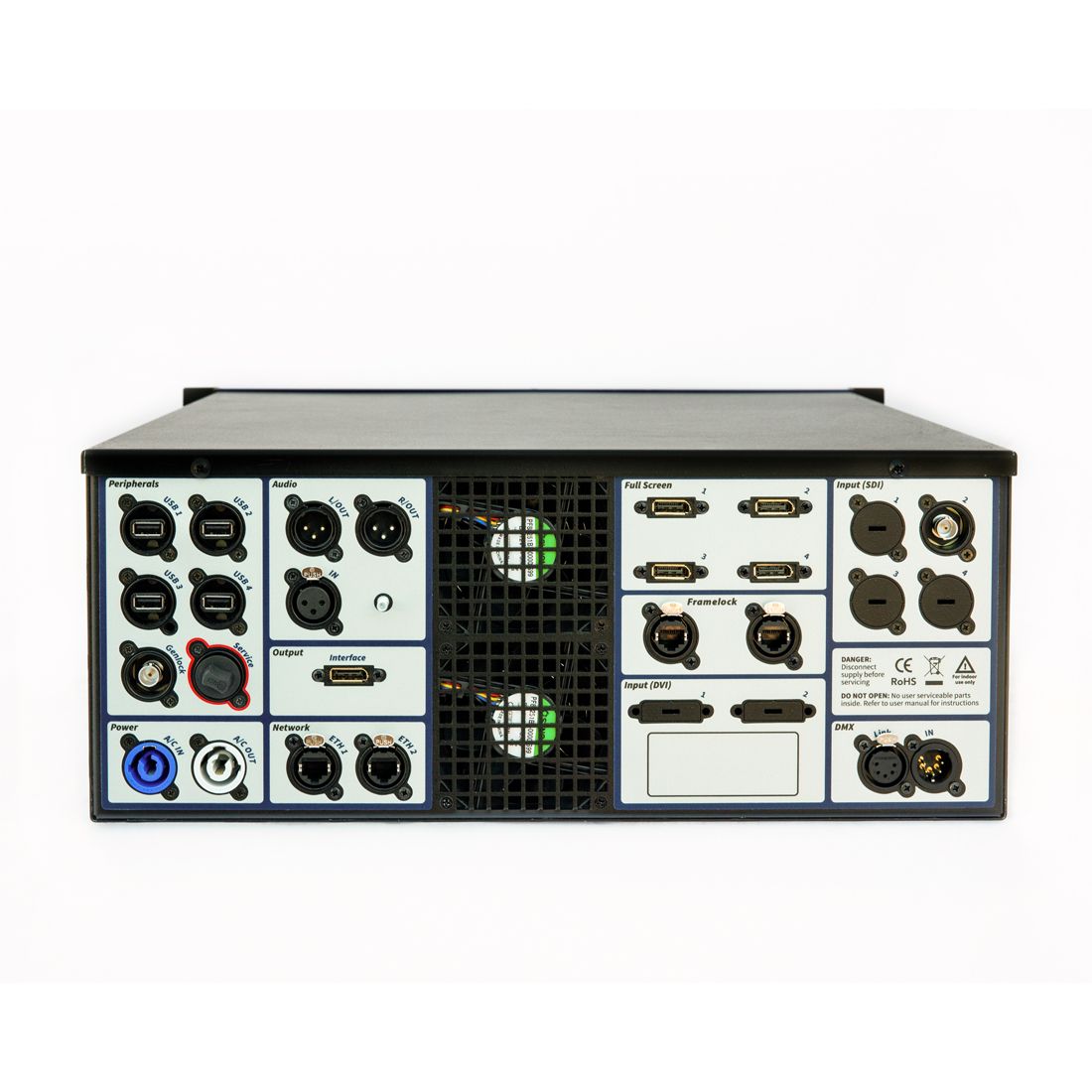

CONTROL/CONNECTIONS

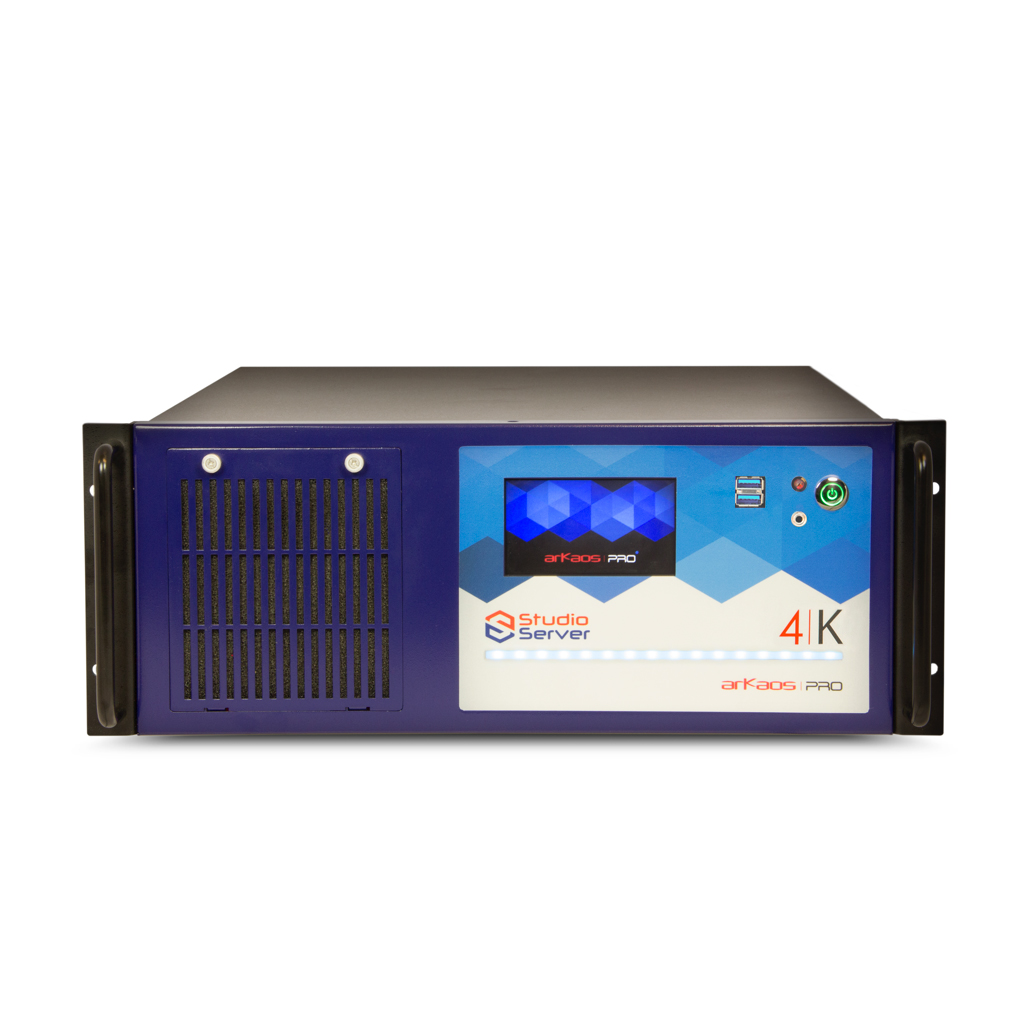

Control Touch Display (Front Panel)
LED Strip (Front Panel)
1 DP Interface Output
4 4K DP Outputs
EDID Management
1 HD-SDI Standard Input
Up to 4 HD-SDI or 2 DVI Inputs (upgradeable)
Firewire 400/800/e-sata
5pin DMX In/Out
2 USB 3.0 + 4 USB 2.0
2 RJ45 Network Connections
Balanced Audio XLR In/Out connections
powerCON Power In/Out connections


Not available in Germany and Italy.


Specifications and documentation subject to change without notice
