  • 4CAST DMX BRIDGE
Code 1330000014

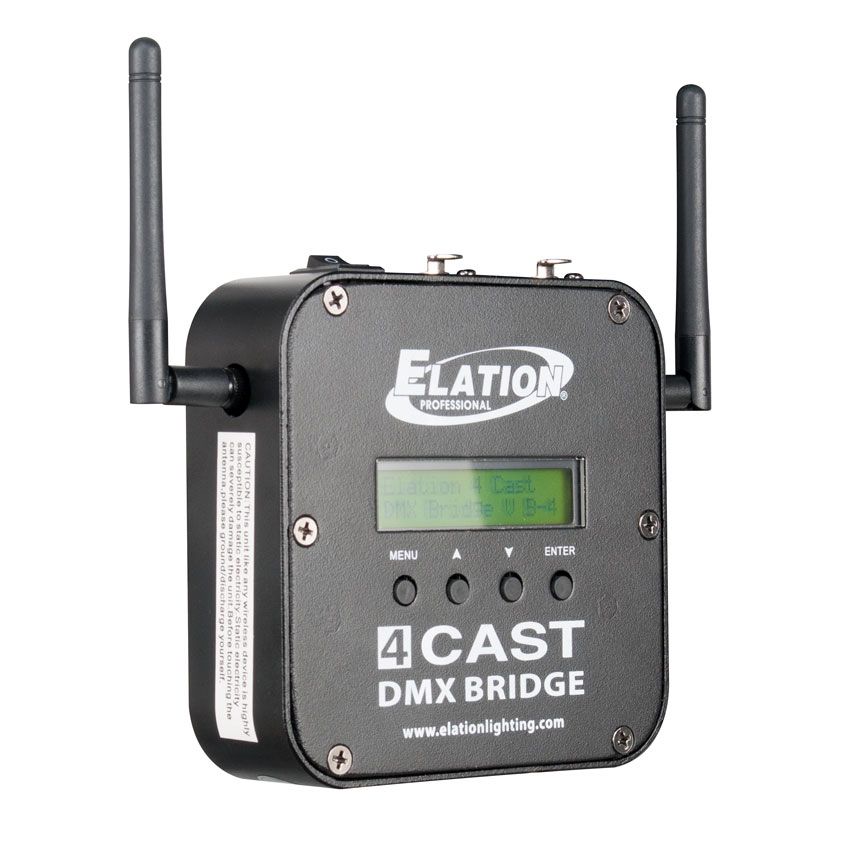

4CAST DMX BRIDGE

4CAST DMX BRIDGE™ is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and E-FLY™ (Elation’s wireless DMX solution) signals to wirelessly control compatible DMX devices, an ideal solution for small production events, nightclubs, bars or any event or venue which requires hidden data cables.

4CAST DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4CAST DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or E-FLY.

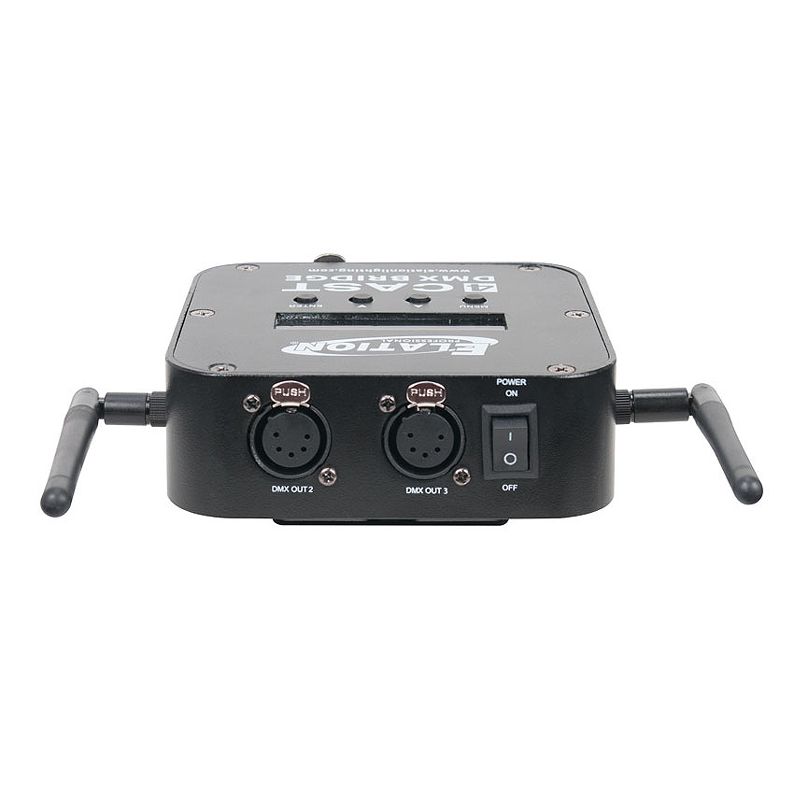

Features include separate WiFi and an E-FLY wireless antenna, (3) 5pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, and a magnetic back for easy attachment to metal surfaces and easy configuration from a PC connected via USB Mini B port using the 4Cast Bridge Setup Windows app or over Wi-Fi using the ELATION 4Cast Config iOS app.

MORE INFORMATION ABOUT THE ECAST APP:

Technical Data

FEATURES

Seamless Wireless Bridge To DMX Compatible Devices
Supports Standard Network Protocols, Art-Net, sACN and E-FLY
Private Standalone 2.4 GHz DSSS WiFi Network
No Existing Network Needed or Connect to External Network
Supports up to 4 DMX Universes
Control Compatible E-FLY Devices up to 2,500 Feet Away
14 E-FLY Wireless Channels

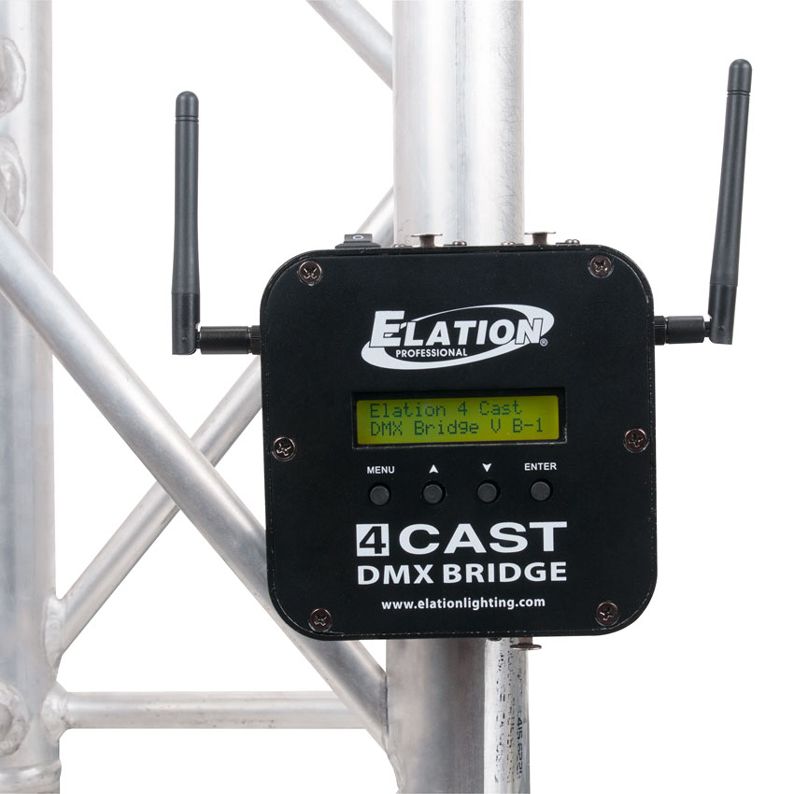

Easy Clamp/Truss Mounting

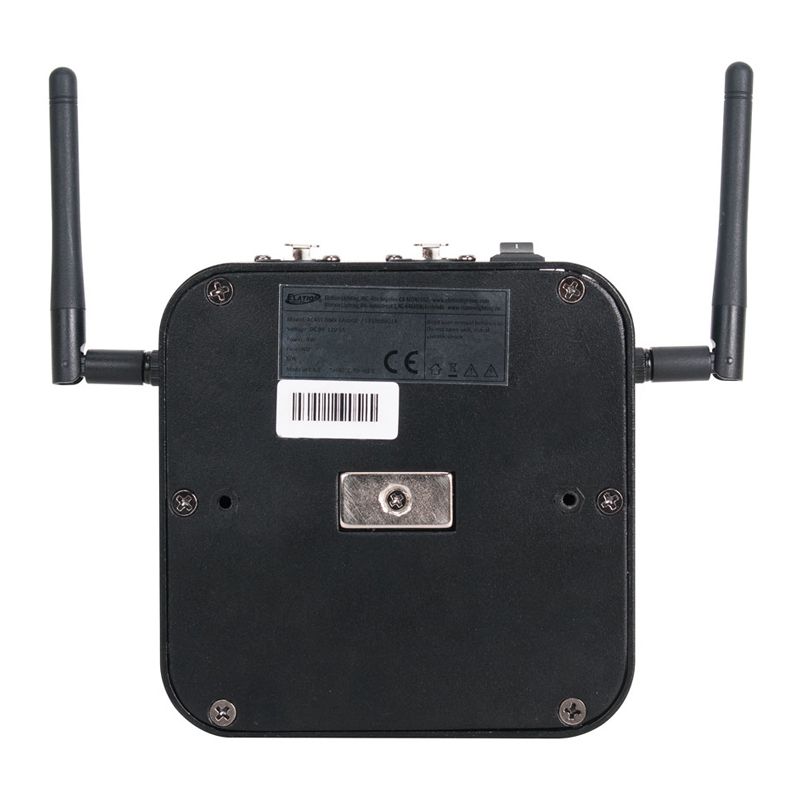

Magnetic Back for Easy Attachment to Metal Surfaces
Easy Configuration Using Windows or iOS Apps

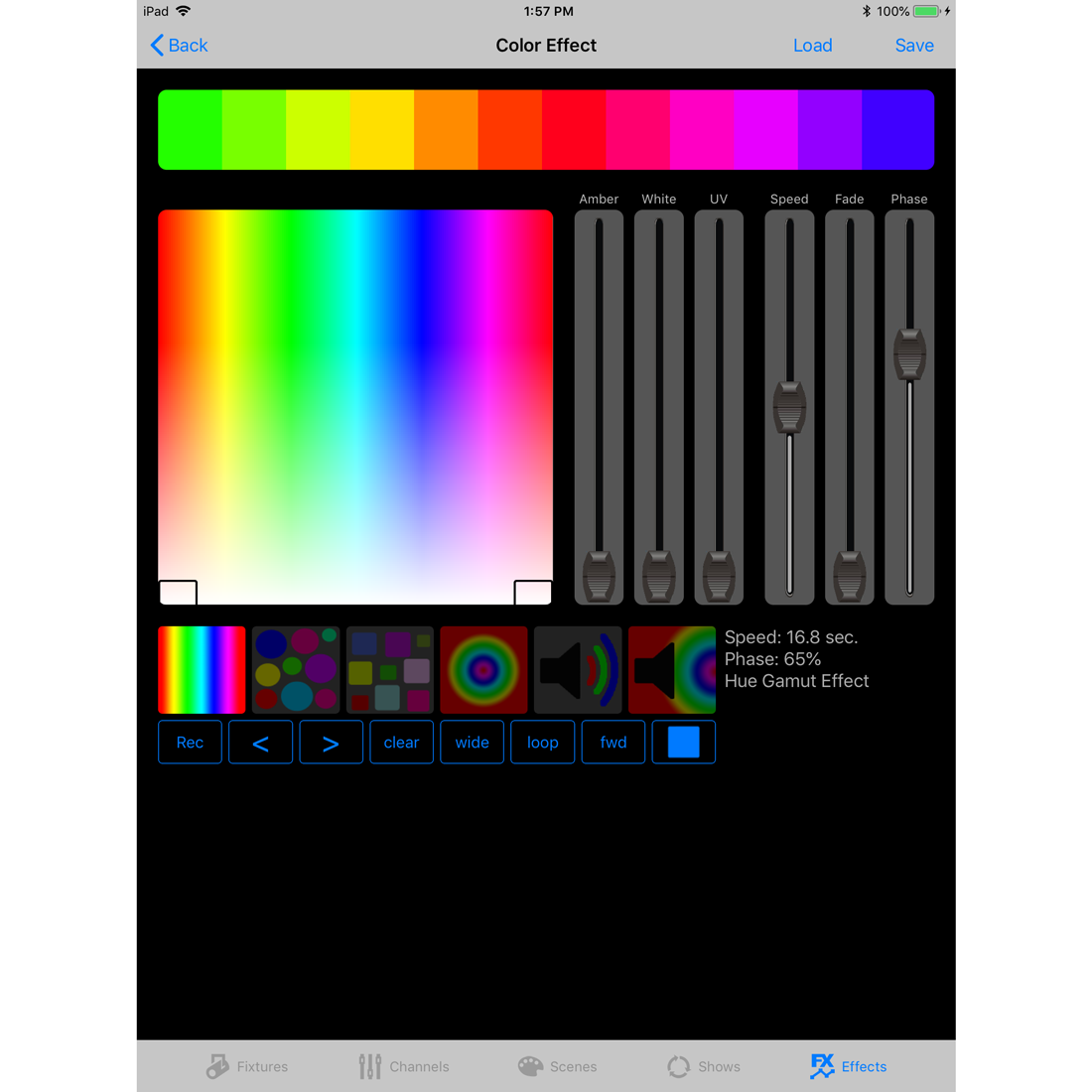

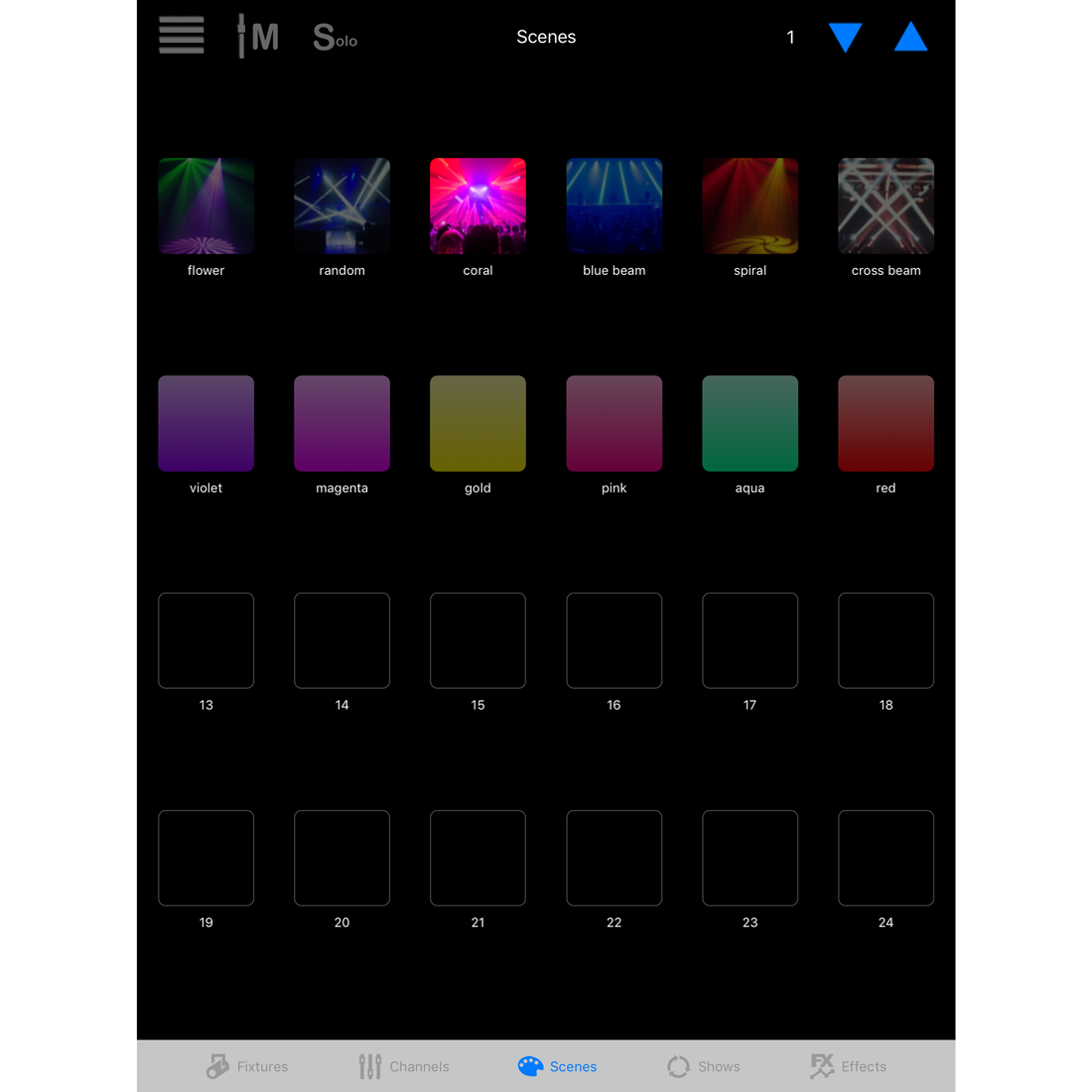

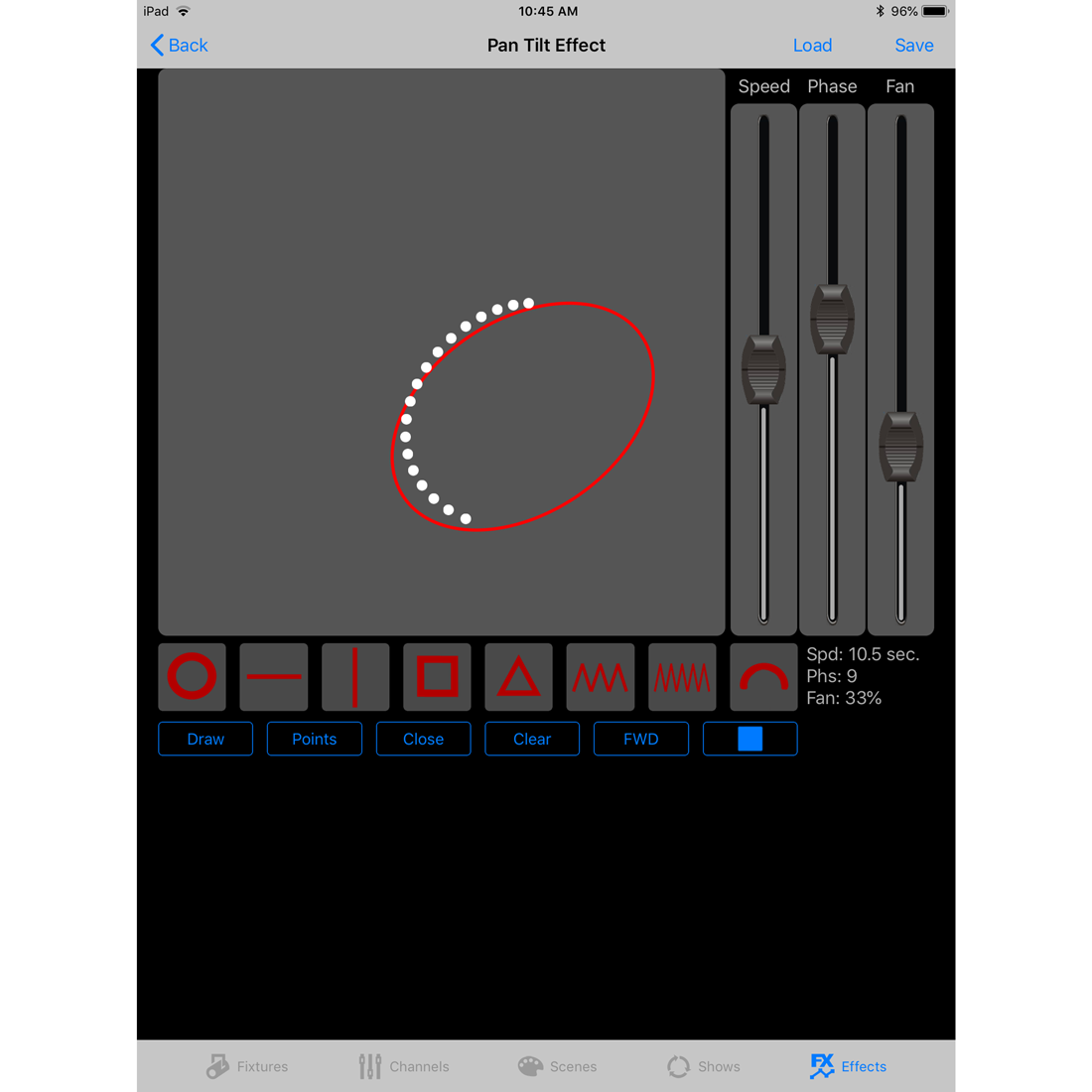

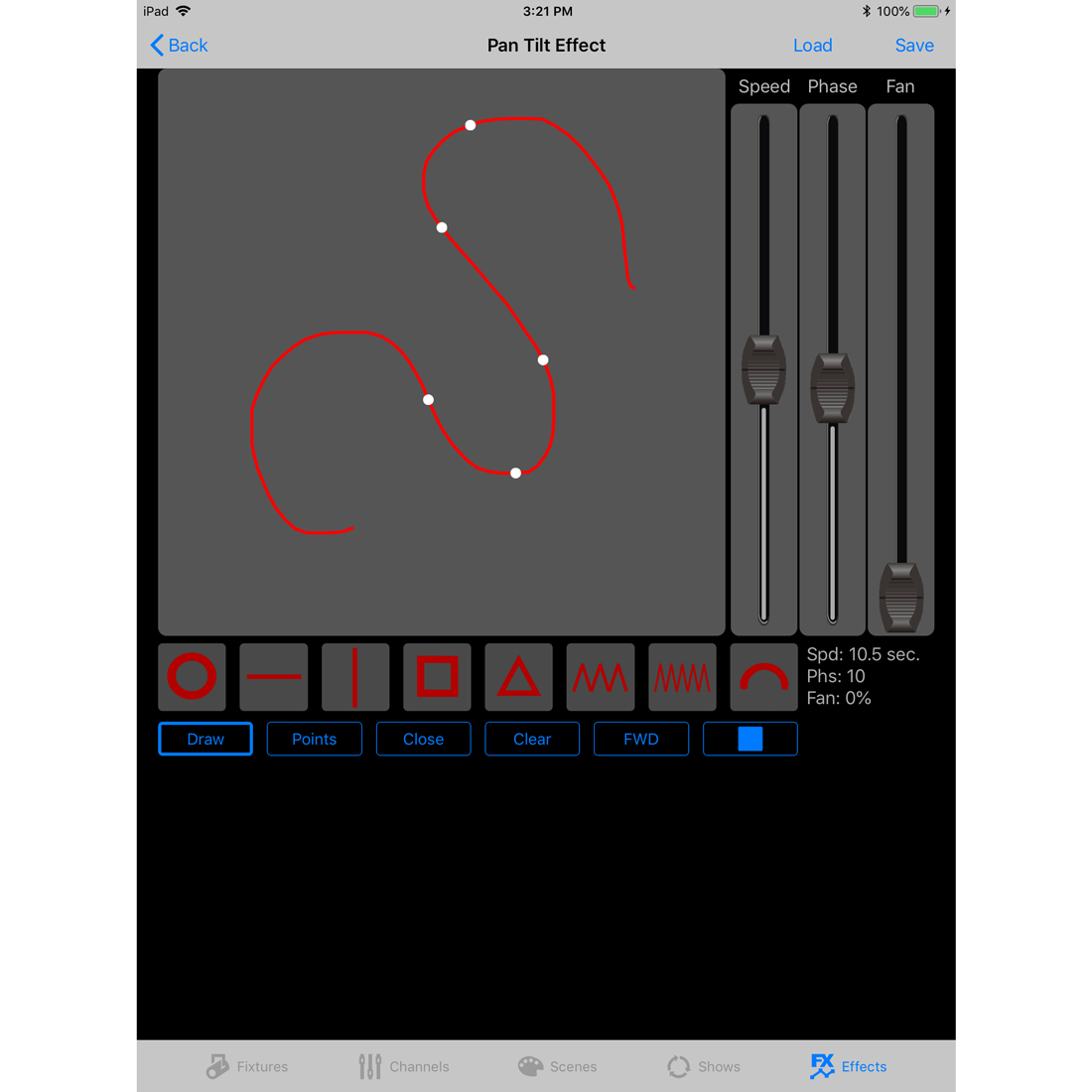

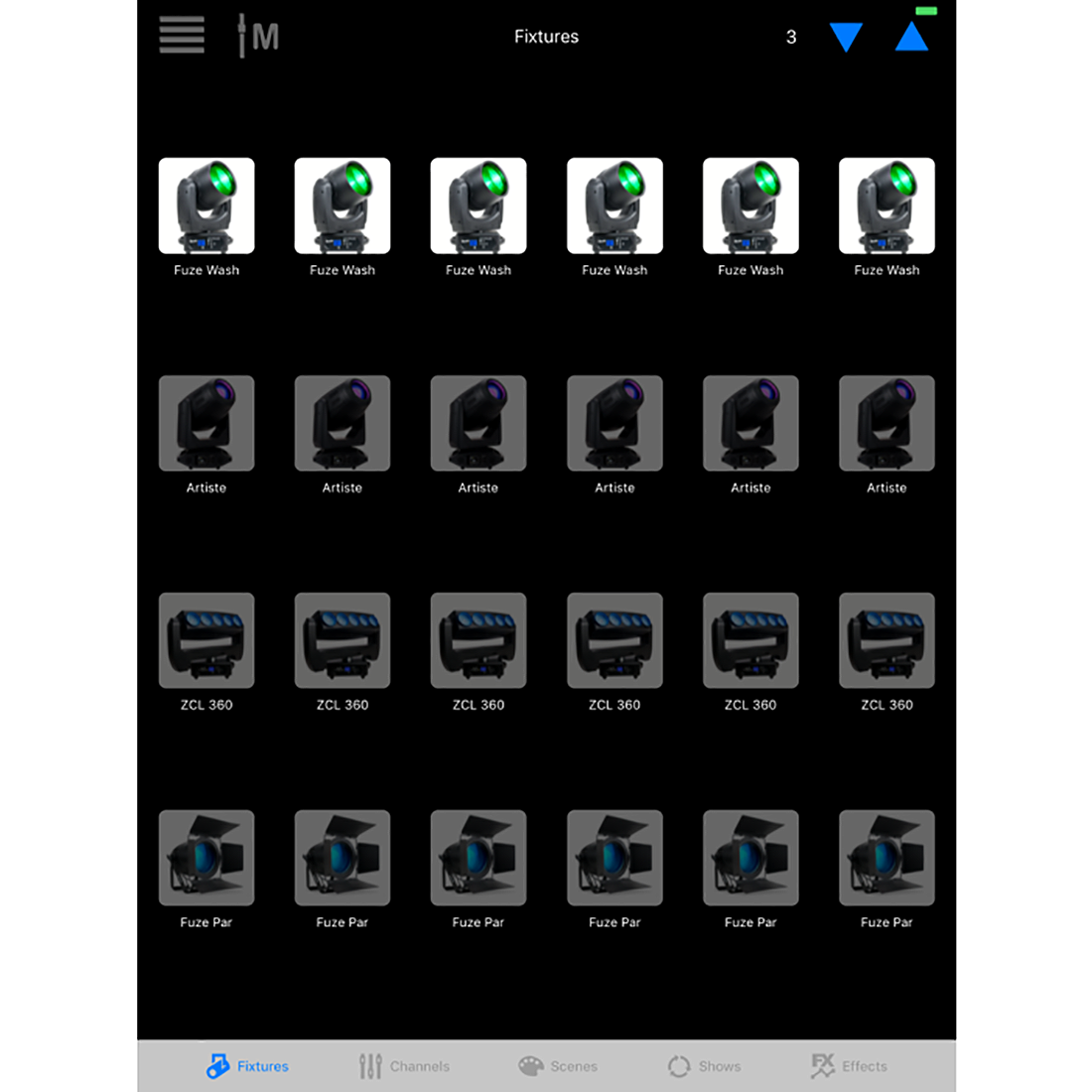

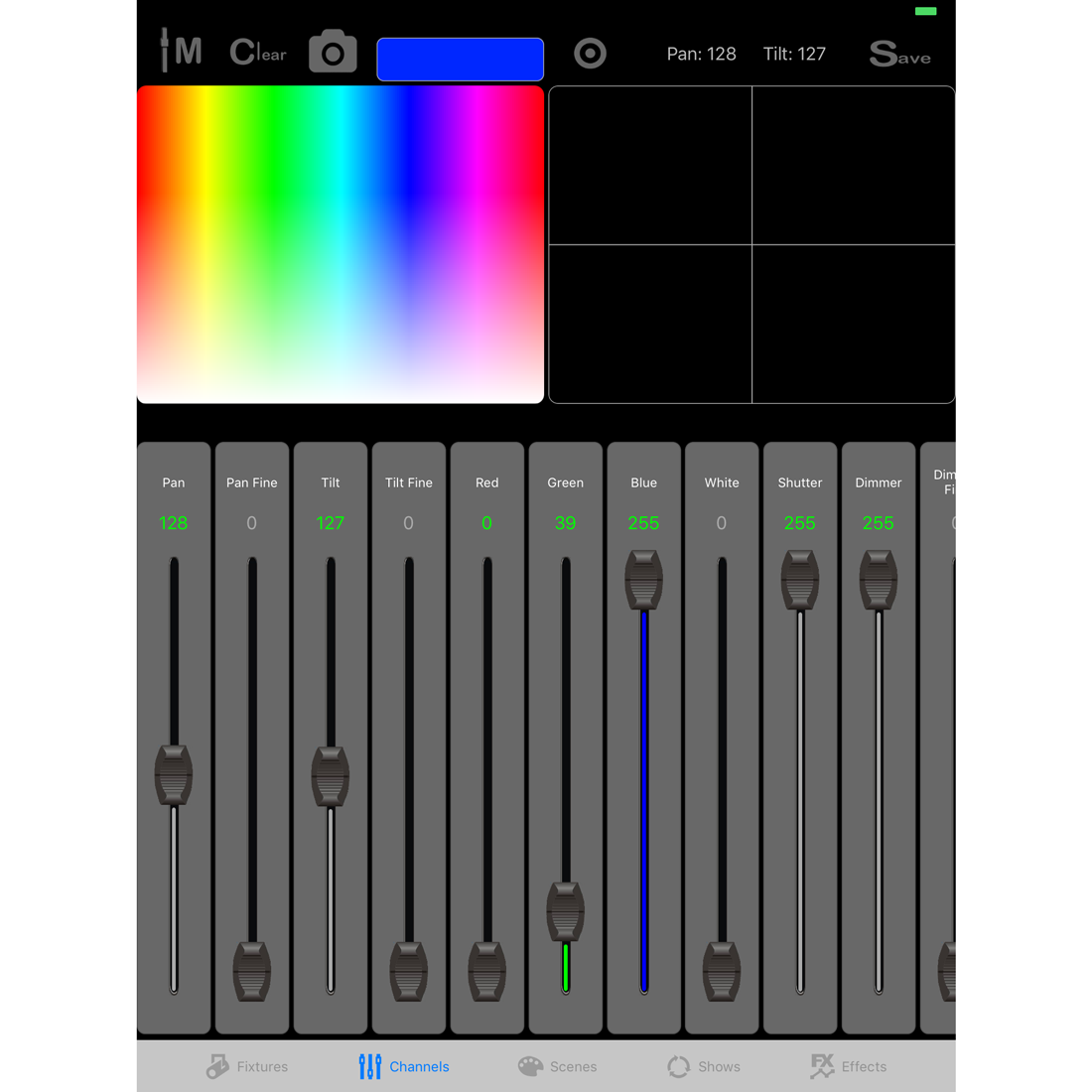

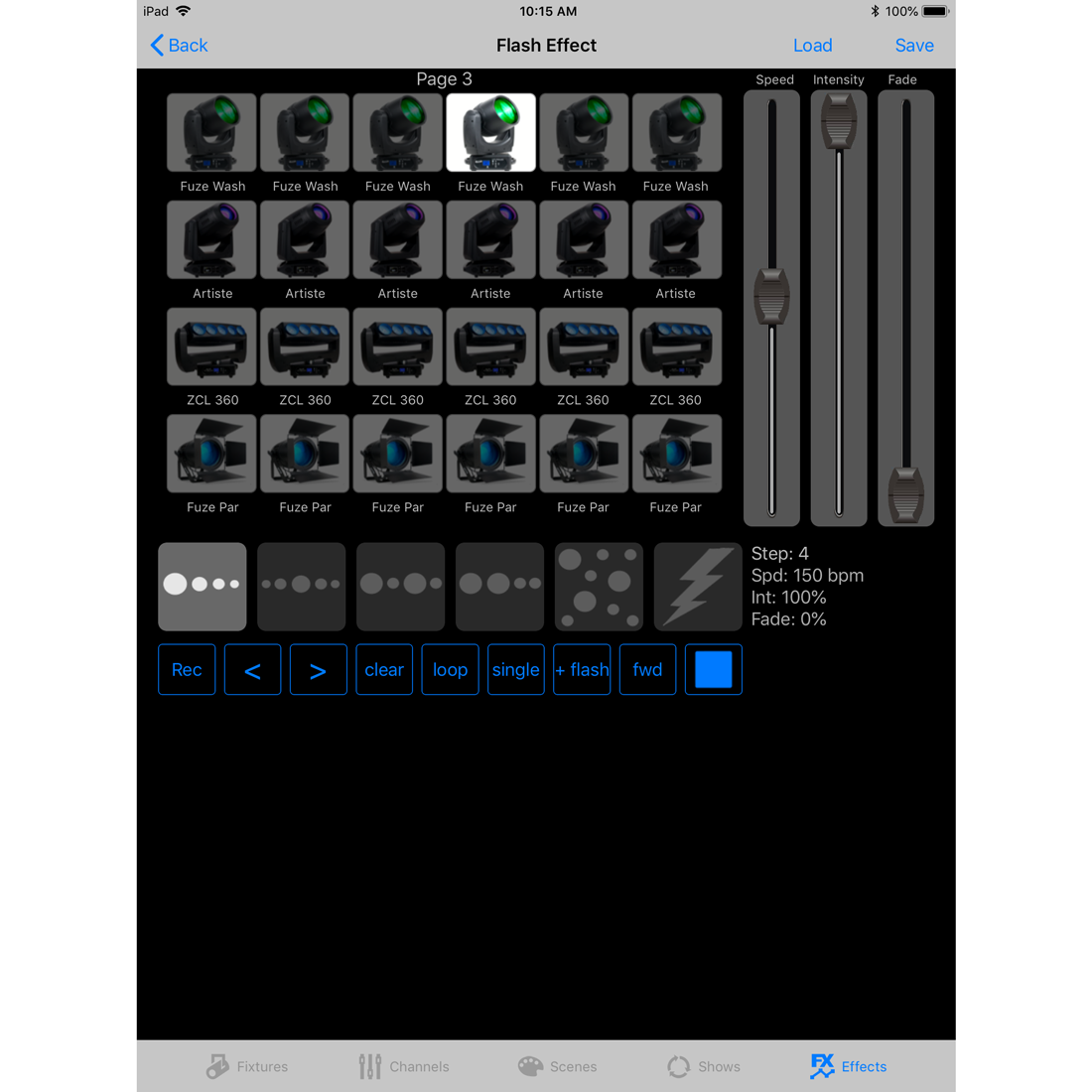

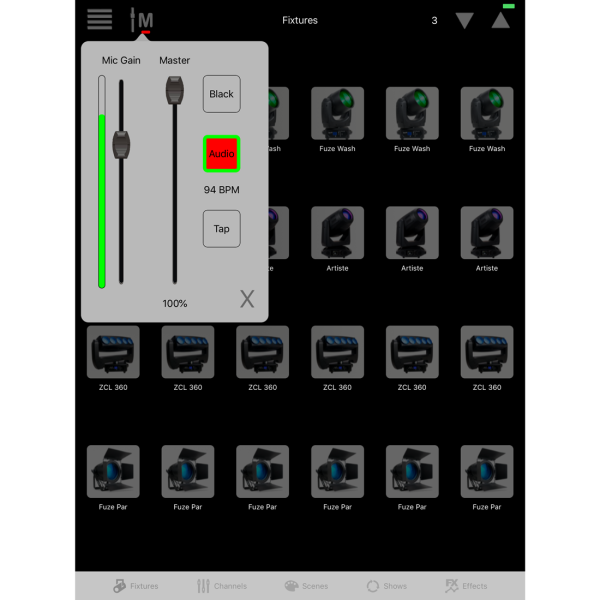

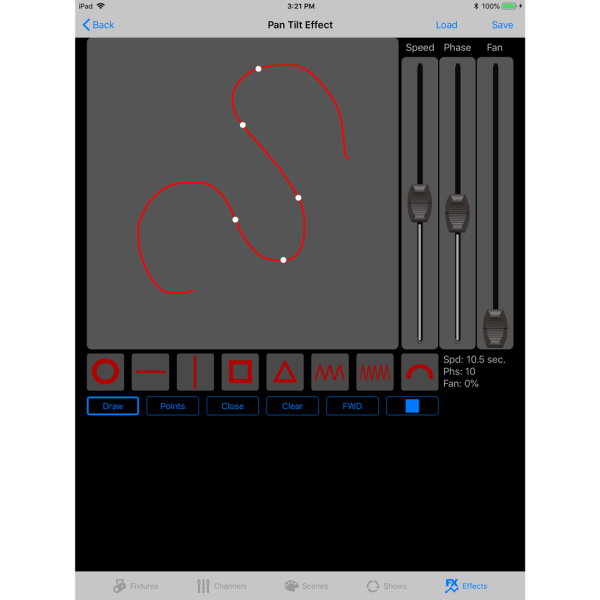

Dedicated control App, "eCast" available in the Apple App Store


eCast compatibility: Compatible with iPad only. Requires iOS 9.3 or later.

Download the Elation eCast App for free from the App Store:

For more information on eCast App, click here:

4Cast DMX Bridge and eCast App User Discussion Group:



CONTROL / CONNECTIONS

Private Standalone 2.4GHz DSSS WiFi Network*
(4) DMX Universes
Supports Standard Networking Protocols, DMX-512, Art-Net, sACN, and E-FLY**
4Cast iOS App
4-Button Control Panel
LCD System Menu Display
Separate WiFi and E-FLY Antennas

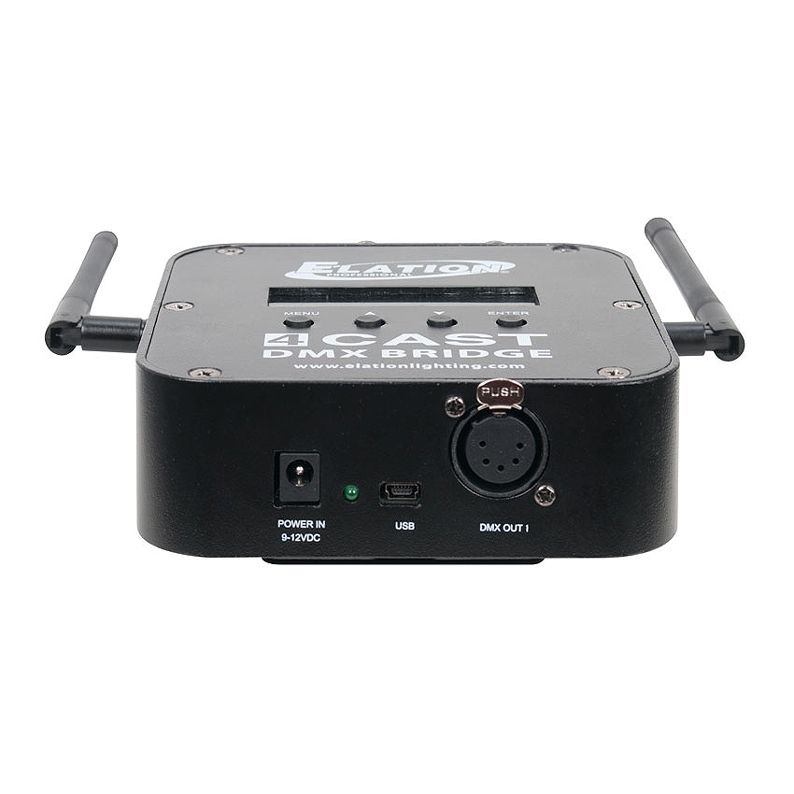

(3) 5pin DMX Outputs
(1) Mini USB Port


SIZE / WEIGHT

Length: 4.92" (125mm)
Width: 6.88" (175mm)
Vertical Height: 2.44" (62mm)
Weight: 1.06 lbs. (0.48kg)


ELECTRICAL

DC 9-12V 1Amp

*Up To 75 feet (22.8m) WiFi Range
**Up To 2,500 feet (762m) E-FLY Range


Specifications and documentation subject to change without notice
