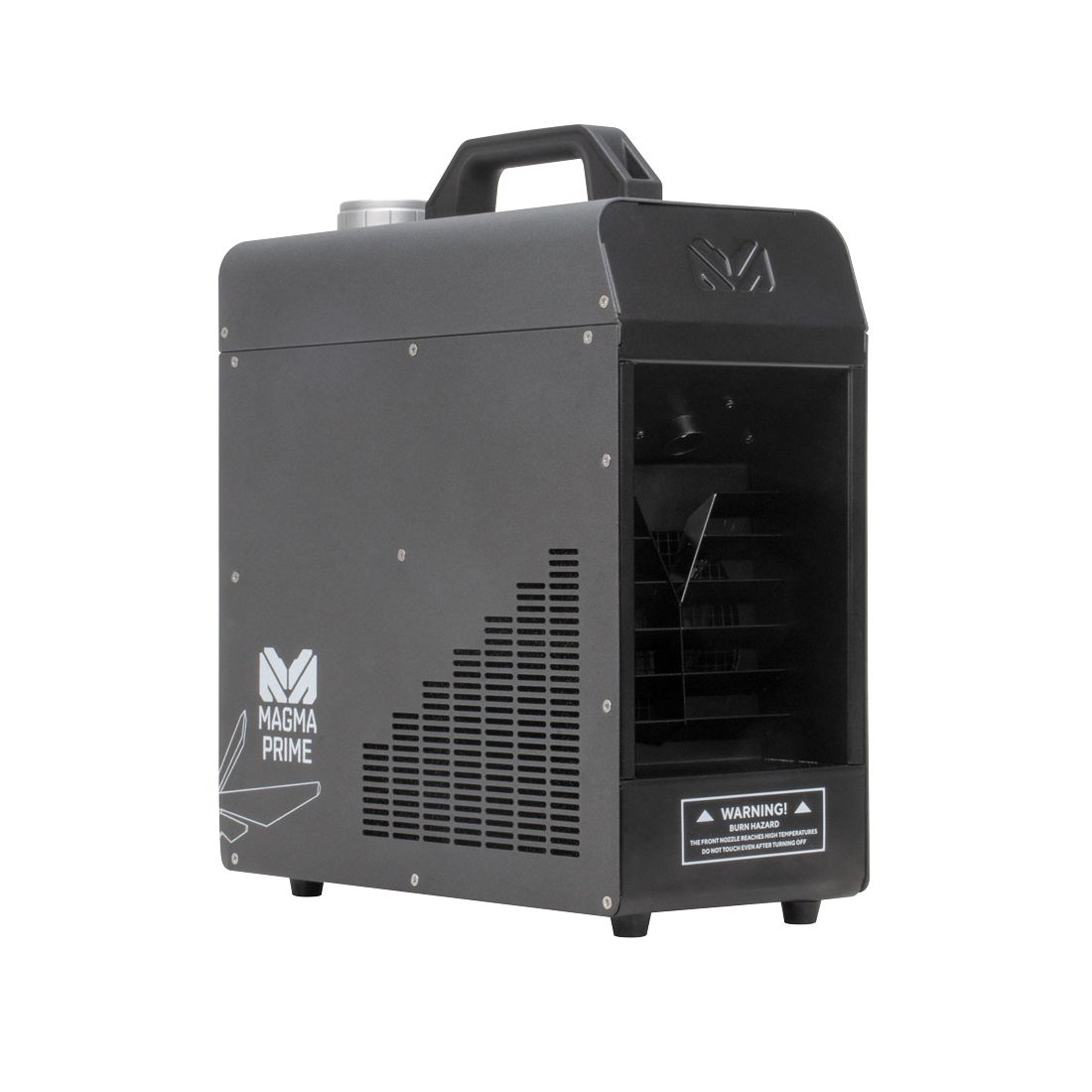

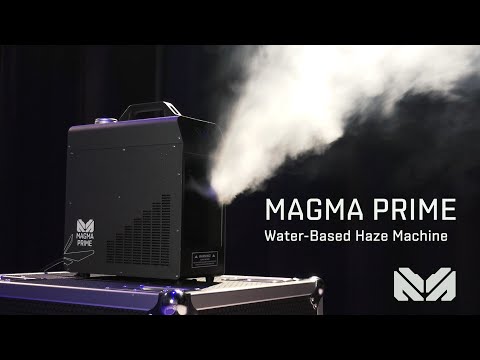

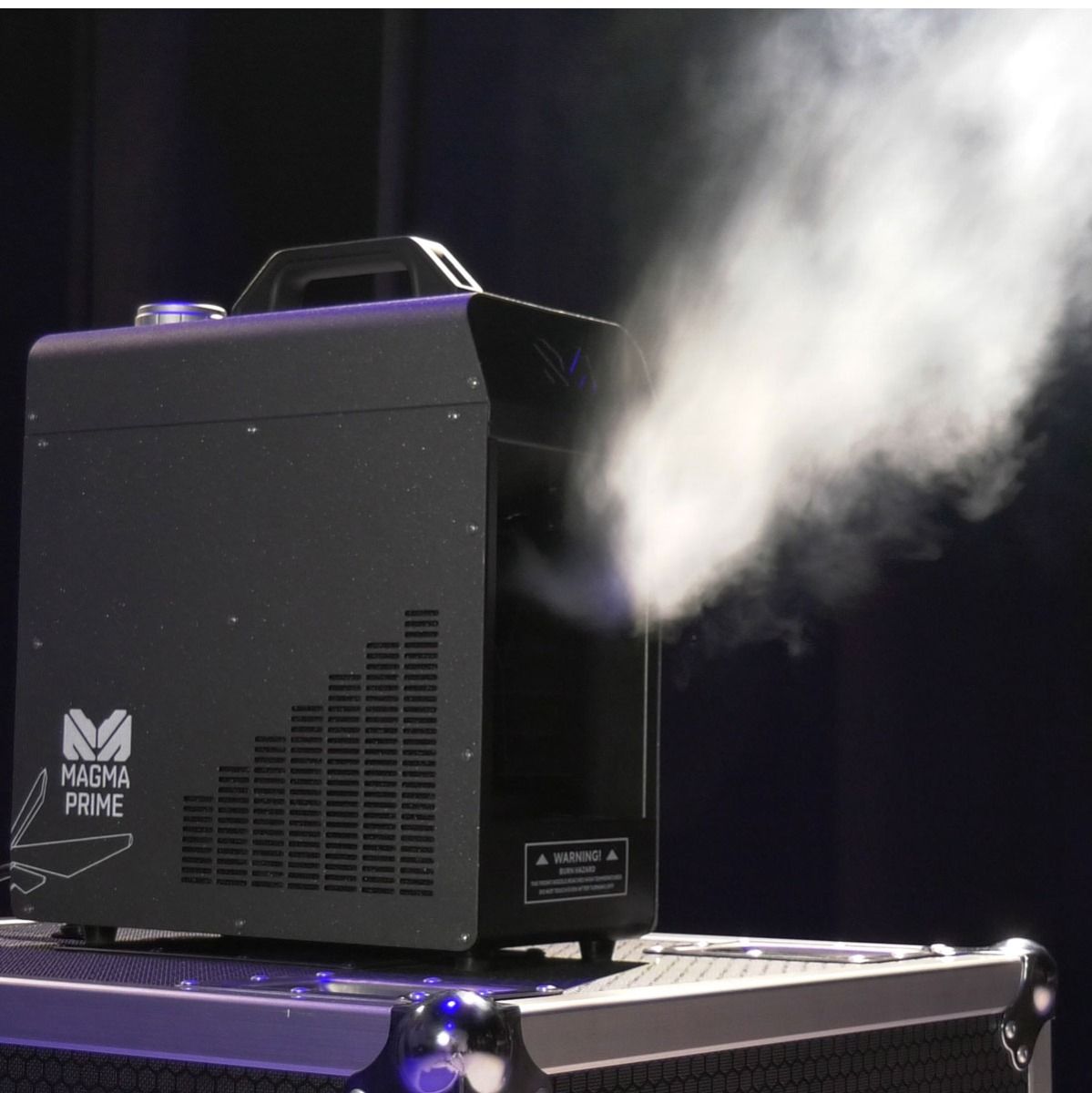

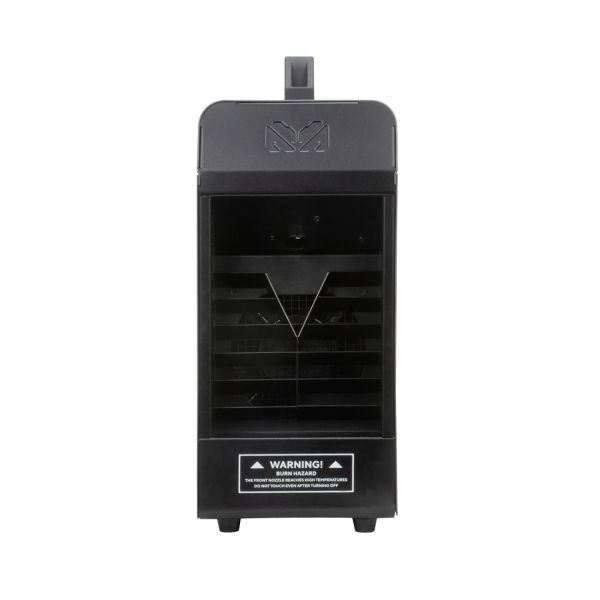

MAGMA PRIME

FEATURES

700W Water-Based Fazer
4,000 CFM* (cu ft/min.) (113 m3/min*) Output
Advanced HPA (high pressure air) Pump Technology
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
*approximate

SPECIFICATIONS

PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate

COMPATIBLE FLUID

Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers

CONSTRUCTION

Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL

3 DMX Channel Modes (1 / 3 / 5)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support

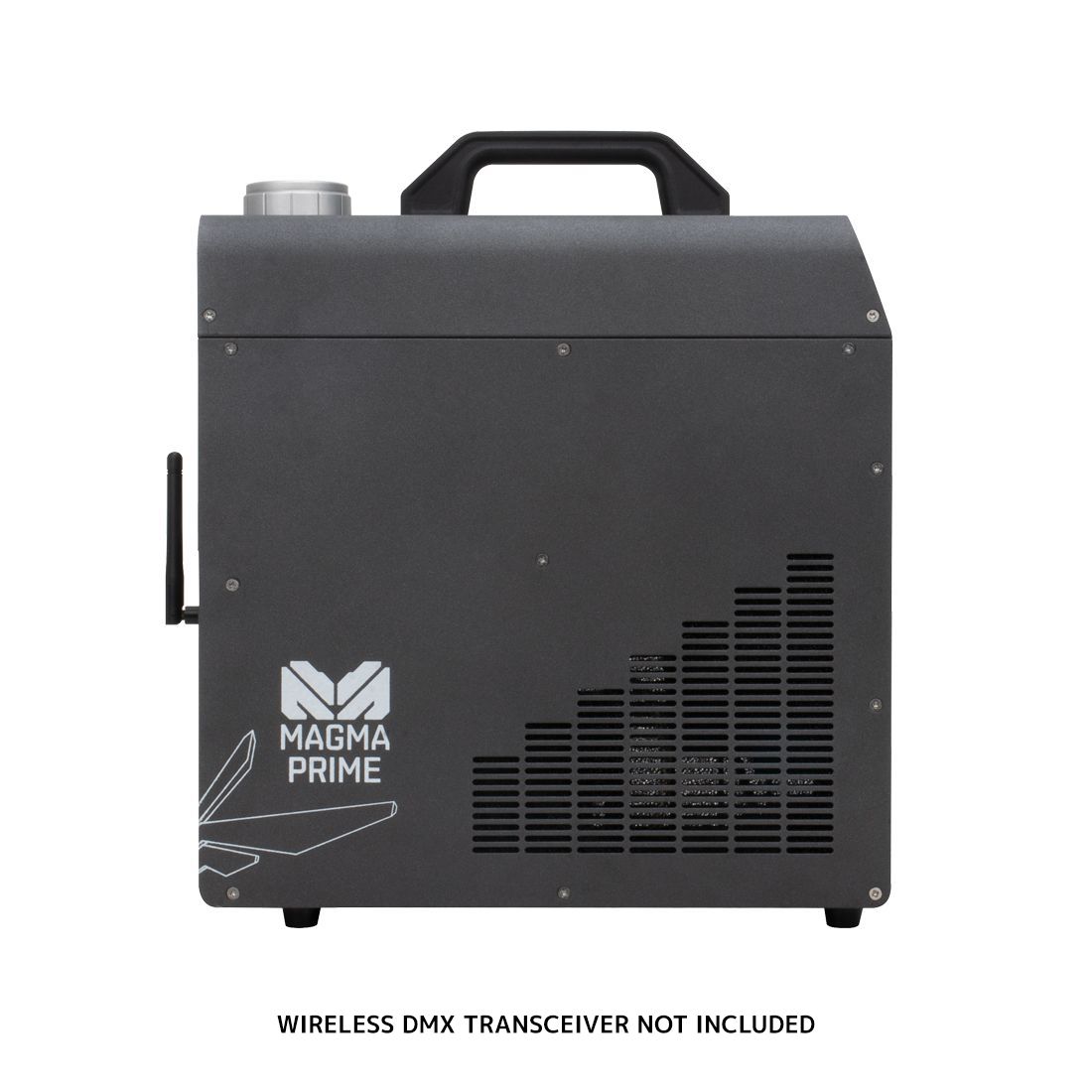

Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

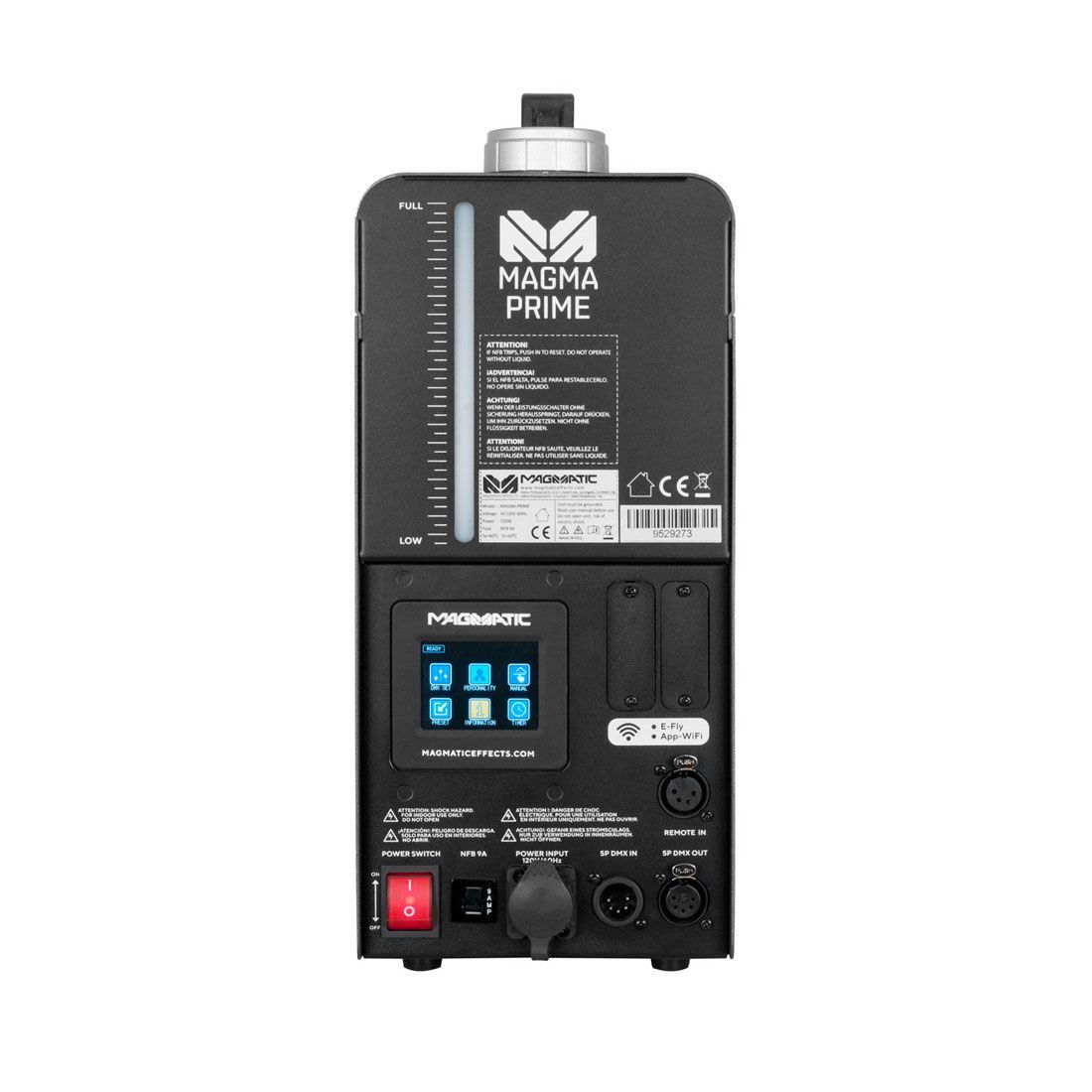

CONNECTIONS

Locking 5pin XLR Connector In/Out
Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 338mm (13.3 in.)
Width: 160mm (6.30 in.)
Height: 400mm (15.70 in.)
Weight: 10.2kg (22.48 lbs.)

ELECTRICAL

AC 230V 50Hz
5A (NFB)
Max Power Consumption: 720W

THERMAL

Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)

OPTIONAL ACCESSORIES

Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers
MagFLY Card
MagRF Card
