ONYX Premier

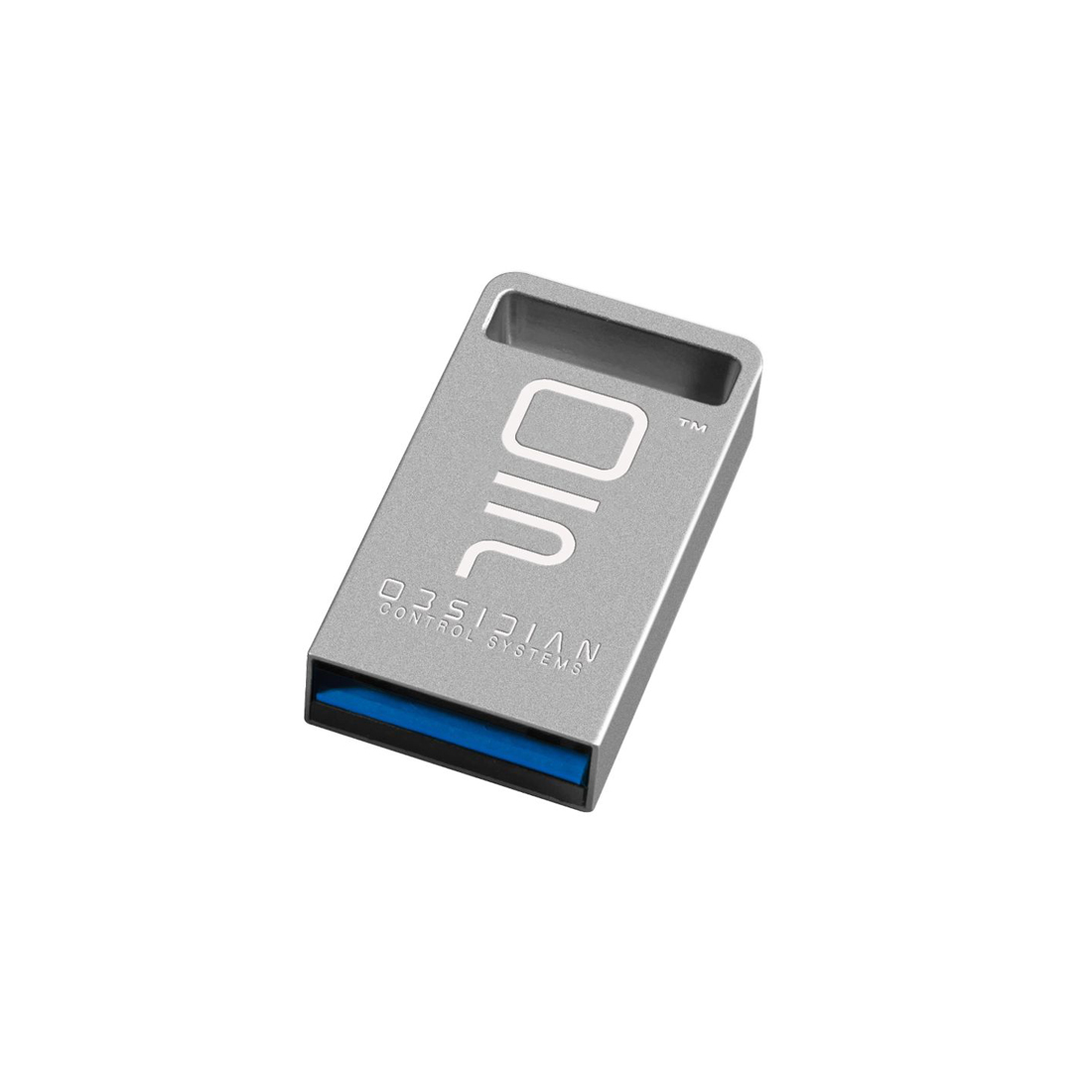

ONYX Premier is an encrypted USB key to enable 64 ONYX Universes and unlock OSC, MIDI and Timecode features for PC Systems.

This compact key carries an ONYX license that is instantly recognized by the ONYX software. No online connectivity or activation is required. Different license levels are available to suit the size of the show.

The ONYX Premier key can be used on any PC and is not registered to a specific hardware. Drivers are pre-installed with ONYX, making this key plug and play. The ONYX Key is a great solution for users on the go, as a backup systems or to build powerful PC systems for architainment applications.

Click here to learn more about the range of Onyx PC options and interfaces

Technical Data

FEATURES

Flexible ONYX license
USB 2.0 compact housing with security loop
Plug and Play, no additional drivers required

CONNECTIONS

USB In: USB 2.0

SPECIFICATIONS

64 Universes
5 DyLOS Zones
OSC, MIDI and Timecode Unlock
Encrypted USB 2.0 device

ELECTRICAL

5V over USB
Maximum current: 20 mA

REQUIREMENTS

Windows 10
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN

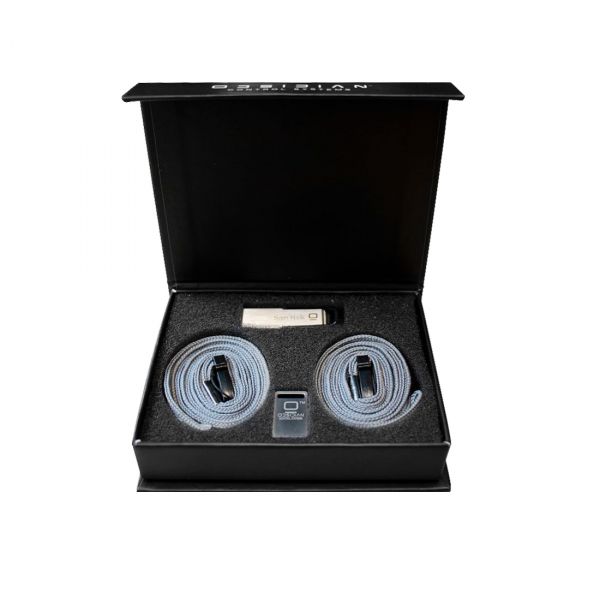

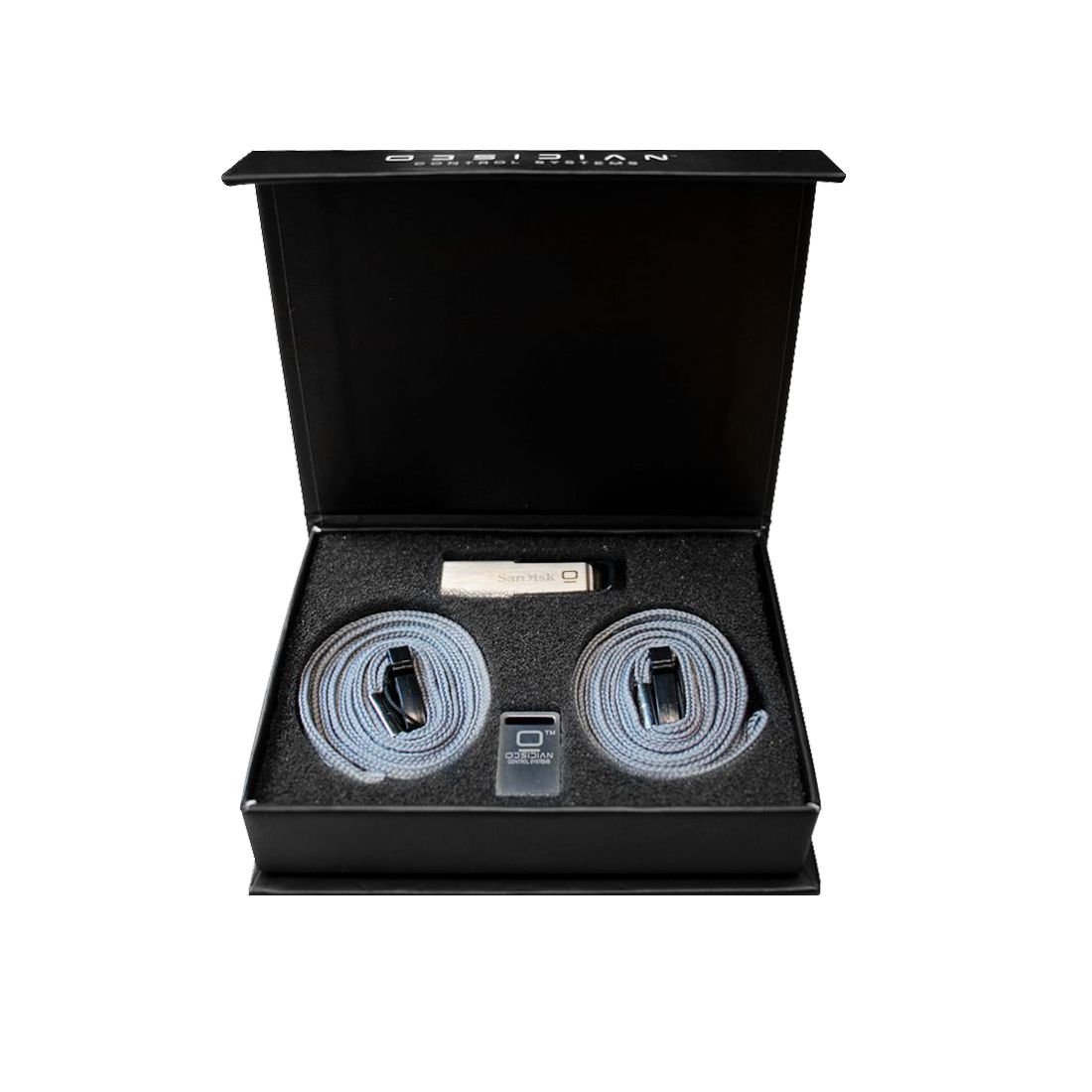

INCLUDED ITEMS

ONYX Essential Key
USB Drive with ONYX Software
2x ONYX USB Lanyard


Specifications and documentation subject to change without notice
