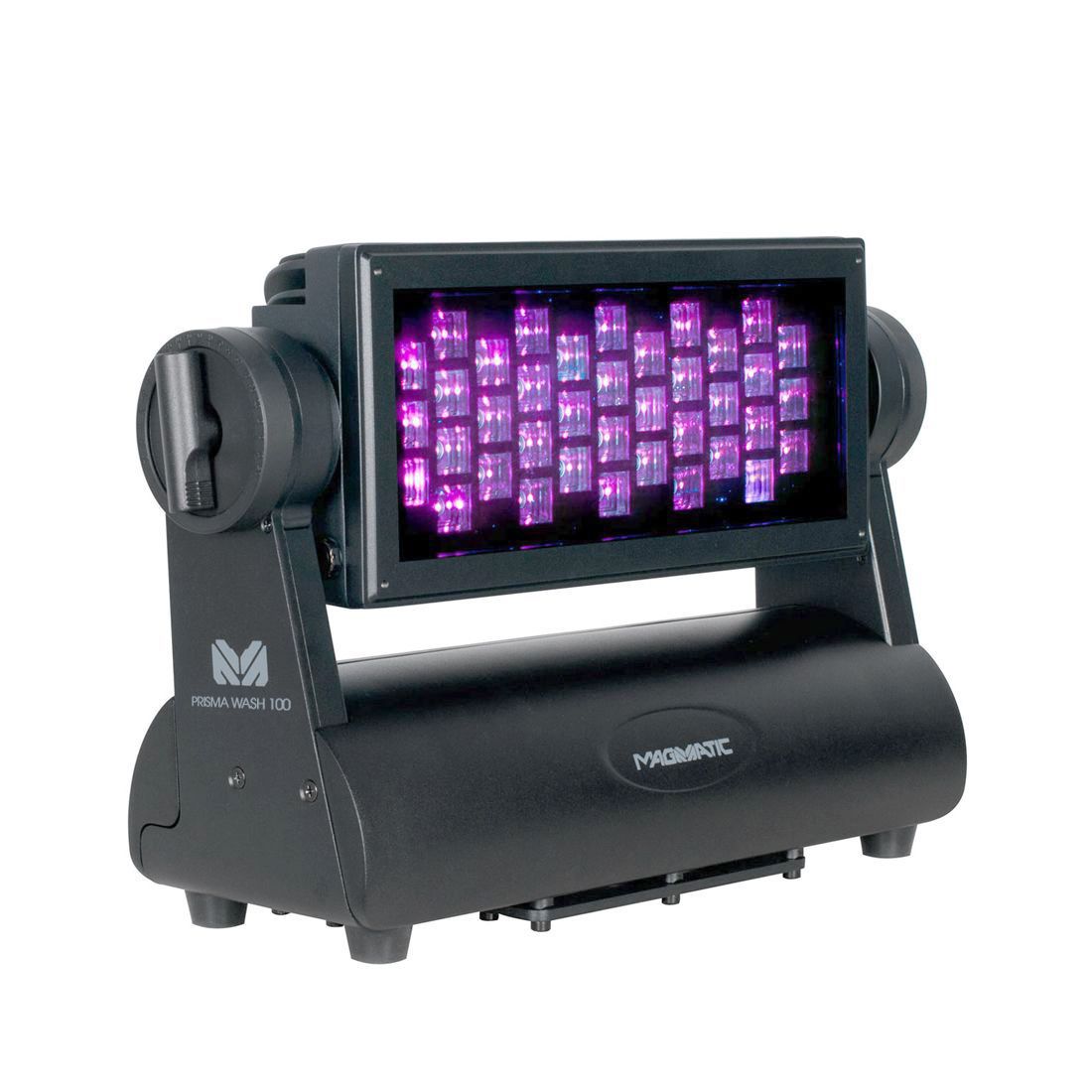

Prisma Wash 100

The PRISMA WASH 100™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

Optional accessories include a Black Glass filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

Technical Data

FEATURES

IP65 Rated Exterior High-Power UV Wash Luminaire
Scoop LED Reflector Design
90 Degree Wide Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light
Output Optional Black Glass Diffusion Filter

SPECIFICATIONS

SOURCE

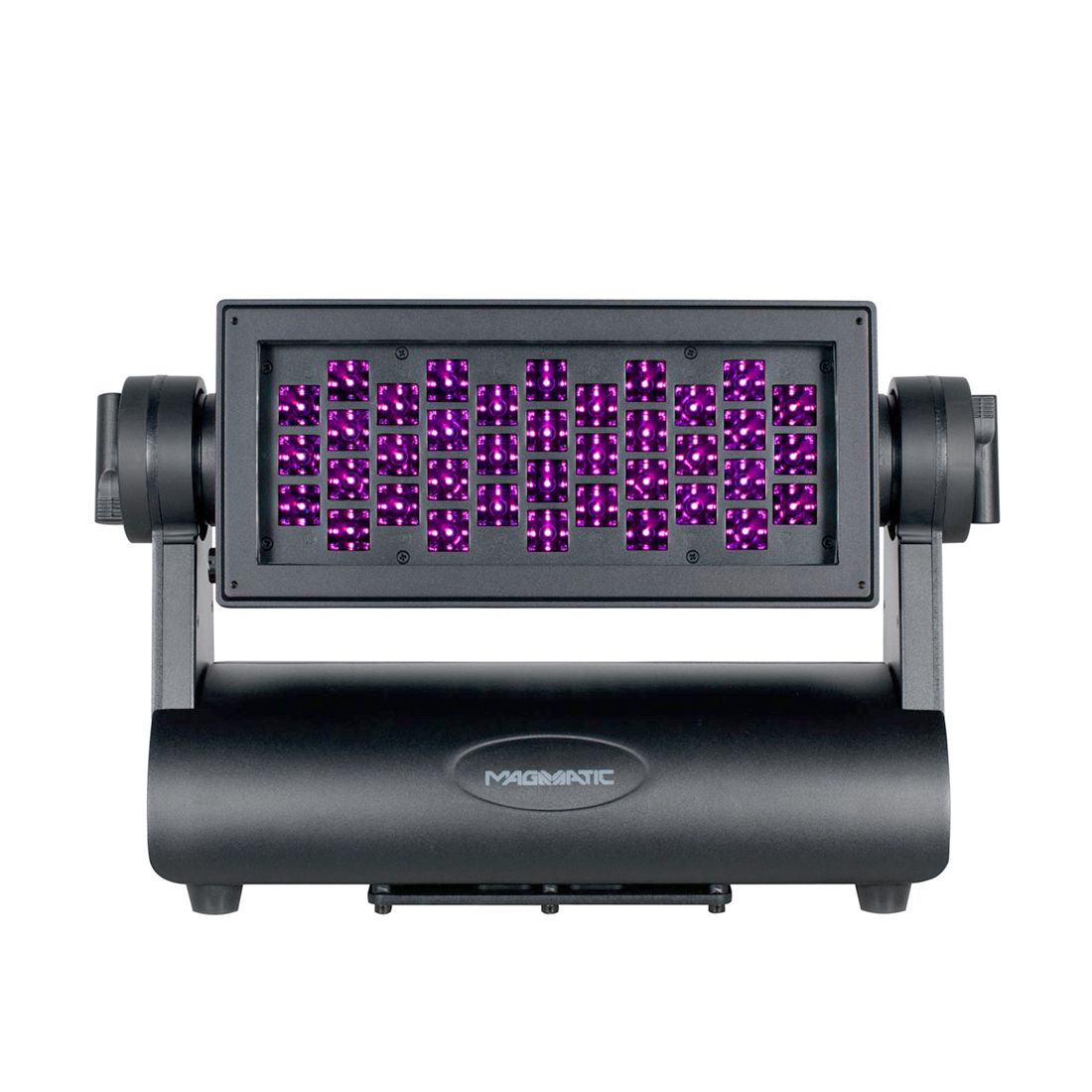

(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

90 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS

High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION

Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position

CONTROL

Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

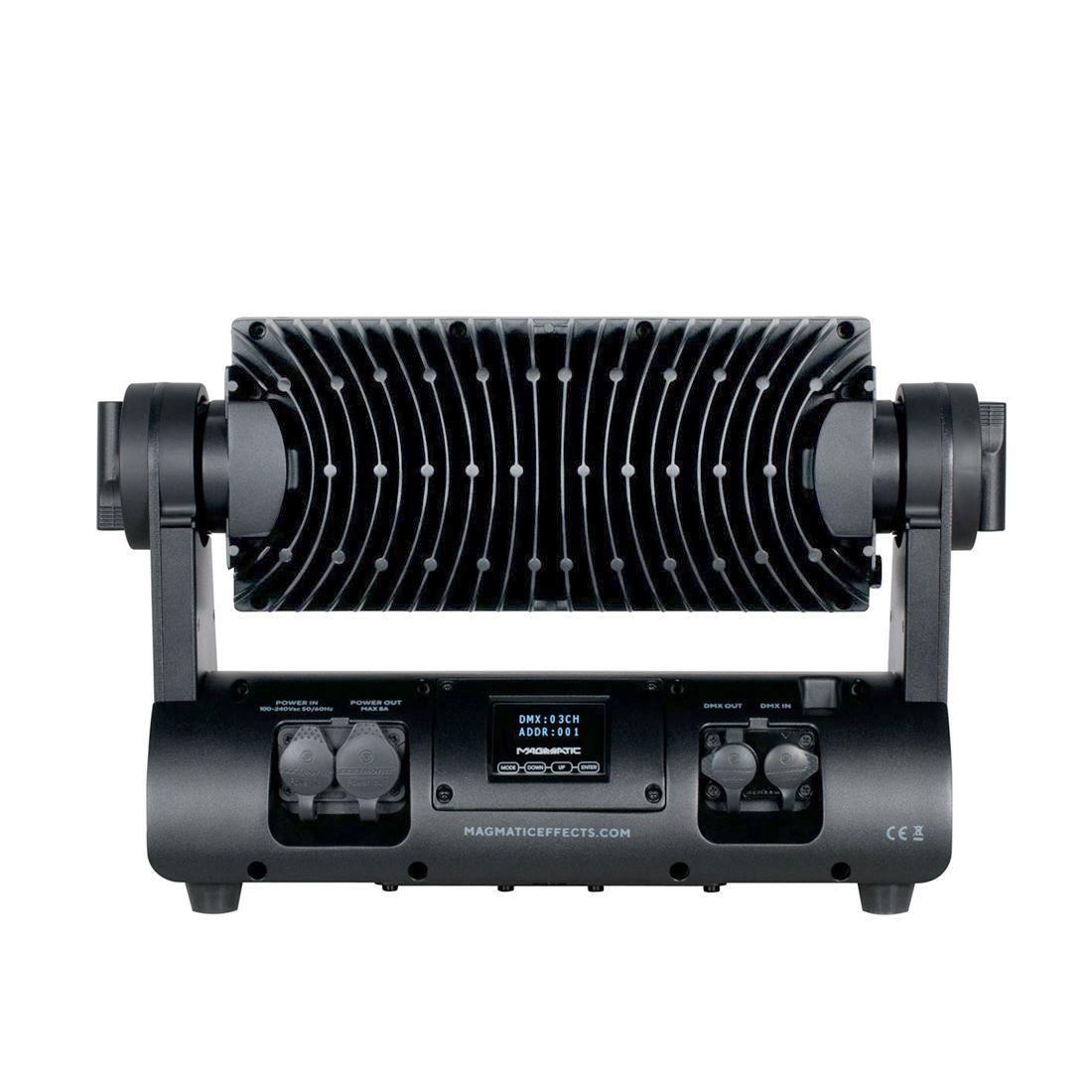

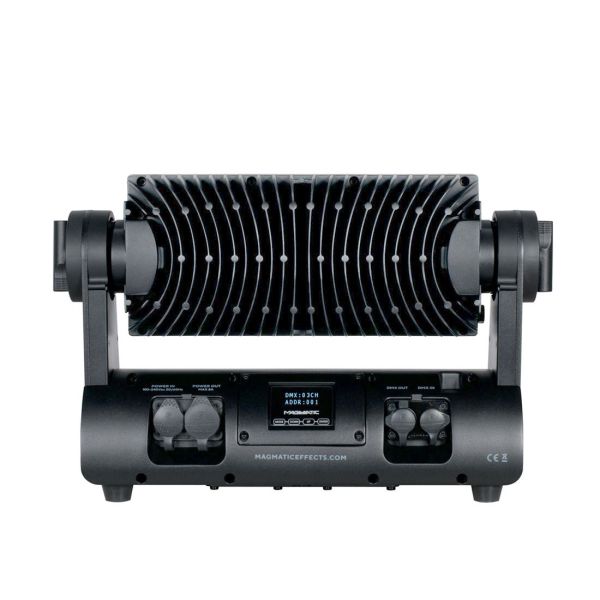

CONNECTIONS

Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 438mm (17.24”)
Width: 148mm (5.82”)
Vertical Height: 287mm (11.29”)
Weight: 8.4 kg (18.5 lbs.)

ELECTRICAL

AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL

Ambient Temperature (Ta max) 40°C (104°F)
Air Cooled

OPTIONAL ACCESSORIES

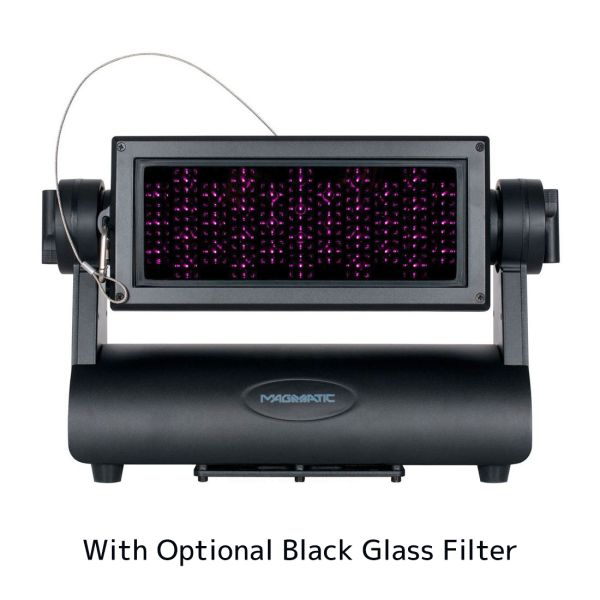

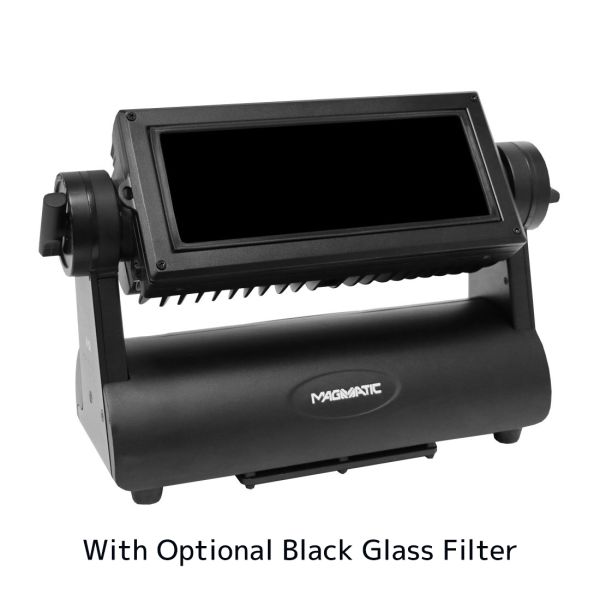

Black Glass Filter (see below in Related Products) - For the Prisma Wash 25 and Prisma Wash 100 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

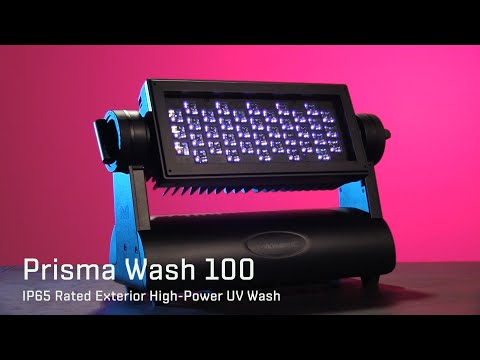

Videos
